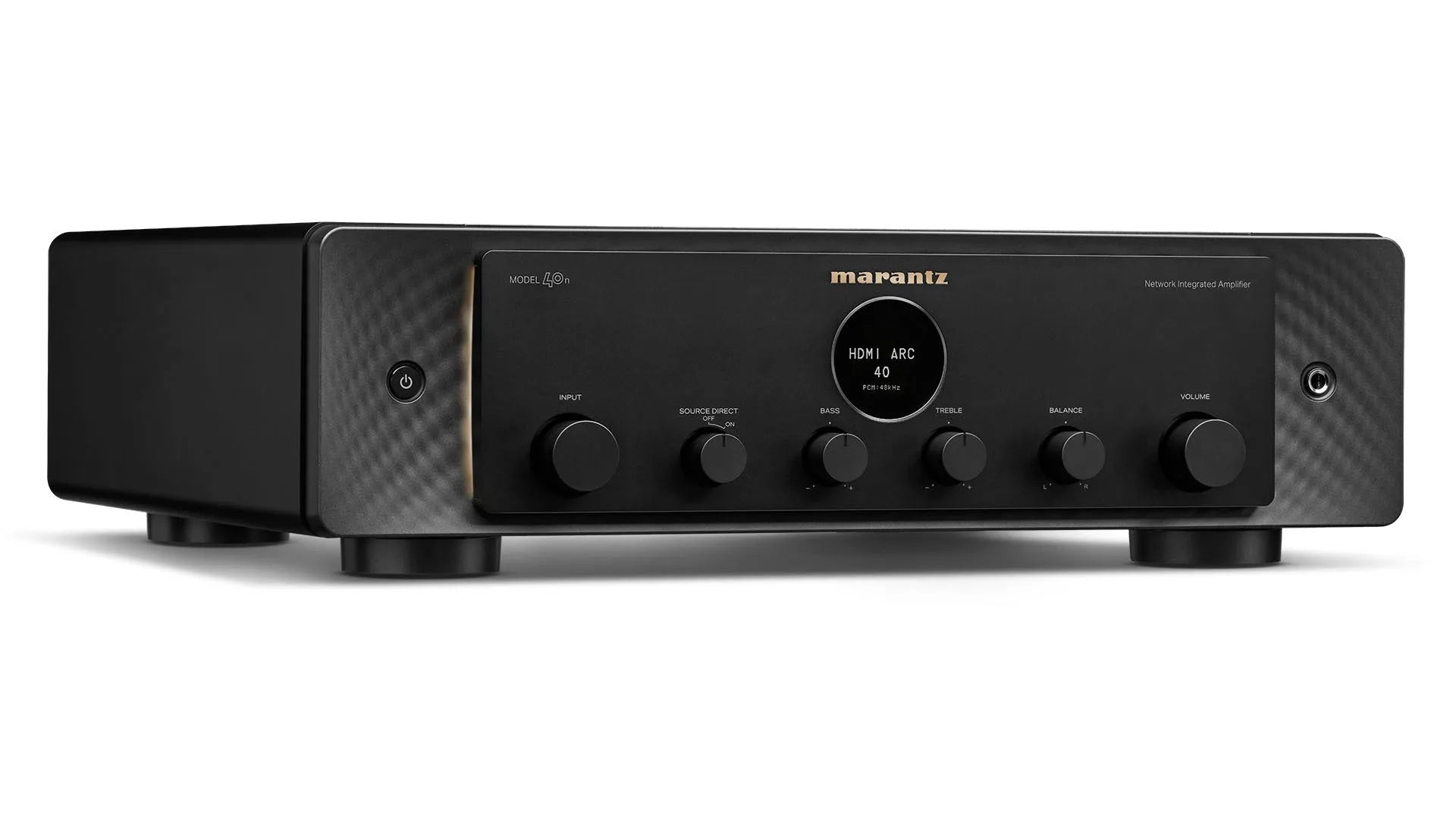

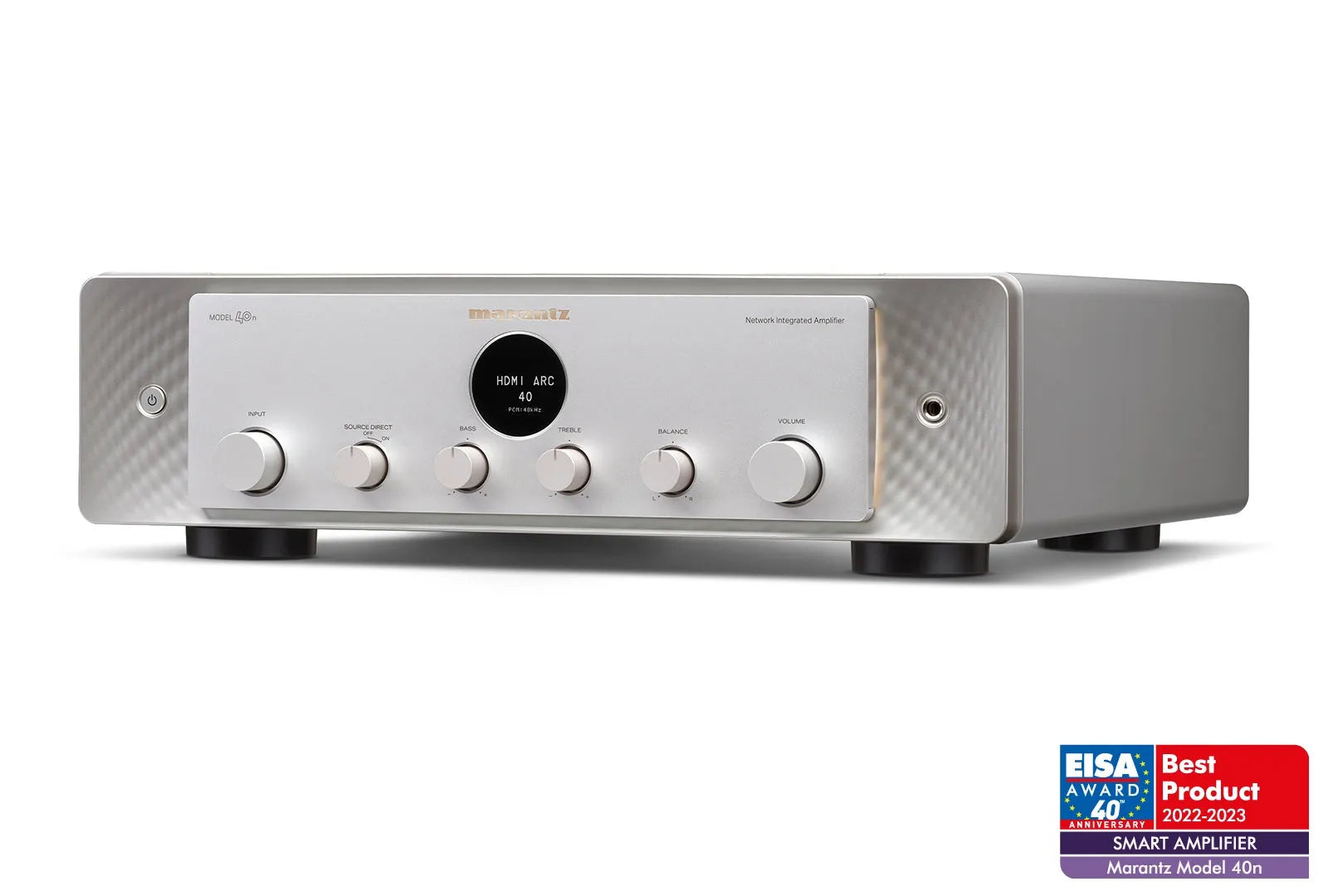

Marantz MODEL 40n, integrated stereo amplifier with network player

INFORMATION

• Power: 70W + 70W (at 8 Ohms) and 100W + 100W (at 4 Ohms).
• Frequency band: 5Hz - 50kHz.
• Supported: Spotify, Amazon Music HD, Tidal.
• High-Resolution Digital Streaming function.
• Marantz Musical Phono EQ.

DESCRIPTION

Key Features

• The Most Musical Sound From Any Source

  A full complement of analogue and digital inputs plus built-in streaming and HDMI make listening enjoyable and easy regardless of source.

• Stream Millions Of Hi-Resolution Songs

  Stream from Spotify, Amazon Music HD, Tidal (where available), and more or enjoy your own music file libraries. Works with Alexa, Google, and Siri.

• Whole-Home Hi-Fi

  Create a multiroom musical experience with the MODEL 40n as your home's music hub.

• HDMI Input Adds AV Connectivity

  HDMI ARC (Audio Return Channel) adds uncommon flexibility to this stereo amplifier by enabling TV sound through your stereo.

Multiroom streaming
with HEOS Built-in

Effortlessly connect via Bluetooth, Apple AirPlay 2, or directly from the HEOS app to play all your favorites from hundreds of streaming services.

High-Resolution Digital Streaming Built-In

MODEL 40n is for those whose music collection is infinite and online. Connect to your network with Wi-Fi or ethernet. With HEOS® Built-in, you won't need extra equipment to stream your favorite tunes. MODEL 40n supports Spotify, AirPlay 2, Apple Music, Bluetooth, Tidal, TuneIn, and more services—plus, playback of your own collection via USB-A input or on compatible home servers.

The Marantz Musical Phono EQ

The joy of vinyl playback is both audible and tactile yet requires highly specialized electronics for high performance. The Marantz Musical Phono EQ is built in so you can connect a turntable with MM cartridge directly to MODEL 40n. You'll enjoy your favorite records and discover new ones, all without the burden of additional electronics.

Precise Tone Control

Your sound preferences at your fingertips. Adjust bass and treble to suit your sound or bypass for the purest sound possible.

Luxurious Look and Feel

MODEL 40n follows a long line of historic Marantz pieces notable for their exquisite design. Every aspect is considered—from premium materials, symmetry, classic porthole display, and even smooth operation of the volume control. Your stereo doesn't need to look like lab equipment. Marantz MODEL 40n begs to be heard, seen, and touched.

Hyper Dynamic Amplifier Modules

To preserve the detail, nuance, and essence of the music you love, Marantz developed HDAM (Hyper Dynamic Amplifier Modules) which are superior in their speed and response to off-the-shelf modules found in other products. MODEL 40n leverages this unique Marantz innovation to ensure whatever you're listening to is always the most musical.

Subwoofer Output

Deep bass is a visceral and exciting sensation. When partnered with equally excellent speakers, MODEL 40n produces impressive bass. If you want more, add a subwoofer using the dedicated subwoofer output and dial in the low-frequency crossover settings and level for precise integration with your main loudspeakers.

TECHNICAL DATA

SPECIFICATIONS

• Output Power

  Rated Output Power

  70W + 70W (8ohm) 100W + 100W (4ohm)

  Features

  Power Amplifier Circuit	HDAM-SA3
  Power Transformer	Double Shielded Toroidal
  Volume	Electric
  Bass / Treble / Mid / Balance Control	yes / yes / - / yes
  Source Direct	yes
  Frequency Response	5Hz - 50kHz
  Total Harmonic Distortion	0.02% (20Hz - 20kHz, 8Ω)
  Dumping Factor	100
  Input Sensitivity: Phono input	2 mV / 47 kohm
  Input Sensitivity: CD/LINE/RECORDER	220 mV / 20 kohm
  Input Sensitivity: Power Amplifier input	1.6 V / 15 kohm
  SN Ratio	PHONO (MM): 87dBCD: 106dB

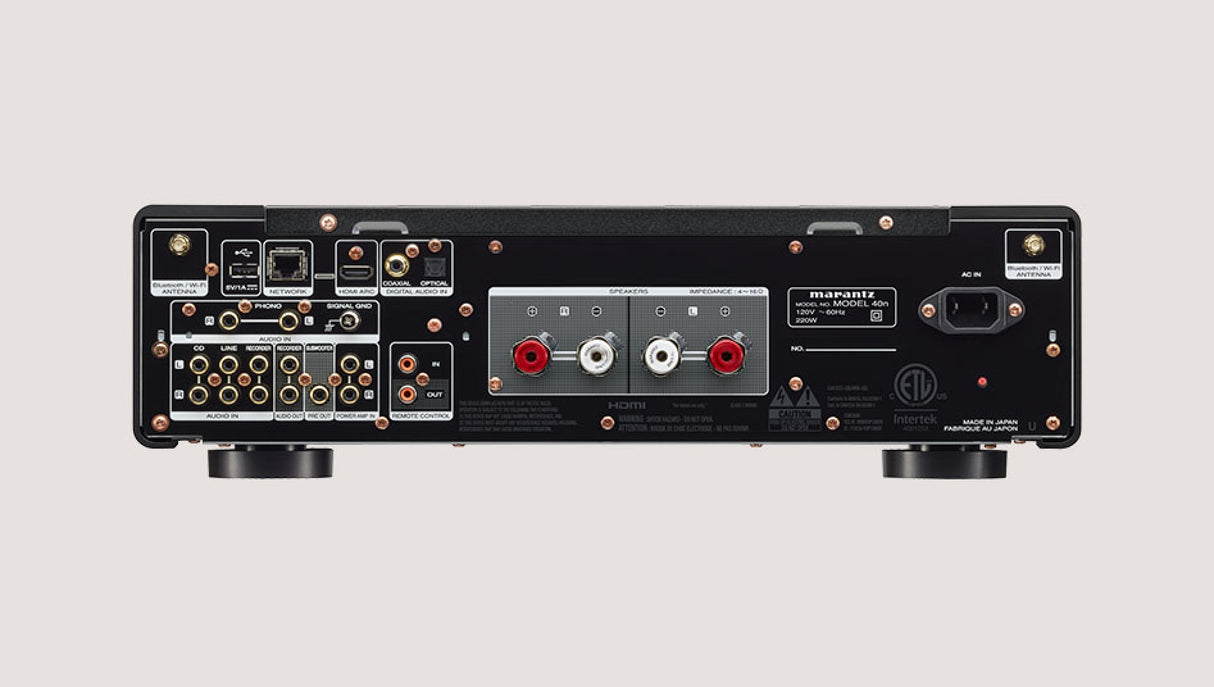

  Terminal

  Phono Input	yes (MM) Marantz Musical Phono EQ
  Ext. Pre Input (Power Amp Direct)	yes
  Preout	well
  Analog Input (include Phono) / REC Out (RCA)	4 (PHONO, CD, LINE, RECORDER) / 1 (RECORDER)
  Optical input	1
  Coaxial input	1
  HDMI	1 / 0 (ARC) PCM only
  USB A	1 (Rear), Mass Storage Class 5V/1A
  Speaker Terminal	SPKT-1+
  Remote Control Bus Terminal	yes (RC-5 In / Out)
  Subwoofer Pre-out Low Pass Filter	Selectable 40 Hz / 60 Hz / 80 Hz / 100 Hz / 120 Hz

  CONTROL

  App	HEOS App
  Remote Controller	System Remote Features (Amp and CD Player Control)

  Others

  Power Consumption	220W, 0.3W (Standby)
  AC Inlet	yes
  Quick Start Guide	Included
  Packaging Dimensions (W x H x D in inches)	21" x 10" x 20.6"
  Product Dimensions (W x H x D in inches)	17.4" x 5.1" x 17"

  Cosmetic

  Panel Color	SG / BK
  Front Center Panel	Aluminum
  Top Cover	Steel
  Edge Lighting	yes (Dimmer)
  Volume Knob	Aluminum
  Input Selector	Aluminum
  Bass/Treble/Balance/ REC Out Sel knobs	Aluminum
  Power button	Aluminum
  Chassis Material	SECC
  Bottom Layer	Thicker double layer

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
