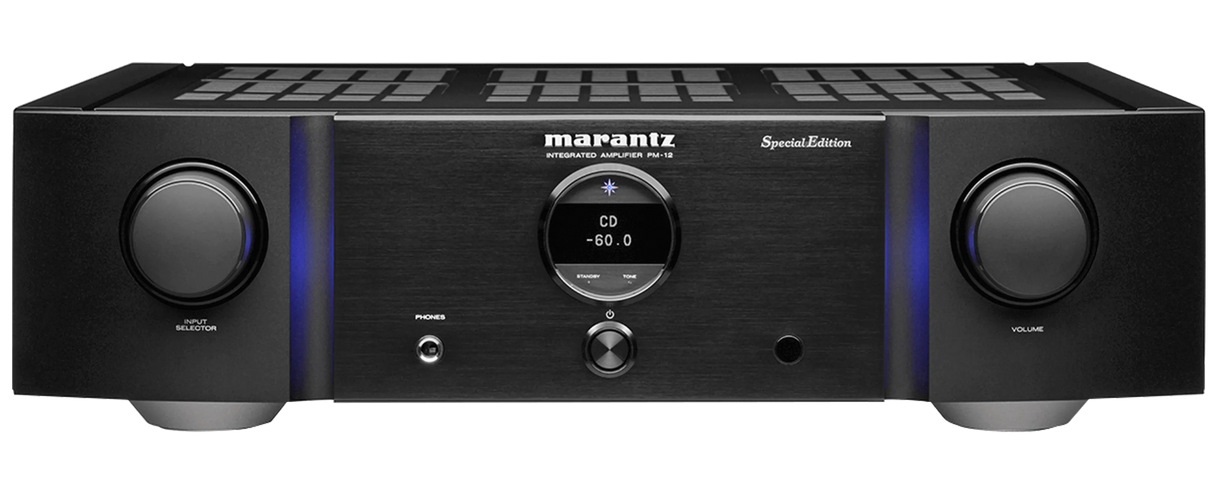

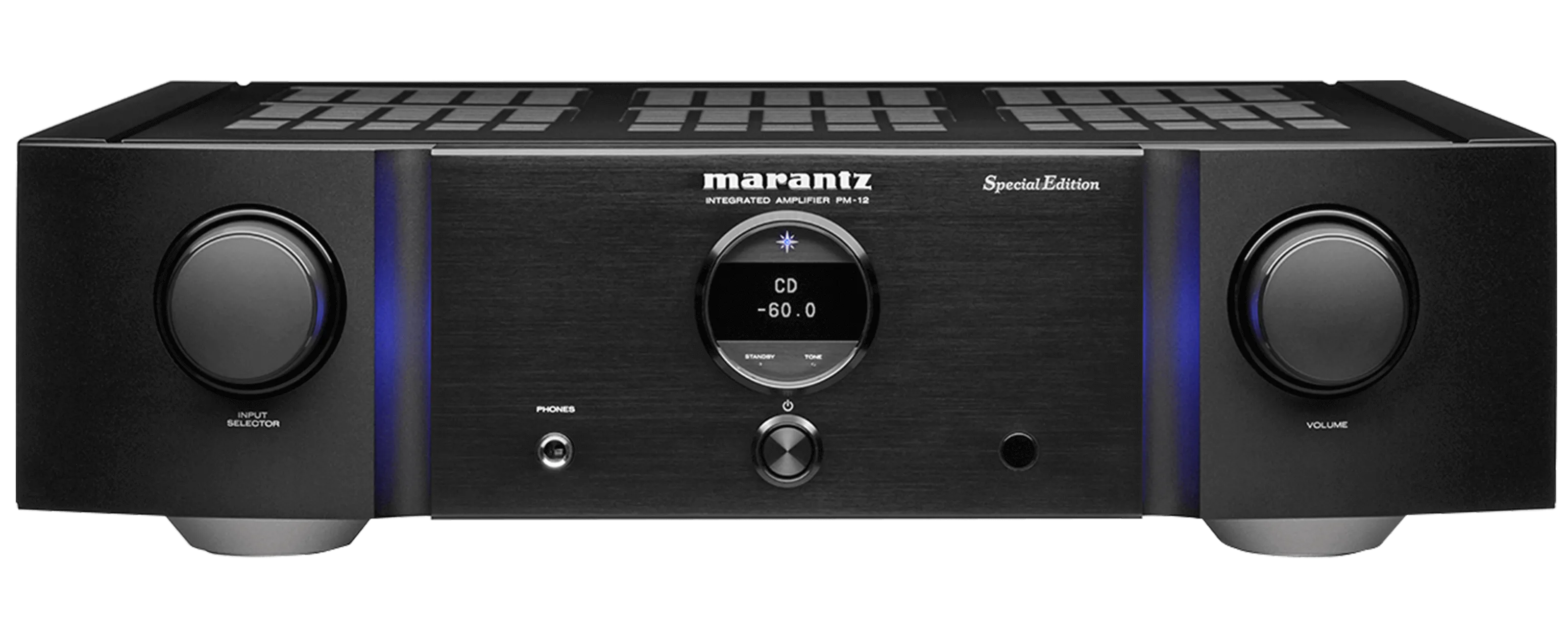

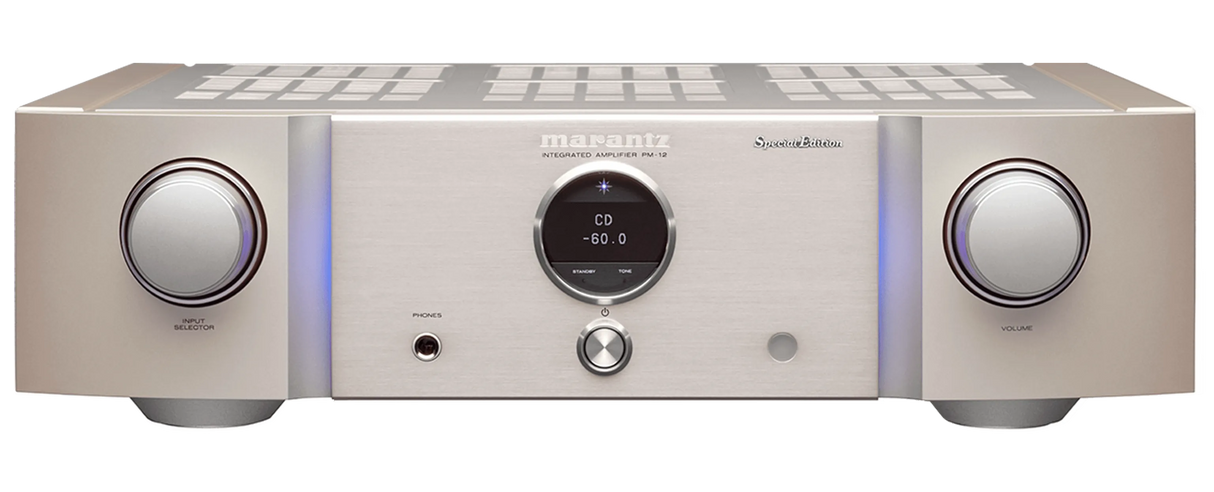

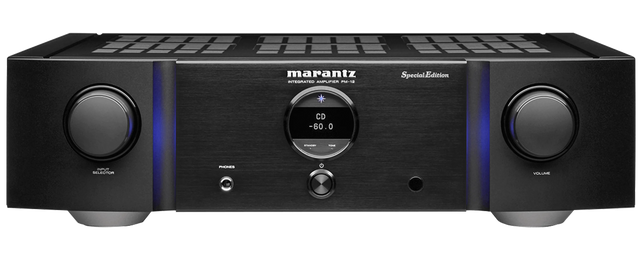

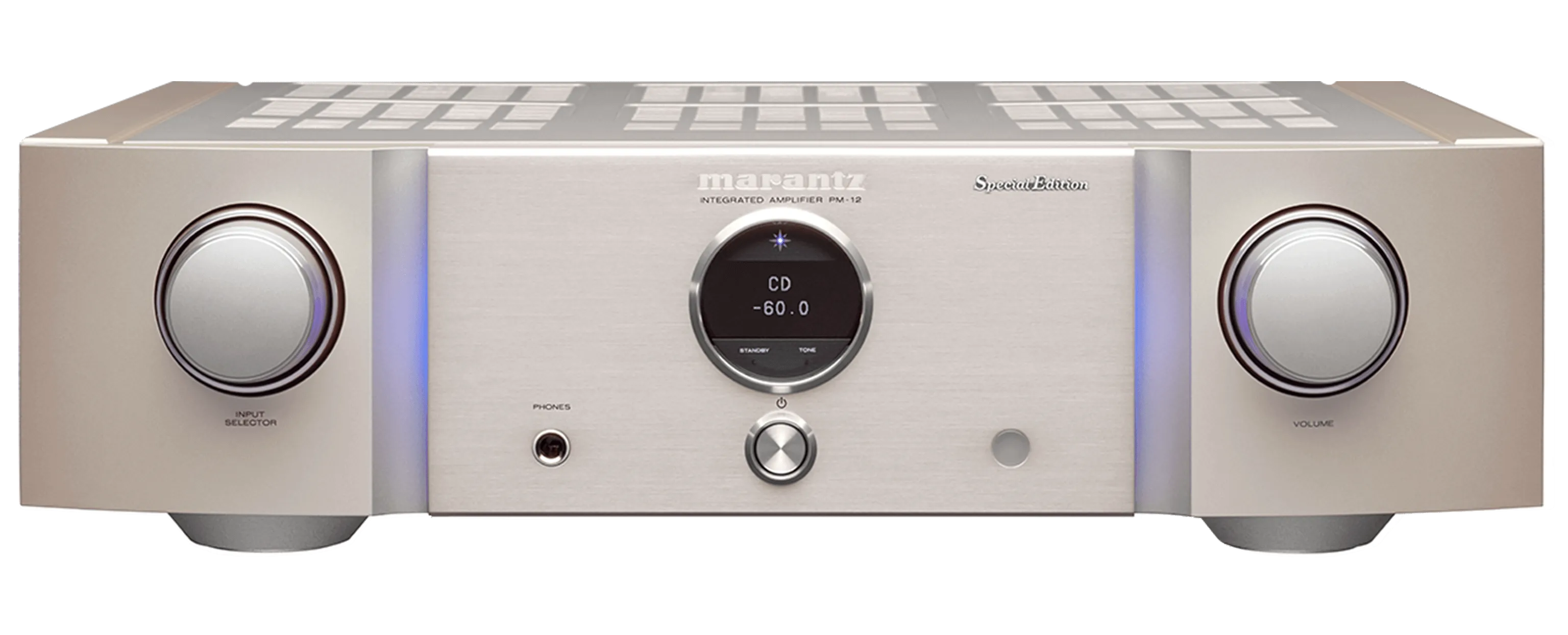

Marantz PM-12 Special Edition Integrated Amplifier (Various Colors)
Marantz PM-12 Special Edition Integrated Amplifier (Various Colors) - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
Extensive and meticulous tuning has long been the secret to great Marantz amplifiers. When it comes to the PM-12SE, the Marantz engineering team has drawn on all their experience and knowledge, both in designing the amplifier and in the long listening sessions involved in finalizing the sound. The Sound Masters team, based in Japan and Europe, did not stop working intensively until they were absolutely sure that they had achieved the quality worthy of the Marantz name.
- High power: 100W + 100W (into 8ohm), 200W + 200W (4ohm).
- Fully discrete, two-stage design ensures signal purity, with separate power supplies and power amplifier sections to minimize interference.
- Toroidal transformer for sound clarity and power.
- Innovative design with newly developed wide range circuit.
- HDAM® SA3 circuit - clean signal and optimal dynamics.
- MM/MC Phono input with new separate Marantz Musical Premium Phono EQ circuit.
DESCRIPTION
- Designed and fine-tuned by a team based on over 65 years of Marantz amplifier design knowledge
- Marantz high-resolution amplifier stage with patented HDAM technology
- Switching power amplifier design based on the PM-10 reference amplifier
- High power: 100W + 100W (into 8ohm), 200W + 200W (4ohm)
- Fully discrete, two-stage design for signal purity, with separate power supplies and power amplifier sections to minimize interference
- Toroidal transformer for sound clarity and powerful
- Innovative design with newly developed wide-range circuit
- HDAM® SA3 circuit - clean signal and optimal dynamics
- MM/MC Phono input with new separate Marantz Musical Premium Phono EQ circuit
- Thick nickel-plated copper, independent input terminals for CD and Phono, and original Marantz high-quality/high-purity copper-plated speaker terminals
- High-quality construction with a double-layer chassis and a solid aluminum front
- Purest mode turns off unused circuits to ensure the best sound transmission
- High-quality, carefully selected audio parts: ultra-low leakage current Schottky diodes, low-noise complementary transistors, high-quality resistors, newly developed special electrolytic capacitors, audio-grade film capacitors and mica capacitors.
| Extensive and meticulous tuning by sound masters is what gives all Marantz products their exquisite sonic signature. No component leaves the hands of the Marantz Sound Masters until it has passed their rigorous testing. Only the best products, thoroughly tested, will make it to your home. Marantz Special Editions are Marantz's way of celebrating the love of music that runs deep in the veins of Marantz sound engineers and masters, exhibited in the craftsmanship and mastery of those special components. Every now and then, sound engineers will recognize a product with potential that exceeds expectations and master it with extra and reckless attention to detail, component selection and listening sessions. The original PM-12 was created exclusively for the Japanese market and soon appeared in the European market as well. The sound engineers combined this with the achievements made in the development of the famous PM-KI Ruby, and thus the PM-12 Special Edition was born. |
|
Extensive and meticulous tuning has long been the secret to great Marantz amplifiers. When it comes to the PM-12SE, the Marantz engineering team has drawn on all their experience and knowledge, both in designing the amplifier and in the long listening sessions involved in finalizing the sound. The Sound Masters team, based in Japan and Europe, did not stop working intensively until they were absolutely sure that they had achieved the quality worthy of the Marantz name.
|
Marantz HDAM Technology
Marantz has developed its own discrete circuits, called Hyper Dynamic Amplifier Modules, or HDAMs, to replace the chip-based amplifiers used elsewhere. Using discrete surface-mount components with short mirror-image left and right signal paths, HDAMs significantly outperform conventional integrated optical amplifiers in terms of crossover frequency and noise floor. The result is much more dynamic, precise and detailed. Over the years, Marantz has developed different HDAMs to meet the specific requirements of players and amplifiers. The PM-12SE uses the latest version of the high-performance SA3. Combined with an optimized circuit design layout and carefully selected components, the PM-12SE delivers exceptional sound quality and performance. |
|
Marantz Musical Premium Phono EQ
With the introduction of the Marantz Musical Premium Phono EQ stage, Marantz has taken its ongoing commitment to vinyl to new heights. Designed to deliver optimum sound quality by simplifying the signal path - crucial given the delicate nature of phono signals - the Phono EQ stage in the PM-12SE amplifier can be used with both moving magnet and low-power moving coil cartridges thanks to the built-in MC head amplifier. The phono stage uses two-stage amplification, combining a Marantz HDAM with a JFET (field-effect transistor) in the input stage, providing high input impedance. This further simplifies the negative feedback effect and eliminates coupling capacitors, again reducing distortion and improving signal purity.
|
High Quality Volume Control
The newly developed electric volume control uses the latest volume control IC, providing better channel separation, dynamic range and distortion reduction while maintaining the performance of an analog volume control. The amplifier uses a new Marantz-developed electric volume control, providing high linearity and the best quality channel separation.
|
The current feedback design is a well-known, original Marantz circuit technology, thoughtfully designed to meet the wide bandwidth and high-speed reproduction requirements of Super Audio High-Resolution Music. The impedance at the current feedback point is limited, creating very little phase shift. Marantz Current Feedback amplifiers reduce the need for phase compensation by minimizing negative feedback (NFB). This simplifies the signal path and ensures high bandwidth, excellent transient response and excellent audio transparency throughout the bandwidth. Unlike conventional voltage feedback topology, current feedback also makes the power amplifier insensitive to heavy speaker loads.
Building on the design elements of the PM-10, the PM-12SE is designed to enhance the refinements, maintain the purest possible sound and maintain the power required to drive the most demanding speakers. The PM-12SE amplifier output stage allows for high power output, delivering 2x100W into an 8ohm load and easily handling high impedance speakers, thanks to the 2x200W power output into 4ohms. The amplifier module is directly connected to the PM-12SE rear panel board to maintain signal purity and sound stability.
The PM-12SE's all-analog design contributes to its noise-reducing structure and clean build: many competitor designs today include digital-to-analog conversion or digital gain and volume control, but Marantz keeps things as clean and simple as possible thanks to its acclaimed analog design. It may seem like the amplifier has a DAC, but digital circuitry is inherently noisy (electrically speaking) and can interfere with the delicate analog signals passing through the amplifier. That's why Marantz chose to leave its Premium Series model without any digital-to-analog conversion, keeping its amplifiers as powerful as possible.
There is also a Power Amp input that passes the signal directly from the input section to the power stage, allowing the unit to function as a pure power amplifier.
|
Carefully selected components
Marantz has a strong reputation for selecting the best possible components for its Premium Series products. Marantz's alternative to "amplifier-on-a-chip" IC components, the HDAM, is a miniature amplifier module made entirely of discrete components. Marantz engineers selected and optimized the HDAM by listening to dedicated Marantz units in Europe and Japan. Extensive and meticulous tuning has long been the secret to the exceptional sound of Marantz amplifiers. During the development phase, every detail was carefully selected, tested and approved by Marantz audio engineers to ensure sonic perfection every time you listen to it. |
Analog inputs and outputs
In addition to phono and CD analog inputs, the PM-12SE features two line-level inputs and two pairs of recorder input/output jacks, allowing you to connect multiple sources and recorders. Use the PM-12SE as a standalone stereo power amplifier or as a power amplifier via the direct power amplifier input. For example, use the front of your AV setup and run it through the PM-12SE's power amplifiers.
|
|
Headphone output
Using Marantz's proprietary HDAM discrete modules, the headphone circuit delivers excellent audio fidelity with a wide range of headphone types and impedances, including low-impedance headphones. |
System remote control
Use the elegant remote control to control the PM-12SE, as well as the optional SA-12SE Super Audio CD player. The PM-12SE features remote control input and output jacks for additional remote control configuration. |
Like the complementary SA-12SE Super Audio CD player, the PM-12SE integrated amplifier is built to the highest standards with a front panel made from thick, heavy non-magnetic aluminium to prevent interference. Thick, nickel-plated copper, independent input terminals for CD and Phono plus Marantz original high-quality/high-purity copper-plated speaker terminals ensure the best possible signal.
Founded in 1953, Marantz has a long and rich history of designing audio components that have been loved by music lovers and critical listeners around the world. Because music matters, the PM-12SE continues our long tradition of providing the best-in-class music and movie listening experience.
TECHNICAL DATA
SPECIFICATIONS
Features
| Channels | 2 |
| Current feedback topology |  |
| Full balanced circuitry architecture |  |
| Double Mono Power Amp construction | |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | / / |
| HDAM version | SA3, SA2 |
| Power transformer: Toroidal / Standard | SMPS |
| High-end audio components | |
| Selected components | |
| Symmetrical plate topography | |
| Homogeneous aluminum radiator | (Separately) |
| Copper chassis | |
| Three-band tone control ("Tri Tone") | |
| Balance / Bass / Treble / Loudness | / / / |
Other
| "Linear drive power supply" | (pre-amplifier stage) |
| Linear volume control | |
| Bi-Amping and multi-channel amplification capability | |
| Shottky diodes | |
| Input buffer boost (all inputs/CD only) | / |
| System unit shielding: copper / metal / none | / / |
| Two-layer bottom plate | |
| Low Noise OELD display | |
Inputs/outputs
| Audio inputs | 6 |
| Turntable input: MM/MC | / |
| Audio outputs | 2 |
| Balanced inputs/outputs | / |
| Pre-out / Main-in | / |
| Power amplifier direct input | |
| Gold-plated RCA jacks | |
| Speakers A/B | |
| Speaker Terminals | Marantz SPKT-100+ |
| Number of connectors | 2 |
| D-Bus | |
| Control connector (3.5 mm mono jack x 2) | |
| Headphone output | |
| Headphone Gain Control (low / mid / high) |
|
Specifications
| Output power (8 / 4 ohms RMS) | 100W / 200W |
| Reproducible frequencies | 5Hz-50kHz |
| Total Harmonic Distortion (THD) | 0.005% |
| Inhibition factor | 500 |
| Input sensitivity: MM | 2.3 mV / 39 kohm |
| Input sensitivity: MC | 250 mV / 100 ohms |
| Signal to noise ratio: MM/MC | 88 / 75 dB |
| Input sensitivity: High level | 220 mV / 13 kohm |
| Input Sensitivity: Balanced high level | |
| Signal to noise ratio: High level | 107 dB(2V input/Rated output) |
| Input Sensitivity: Power Amp Direct In | |
| Signal to Noise Ratio: Power Amp Direct In | |
General information
| Metal front panel | |
| Energy consumption, W | 130 |
| Power consumption in standby mode, W | 0.2 |
| Automatic shutdown | |
| Replaceable power cable | |
| Remote control | RC005PMSA |
| Remote system control | |
| Maximum Dimensions (W x D x H) in mm | 440x453x123 |
| Weight, kg | 15.3 |
| Carton Maximum Dimensions (W x D x H) in mm | 557 x 536 x 243 |
| Carton Weight (inc. product) in kg | 18.4 |
