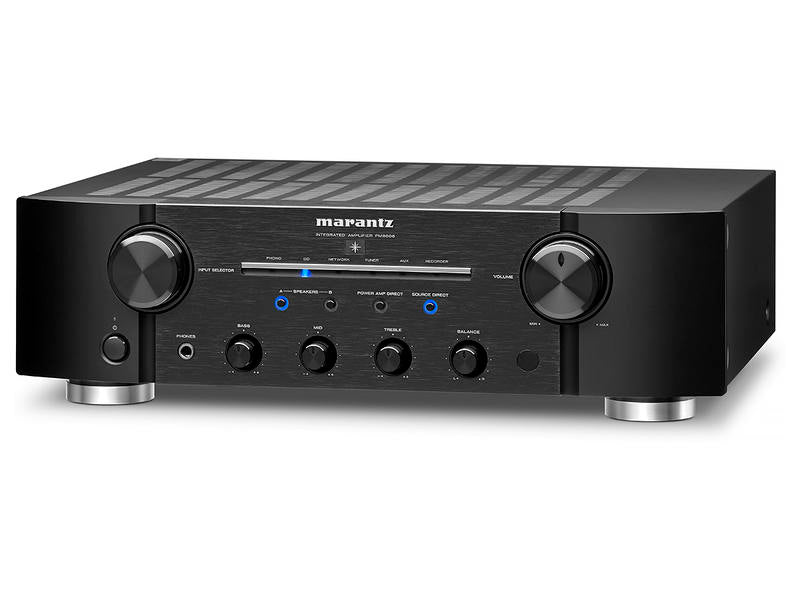

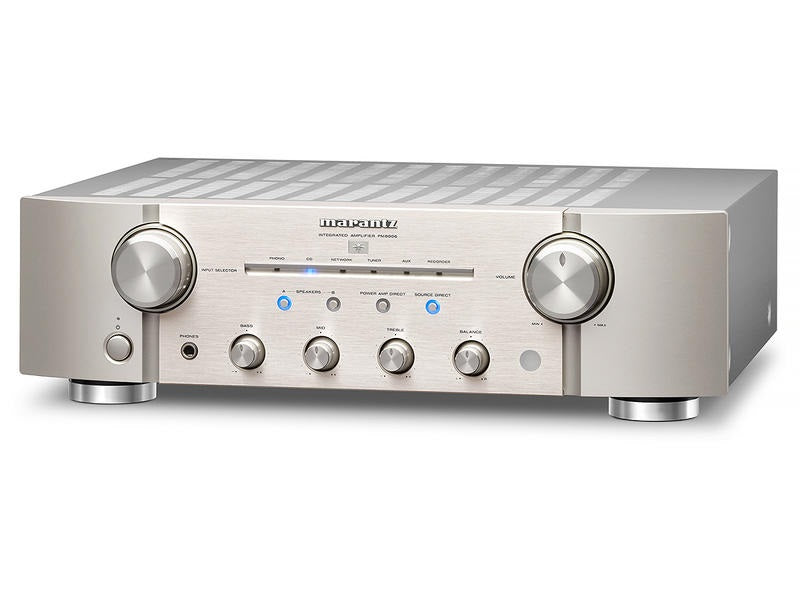

Marantz PM8006 Integrated Amplifier (Various Colors)
Marantz PM8006 Integrated Amplifier (Various Colors) - Black - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
- Integrated Current Feedback 2x70W power amplifier
- Newly designed electric audio circuit
- The exclusive Marantz Musical Phono EQ
- Marantz proprietary HDAM-SA3 circuitry
- Three layer bottom plate
DESCRIPTION
Current Feedback
Current Feedback amplification is a well-known, Marantz-original circuit technology, thoughtfully designed to match the requirements of Super Audio hi-res music for wide-bandwidth, high-speed reproduction. The impedance at the Current Feedback point is limited, generating a very low phase shift. Marantz Current Feedback amplifiers reduce the need for phase compensation by minimizing Negative Feedback (NFB). This simplifies the signal path and results in a high through-rate, excellent transient response and superb sonic transparency across the full bandwidth. Unlike conventional Voltage Feedback topology, Current Feedback also makes the power amplifier insensitive to difficult loudspeaker loads.
Marantz HDAM Technology
Marantz developed its own discrete circuit boards called Hyper-Dynamic Amplifier Modules, or HDAMs, to replace the chip-based amps used elsewhere. Using discrete surface mount components with short mirror-image left and right signal paths, HDAMs outperform the regular integrated Op-amps dramatically in Slew Rate and noise level. The result is much more dynamic, accurate and detailed sound. Over the years, Marantz has developed different HDAMs to fit the particular requirements of players and amplifiers. The PM8006 uses the high-grade SA3 version.
Marantz Musical Phono EQ
For a long time, Marantz integrated amplifiers have featured high-quality phono stages. We've elevated our commitment to vinyl with the Marantz Musical Phono EQ stage, as seen in the PM8006 amplifier. Enjoy the very best playback of all music sources, be they digital or analog. Marantz Musical Phono EQ uses two-stage amplification, allowing less gain per stage for lower distortion. The PM8006 combines Marantz HDAM technology with JFETs (junction gate field-effect transistors) in the input stage, providing high input impedance that eliminates the need for AC coupling capacitors and simplifies the signal path, vastly improving the signal purity overall.
Toroidal Transformer
A Toroidal transformer offers several advantages that derive from its efficiency and power capability. The shape of it lends itself to low levels of electromagnetic radiation and mechanical vibration, producing improved sound quality over what you might experience with dated transformer models.
TECHNICAL DATA
SPECIFICATIONS
Features
| Channels | 2 |
| Current Feedback Topology | Yes |
| Full balanced circuitry architecture | Well |
| Double Mono Power Amp construction | Well |
| Phono EQ: Standard / Class A / Constant Current Feedback | No / Yes / No |
| Digital in: USB-B / optical / coaxial / USB-A | No / No / No / No |
| Sample Rate digital In | Well |
| USB-A: DSD/WAV/FLAC/AIFF/ALAC | Well |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | Well |
| USB-B PCM sample rate | Well |
| DAC chip | Well |
| Asynchronous mode rear USB | Well |
| Bit-perfect transmission | Well |
| Ground isolator for DAC Mode operation | Well |
| Bluetooth / aptX / NFC | Well |
| Streaming audio from PC | Well |
| Wi-Fi / Wired LAN | Well |
| Internet radio | Well |
| AirPlay Audio Streaming | Well |
| Windows Play to | Well |
| vTuner / Spotify* | Well |
| DLNA Certified | Well |
| DSD-Audio network streaming | Well |
| Lossy formats: MP3 / WMA / AAC | Well |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF | Well |
| Gapless Playback | Well |
| Remote APP: iDevice / Android | Well |
| Analog Mode | Well |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | Yes / No |
| High Grade Audio Components | Yes |
| Customized Components | Yes |
| Symmetric PCB Layout | Yes |
| Aluminum extrusion heat sink | Yes |
| Copper Plated Chassis | Well |
| Tri Tone Control (Bass / Mid / Treble) | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Others
| Marantz Musical Digital Filtering | Well |
| Linear Drive Power Supply | Yes |
| Linear volume control | Yes |
| BI-AMP and Multichannel option | Well |
| Schottky diodes | Yes |
| Input buffer amp (all inputs / CD only) | No / Yes |
| System block shielding: Copper / metal / none | No / No / Yes |
| Double Layer Bottom Plate | triple |
| Low Noise OELD display | Well |
| Low noise LCD display | Well |
| Source Direct | Yes |
| Power Amp direct | Yes |
| 5mm aluminum top plate | Well |

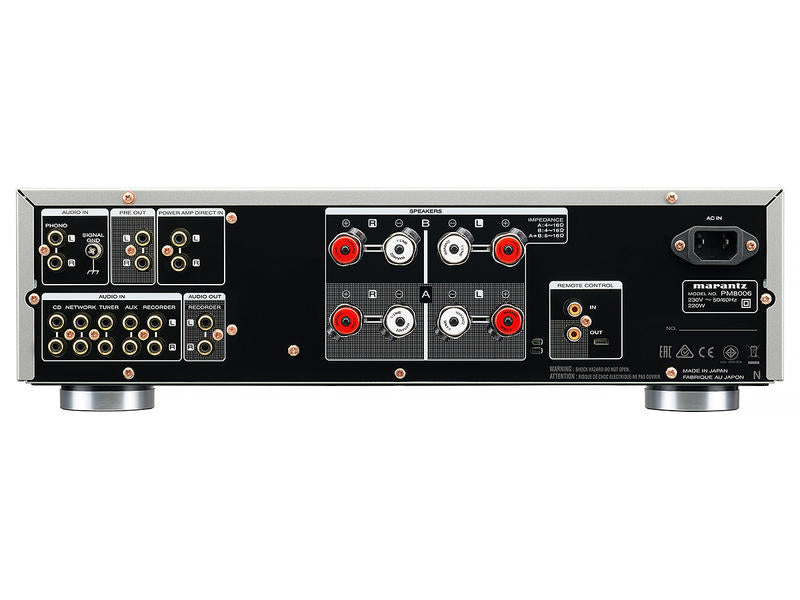

Inputs/Outputs
| Audio Inputs | 6 |
| Digital in: USB-B / optical / coaxial / USB-A | No / No / No / No |
| Phono Input: MM / MC | Yes / No |
| Audio Outputs | 1 |
| Balanced In / Out | No / No |
| Pre-out / Main-in | 1 / No |
| Power Amp Direct IN | Yes |
| Gold Plated Cinch | Yes |
| Speaker A / B | Yes |
| Speaker Terminal | Marantz SPKT-1+ |
| Number of terminals | 4 |
| D-Bus | Yes |
| Floating Control Bus (3.5 mm mono jack x 2) | Well |
| Headphone Out | Yes |
| Headphone Gain Control (low / mid / high) | Well |
Specifications
| Power Output (8 / 4 Ohm RMS) | 70W / 100W |
| Frequency response | 5 Hz-100 kHz |
| Total Harmonic Distortion | 0.02% |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2 mV / 47 kOhm |
| Input Sensitivity: MC | Well |
| Signal to Noise Ratio: MM/MC | 87 dB / No |
| Input Sensitivity: High level | 200 mV / 20 kOhm |
| Input Sensitivity: Balanced High level | Well |
| Signal to Noise Ratio: High level | 106dB(2V input) |
| Input Sensitivity: Power Amp Direct IN | 1.6V / 15 kOhm |
| Signal to Noise Ratio: Power Amp Direct IN | 125 dB |
General
| Available Colors: Gold / Silver / Black / Silver-Gold | No / No / Yes / Yes |
| Metal Front Panel | Yes |
| Power Consumption in W | 220 |
| Standby Consumption in W | 0.2 |
| Auto power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC001PMND |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in mm | 440 x 379 x 128 |
| Weight in kg | 12 |
