Martin Logan IC6-HT, į lubas montuojama garso kolonėlė

INFORMACIJA

Martin Logan IC6-HT - tai aukštos klasės į lubas montuojama garso kolonėlė, sukurta taip, kad garsas būtų nukreiptas tiksliai į klausymosi zoną. Specialus 30° kampu pasuktas garsiakalbių blokas leidžia nukreipti garsą ten, kur jo labiausiai reikia - idealiai tinka namų kino sistemoms, didelėms daugia­kanalėms erdvėms ar moderniems interjerams, kur svarbus ir dizainas, ir kokybė.

Dažnių diapazonas: 55 – 20 000 Hz
Jautrumas: 89 dB
Varža: 8 Ω
Rekomenduojama stiprintuvo galia: Iki 80 W
Crossover dažnis: 2 500 Hz

APRAŠYMAS

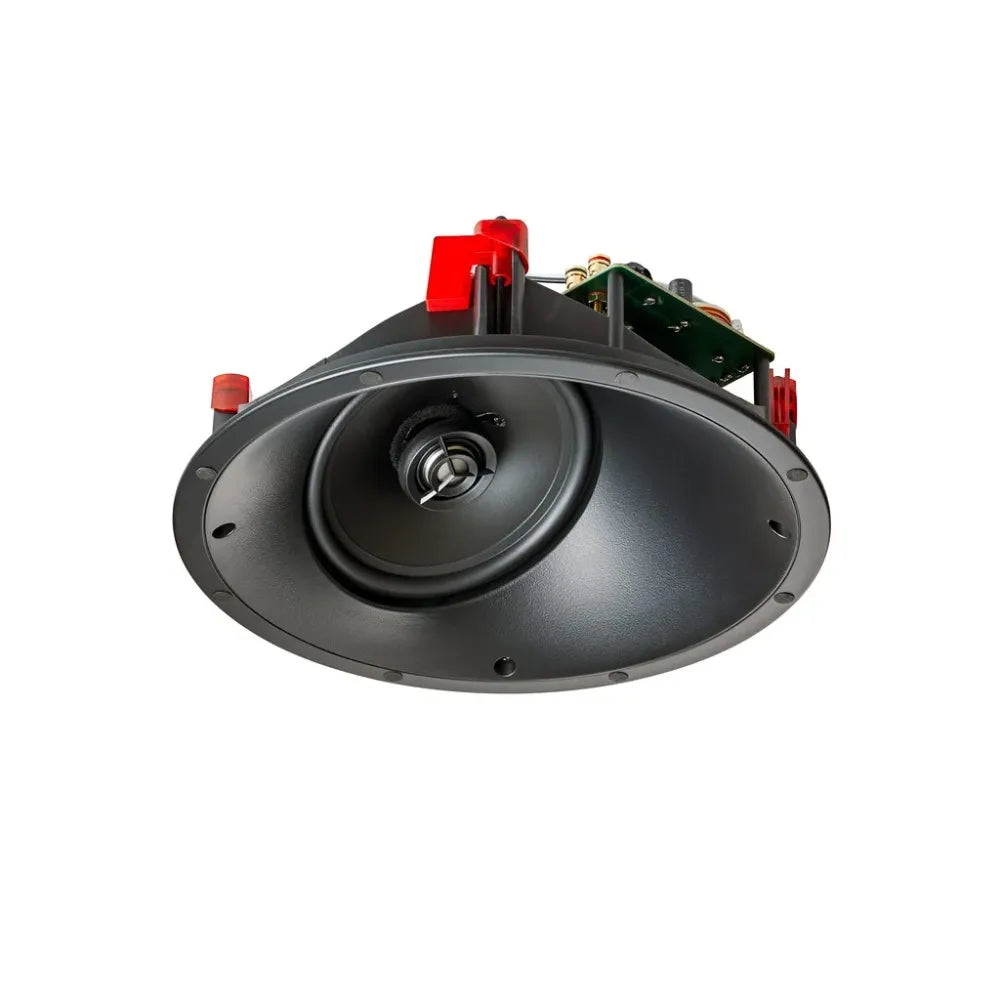

Designed with a special baffle, the IC6-HT in-ceiling speaker features a woofer and titanium dome tweeter mounted at a 30° angle, making IC6-HT ideal for large multi-channel installations where in-ceiling speakers. Sound can be easily directed toward the listening area by rotating the speaker assembly before moving the mounting-locks into place.

Solutions Meet Performance
Manufactured to the highest standards of quality and performance, the new Installer Series by MartinLogan is a line of affordable, high-performance, ultra-low-profile custom installation in-ceiling and in-wall speakers. Featuring titanium dome tweeters and mineral-filled polypropylene drivers, each model comes with a remarkably robust mounting-lock system and paintable micro-perf, bezel-free grilles for a nearly invisible installation. Two all-weather models extended usage to high humidity areas. Pre-installation brackets are available for all models and square grilles are available for select in-ceiling models.

Titanium Dome Tweeters and Poly Cone Woofers
Titanium dome tweeters used throughout the Installer Series are ferrofluid damped and cooled for smooth high-frequency performance with amazing clarity across a wide listening area. Mineral-filled polypropylene cone bass/midrange drivers feature robust computer-optimized ferrite magnets and high-power motor structures to deliver detailed midrange performance and clean, extended bass response.

Micro-Perforated Grilles
Installer Series speakers feature ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation. To match modern aesthetics, optional square grilles are available for most in-ceiling models (excludes all-weather versions).

Precision Crossovers
& Spring-Loaded Binding Posts
Carefully hand-built using only the finest polyester capacitors and air-core coils, Installer Series crossovers employ MartinLogan’s proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. Spring-loaded binding posts feature a larger wire access hole and connect via banana plug, pin, or 12AWG bare wire.

Robust Mounting-Lock System
A simple, yet robust mounting-lock system allows quick, trouble-free installation. Pocketed screw holes help hold the drill steady, making installation a snap. When not in use, mounting locks are held securely within a self-contained housing. When moved into place, they couple the chassis firmly to the ceiling or wall, increasing the rigidity of surfaces. If ever removed, the locks retract and latch back in their housings. Each speaker includes a full-size installation template featuring quick-reference instructions, and die-cut guides for marking the cutout hole.

TECHNINIAI DUOMENYS

Frequency Response

55–20,000 Hz

Aiming

Rotate speaker

Recommended Amplifier Power

80 Watts

Sensitivity

89dB

Impedance

Compatible with 8 ohms

Crossover Frequency

2,500 Hz

High Frequency Transducer

1” (2.5cm) titanium dome

Low Frequency Transducer

6.5” (16.5cm) mineral-filled poly cone

Binding Post Inputs

Push style accommodates wire up to 12AWG

Weight

5.3 lbs. (2.4 kg)

Dimensions (overall size)

11.38” x 5.28”
(28.9 x 13.4cm)

Cut-Out Dimensions

10-3/8” (26.3cm) dia.

Projection From Wall Surface

0.25” (0.7cm)

Depth Behind Wall Surface

4.95” (12.6cm)

Square Grille (sold separately)

C6-HT Square Grille

Pre-install Bracket (sold separately)

C6-HT Bracket
