INFORMACIJA
10RAM-HK allows easy connection of a MATCH UP 10DSP amplifier with an integrated Extension Card MEC ANALOG IN to selected BMW i-models with a Harman Kardon sound system and a RAM receiver.
Important note: Before the first power-up, the high-level input of the UP 10DSP amplifier must be set to the high voltage range (jumper position: Input G - H 32V). More information on setting the input sensitivity can be found on page 35 of the UP 10DSP manual.
Features
Plug & Play connectors for easy connection of the MATCH UP 10DSP amplifier with integrated MEC ANALOG IN module
BMW system plugs for connecting the car's wiring harness
RAM connector for connecting the car's wiring harness to the RAM receiver
Cable length 1.00 meter
Technical data
Technical data
Cable length
1.00 meter
Connections
1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 10DSP
1 x 8-pole MOLEX plug for the connection of the highlevel inputs E - H of the UP 10DSP
1 x 12-pole MOLEX plug for the connection of speaker outputs E - J of the UP 10DSP
1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module
1 x 42-pole BMW RAM system jack
1 x 42-pole BMW RAM system plug
1 x 35-pole BMW system jack
1 x 35-pole BMW system plug
Compatibility
For connection of the MATCH UP 10DSP with ANALOG IN Extension Card
Suitable for BMW i-series vehicles with RAM (Receiver Audio Module)
Compatible with factory installed Harman Kardon sound system
Further information about the vehicle compatibility can be found in our Connection Finder.
Scope of delivery

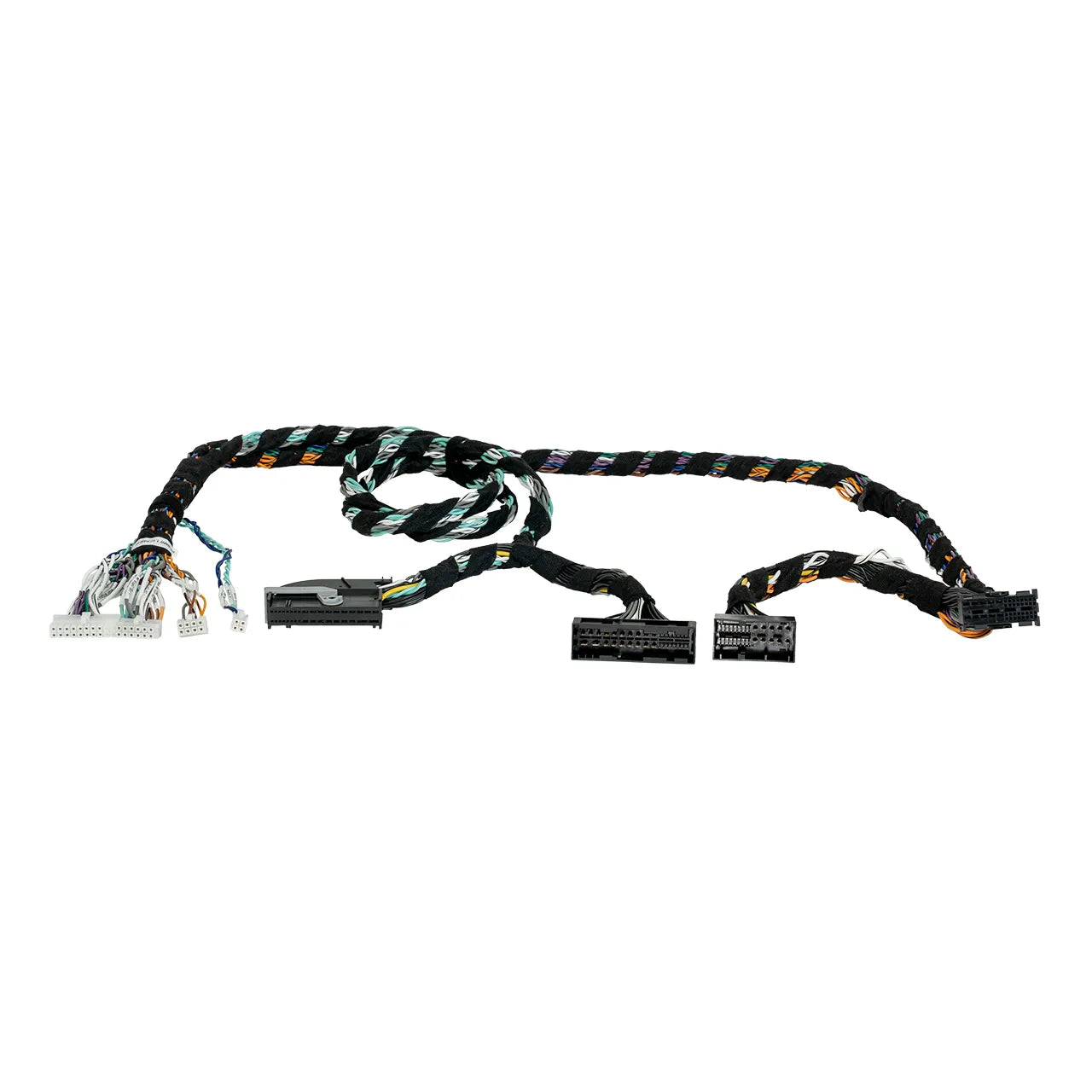

1 x Plug & Play cable harness PP-BMW 1.10RAM-HK
