Match  |  Bar code: 4057204610623

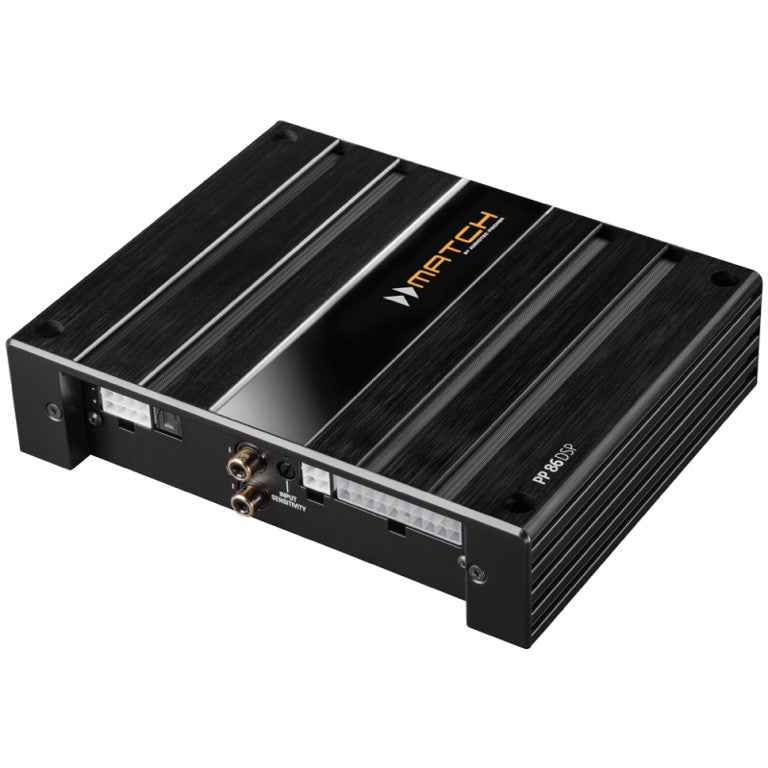

MATCH PP86DSP

High-class audio amplifier with advanced digital sound processor technology. Ensures exceptional sound quality and extensive connectivity options for your car.

€618.97 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Technical data

Output power RMS / max. - @ 4 Ohms 8 x 55 / 110 Watts - @ 2 Ohms 8 x 70 / 140 Watts - @ 1 Ohm - - bridged @ 4 Ohms - - bridged @ 2 Ohms - - Subwoofer output @ 4 Ohms - - Subwoofer output @ 2 Ohms - Amplifier technology Class HD Inputs 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1x MEC 1 x Remote In Input sensitivity Highlevel 5 - 11 Volts Input impedance RCA / Cinch - Input impedance highlevel 13 Ohms Outputs 8 x Speaker output 2 x RCA / Cinch (mono) 2 x Remote Out Output voltage RCA / Cinch 3 Volts RMS Frequency response 20 Hz -22,000 Hz DSP resolution 64 Bit DSP power 295 MHz (1.2 billion MAC operations/second) Sampling rate 48 kHz DSP type Audio signal processor Signal converters A/D: BurrBrown D/A: BurrBrown Signal-to-noise ratio digital input 105 dB (A-weighted) Signal-to-noise ratio analog input 103 dB (A-weighted) Distortion (THD) 0.015 % Damping factor 100 Operating voltage 10.5 - 16 Volts (max. 5 sec.down to 6 Volts) Current draw 685 mA Max. remote output current 500 mA Fuse 2 x 25 A LP-Mini-fuse (APS) Additional features Class HD technology with dynamically controlled power supply, Start-Stop capability, Control Input, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out Dimensions (H x W x D) 50 x 260 x 190 mm / 1.97 x 10.24 x 7.48“
