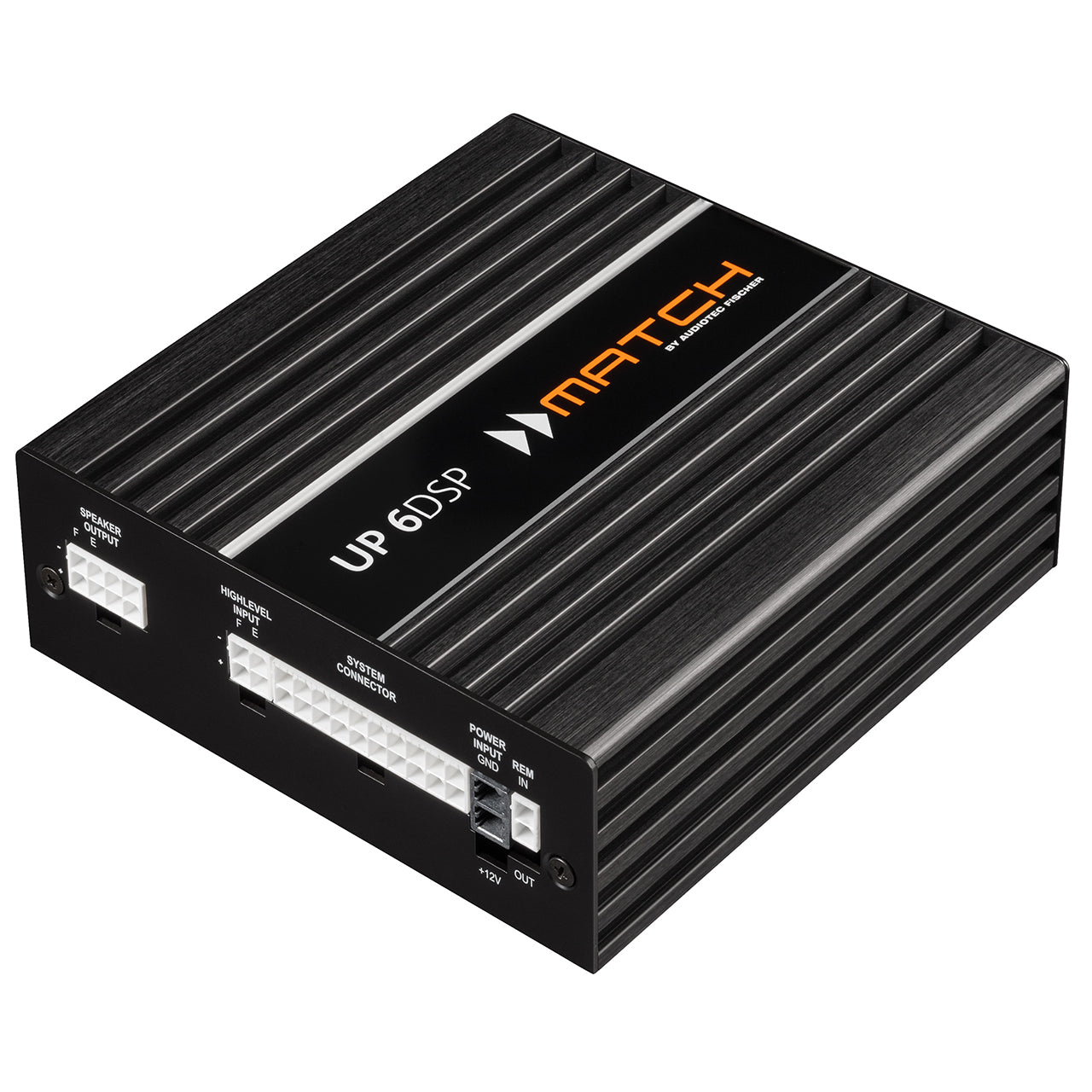

- MATCH UP 6DSP

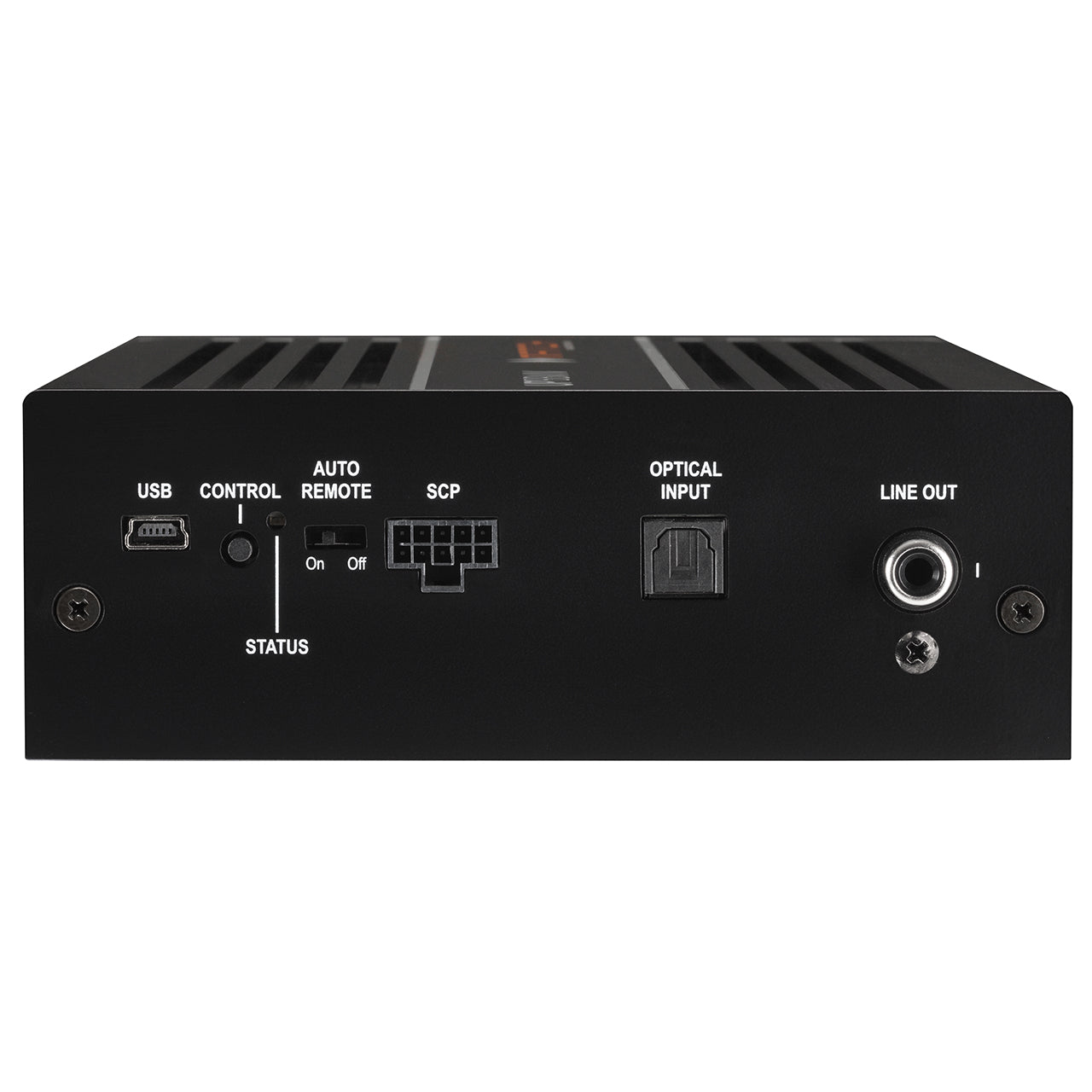

- MATCH UP 6DSP - galinė panelė su jungtimis ir mygtukais

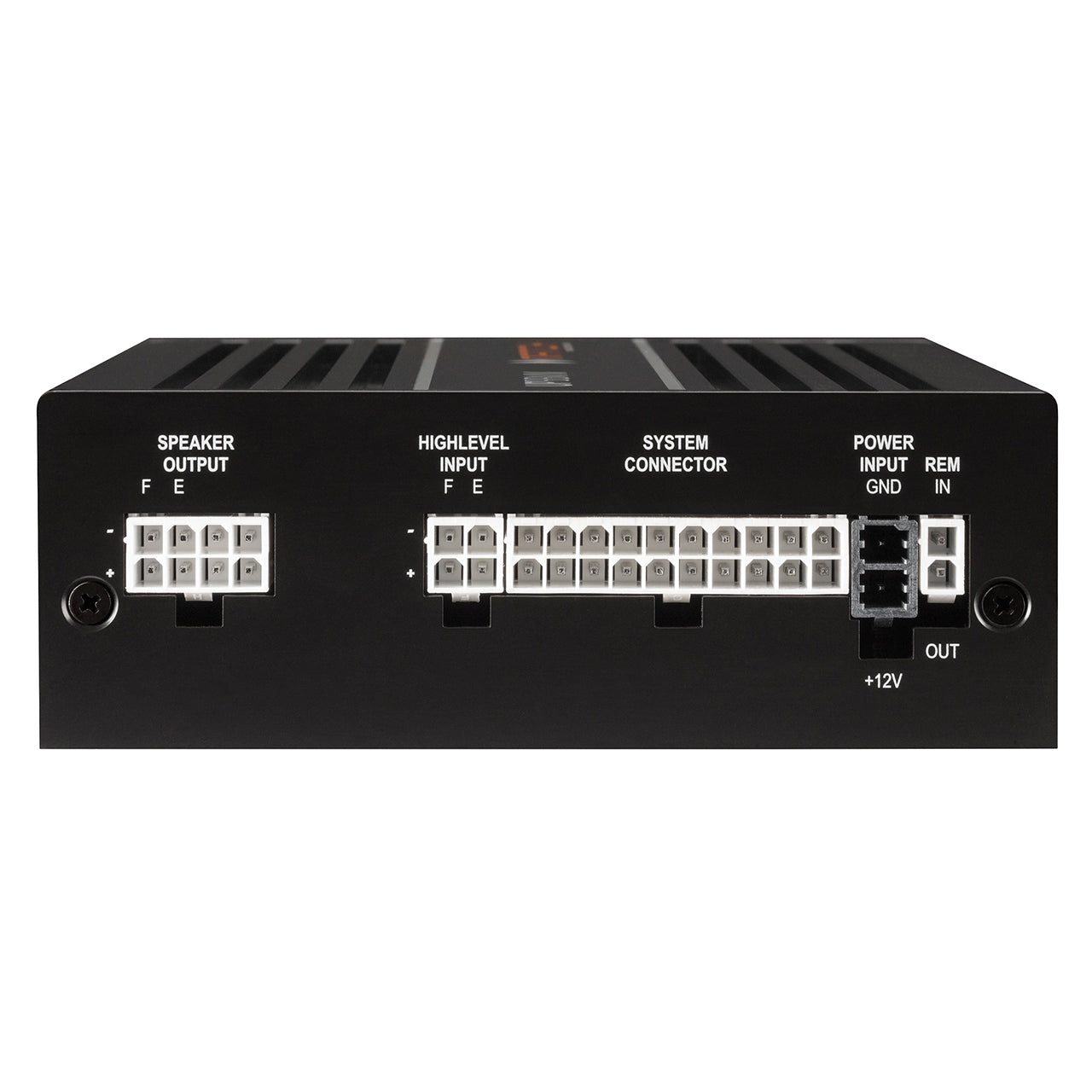

- MATCH UP 6DSP - Galinė panelė su jungtimis ir etiketėmis
MATCH UP 6DSP
MATCH UP 6DSP - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
MATCH UP 6DSP
Excellence in efficiency for customized OEM integrations
The new UP 6DSP is a true all-rounder that not only provides power and dynamics for an authentic hi-fi sound but also offers all the necessary features for easy in-vehicle integration.
The perfect upgrade for standard sound systems
Equipped with six high-level inputs, an optical digital input, and a MATCH expansion card slot, the UP 6DSP seamlessly integrates into existing standard sound systems. Thanks to the innovative ADEP.3 circuit, as well as six amplifier channels and an additional pre-out, the powerful 7-channel DSP allows for individual speaker configuration. The amplifier power even brings larger subwoofers to life, with two of its output channels delivering an impressive 160 W at 2 Ohms – ideal for particularly power-hungry speakers.
Virtual channel processing – signal routing redefined
Optimal adaptation to existing systems.
Technical data
Technical data
Output power RMS / Max.
- @ 4 Ohms Channels A - D: 4 x 65 Watts (min. 3 Ohms)
- @ 2 Ohms -
- @ 1 Ohm -
- bridged @ 4 Ohms -
- bridged @ 2 Ohms -
- Subwoofer output @ 4 Ohms Kanal E - F: 2 x 90 Watts
- Subwoofer output @ 2 Ohms Kanal E - F: 2 x 160 Watts
Amplifier technology Class GD
Inputs 6 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x MEC
1 x Remote In
Input sensitivity 2.8 - 11 Volts
Input impedance RCA / Cinch -
Input impedance highlevel 9 - 33 Ohms with ADEP.3
Outputs 6 x Speaker output
1 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch 3 Volts RMS
Frequency response 10 Hz - 22,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 48 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 106 dB (A-weighted)
Signal-to-noise ratio analog input 104 dB (A-weighted)
Distortion (THD) 0.03 %
Damping factor 100
Operating voltage 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 35 A max.
Idle current 360 mA
Max. remote output current 500 mA
Operating temperature range -40°C to +70°C
Fuse 1 x 30 A LP-Mini-fuse (APS)
Additional features Class GD technology with dynamically controlled
power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out
Dimensions (H x W x D) 46 x 130 x 130 mm /
1.81 x 5.12 x 5.12″
Scope of delivery
1 x MATCH UPGRADE amplifier UP 6DSP
5 x Connection cable
1 x Mounting plates & material
1 x USB cable
1 x Instruction manual
