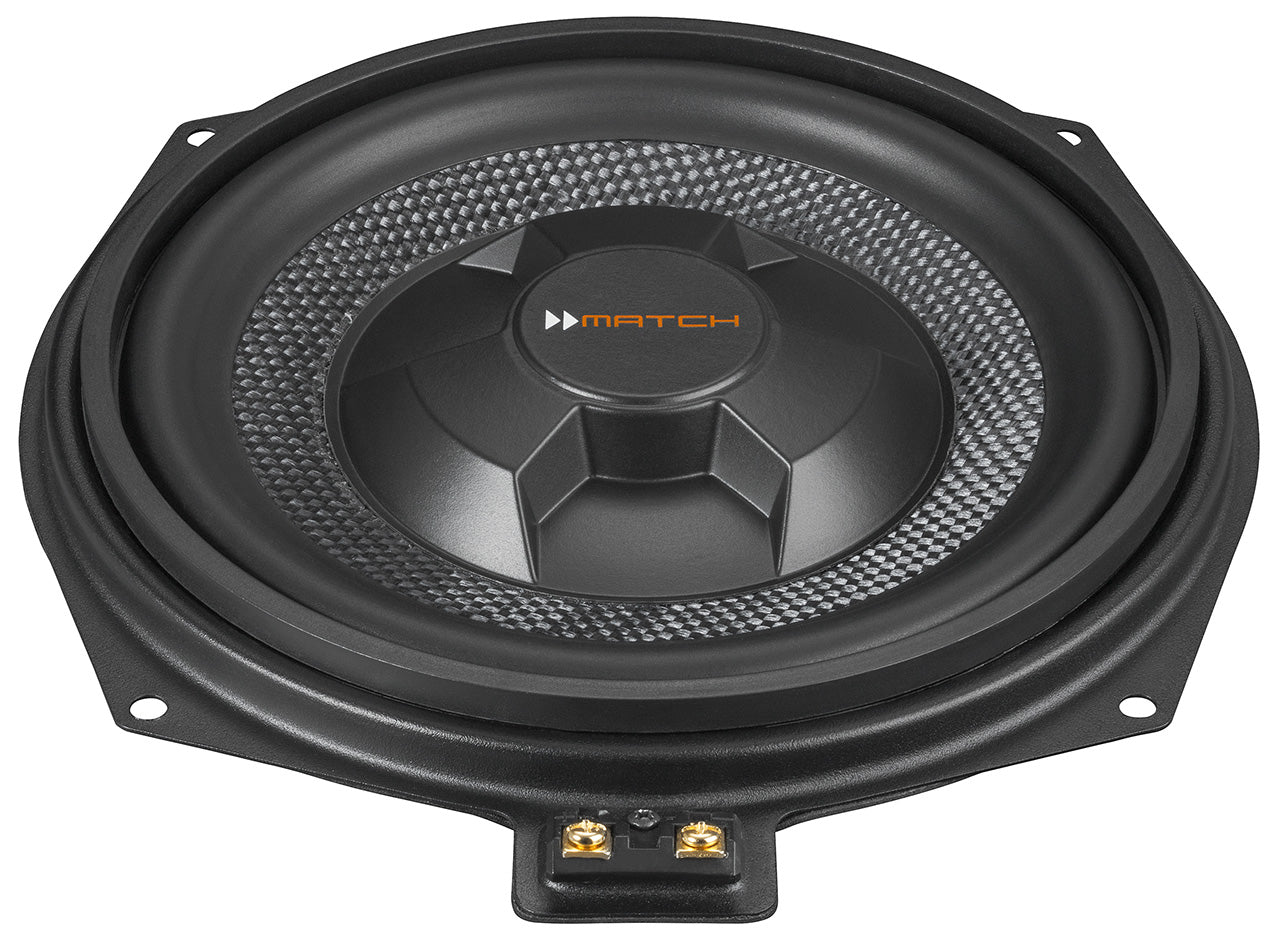

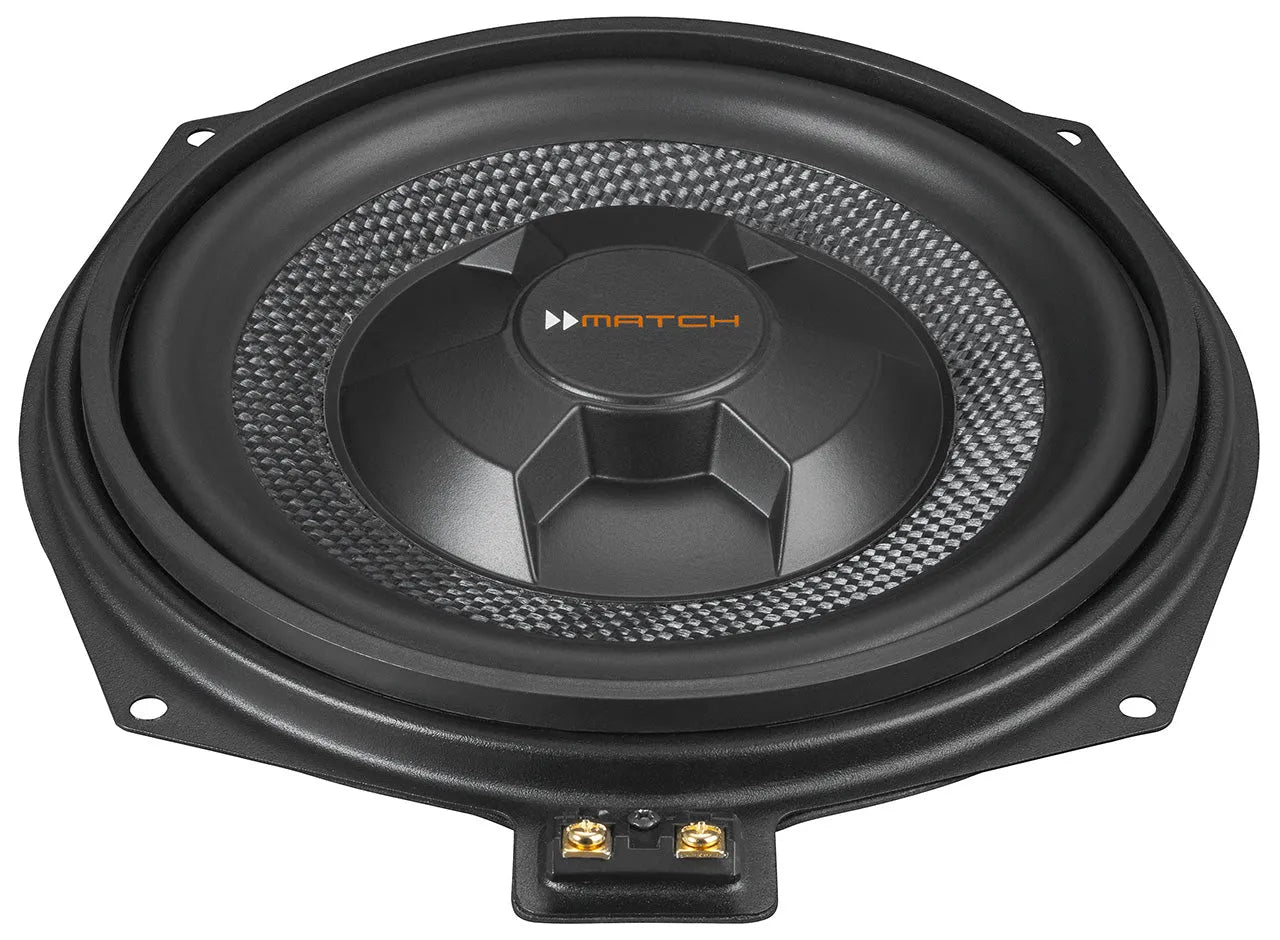

MATCH UP W8BMW-S, 20cm subwoofer for BMW

Name: MATCH UP W8BMW-S, 20cm subwoofer for BMW
Brand: MATCH UP
SKU: W8BMW-S
Price: 269.00 EUR
Availability: InStock

€269.00 EUR

MATCH UP W8BMW-S, 20cm subwoofer for BMW - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

The subwoofer is designed for BMW models. Suitable for all BMW models with under-seat woofers (can also be installed as normal woofer).

Power: 400W.
Resonance frequency: 49 Hz.
Performance: 90 dB.
Resistance: 1 x 2 Ω.

DESCRIPTION

Maximum POWER for BMW sound concepts

The ultra-flat UP W8BMW-S subwoofers are playing extremely dynamically and punchy. Especially the exceptionally rigid fiberglass cone generates maximum sound pressure without distortions.

The BMW-specific baskets and connectors allow fast and easy installation into the original mounting positions of all BMW model ranges with under-seat subwoofers.
Nevertheless, these subwoofers are also perfectly qualified for universal applications. Thanks to the very low mounting depth, extremely compact sealed enclosures are no problem at all, whereas the oversized 1.7” / 42.5 mm voice coil ensures high power handling. With their 1 x 2 Ohms single voice coil the UP W8BMW-S are the perfect replacement for the original subwoofers of the BMW HiFi sound system. Additionally, they are the perfect playmate for our MATCH Upgrade amplifier MATCH UP 7BMW and MATCH UP 7DSP.

No matter if these subwoofers are used for a bass upgrade in your BMW or as a supplier of low-frequencies in universal concepts, they will definitely add loads of powerful bass for musical enjoyment.

PROPERTIES

2 x 8" BMW upgrade subwoofer

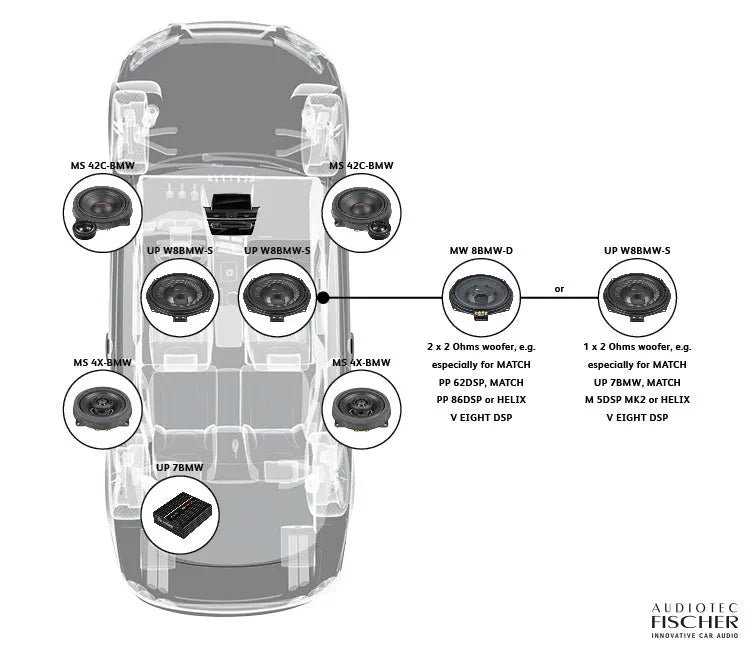

Fits perfectly into the original mounting positions under the front seats of all BMW model ranges with under-seat subwoofers
Extremely stiff fiberglass cone for maximum sound pressure
1 x 2 Ohms impedance per woofer
Oversized 42.5 mm / 1.7” voice coil for high power handling

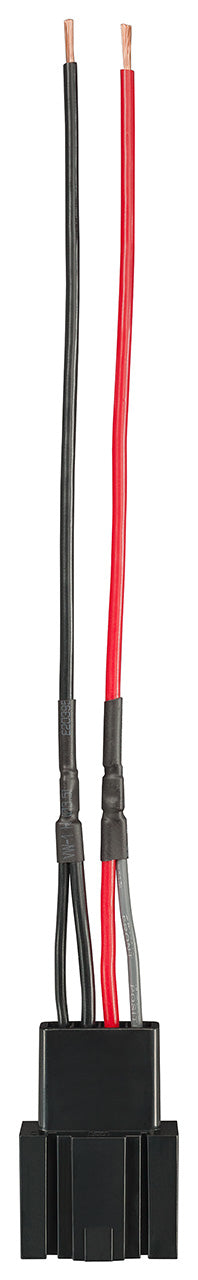

BMW connection cables for original BMW cable harness are included in delivery
Perfectly combinable with the MATCH UPGRADE amplifiers MATCH UP 7BMW and UP 7DSP
Also ideal for universal use in ultra-flat subwoofer constructions

TECHNICAL DATA

SPECIFICATIONS

Moving mass	Mmm	47.4 g
Cone material		Extremely stiff fiberglass cone
Mechanical resistance	Rs	3.97 kg/s
Voice coil diameter	ø	42.5 mm
Voice coil winding height		12.5 mm
Max. linear excursion	Xmax	+/- 4.0 mm
Outer diameter	ø	239mm / 9.41"
Installation diameter	ø	175mm / 6.89"

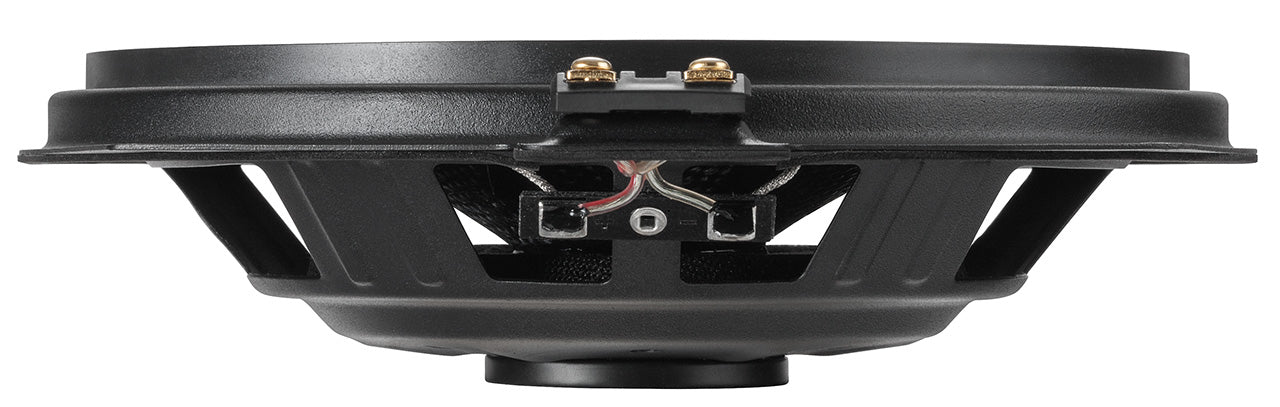

Installation depth		40mm / 1.57"

Recommended enclosure volumes
Sealed box
Even in volume		3L
Lower limiting frequency (-3dB)		63 Hz
DSP settings		- Highpass: Butterworth; 12 dB/octave; crossover frequency 40 Hz - Additional EQ filter: center frequency 90 Hz; Q factor 3.0; gain -4 dB - Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz

Vented box		For one subwoofer	For two subwoofers
Even in volume		12 L	24 L
Port diameter	ø	60mm / 2.36"	80 mm / 3.15
Port area		28 cm²	50 cm²
Port length		25cm / 9.84"	20cm / 3.94"
Port tuning frequency	Facebook	46 Hz	46 Hz
Lower limiting frequency (-3dB)		45 Hz	45 Hz
DSP settings		- Highpass: Self-Define; crossover frequency 40 Hz; Q factor 1.3 - Additional EQ filter: center frequency 67 Hz; Q factor 3.0; gain -3 dB - Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz

Compatibility

Suitable for all BMW model ranges with under-seat subwoofers and universal use
Perfectly combinable with the MATCH UPGRADE amplifiers MATCH UP 7BMW and UP 7DSP
