MATCH UP W8MB-S4 LHD, subwoofers for Mercedes Benz
MATCH UP W8MB-S4 LHD, subwoofers for Mercedes Benz - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
. Suitable for C, E, S and GLC class models.
- Power: 200W.
- Frequency band: 25 Hz - 250 Hz.
- Sensitivity: 88 dB.
- Impedance: 1 x 4 Ω.
Price per pair.
DESCRIPTION

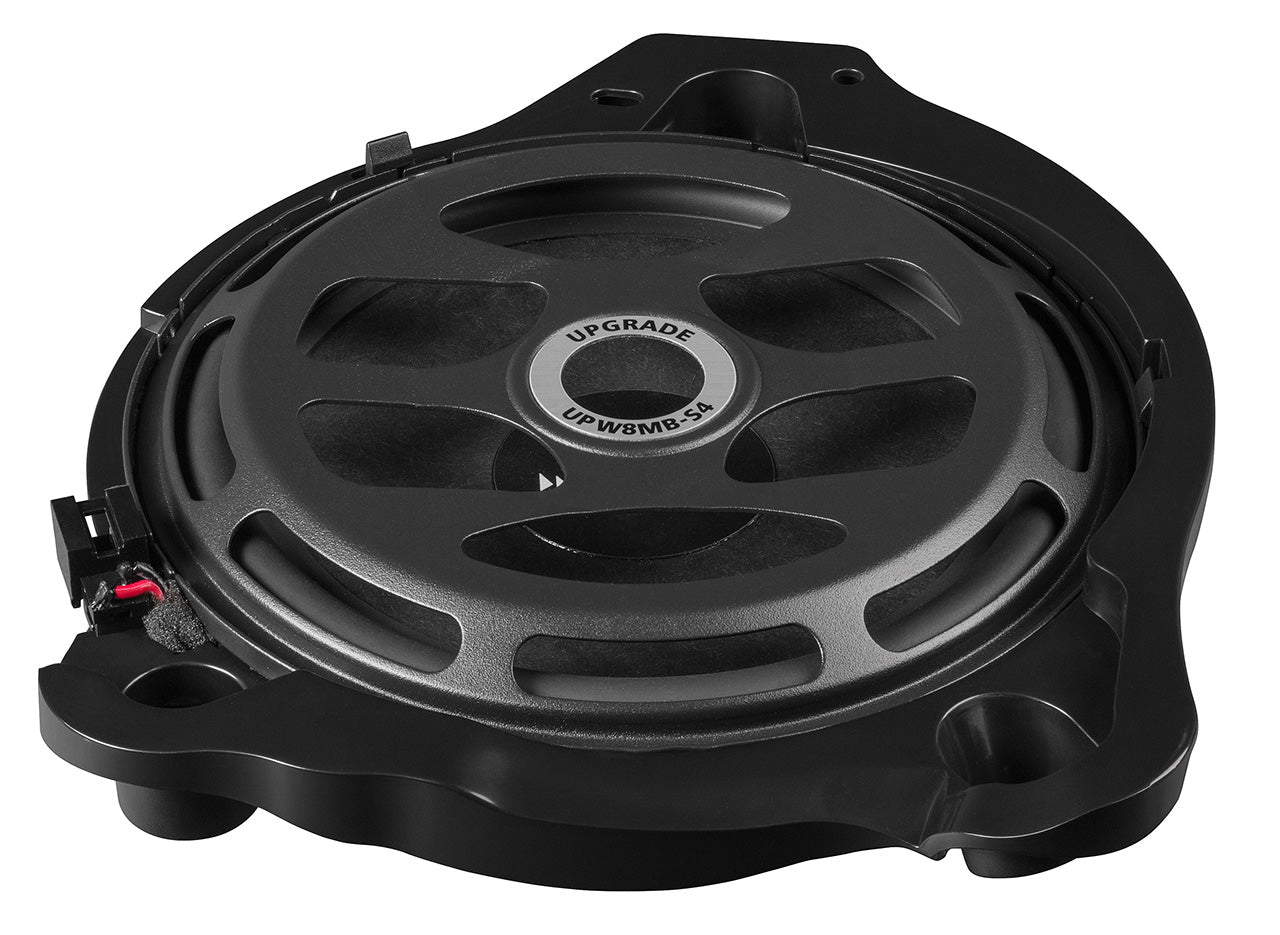

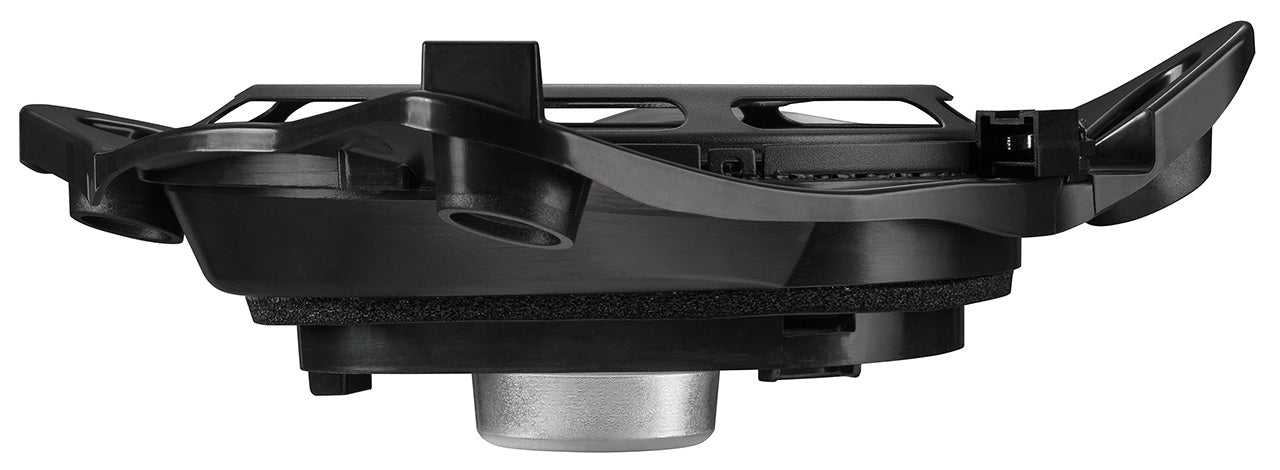

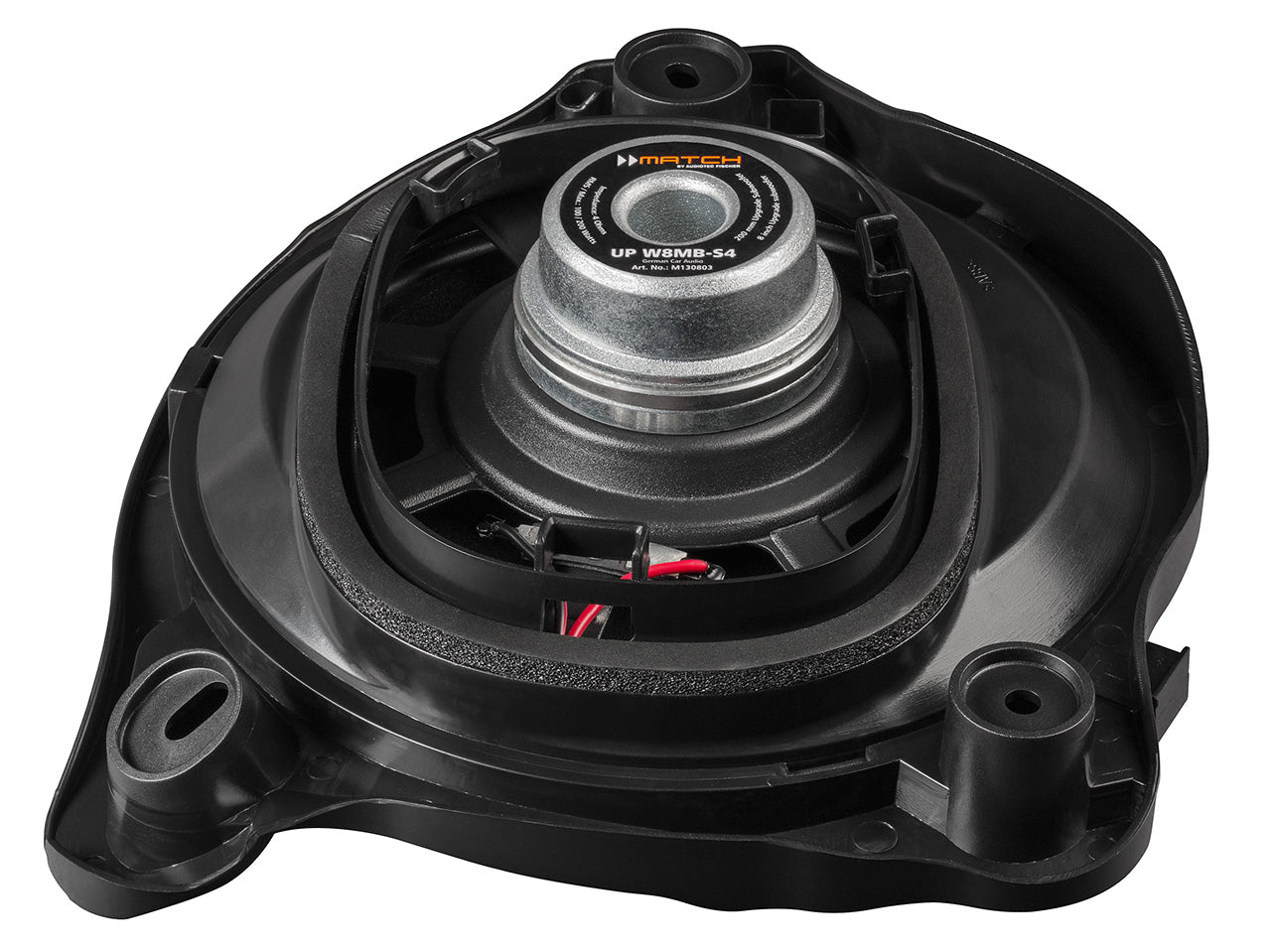

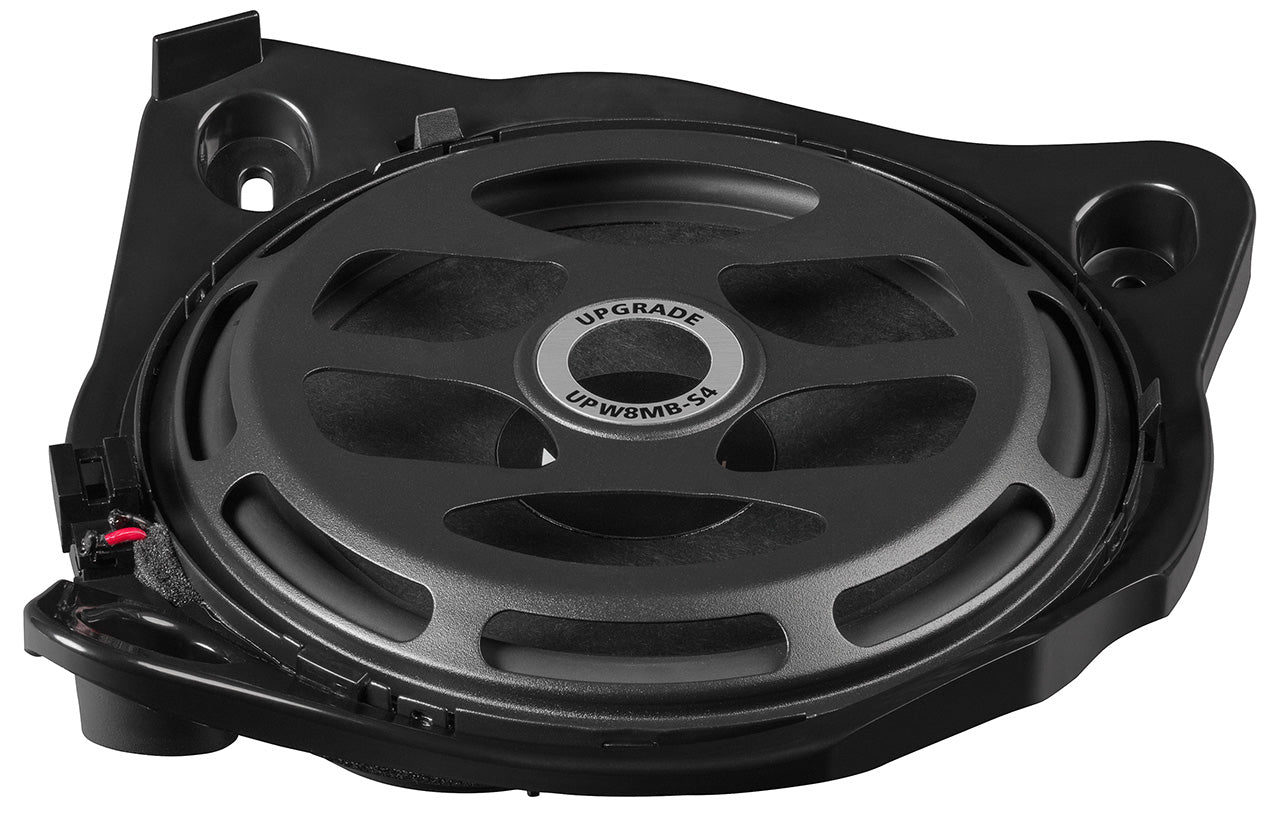

MATCH UP W8MB-S4 LHD
Premium cars deserve premium sound – and this includes a deep and punchy bass reproduction which the basic speaker setup in Mercedes vehicles doesn't deliver at all. However, the perfect solution is quite simple – the heavy-duty 8” / 200 mm woofers of the UP W8MB-S4 system fit perfectly into the original mounting positions in the bulkhead and provide exactly the right punch that you can feel and which brings music to life.
Especially in combination with one of our DSP amplifiers, these subwoofers reveal their full potential in terms of dynamics.
Features
-Optimized sound characteristics for Mercedes vehicles for a spectacular sound in combination with significantly increased power handling

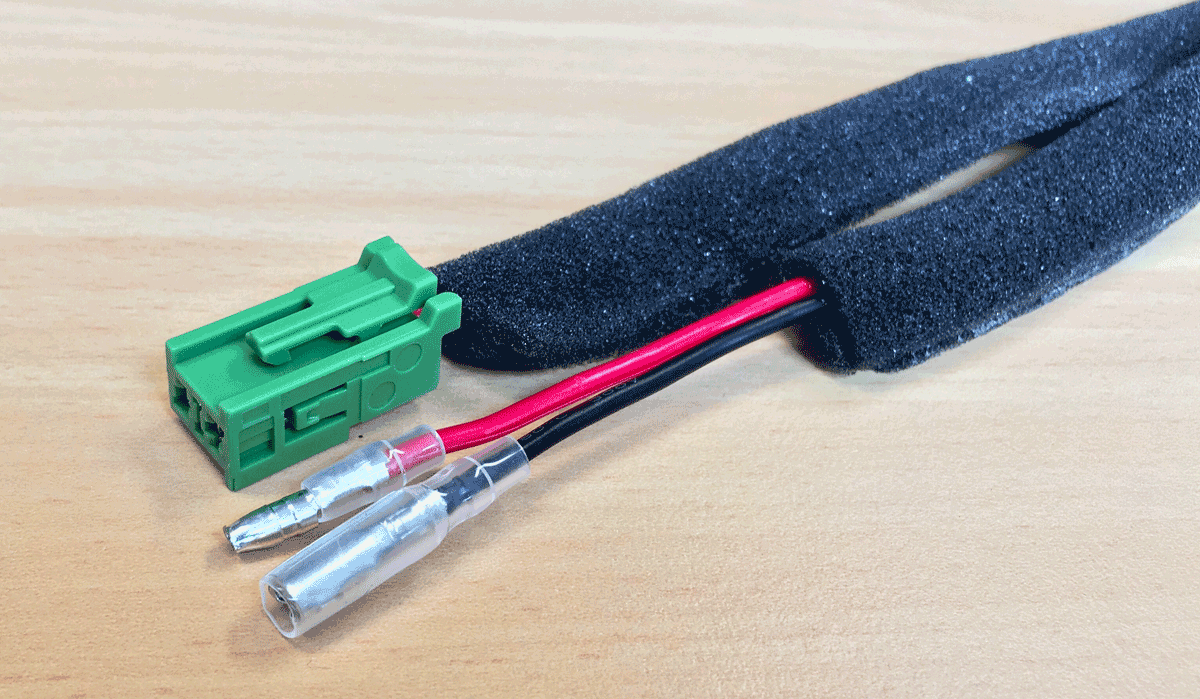

- Exclusively developed baskets and car-specific connectors for Mercedes vehicles for easiest installation
-Perfectly combinable with further MATCH UPGRADE components – eg DSP amplifier

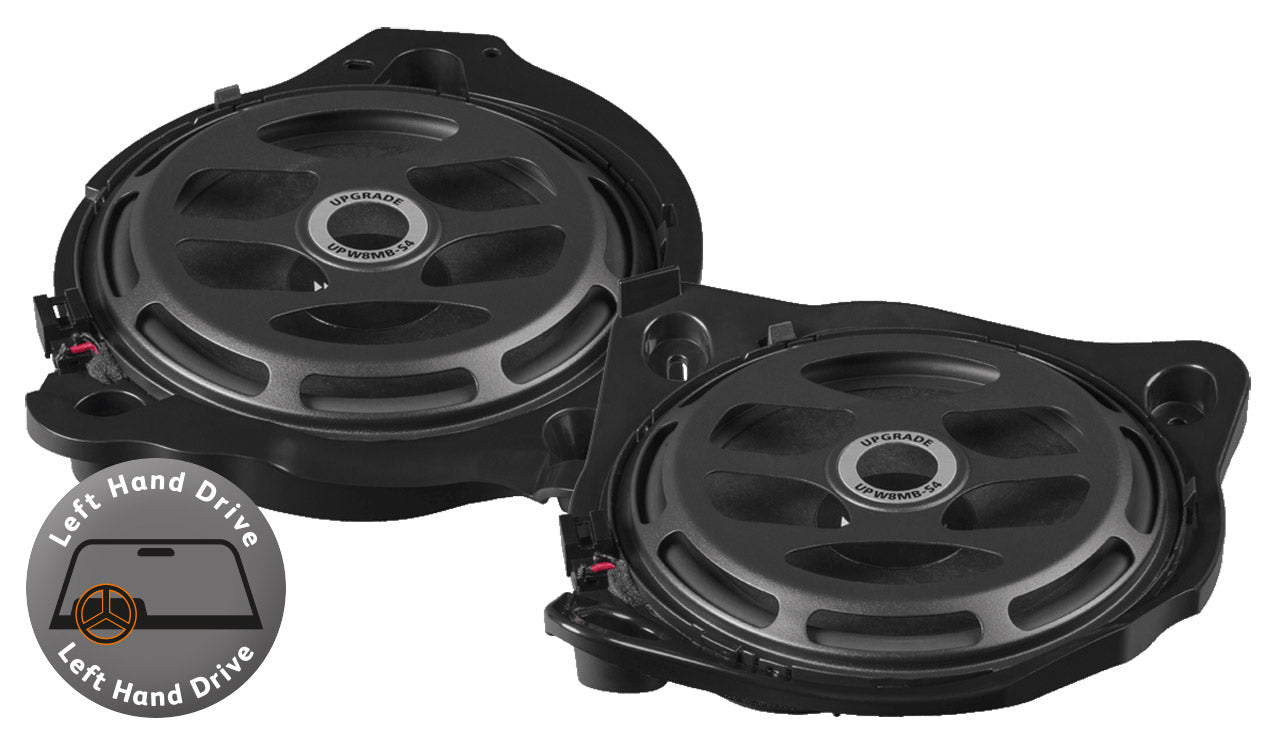

-Left hand drive version
TECHNICAL DATA
| Power RMS / max. | P | 100 / 200 Watts |
| Impedance | Z | 1 x 4Ω |
| DC resistance | Re | 3.6Ω |
| Frequency response | 25 - 250 Hz | |
| Resonance frequency | Fs | 51 Hz |
| Mechanical Q factor | Qms | 7.24 |
| Electrical Q factor | Qes | 0.71 |
| Total Q factor | Qts | 0.64 |
| Compliance | Cms | 276 µm/N |
| Equivalent air volume | Feb | 18 L |
| Force factor | B*I | 7.6 Tons |
| Efficiency 1 W / 1 m | SPL | 88 dB |
| Cone area | Sd | 216 cm² |
| Moving mass | Mms | 35 g |
| Cone material | Paper cone | |
| Mechanical resistance | Rms | 1.6 kg/s |
| Voice coil diameter | ø | 37 mm |
| Voice coil winding height | 16 mm | |
| Max. linear excursion | Xmax | +/- 5mm |
Compatibility
| Model | Model type |
Series | Model year |
| C | Convertible Coupe Sedan T-model |
A205 C205 W205 S205 |
since 2016 since 2015 From 2014 From 2014 |
| E | Convertible Coupe Sedan T-model |
A238 C238 W213 S213 |
From 2017 From 2017 From 2016 From 2016 |
| GLC | SUV SUV coupe |
X253 C253 |
From 2015 From 2015 |
Status: February 2020
