McIntosh

McIntosh C55, 2-channel solid-state power amplifier

€14,000.00 EUR

McIntosh C55, 2-channel solid-state power amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

McIntosh C55 - a high-end amplifier designed for audiophiles looking for impeccable sound and durability. It has as many as 16 inputs (9 analog, 7 digital), an integrated DA2 module with a high-end 32-bit DAC (supports DSD512, DXD 384kHz). The convenient Processor Loop function for external processors is back, an integrated 8-band equalizer, a high-quality headphone amplifier with HXD® and network control via the McIntosh Connect app. The iconic McIntosh design, blue meters and reliable construction allow the C55 to become the heart of your audio system for many years.

16 inputs: 7 analog, 2 phono (MM/MC), 7 digital
Frequency range: 20 Hz - 20 kHz (+0, -0.5 dB), 15 Hz - 100 kHz (+0, -3 dB)
Number of channels: 2
Maximum harmonic distortion: 0.005%
Signal to Noise Ratio: (High Level) 100 dB, (Moving Coil): 80 dB, (Moving Magnet): 82 dB
Supports: 24-bit/192kHz and DSD512 files
Processor Loop and 8-band analog equalizer

 

DESCRIPTION

The C55 Preamplifier is a pinnacle of sonic excellence designed for audiophiles, music enthusiasts, and dedicated McIntosh fans alike. As a torchbearer of innovation, it takes the baton from its predecessor, the multi award-winning C53, and propels your home audio experience into new realms of audio nirvana. With precision and craftsmanship, the C55 proudly takes its place as a true industry leader.

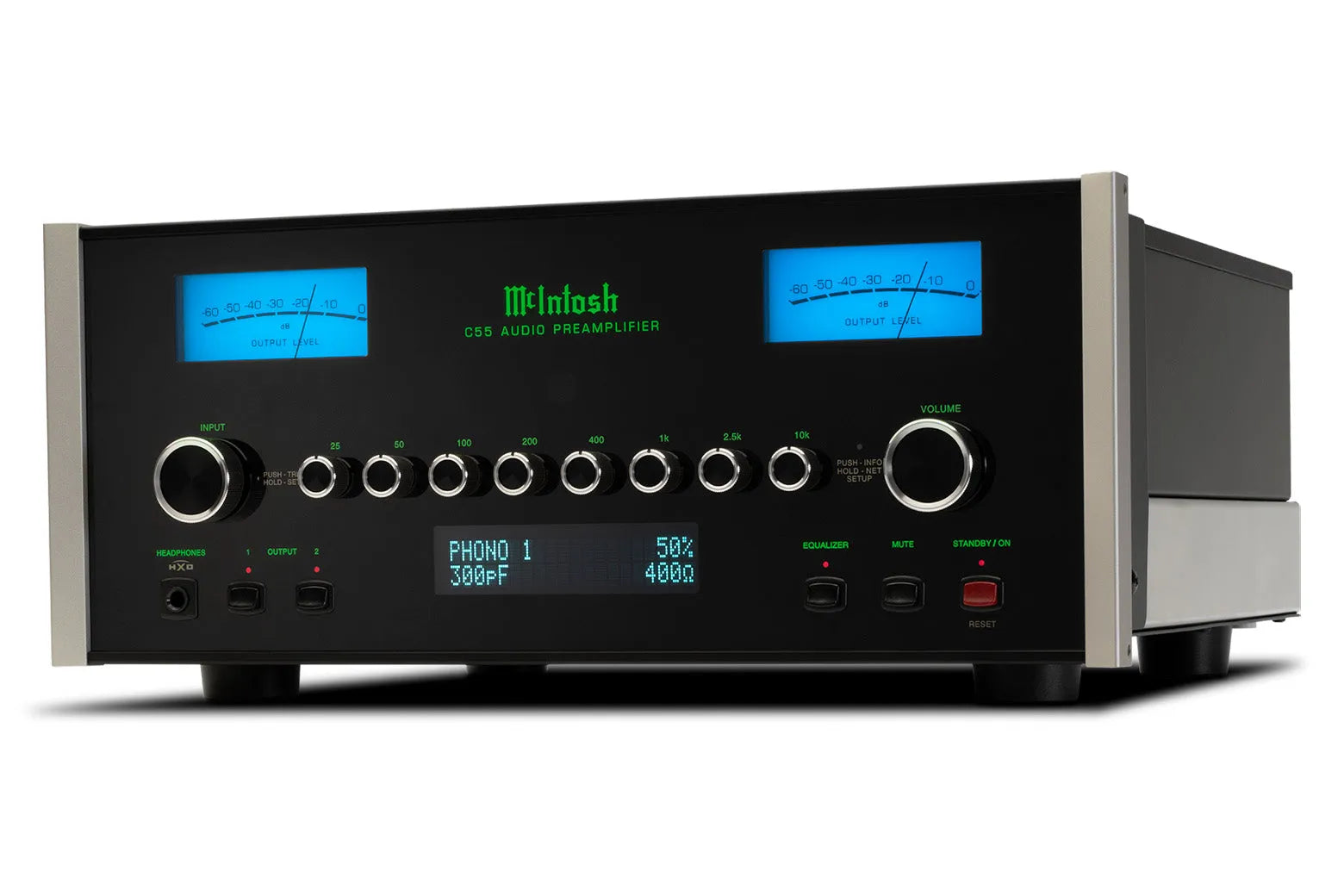

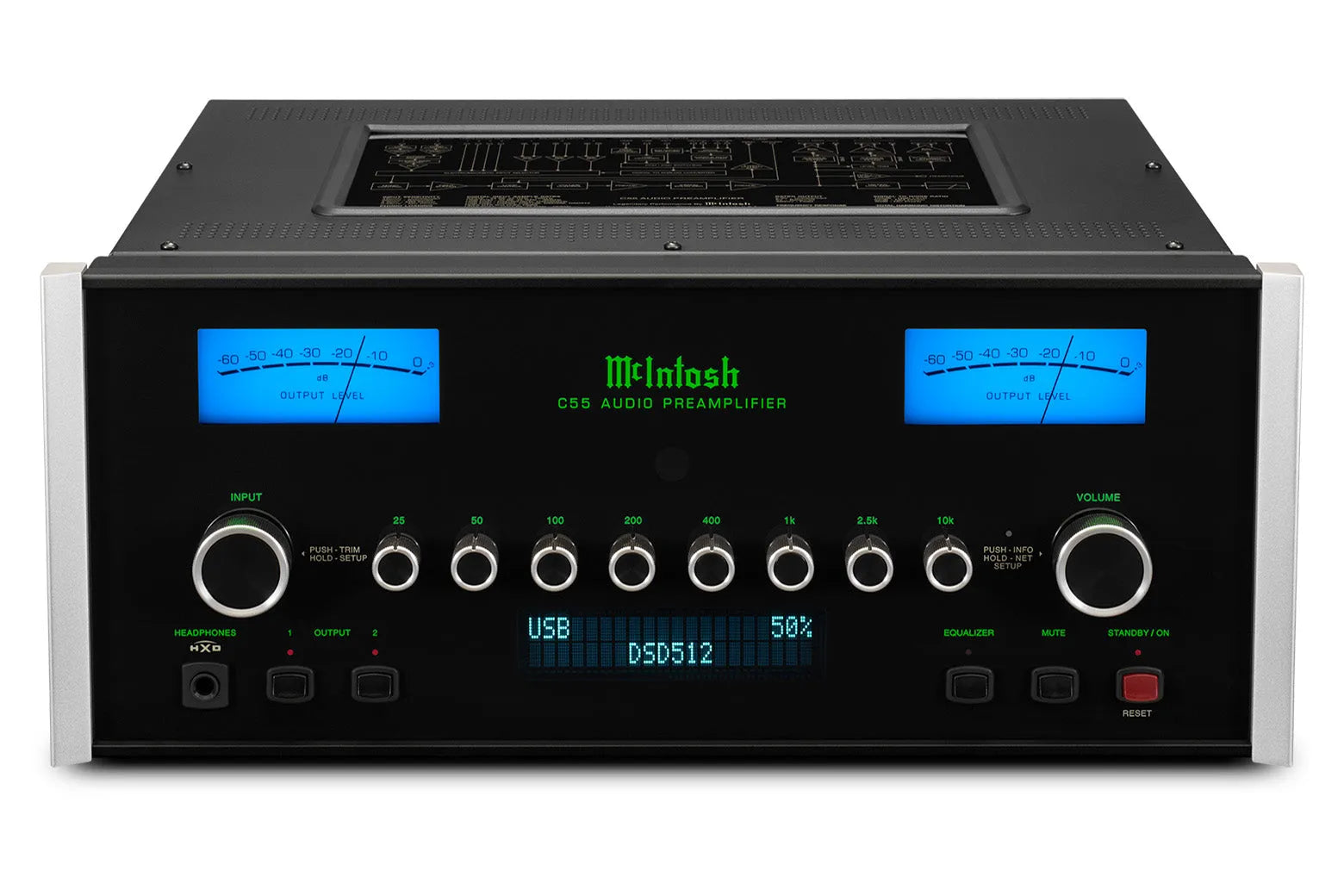

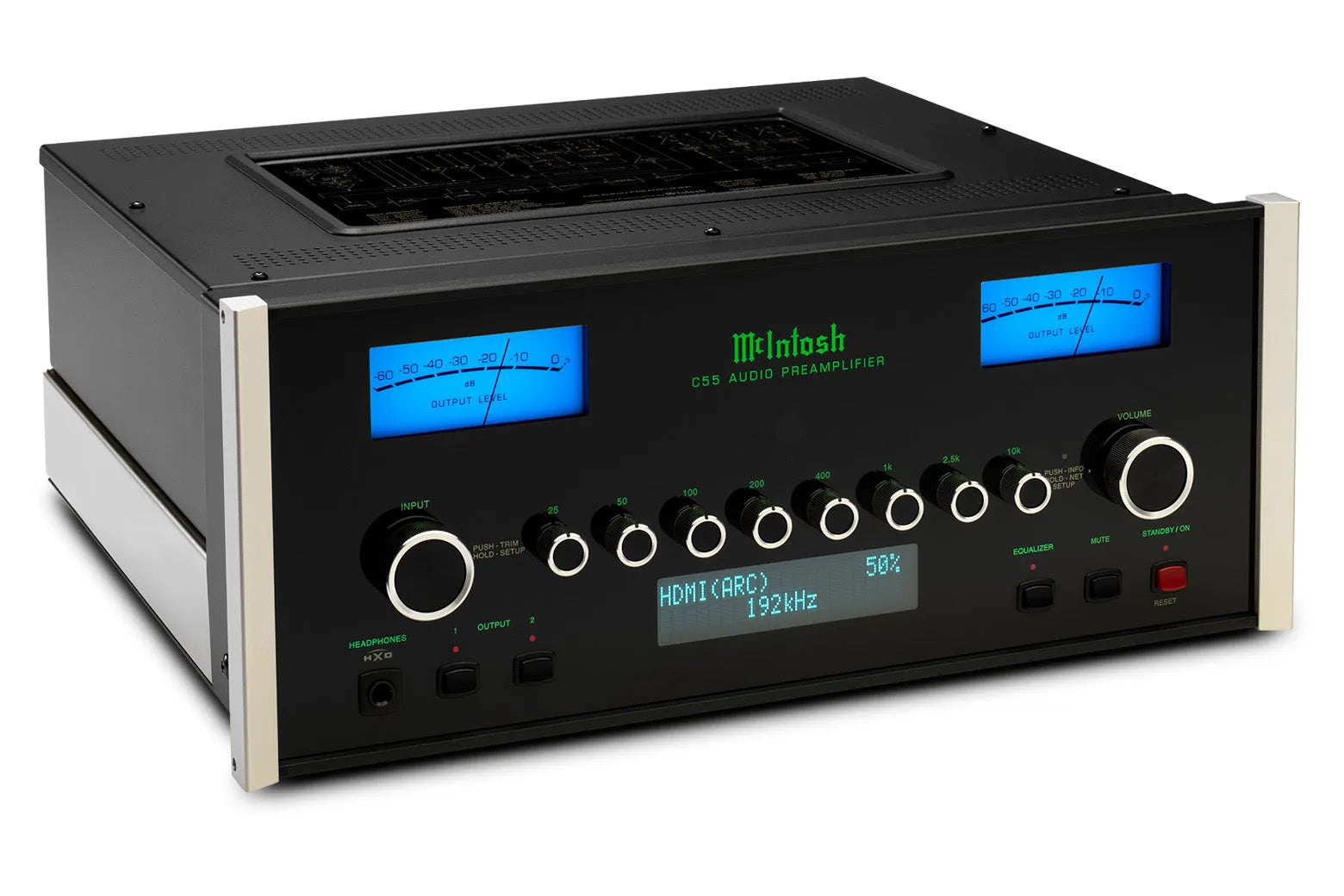

McIntosh C55 Preamplifier

INPUTS IN ABUNDANCE

With a staggering 16 inputs (9 analog and 7 digital), the C55 becomes the nerve center of your audio universe. Analog inputs include 3 balanced and 4 unbalanced connections, along with 2 phono inputs configurable for either Moving Coil or Moving Magnet phono cartridges to connect your turntable(s) . Both phono inputs feature adjustable Gain in 6dB steps from 40dB to 64dB as well as RIAA equalization.

"It has everything needed to make it the beating heart of any high quality music system. It stands out from the crowd, and is an irresistible blend of good looks and musical excellence." Awarded 5 Stars. – The Ear

The digital section is housed in our DA2 Digital Audio Module and is powered by an audiophile-grade Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC). The DA2 offers an array of connections, including an audio-only HDMI Audio Return Channel (ARC) 1 input, ushering your TV sound into a new era through your home stereo system. Dolby® and DTS ® multi-channel audio formats are expertly converted to exquisite two-channel audio for a captivating listening experience.

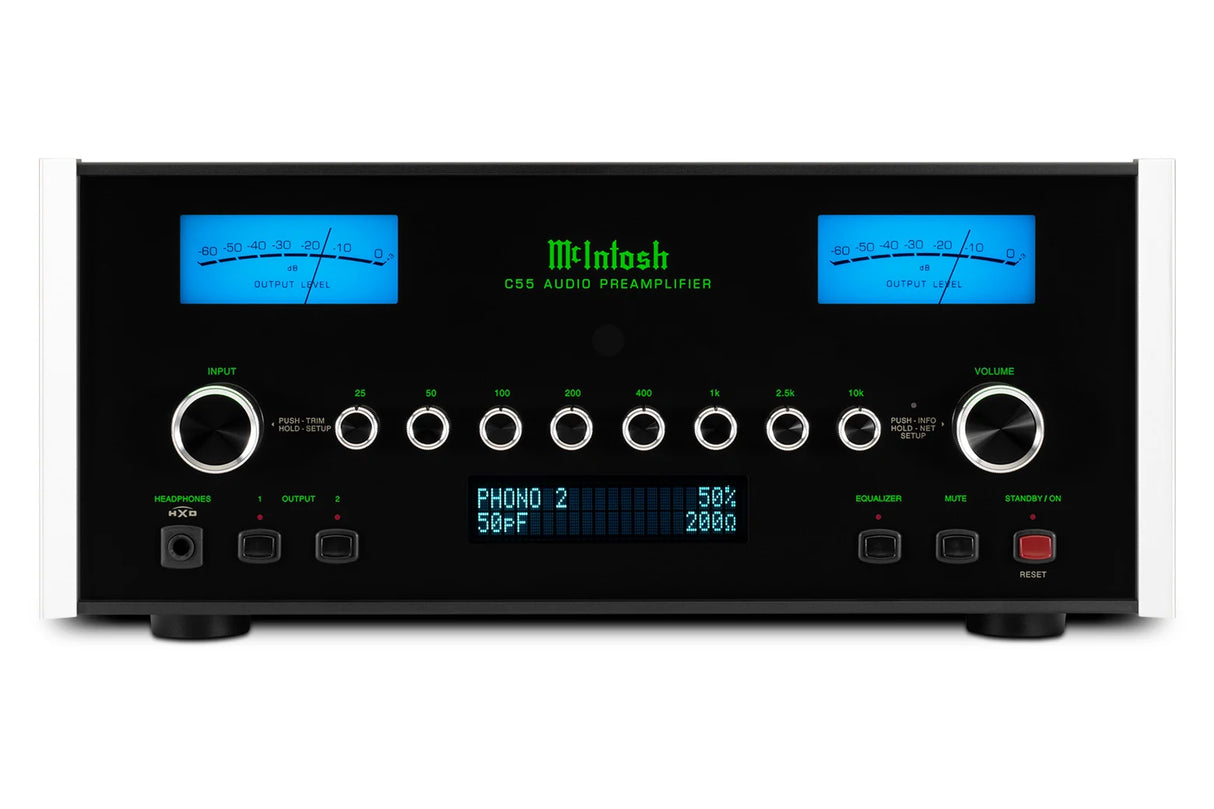

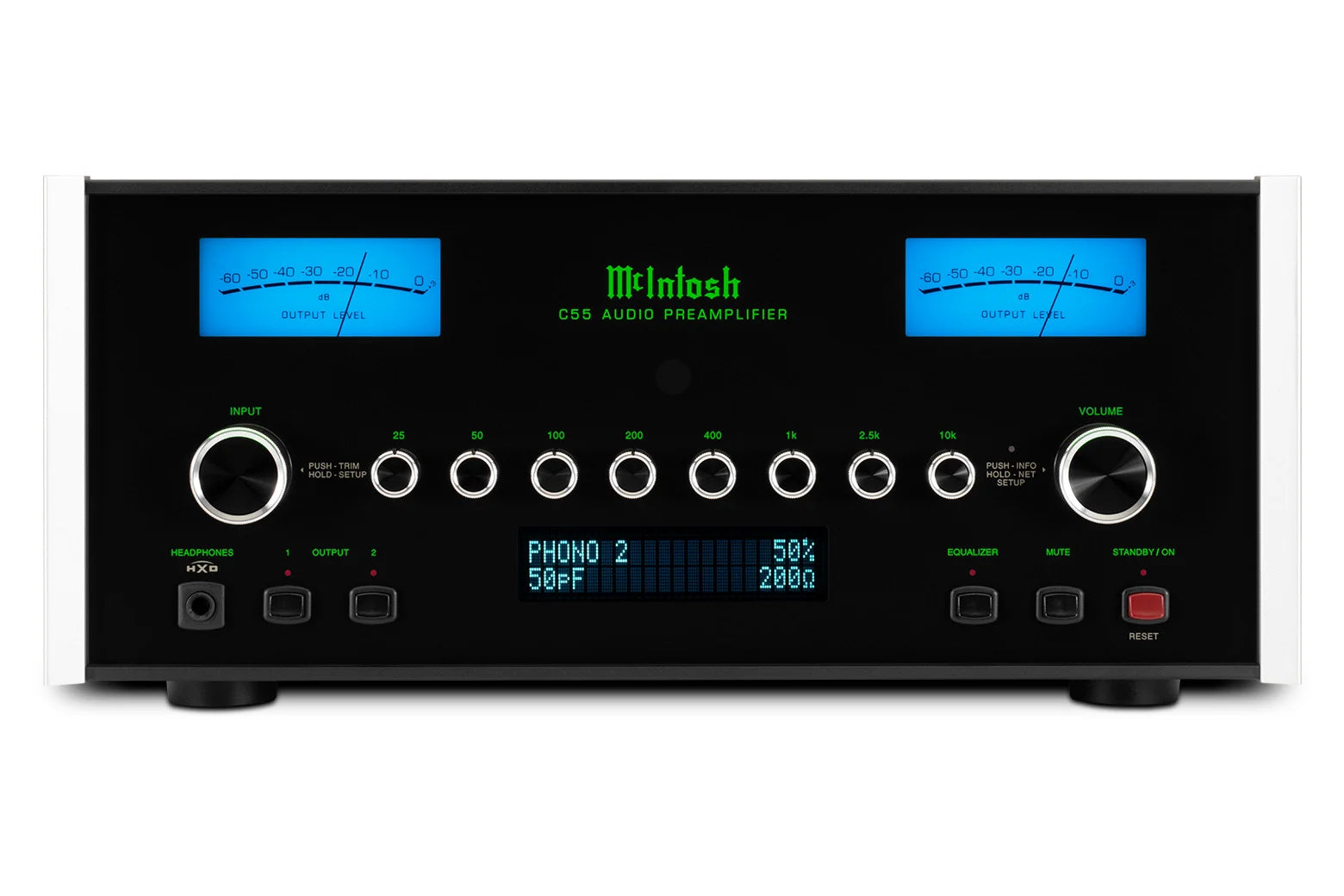

McIntosh C55 Preamplifier

The DA2's other 6 digital inputs consist of 2 coaxial, 2 optical, 1 USB, and 1 MCT. The USB input supports DSD512 and DXD 384kHz. The coax and optical inputs decode digital music up to 24-bit/192kHz for high-resolution audio playback. And to get the best sound quality from the high definition audio on your SACD collection, the MCT input offers a secure, custom DSD connection when paired with our MCT series of SACD/CD Transports . The entire DA2 module is upgradeable and could be replaced by a future module should new digital technologies become available.

INNOVATIVE OUTPUTS FOR PERSONALIZED LISTENING

To connect the C55 to your power amplifier(s) , there are 3 stereo sets of variable balanced and unbalanced outputs that offer advanced connection flexibility. All 3 sets of outputs can be active at the same time, and each can send the audio signal of the source component to 3 separate audio systems.

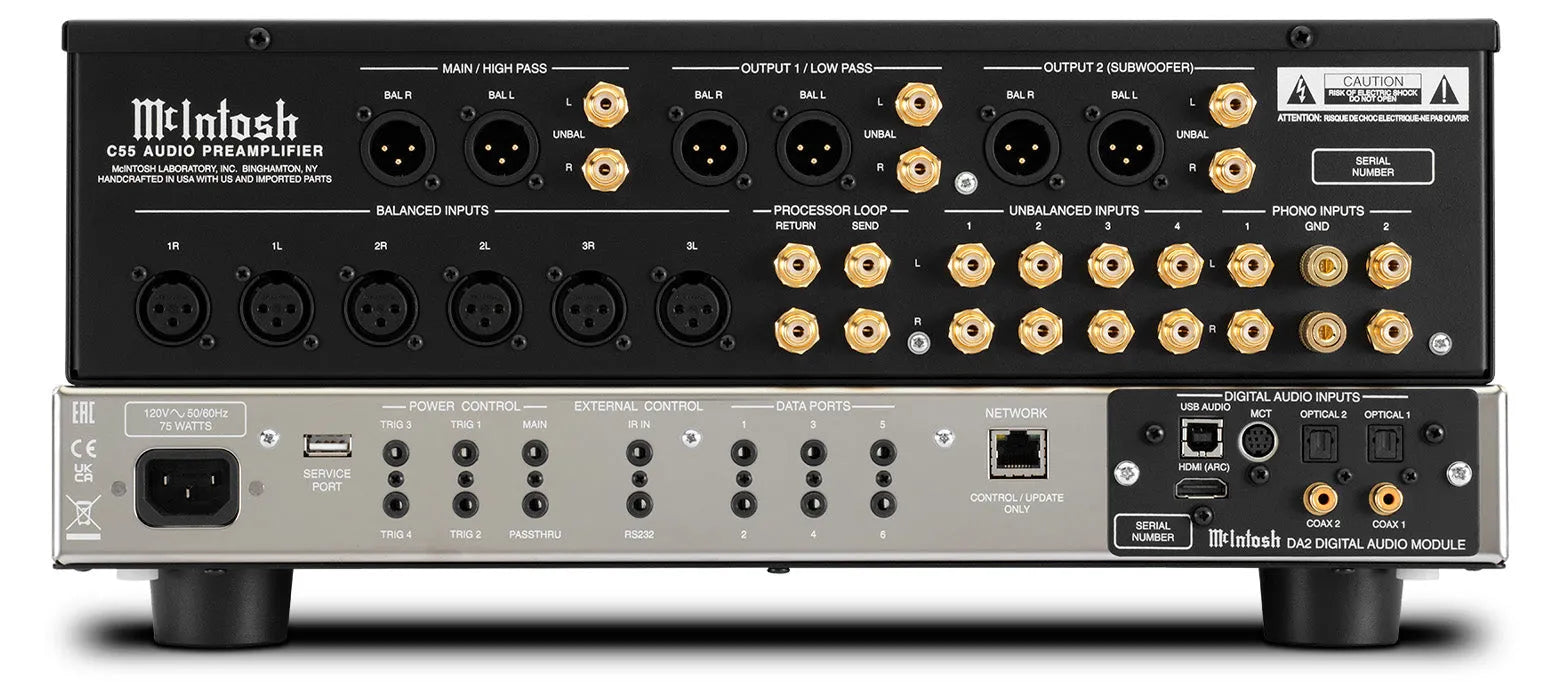

McIntosh Preamplifier back panel
The Main output and Output 1 have adjustable filtering capabilities for bi-amping, while Output 2 can be used to connect a subwoofer.

Additionally, the Main output and Output 1 can be used for bi-amping a single speaker system via the built-in adjustable High Pass and Low Pass filters. In this setup, the High Pass outputs could be connected to a vacuum tube amplifier, and the Low Pass outputs could be connected to a solid-state amplifier. The adjustable crossover allows you to optimize the performance of your amplifiers to your speaker's specifications and to your listening preferences. Output 1 offers trim level control, which allows two different amplifiers to be volume balanced when bi-amping.

Furthermore, Output 2 can be configured as either mono or stereo and can send an audio signal to a stereo audio system in another room, to a single mono subwoofer, or to 2 separate stereo subwoofers. 2

McIntosh Preamplifier back panel
The Processor Loop has unbalanced Send and Return connections.

RETURN OF THE PROCESSOR LOOP

The C55 features the return of the Processor Loop, something not available on the last few generations of McIntosh preamplifiers. The Processor Loop allows you to insert an external signal processor (such as our MQ112 Environmental Equalizer or MEN220 Room Correction System ), dynamic range expanders, or other devices without having to place it between the preamplifier and power amplifier(s). This is usually more convenient and can allow for better performance.

The Processor Loop is also the perfect place to connect an analog tape recorder, a high-end cassette deck, or a 3-head reel deck that allows you to record from a source component and hear the recording just seconds later so you can monitor your recordings.

McIntosh Connect app

NETWORK CONNECTED FOR CONTROL AND UPDATES

In addition to using the included remote control or the front panel controls, the C55 can be connected to your network which will unlock control options offered through our complimentary Connect app. Designed for both Android and Apple devices, the Connect app can be used to control key functions of the C55 including Volume control as well as Input and Output selection.

Select McIntosh source components 3 that have a data cable connected to the C55 will be partially controllable via the app's Source Control feature. With Source Control, users will be able to control many of the source unit's functions from the app, such as changing radio stations on a tuner , or playing a disc in a CD Player. This feature will bring added convenience to setups that have a secondary set of power amplifiers and speakers connected to one of the C55's outputs, such as an outdoor system where you will no longer be forced to go inside to control its basic functionality.

Another benefit of adding the C55 to your network is the ability to receive periodic firmware updates. These firmware releases can add new features or provide important performance updates. Watch our McIntosh Connect App: Setup and How to Use video to get acquainted with the app.

The C55 has also received Connects with Control4 Certification from Control4 ® , a leading global provider of smart home automation solutions, with the implementation of their Simple Device Discovery Protocol (SDDP), allowing it to be effortlessly integrated into Control4 automation systems to further enhance the user experience.

ADDITIONAL PERFORMANCE FEATURES

  • 8-band analog equalizer to fine-tune your music with precision, creating a personalized audio experience (the equalizer can be bypassed if desired).
  • High Drive Headphone Amplifier with Headphone Crossfeed Director (HXD ® ) technology brings an added dimension to headphone listening.
  • Home Theater PassThru for seamless integration into your home theater system.
  • Has received Roon Tested designation from Roon Labs.
  • Power Control lets you easily turn other connected McIntosh components on and off.
  • Data Ports can send remote control commands to connected source components.
  • Electromagnetic Input Switching for reliable, noiseless, and distortion-free switching.
  • Level Trim Adjustment for matching analog input levels to prevent abrupt changes in volume levels.
  • Precision balanced, digitally controlled attenuator system for accurate volume control with 0.1dB accuracy.
  • Fully regulated power supplies and a special R-core power transformer for stable, noise-free operation.
  • Eco-friendly Power Management System that will turn the unit off after 30 minutes of inactivity (can be disabled).

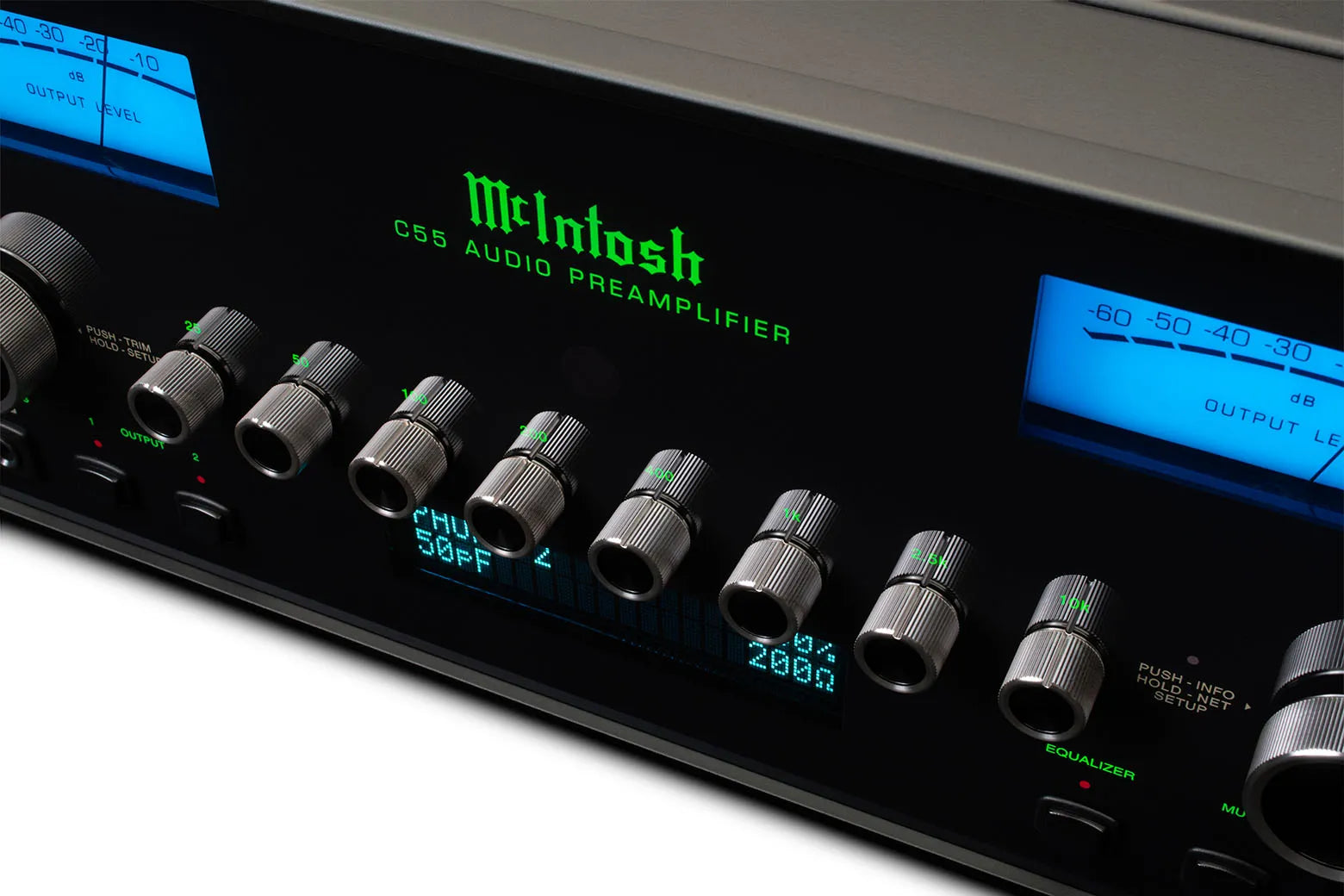

McIntosh C55 Preamplifier
The 8-band analog equalizer offers precise adjustments at key audio frequencies.

ELEVATE YOUR AUDITORY JOURNEY

All this cutting-edge audio technology resides within the iconic McIntosh design – a black glass front panel adorned with blue meters, rotary knobs, and an illuminated logo. The polished stainless steel chassis adds a touch of elegance, making it a perfect companion for amplifiers , CD players , turntables , and more.
TECHNICAL DATA

Electronic Specifications
Number of Channels
2
Total Harmonic Distortion
0.005%
Frequency Response
+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 15Hz to 100kHz
Maximum Volts Out (Balanced / Unbalanced)
16V RMS / 8V RMS
Sensitivity High Level (Balanced / Unbalanced)
900mV / 450mV
Sensitivity Phono (Moving Coil)
0.45mV
Sensitivity Phono (Moving Magnet)
4.5mV
Signal To Noise Ratio (High Level)
100dB
Signal To Noise Ratio (Moving Coil)
80dB
Signal To Noise Ratio (Moving Magnet)
82dB
Voltage Gain (High Level)
15dB
Voltage Gain (Moving Coil)
Selectable 40dB, 46dB, 52dB, 58dB, or 64dB
Voltage Gain (Moving Magnet)
Selectable 40dB, 46dB, 52dB, 58dB, or 64dB
Input Impedance (Balanced / Unbalanced)
44K ohms, 22K ohms
Connectivity
Balanced Input
3
Unbalanced Input
4
Phono Input Moving Coil
Up to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)
Phono Input Moving Magnet
Up to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)
Upgradeable Digital Audio Module
Yes: DA2
Digital Coaxial Input
2
Digital Optical Input
2
Digital MCT Input
1
Digital USB Input
1
HDMI (ARC) Input
1
Digital AES/EBU Input
0
Balanced Fixed Output
0
Balanced Variable Output
3
Unbalanced Fixed Output
0
Unbalanced Variable Output
3
Headphone Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)
Input Level Match
Yes, +/- 6dB
Home Theater PassThru
Yes
Unbalanced Analog Connector Type
Premium gold-plated solid brass
Service Port
1
Network Connection
1
Control
Tone Controls
8-band (each band adjustable ± 12dB)
Tone Bypass and Input Assign
Yes
RS232 Control Input
Yes
Power Control Output
1 Main, 4 Triggers
Rear Panel Data Port
6
Rear Panel IR Sensor Input
Yes
General Specifications
Multi-Chassis or Single
Single, two-layer
Output Meters
Yes
Vacuum Tube or Solid State
Solid State
Power Consumption (On)
75 Watts
Weights & Dimensions
Unit Dimensions (W x H x D)
17.5" (44.45cm) x 7.625" (19.4cm) x 16.5" (41.9cm)
Unit Weight
28 lbs (12.5 kg)
Shipping Weight
43.5 lbs (19.7 kg)

DOCUMENTS

User manual (EN)
