McIntosh

McIntosh MA7200, 2-channel integrated amplifier

The McIntosh MA7200 is a 2-channel integrated solid-state amplifier that not only reflects McIntosh's long-standing engineering tradition, but also offers the latest digital technology combined with classic analog connections.
€11,390.00 EUR

McIntosh MA7200, 2-channel integrated amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The McIntosh MA7200 is a 2-channel integrated solid-state amplifier that not only reflects McIntosh's long-standing engineering tradition, but also offers the latest digital technology combined with classic analog connections. With 200 watts per channel, 14 inputs, an upgradable digital module and McIntosh's proprietary sound-enhancing technologies, the MA7200 can become the heart of any high-end 2-channel audio system. It is a device for those who value precision, power, durability and exceptional design.

Power: 2 x 200 W (2-8 Ω)
Frequency range (+0,-0.5dB): 20Hz to 20kHz; (+0, -3dB) 10Hz to 100kHz
Distortion (THD): 0.005%
Signal-to-noise ratio: (High level) 95 dB, (Moving Coil) 80dB, (Moving Magnet) 82dB

DESCRIPTION

Offering 200 Watts per channel and 14 total inputs, the space-saving MA7200 Integrated Amplifier can easily become the core of your 2-channel home audio system.

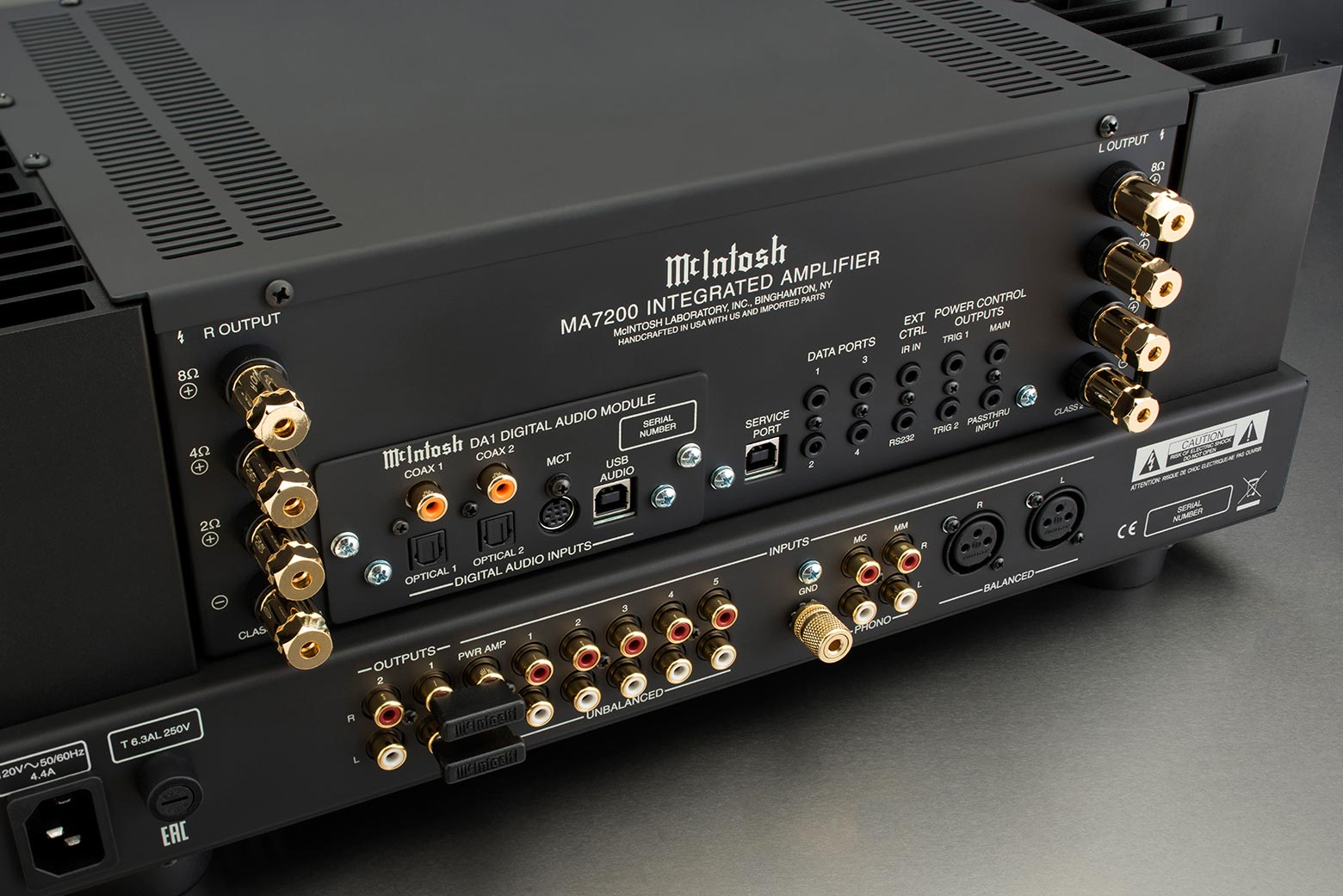

Making up its 14 inputs are 8 analog connections (5 unbalanced, 1 balanced and 1 each of Moving Coil and Moving Magnet inputs for turntables ) along with 6 digital (2 each of coaxial and optical plus 1 USB and 1 proprietary MCT for use with our MCT500 SACD/CD Transport). The digital inputs are housed in our DA1 Digital Audio Module, which can easily be replaced by future modules to keep your MA7200 current with the latest digital audio technologies. ( NOW AVAILABLE : Optional dealer installed upgrade to the DA2 Digital Audio Module .) The DA1 comes with an 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode. The USB input accepts PCM signals up to 32-bit/384kHz and supports up to DSD256 and DXD 384kHz for high resolution audio playback, while the coax and optical inputs will decode music up to 24-bit/192kHz. All inputs can be given custom names for user-friendly system control and configuration.

McIntosh MA7200 Integrated Amplifier

"A very elegant sounding amplifier with a lot of power in reserve... a hefty amplifier that is capable of great things and a lot more than just brute force, the MA7200 doesn't just look the part, it sounds the part!" -  HiFi+

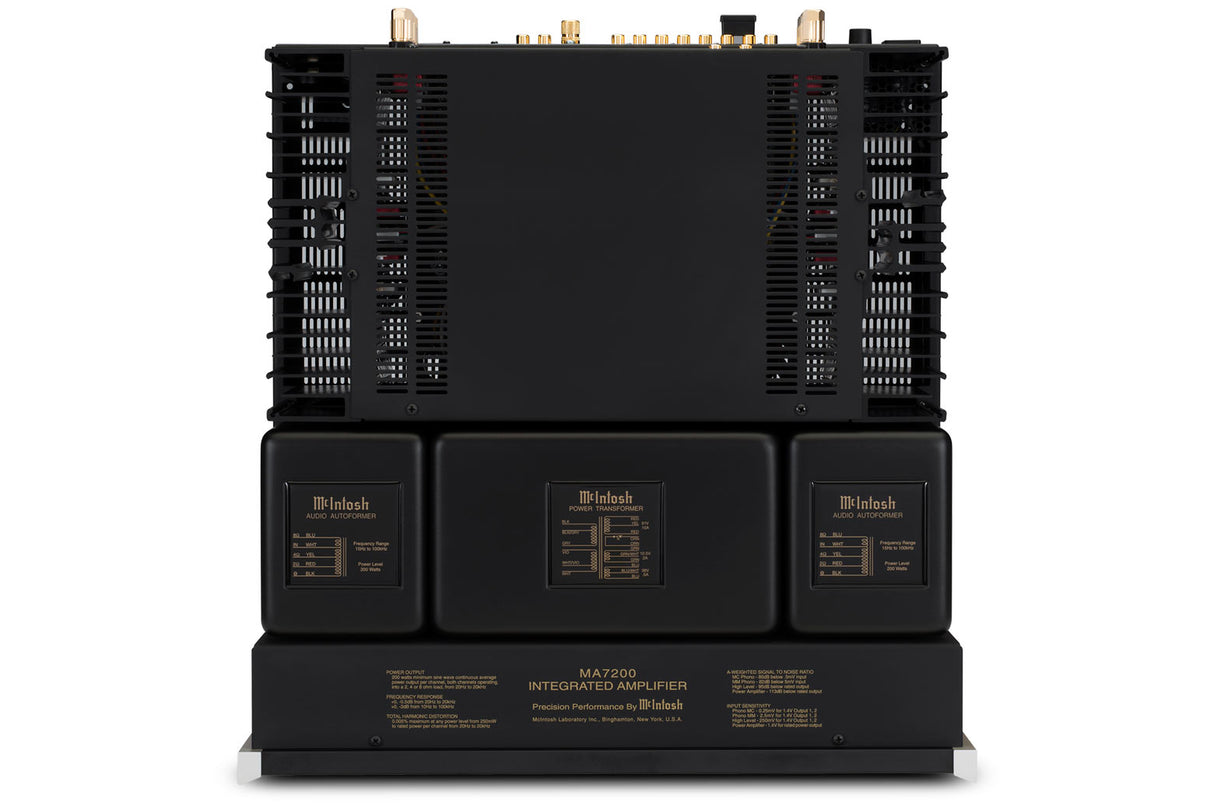

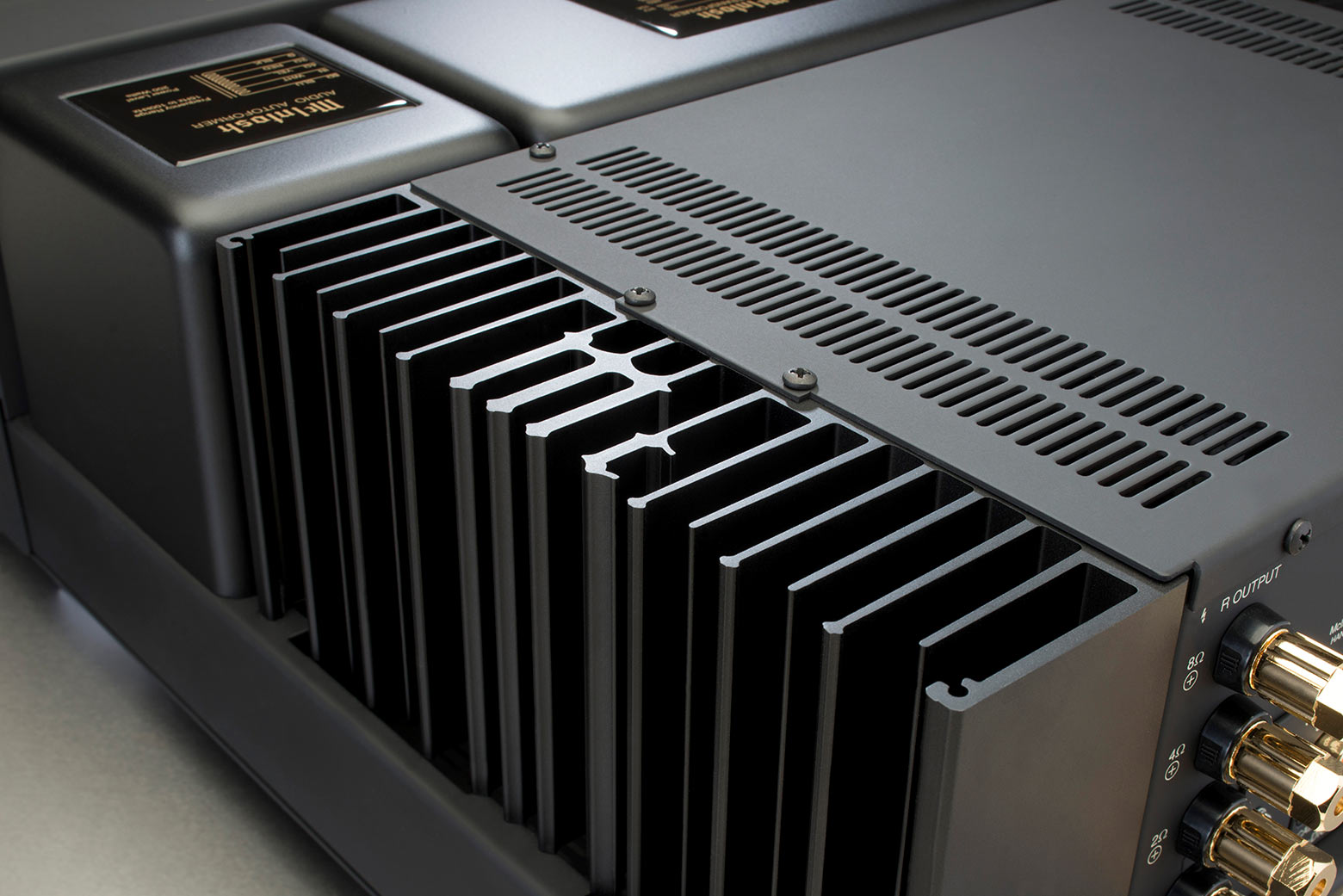

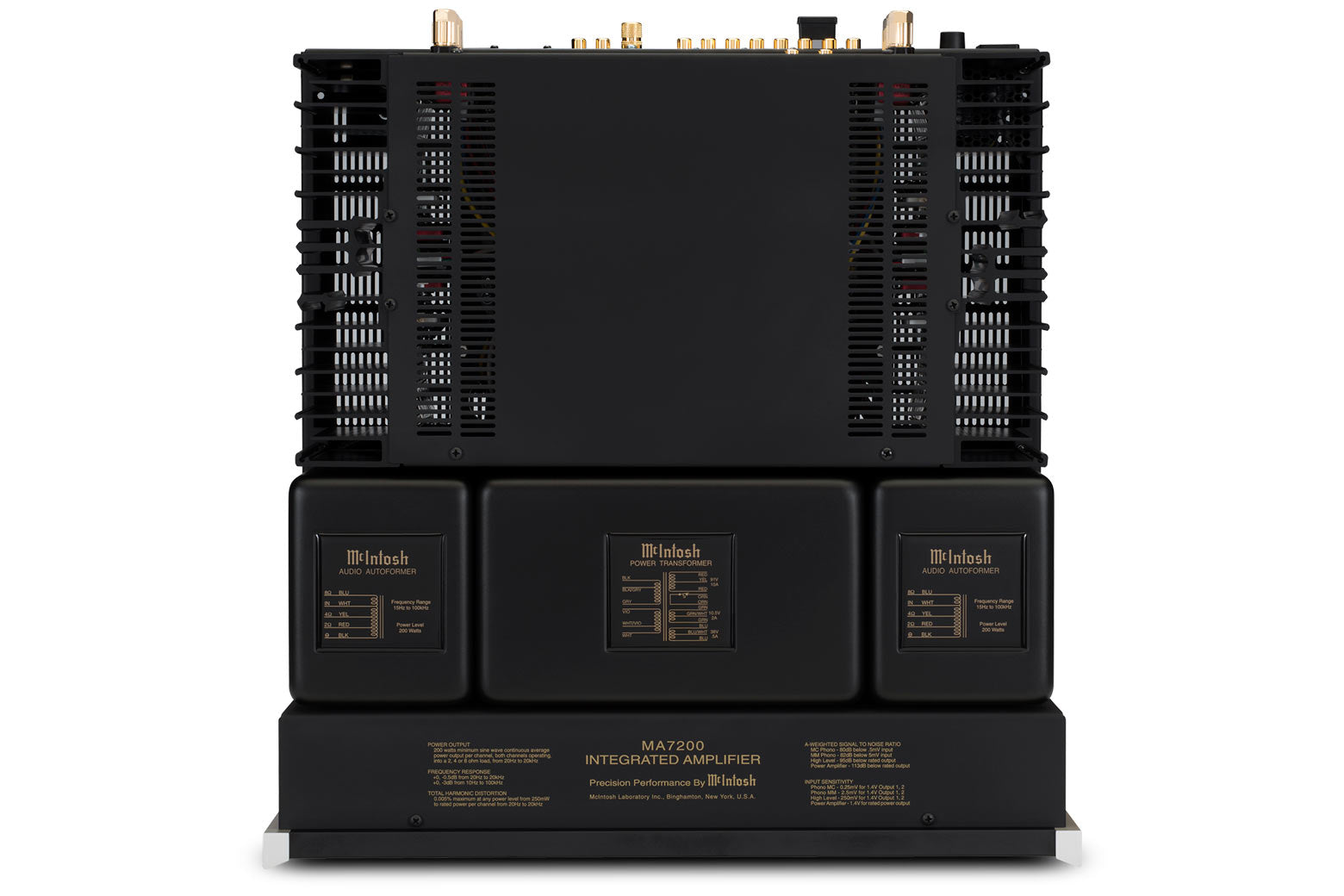

The MA7200 includes our Monogrammed Heatsinks ™ which are so efficient at dissipating heat that they warrant bearing the McIntosh "Mc" logo. They are connected to advanced high current output transistors that eliminate warm-up time so you can enjoy the MA7200's full sonic capabilities from the moment you turn it on. The MA7200 is full of other McIntosh technologies including Autoformers ™ to deliver the full 200 Watts to each of your speakers regardless of their impedance, Power Guard ® , Sentry Monitor ™ , Home Theater PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD ® ), and gold-plated speaker binding posts.

"An astonishingly good amplifier... Blending together the brand's modern take on traditional analogue approaches with a healthy dose of digital inputs plus a top flight phono stage, headphone amp and battleship build quality." -  Audio grade

The MA7200 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities.

McIntosh MA7200 Integrated Amplifier

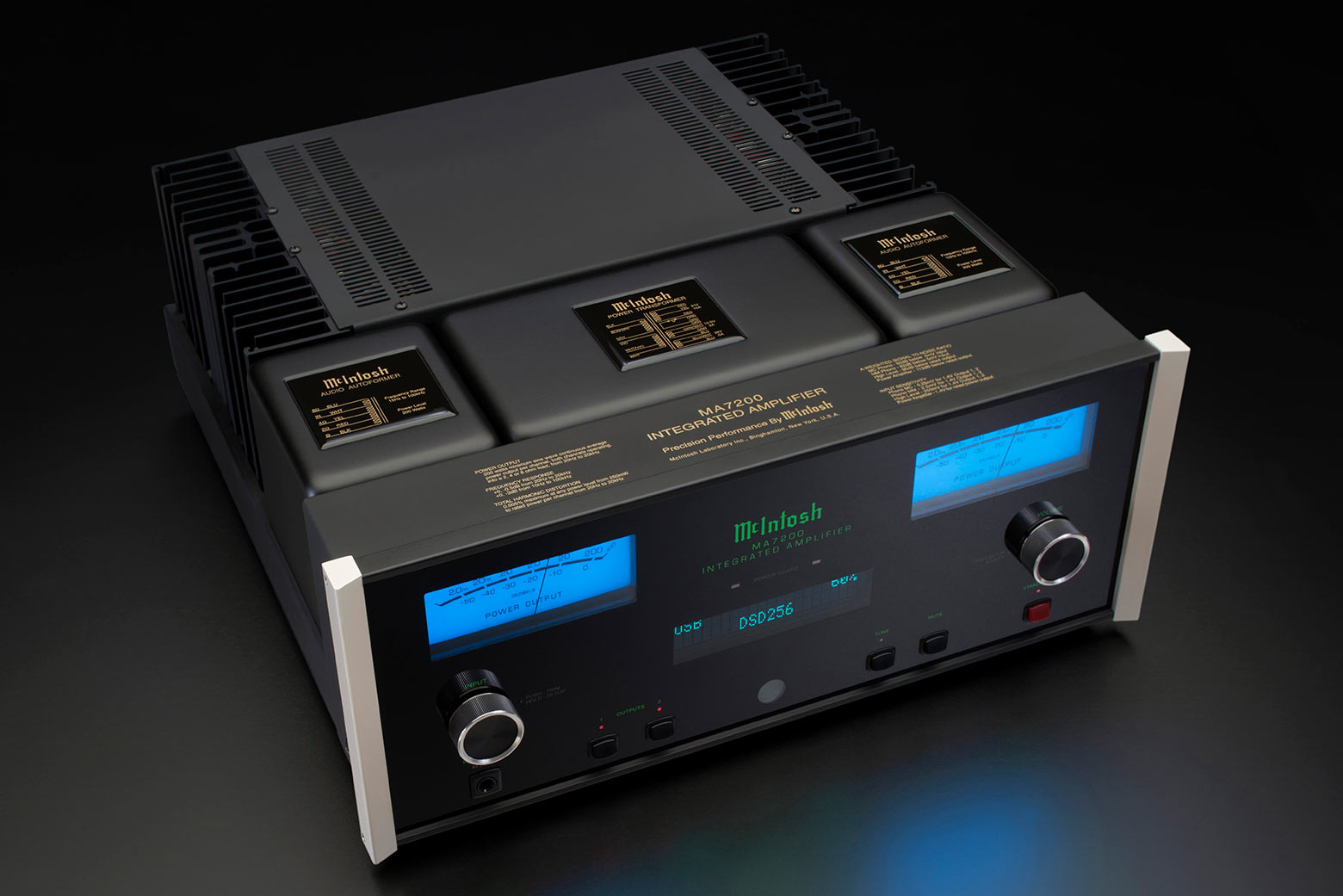

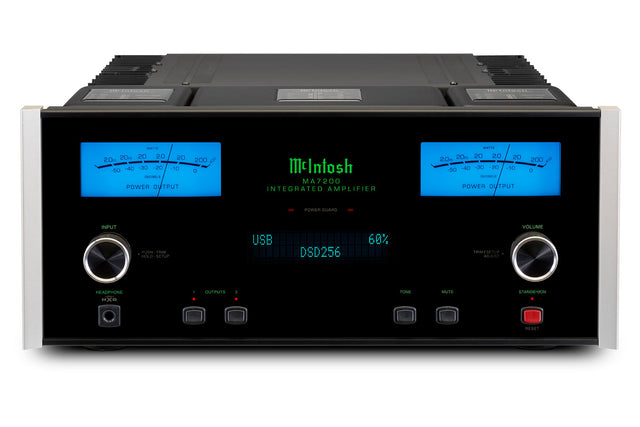

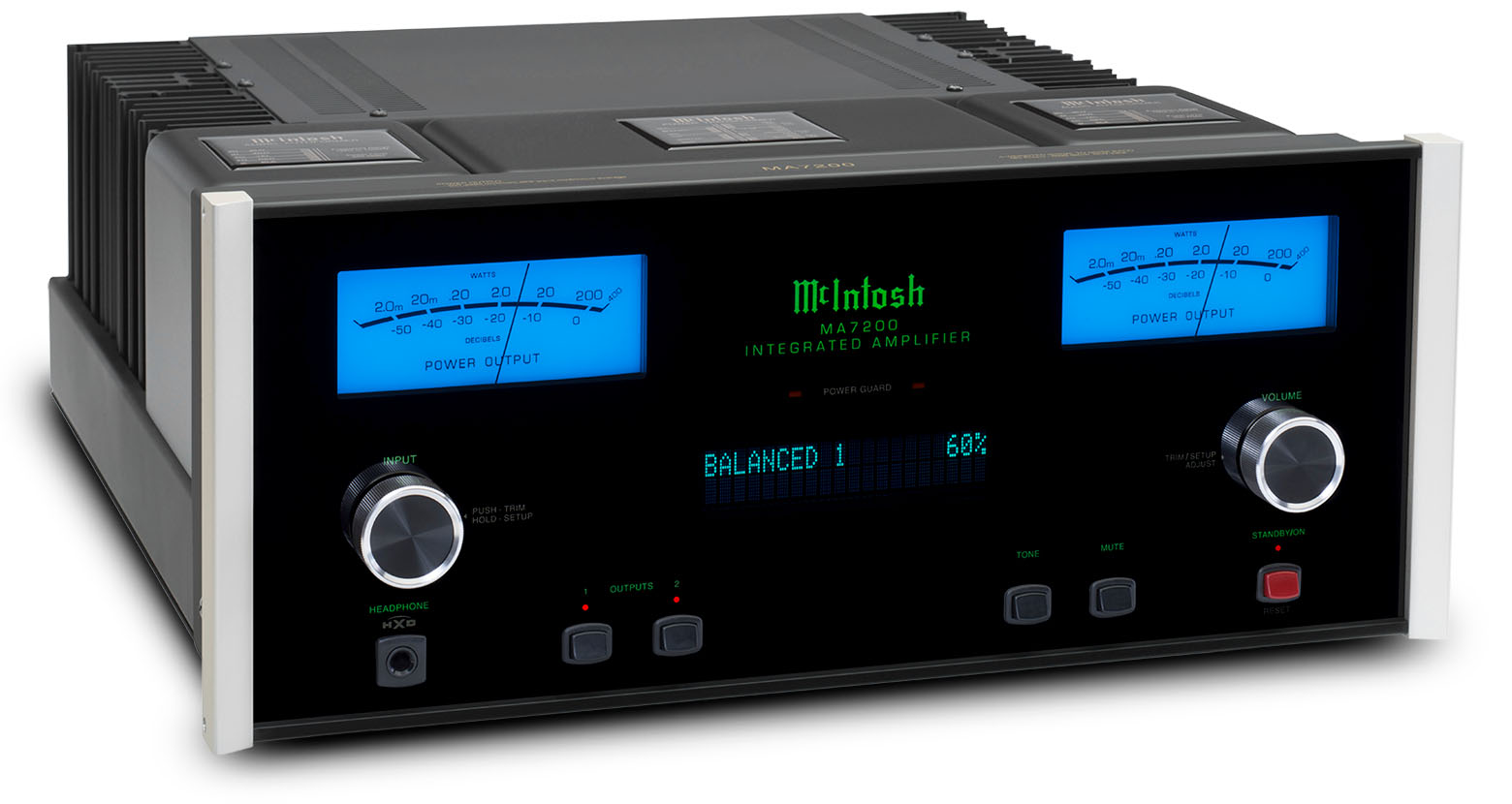

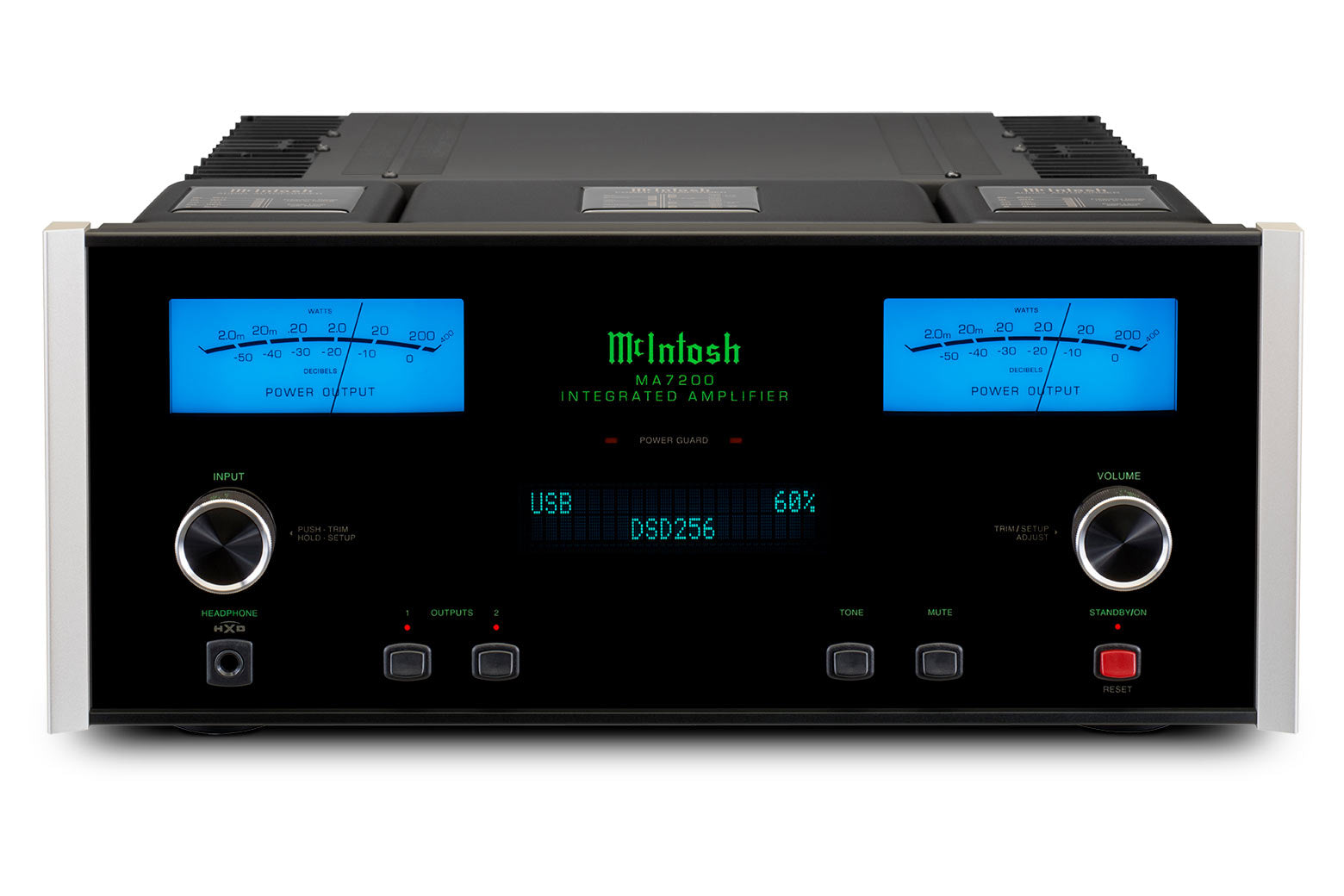

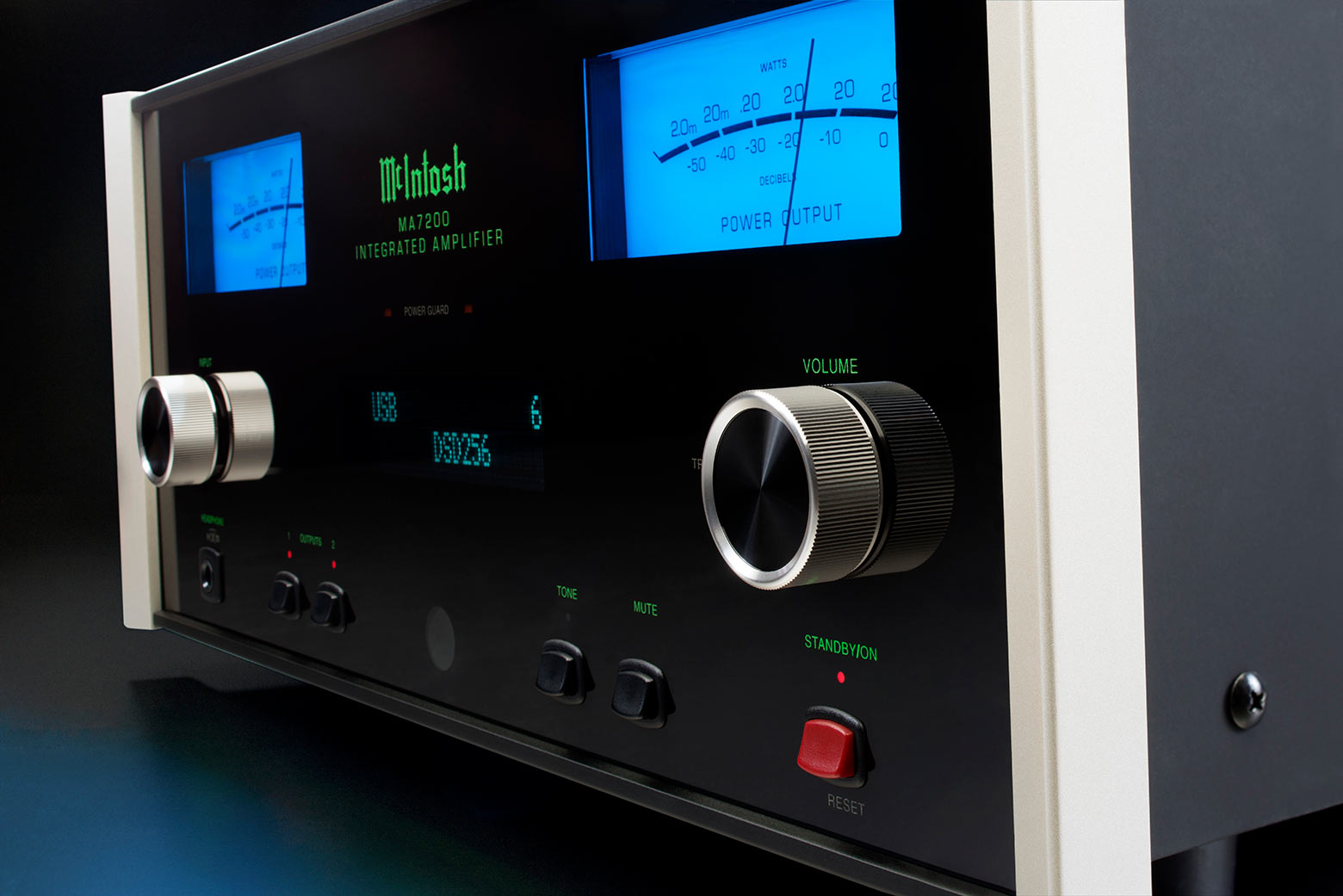

The entire unit is wrapped in the timeless McIntosh appearance with blue watt meters, a black glass front panel with aluminum end caps, control knobs and illuminated logo. Contact your local dealer to learn more.

TECHNICAL DATA

Electronic Specifications

  • FTC Power Output Rating
    200W
  • Power Output per Channel
    200 W into 2, 4, or 8 ohms
  • Number of Channels
    2
  • Rated Power Band
    20Hz to 20kHz
  • Total Harmonic Distortion
    0.005%
  • Dynamic Headroom
    2dB
  • Frequency Response +0,-0.5dB
    20Hz to 20kHz
  • Frequency Response, +0, -3dB
    10Hz to 100kHz
  • Sensitivity Phono (Moving Coil)
    0.25mV
  • Sensitivity Phono (Moving Magnet)
    2.5mV
  • Sensitivity High Level (Balanced / Unbalanced)
    0.5V/0.25V
  • Sensitivity (Power Amp input)
    1.4V
  • Signal To Noise Ratio (Moving Coil)
    80dB
  • Signal To Noise Ratio (Moving Magnet)
    82dB
  • Signal To Noise Ratio (High Level)
    95dB
  • Signal To Noise Ratio (Power Amp input)
    113dB
  • Input Impedance (Balanced / Unbalanced)
    20K/20K
  • Damping Factor
    >40
  • Maximum Output (Balanced / Unbalanced)
    8V Unbalanced

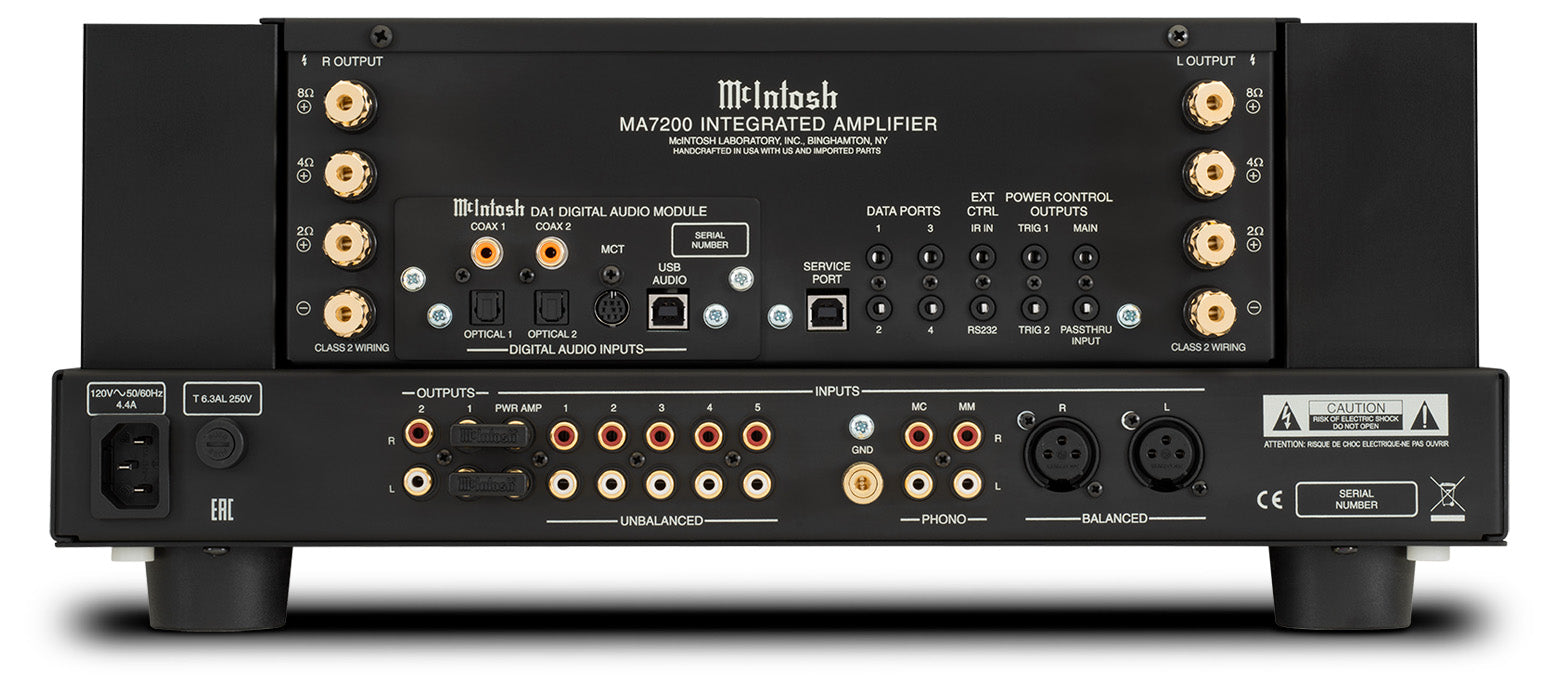

Connectivity

  • Balanced Input
    1
  • Unbalanced Input
    5
  • Phono Input Moving Coil
    1 (adjustable loading)
  • Phono Input Moving Magnet
    1 (fixed loading)
  • Upgradeable Digital Audio Module
    Yes: DA1
  • Digital Coaxial Input
    2
  • Digital Optical Input
    2
  • Digital MCT Input
    1
  • Digital USB Input
    1
  • HDMI (ARC) Input
    0
  • Balanced Variable Output
    0
  • Unbalanced Fixed Output
    0
  • Unbalanced Variable Output
    2
  • Headphone Output
    1/4" High Drive with Headphone Crossfeed Director (HXD ® )
  • Subwoofer Output
    0
  • AM/FM Tuner option
    No
  • Home Theater PassThru
    Yes
  • Unbalanced Analog Connector Type
    Standard
  • Speaker Binding Post Type
    Standard
  • Service Port
    1

Digital Audio Specifications

  • Digital-to-Analog Converter (DAC) Type
    8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
  • Digital Coaxial Input Sample Rate
    24-bit/44.1kHz to 192kHz
  • Digital Optical Input Sample Rate
    24-bit/44.1kHz to 192kHz
  • Digital MCT Input Sample Rate
    16-bit/44.1kHz (CD)
    DSD64 (SACD)
  • Digital USB Input Sample Rate
    32-bit/44.1kHz to 384kHz (PCM)
    DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

Control

  • Tone Controls
    Bass and Treble
  • Tone Bypass and Input Assign
    Yes
  • RS232 Control Input
    Yes
  • Power Control Output
    1 Main, 2 Trigger
  • Rear Panel Data Port
    4
  • Rear Panel IR Sensor Input
    Yes
  • Input Level Match
    Yes

General Specifications

  • Vacuum Tube or Solid State
    Solid State
  • Output Type
    Autoformer™
  • Output Meters
    Yes
  • Dual Layer Chassis
    Yes
  • Chassis Finish
    Black painted steel
  • McIntosh Monogrammed Heatsinks™
    Yes
  • Power Requirements
    120V 50/60Hz, 4.4 amps
  • Standby Power Requirement
    <0.25 Watts

Weights & Dimensions

  • Unit Dimensions (W x H x D)
    17-1/2" (44.5cm) x 7-5/8" (19.4cm) x 18-3/4" (47.6cm)
  • Unit Weight
    75 lbs (34.1 kg)
  • Shipping Weight
    93 lbs (42.3 kg)

DOCUMENTS

User manual (EN)
