McIntosh MEN220, room acoustic correction and sound management system

ELEVATING SOUND QUALITY WITH PRECISION ENGINEERING

The MEN220 Room Correction System offers an all-in-one solution for sophisticated room correction, custom EQ, and two-way crossover functionality in an accessible stereo component. Each individual feature of the MEN220 has the ability to enhance the acoustic performance of high-quality audio systems; however, when combined, these features reveal an unparalleled level of clarity and precision.

IMPROVE YOUR SOUND

At the heart of the MEN220 is RoomPerfect ^™ , one of the most advanced systems for adapting a sound system to the unique acoustic environment of your room. RoomPerfect intelligently analyzes the audio characteristics of your speakers and the specific acoustic traits of your space, then adjusts the audio signal for a sound profile precisely tailored to the room's size, shape, and acoustic qualities.

This technology allows for flexible speaker placement without compromising sound quality. Position your speakers against a wall, in open space, or asymmetrically from the listening position, and RoomPerfect will adjust the audio to deliver optimal sound performance.

The MEN220 supports precise measurement and correction for up to eight distinct listening positions and provides a Global Room Correction mode for listening from any point in the room. It includes six preset EQ curves tailored for different music genres and allows for the creation of up to six additional custom EQ profiles.

ENHANCED FUNCTIONALITY

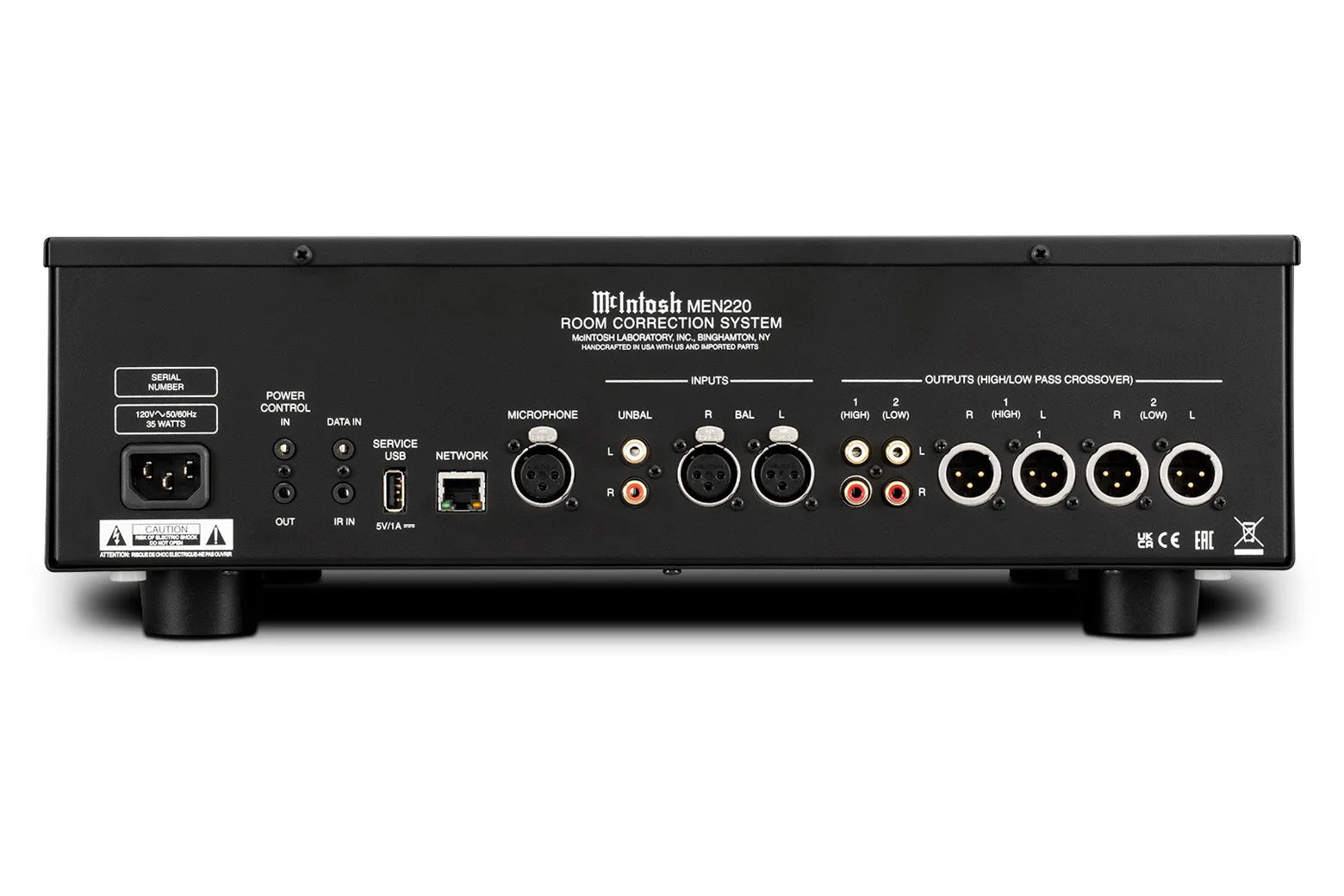

The MEN220's adjustable crossover simplifies bi-amping your speakers, featuring two pairs of balanced and unbalanced outputs to connect to your power amplifier(s) . Additionally, it offers both balanced and unbalanced inputs for seamless integration with your preamplifier via balanced cables or unbalanced cables .

Operation is straightforward, with control options available through the front panel, the included remote control, or a web interface. Power Control ports enable synchronized on/off functionality with other McIntosh components via Power Control Cables .

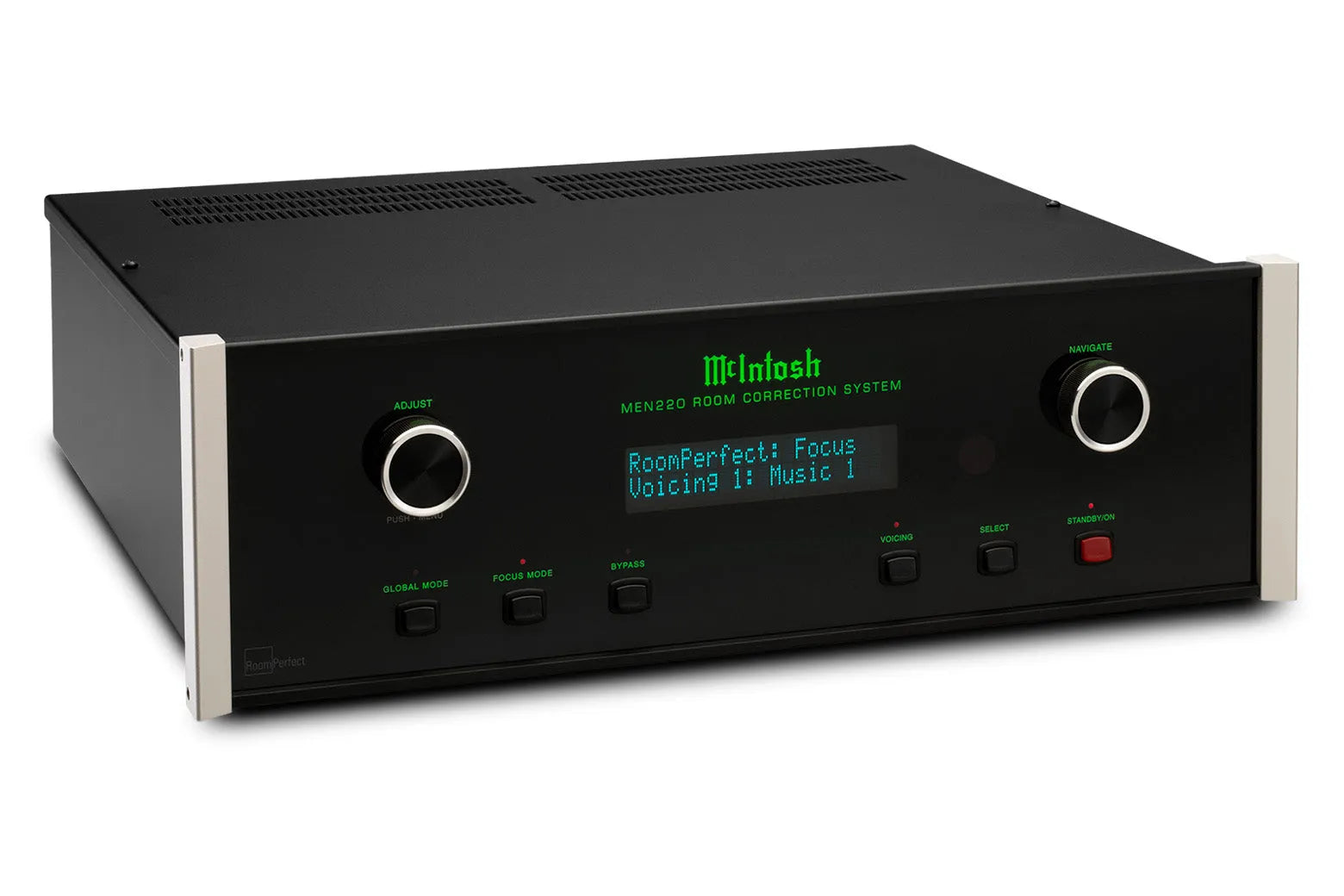

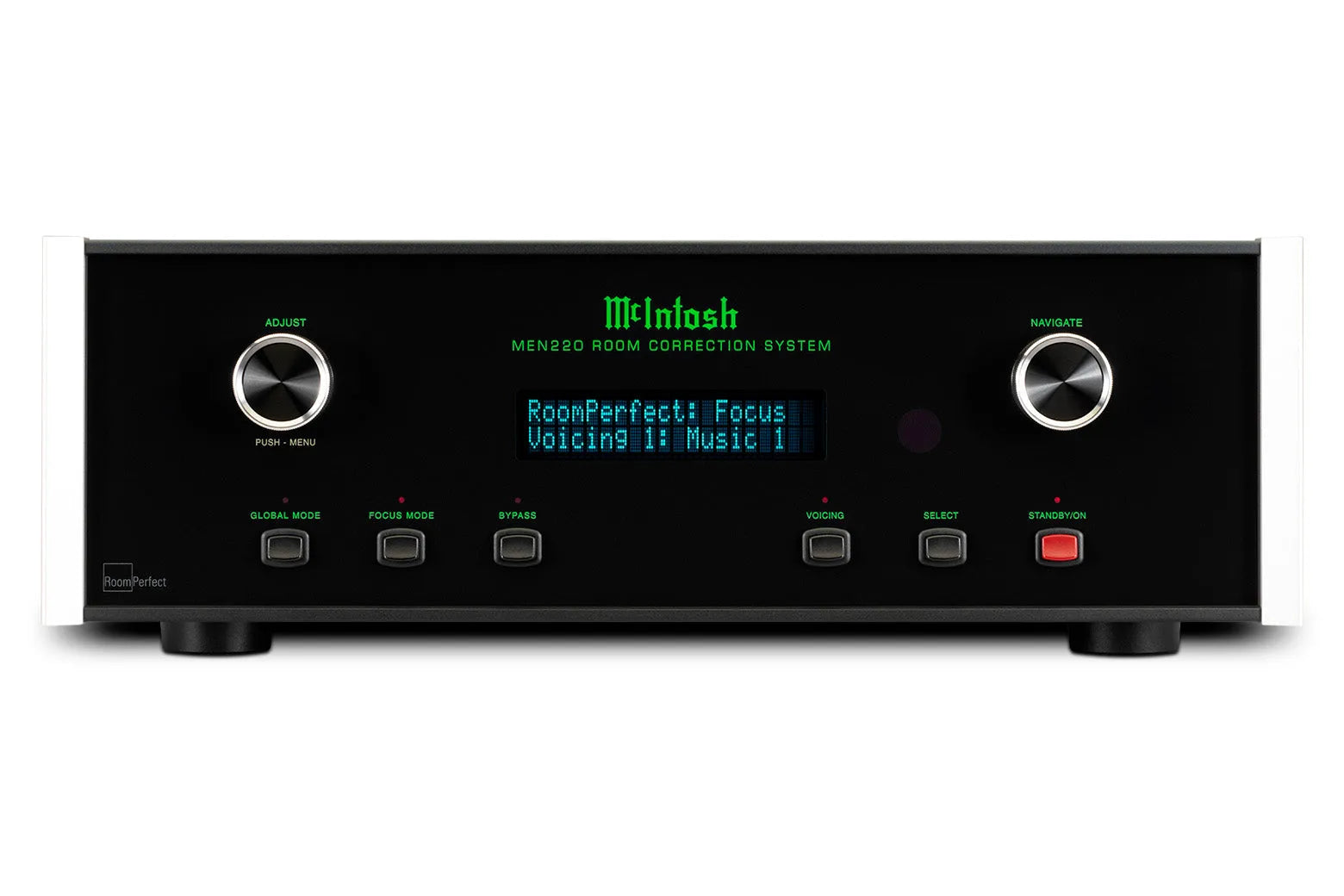

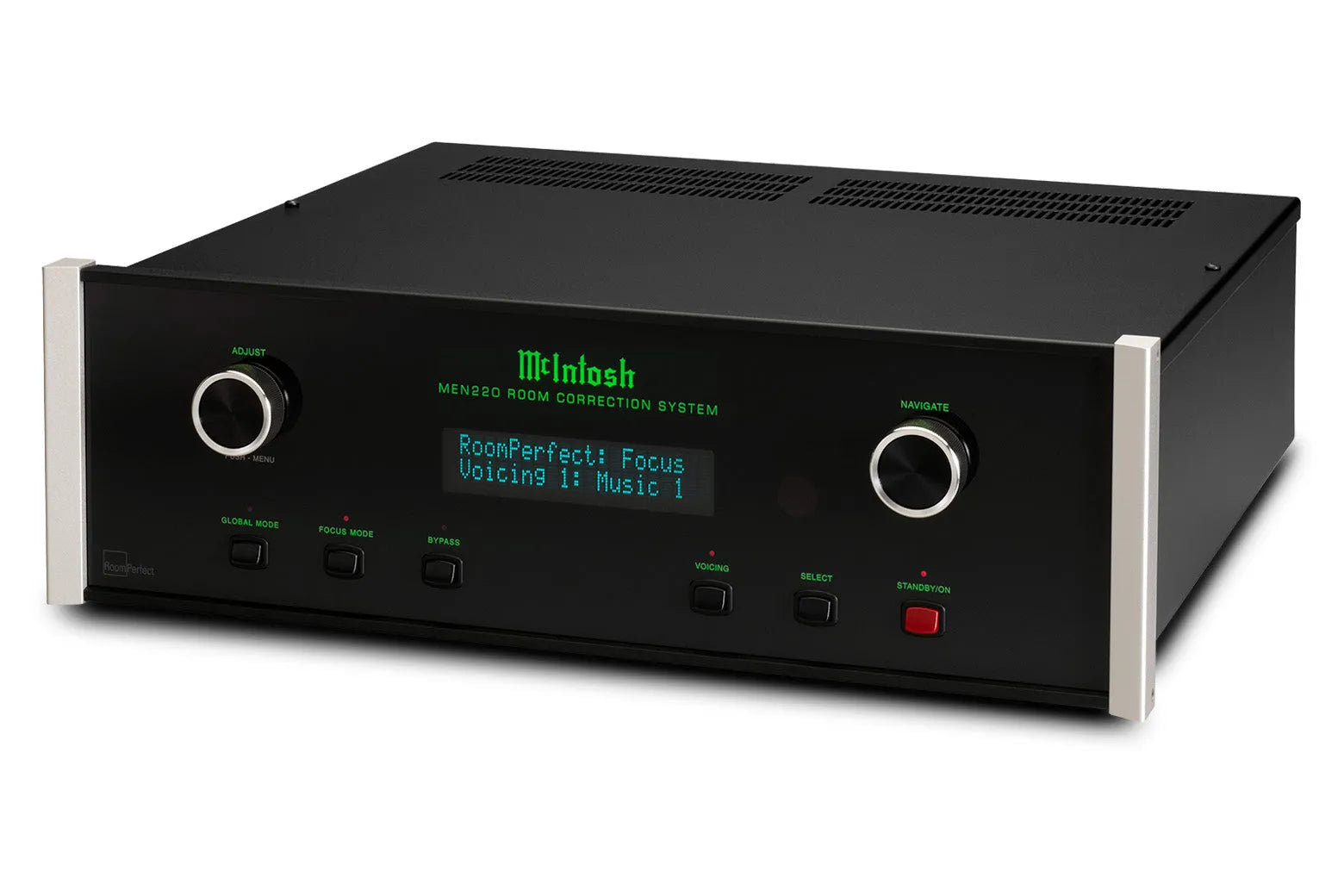

The MEN220 showcases McIntosh's signature design, with a black glass front panel, rotary knobs, push buttons, and an illuminated logo. Contact your local dealer to add the MEN220 Room Correction System's transformative capabilities to your audio system.

TECHNICAL DATA

Electronic Specifications

Note: all measurements with EQ filters and output filters bypassed.

• Frequency Response

  +0, -0.5dB from 20Hz to 20,000Hz

• Total Harmonic Distortion

  0.002% from 20Hz to 20,000Hz

• Maximum Input Voltage

  4.5V Unbalanced and Balanced

• Output Voltage

  2.0V Unbalanced and Balanced

• Maximum Output Voltage

  4.5V Unbalanced and Balanced

• Signal To Noise Ratio (A-Weighted)

  100dB

• Input Impedance

  10K ohms Unbalanced and Balanced

• Voltage Gain

  0dB

• Output Impedance

  50 ohms

• Crossover Filter Types, Order and Slope

  Butterworth, 1st order, 6dB/octave
  Butterworth, 2nd order, 12dB/octave
  Butterworth, 4th order, 24dB/octave
  Linkwitz-Riley, 2nd order, 12dB/octave
  Linkwitz-Riley, 4th order, 24dB/octave
  Linkwitz-Riley, 8th order, 48dB/octave

Connectivity

• Balanced Input

  1

• Balanced Output

  1 (High)
  1 (Low)

• Unbalanced Input

  1

• Unbalanced Output

  1 (High)
  1 (Low)

• Balanced Microphone Input

  1

• Network Connection

  1

• USB Input

  1 (For Service Only)

• USB Input Type

  Type A

Control

• Power Control Input

  1

• Power Control Output

  1

• Data Input

  1

• Rear Panel IR Sensor Input

  1

General Specifications

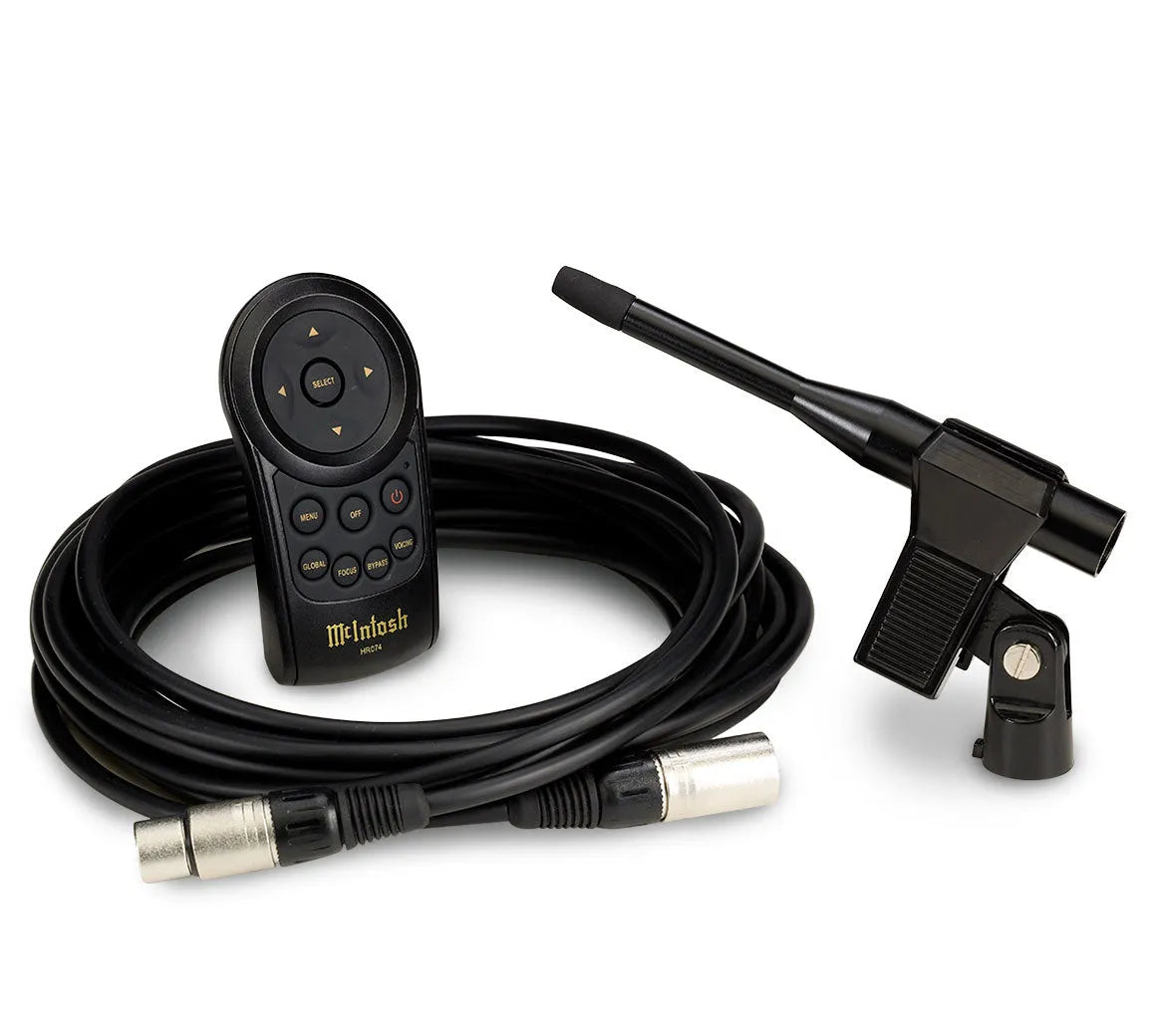

• Microphone and stand included

  Yes

• Power Requirements

  100V ~ 50/60Hz at 35 watts
  110V ~ 50/60Hz at 35 watts
  120V ~ 50/60Hz at 35 watts
  220V ~ 50/60Hz at 35 watts
  230V ~ 50/60Hz at 35 watts
  240V ~ 50/60Hz at 35 watts

• Standby Power Requirement

  <0.5 Watts

Weights & Dimensions

• Unit Dimensions (W x H x D)

  17-1/2" (44.45cm) x 6" (15.24cm) x 16-1/2" (41.9cm)

• Unit Weight

  15 lbs (6.8 kg)

• Shipping Weight

  24.5 lbs (11.1 kg)

DOCUMENTS

User manual (EN)
