McIntosh XR100, grindinė garso kolonėlė

McIntosh XR100 - tai elegantiško, šiuolaikiško dizaino grindinė keturių juostų (4-way) garso kolonėlė, pasižyminti itin plačiu dažnių atkūrimo diapazonu ir galingu, detaliu skambesiu. Nepaisant palyginti kompaktiško korpuso, ši kolonėlė perteikia viso garso spektro dinamiką, būdingą gerokai didesniems modeliams.

Nominali varža: 8 omai
Galingumo diapazonas: nuo 75 iki 600 W
Dažnių diapazonas: 30 Hz – 45 kHz
Jautrumas (2,8 V/1 m): 87 dB

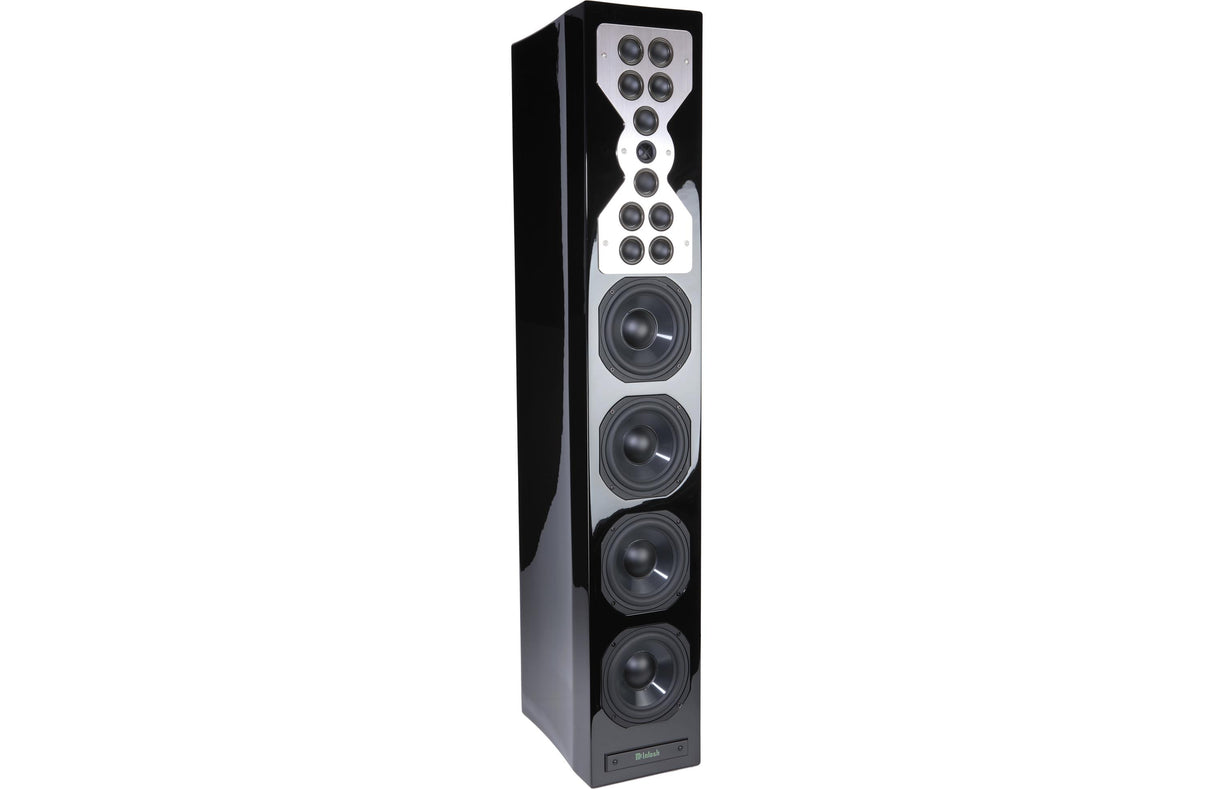

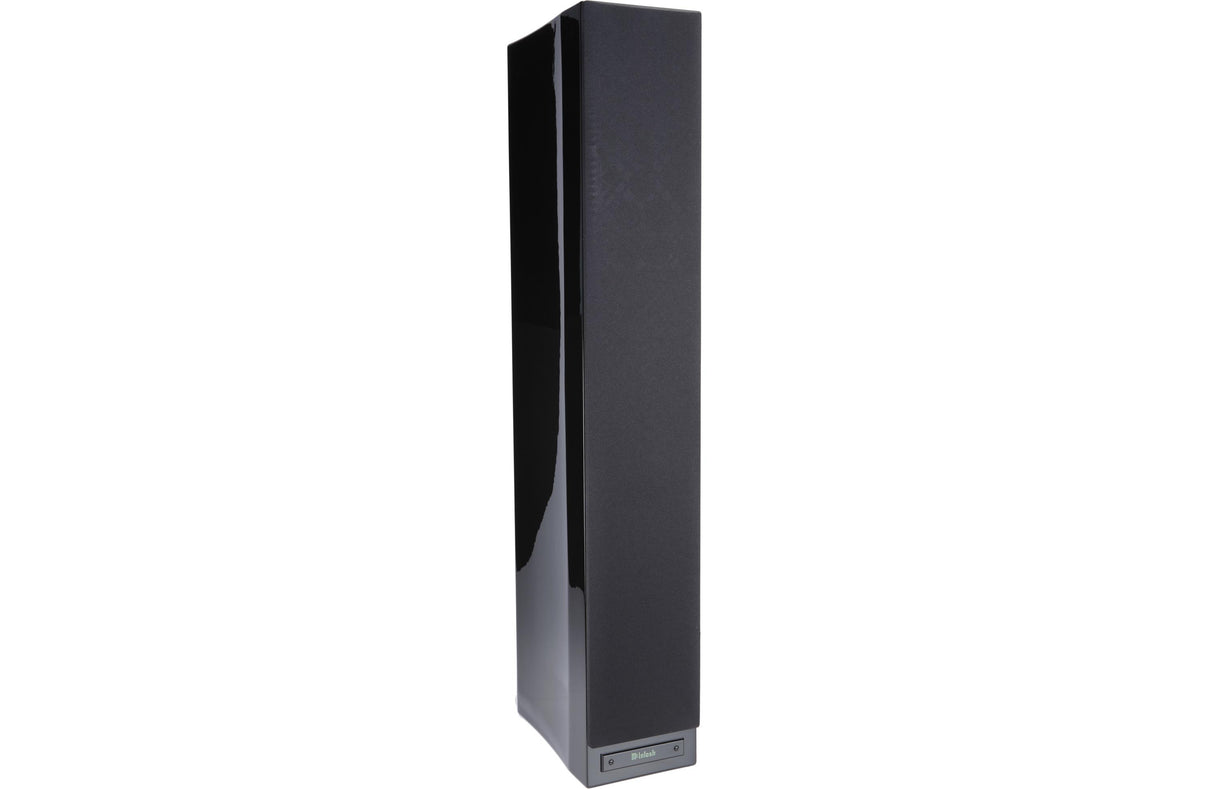

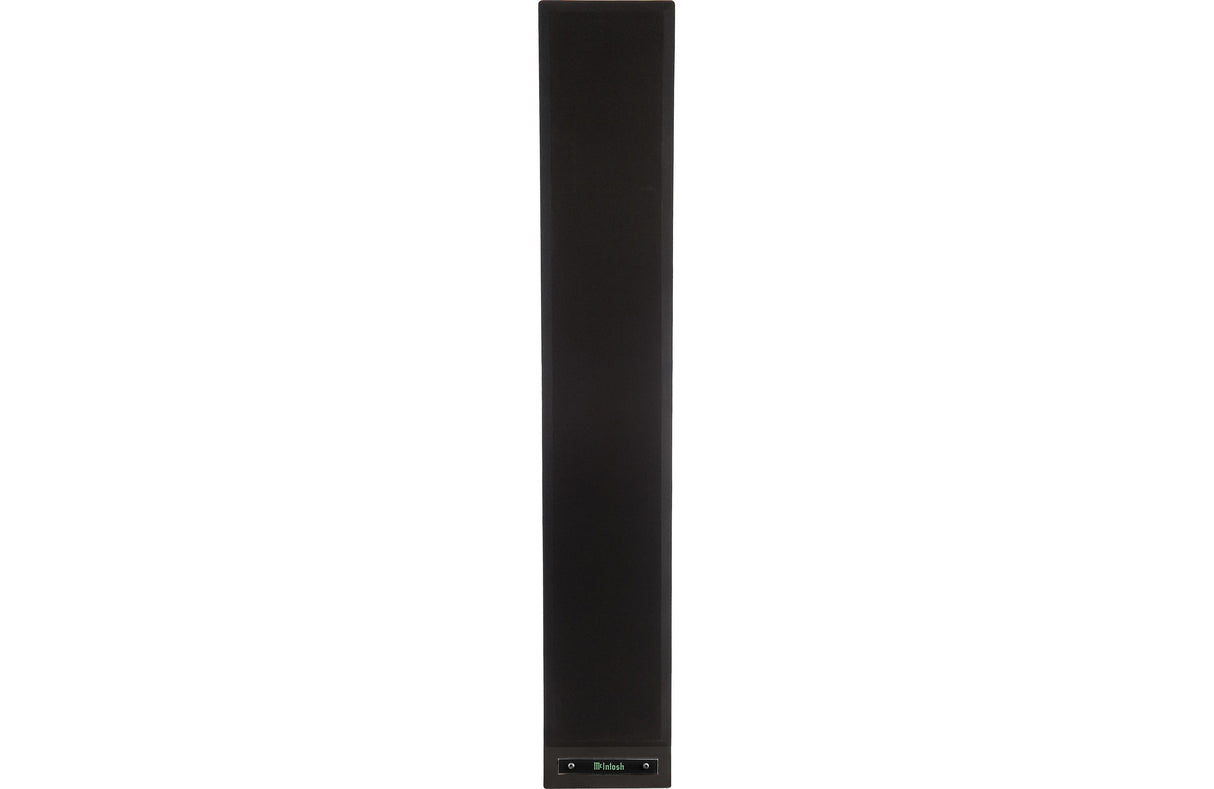

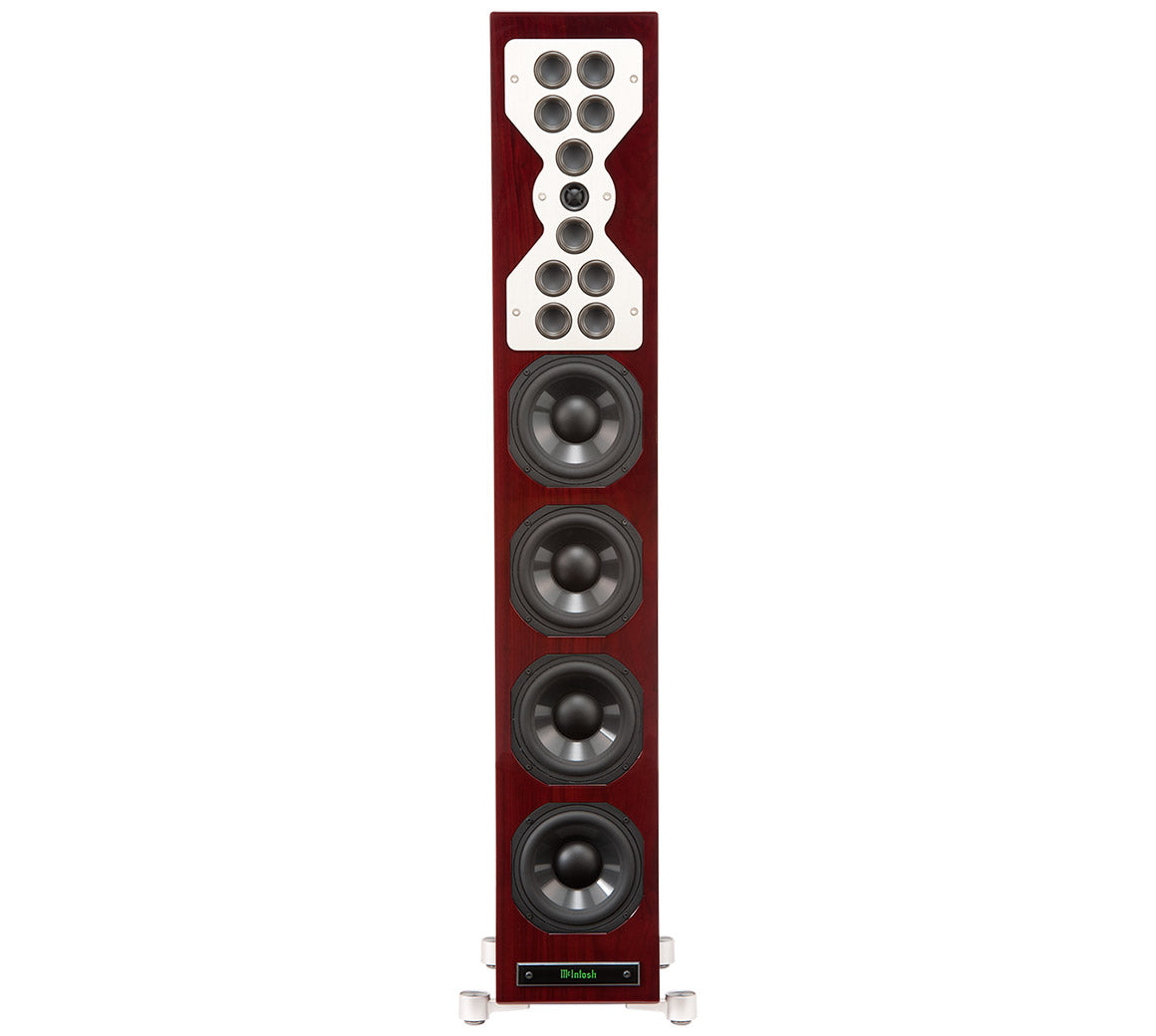

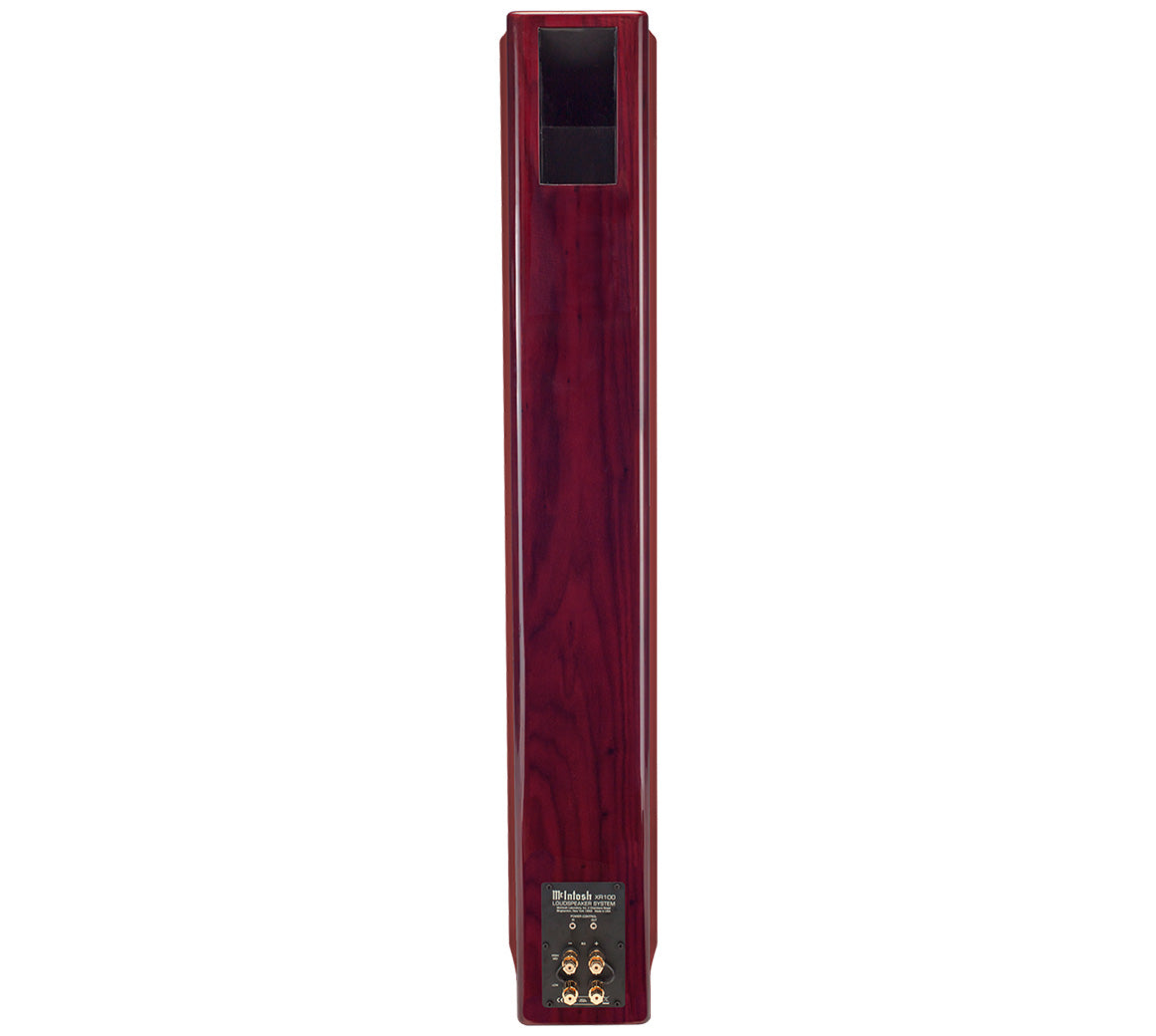

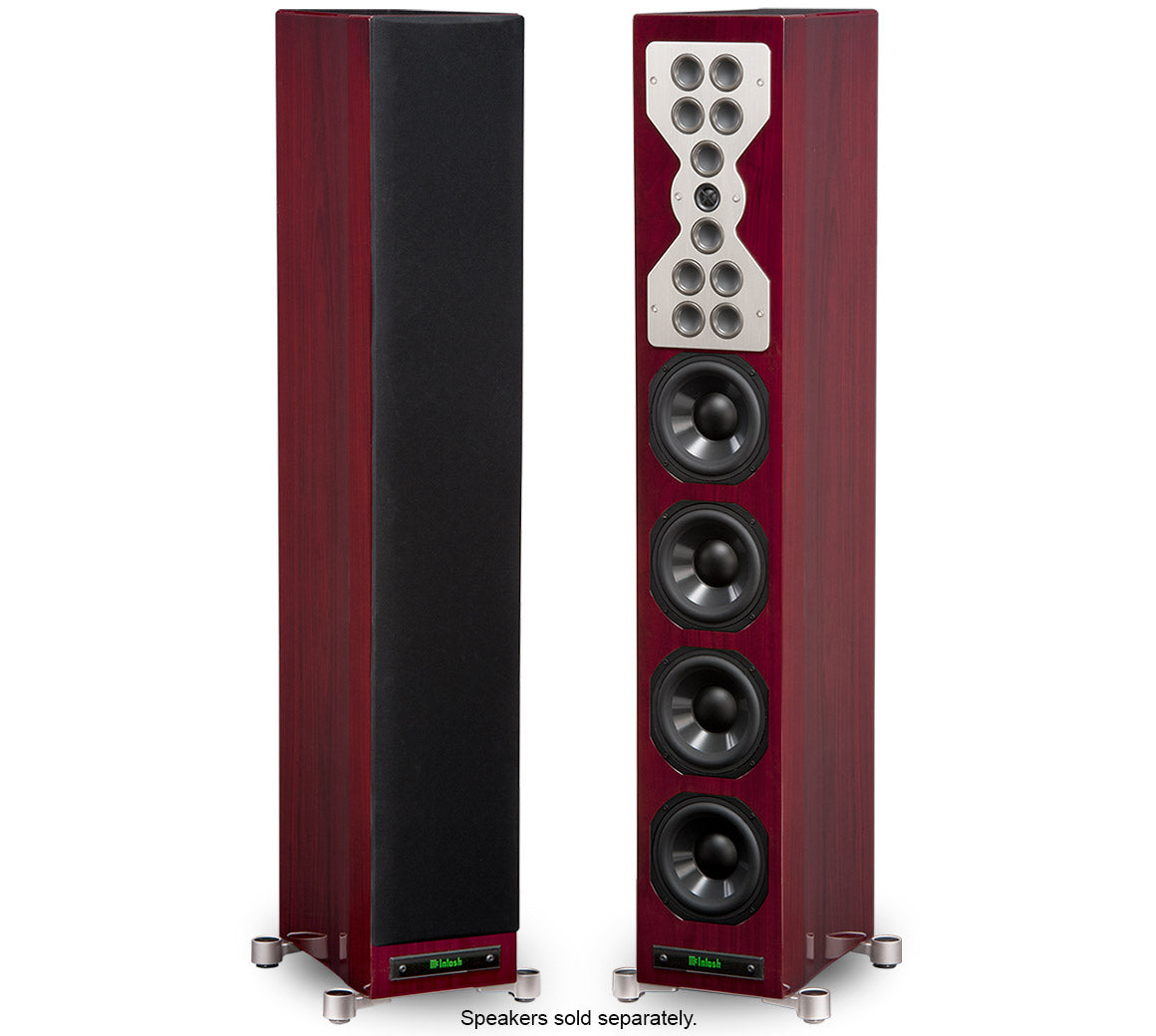

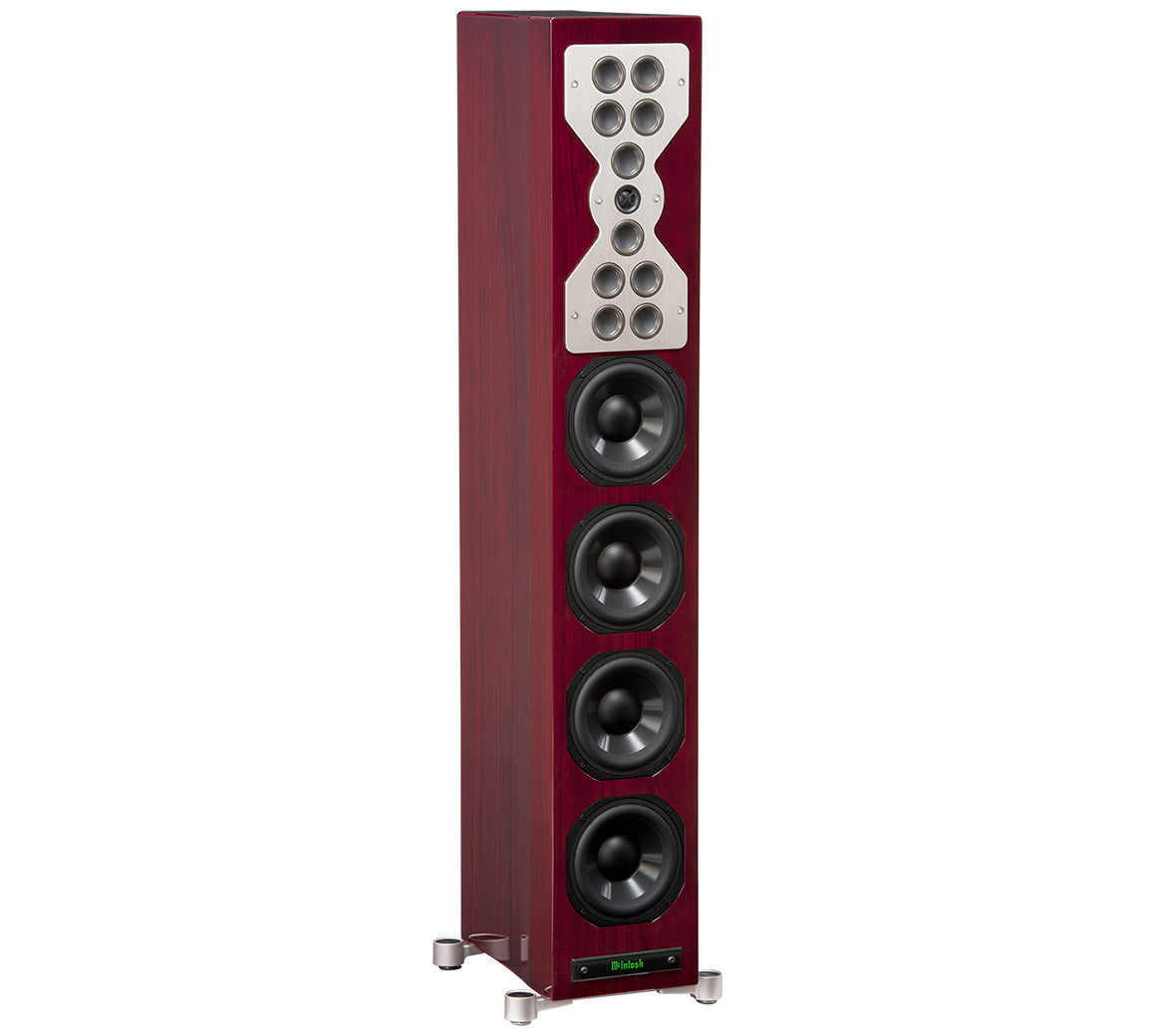

The XR100 Floor Standing Loudspeaker is sleek and contemporary in appearance while producing full range audio reproduction typical of much larger cabinet designs. Fine gloss wood finishes are offered in Black and Red Walnut (shown). The magnetically attached grille is acoustically transparent and covered with neutral black cloth. Our patented Solid Cinch™ speaker binding posts easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; the binding posts are gold-plated to prevent corrosion and ensure a quality signal is delivered to your speakers.

Unique front panel McIntosh logo may be illuminated when configured with a McIntosh system. Amplifiers from 75 to 600 Watts are appropriate power for XR100 speakers. Spikes and furniture glide feet are included.

Electronic Specifications
Impedance Nominal
8 Ohms
Power Rating
75 to 600 Watts
Frequency Response
30Hz to 45kHz
Sound Pressure Level, 2.8V/1m
87dB
Crossover
300Hz, 2kHz, 8kHz

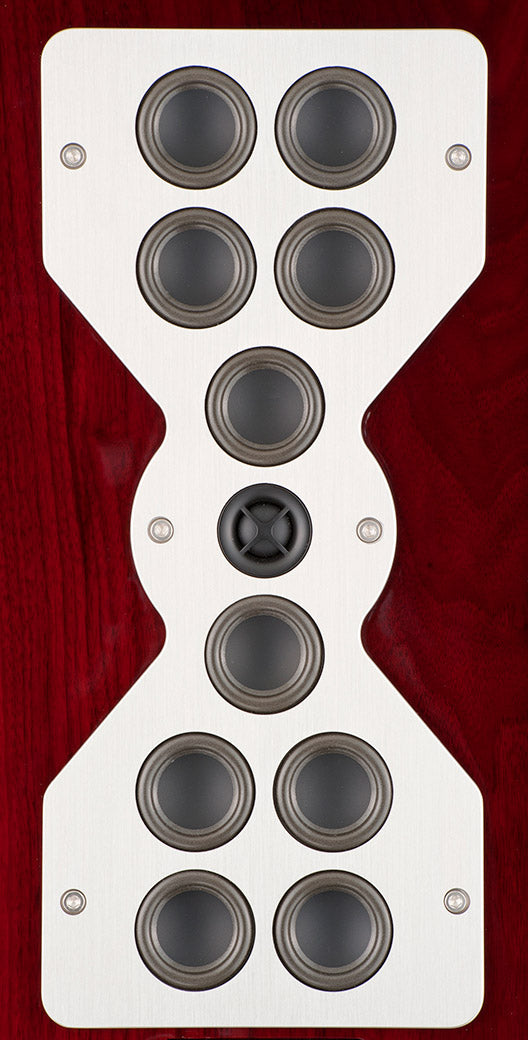

Driver Specifications
Number of Woofers
4
Woofer Size
6"
Woofer Type
Cast Frame, LD/HP®, Poly Cone
Number of Midranges
10
Midrange Size
2"
Midrange Type
8 Inverted Titanium Dome Midranges covering 300Hz to 2kHz, and 2 Inverted Titanium Dome Midrange-Tweeters covering 2kHz to 8kHz
Number of Tweeters
1
Tweeter Size
3/4"
Tweeter Type
Titanium Dome
General Specifications
System Type
Ported 4-Way Floor Standing
Grille
Black knit cloth, magnetically attached
Available Finishes
Red Walnut, Black
Weights & Dimensions
Unit Dimensions (W x H x D)
8" (20.3cm) x 51" (129.5cm) x 18-1/2" (46.9cm) (including cables and connectors)
Unit Weight
68.5 lbs (31.1 kg)
Shipping Weight
83 lbs (37.6 kg)

Vartotojo vadovas (EN)
