MoFi Electronics SourcePoint 8, bookshelf speakers

INFORMACIJA

MoFi Electronics SourcePoint 8 is a high-end bookshelf speaker designed by legendary engineer Andrew Jones. It features exceptional sound, accurate sound reproduction and a compact design that is perfect for a variety of spaces. These two-way speakers with an advanced 8-inch concentric driver reproduce music with emotional depth, detail and dynamics, characteristic of much larger models. Designed to listen to a wide range of musical genres - from acoustic to electric - the SourcePoint 8 offers high-end sound without compromise.

Type: 2-way bookshelf speakers (pair)
Speakers: 8" concentric woofer + 1.25" tweeter
Frequency range: 47 Hz - 30 kHz
Sensitivity: 87 dB (2.83V/1m)
Impedance: 8 Ω (min. 6.4 Ω)
Power: 30-150W
Dimensions (WxHxD): 29 x 45.7 x 33.5 cm
Weight: 12.65 kg (each)
Colors: black, white, walnut

DESCRIPTION

Make Your High-End Audio Experiences More Pleasurable: Class-Leading Sound and a Compact Footprint

Renowned audio engineer Andrew Jones created the Mobile Fidelity Electronics SourcePoint 8 bookshelf loudspeakers to give anyone who wants the benefits of his signature two-way concentric driver design — reference-grade soundstaging, three-dimensional imaging, visceral punchiness, emotional expressiveness, hear-through clarity — the opportunity to have it in a unit that easily fits in most spaces. Sharing most of the same DNA as its bigger brother, SourcePoint 10, the 18 x 11.4 x 13.2-inch (HWD) SourcePoint 8 wraps class-leading sound, robust build quality, and elegant looks into a package that doesn't present the dimensional or aesthetic challenges of larger models.

As he did with SourcePoint 10, Jones devised SourcePoint 8 to appeal to music lovers of every stripe — and to play every kind of music with an aptitude off-limits to many speakers. Whether you prefer relaxing or aggressive fare, acoustic or electric material, or listen to a broad scope of eras and artists depending on your mood, SourcePoint 8 plays it all without prejudice. This is a speaker that conveys recordings in ways that will touch your heart and stir your soul.

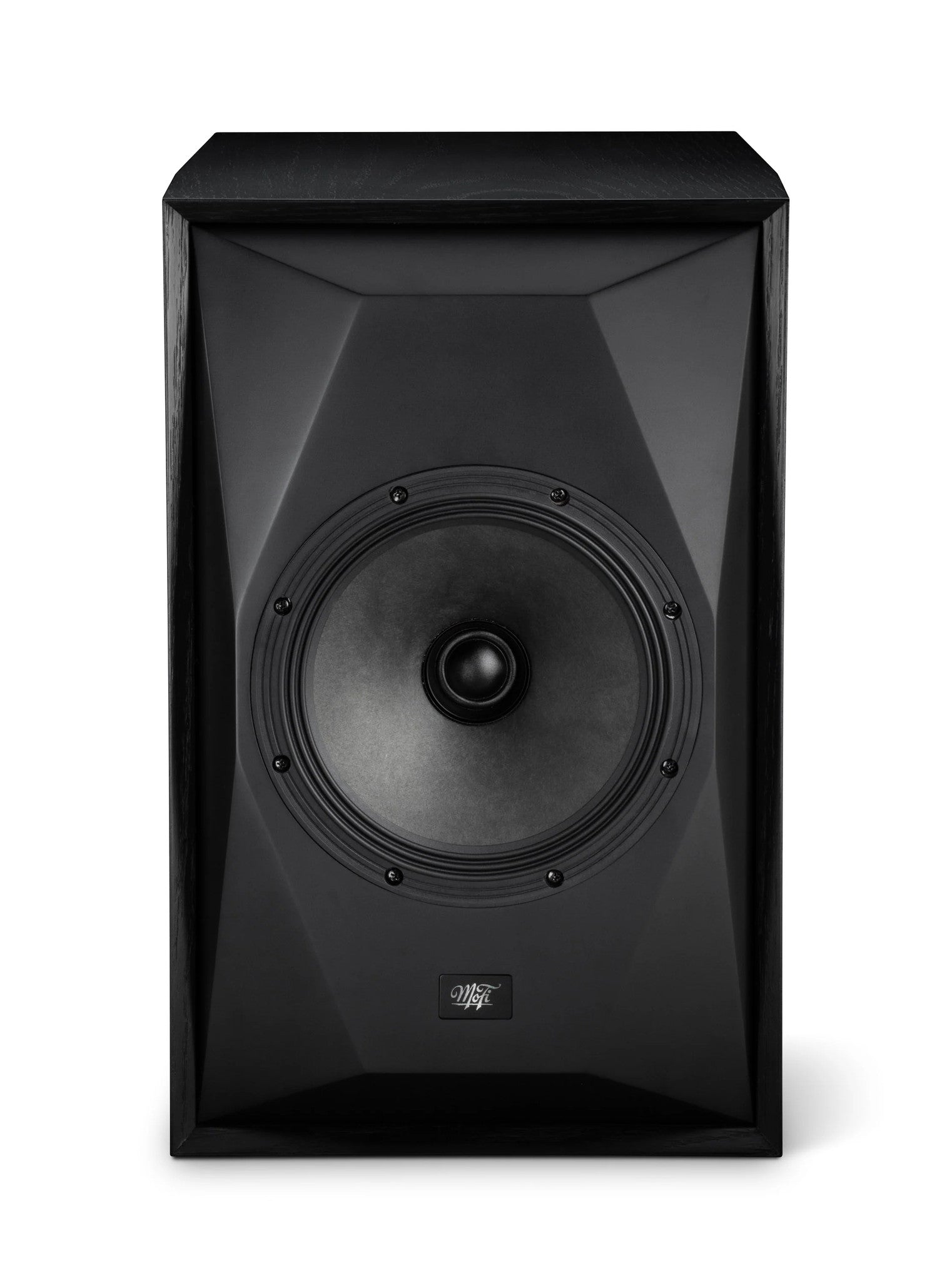

Designed and tested in Jones' private studio, and configured around a custom-tooled eight-inch concentric driver and 1.25-inch soft-dome tweeter centered within the woofer cone, SourcePoint 8 retains nearly all of the technology, character, and structure of SourcePoint 10. As part of the speaker's point-source system, the cone acts as a waveguide for the tweeter to both match directivities and maximize the tweeter efficiency. It plays with exceptional control, tonal balance, and spot-on imaging. Working in synchronicity with the tweeter, the eight-inch paper-cone concentric driver keeps displacement to a minimum and helps deliver accurate midrange, taut low-end responsiveness, and powerful dynamics. Not to be overlooked: a brand-new corrugated surround that allows for improved linear excursion and minimizes diffraction corruption of the tweeter wave expansion.

Speaking of the tweeter: The "Twin Drive" magnet system for the tweeter and woofer are designed around high-energy neodymium magnets that, when combined, produce a linear low-distortion drive force, along with copper sleeves to reduce nonlinear inductance. Also inside: A two-way crossover with laminated-steel core inductors that provides smooth on- and off-axis responsiveness; Jones' crossover frequency and slopes seamlessly blend the woofer to the tweeter to further minimize the audibility of out-of-band anomalies.

Able to mate with a wide array of amplification sources and boasting a 47Hz-30kHz frequency range, SourcePoint 8 makes enjoying addictive high-end audio more pleasurable by removing barriers and hassles associated with the experience. No matter where it's placed, SourcePoint 8 can be dialed-in with ease to deliver maximum performance in any environment. Available without stands or with dedicated stands custom-designed to optimize the speakers' placement and stability, it can be displayed with or without supplied removable grilles.

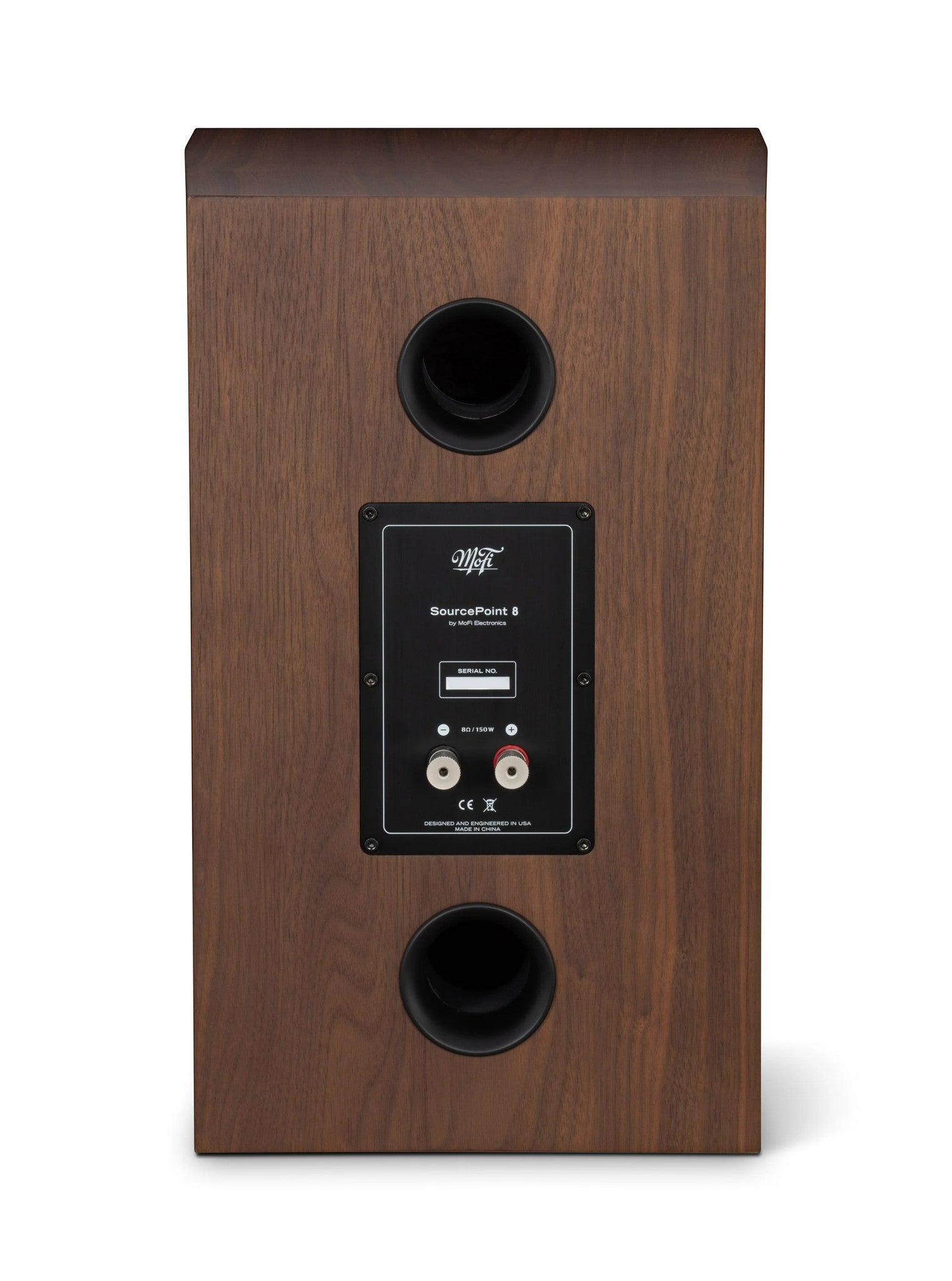

At 80% the size of SourcePoint 10, the gorgeous cabinet on SourcePoint 8 features 3/4-inch-thick real-wood veneer panels, extensive internal bracing, and a sculpted 1.5-inch-thick front baffle. They help underline several defining themes of the 27.9-pound speaker: extremely low distortion, consistent linearity, and deep bass output that help convey music in a manner that blends the detail, specificity, and cleanliness of a traditional bookshelf model with the meatiness, liveliness, and range of a tower. Also doing heavy lifting: Two large rear-firing vents that permit high bass output with low turbulence. And, the sculpted swept-back facets of the front baffle reduce diffraction response errors typically encountered in conventional flat-baffle speakers.

With SourcePoint 8, Jones again carries on the company's mission to create first-rate components that honor Mobile Fidelity's studio heritage and help form a complete source-to-output chain married to the prized concepts of signal purity, fidelity, and precision.

TECHNICAL DATA

Frequency Response: 47Hz-30kHz
Nominal Impedance: 8 Ohms, 6.4 Ohms minimum
Sensitivity: 87dB/2.83V/1m
Crossover Frequency: 1.6kHz
Minimum Recommended Power: 30W
Max Power Input: 150W
Dimensions (WHD): 11.4" x 18" x 13.2"
Weight: 27.9 lbs.

DOCUMENTS

User manual (EN)
