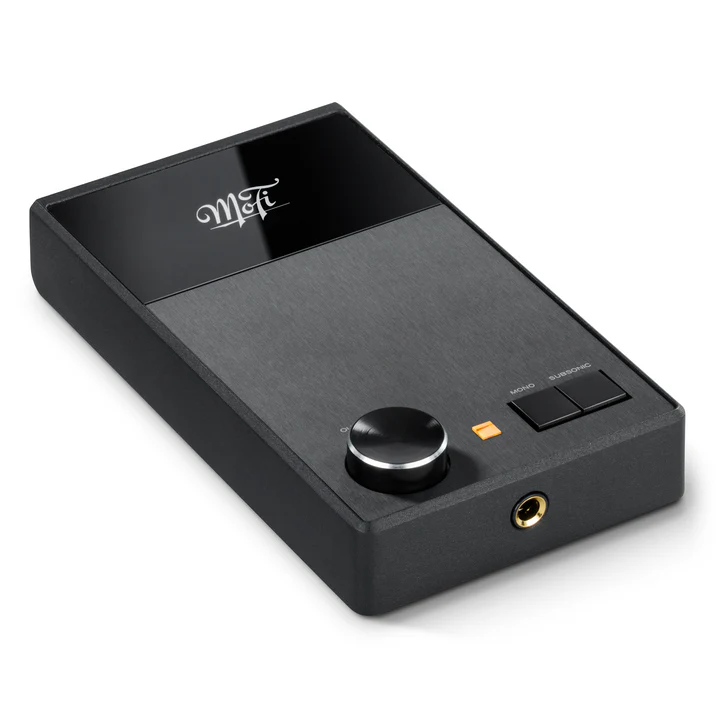

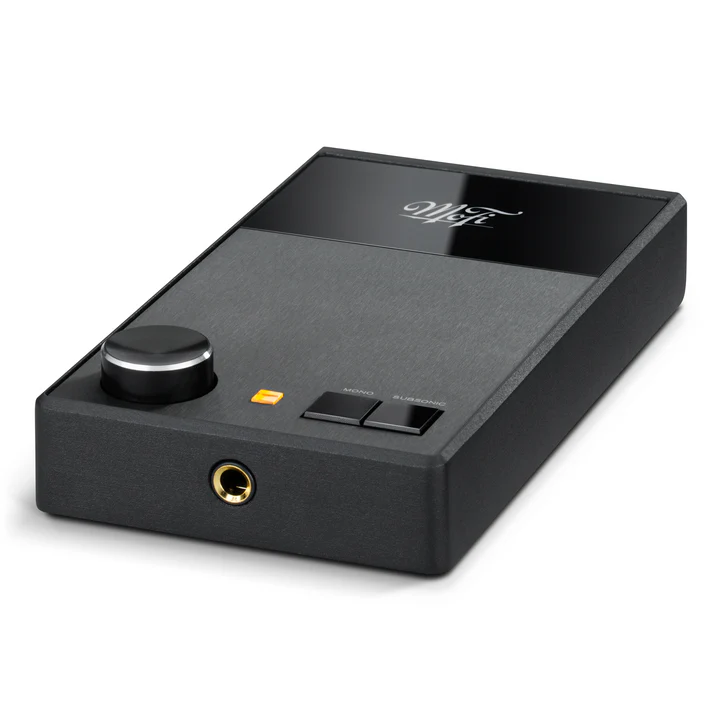

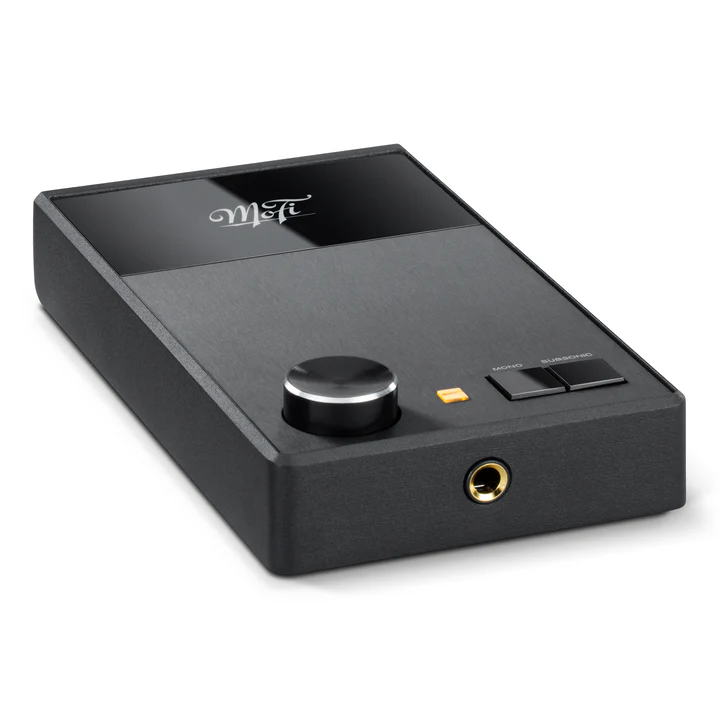

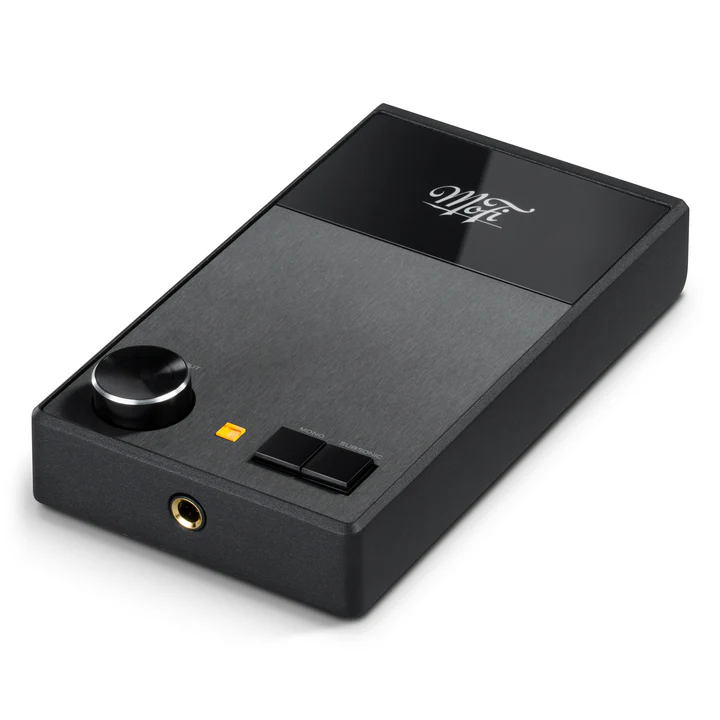

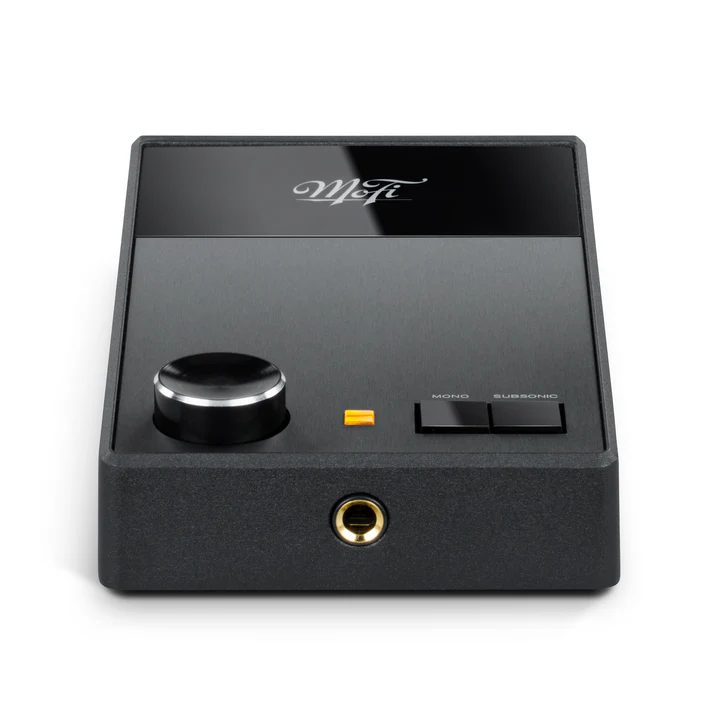

MoFi Electronics UltraPhono, phono equalizer with headphone amplifier

The MoFi Electronics UltraPhono is a high-end phono equalizer for both MM and MC cartridges.

€579.00 EUR

MoFi Electronics UltraPhono, phono equalizer with headphone amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. It features a built-in Class A headphone amplifier, allowing you to listen to vinyl through headphones without the need for additional equipment. Designed with the help of Tim De Paravicini, this device delivers a wide soundstage, transparency, and excellent dynamic nuances.

DESCRIPTION

ULTRAPHONE

UltraPhono replicates the wide bandwidth transparency Mobile Fidelity Sound Lab mastering engineers demand. Tim De Paravicini, the designer responsible for the Mobile Fidelity Gain2™ Ultra Analog cutting system, assisted with the internal circuitry to ensure your analog system at home faithfully reproduces the music buried in the grooves of your LPs. UltraPhono also includes an audiophile-quality Class A headphone amplifier for intimate listening enjoyment.

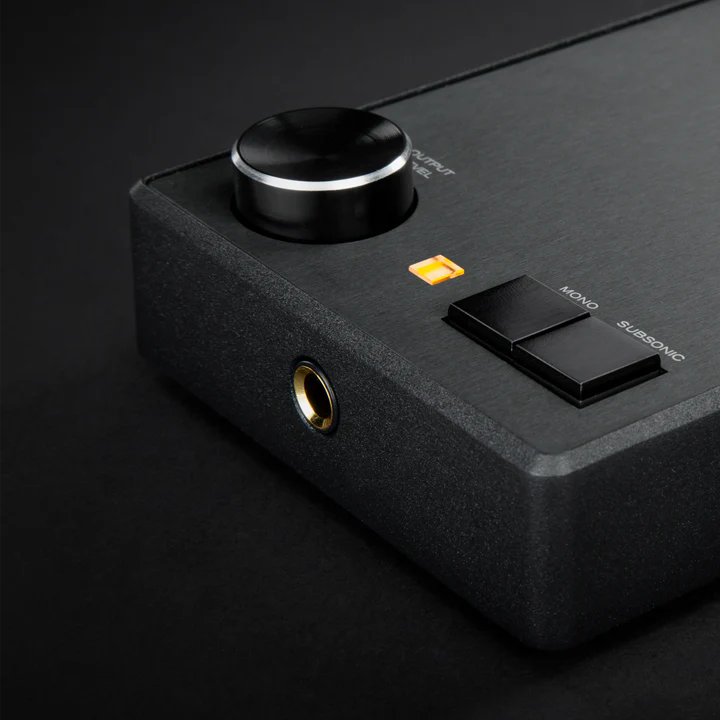

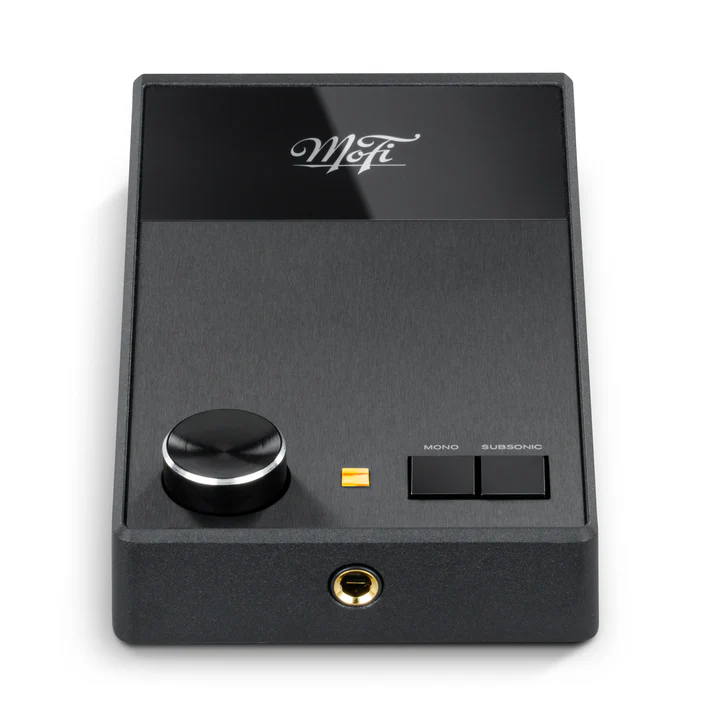

Detailed view of UltraPhono's volume knob, mono and subsonic buttons, and headphone jack.

CLASS-A HEADPHONE AMPLIFIER

UltraPhono includes a powerful Class A headphone amplifier perfect for quiet nights when you want to keep the records spinning in private. And with a 31-step volume control built into the unit, all you need to do is directly plug-in your headphones and turn it up! It's the easiest way to achieve high-fidelity vinyl playback without speakers and electronics.


ADJUSTABLE GAIN AND LOADING

With selectable gain and loading, you will be able to tailor UltraPhono to match almost any moving-magnet or moving-coil cartridge on the market. A readily accessible bank of toggle switches can be found on the unit's underside to quickly make adjustments without the need for any tools.

TECHNICAL DATA

Gain:
Adjustable from 40dB - 66dB

THD:
< .006% (MM) / < .055% (MC)

Load Impedance (MM):
47,000 Ohms

Load Impedance (MC):
75, 100, 500, 1k, 10k, 47k Ohms

Input Capacitance:
100pF
HEADPHONE AMPLIFIER SPECIFICATIONS
Headphone Output:
8V RMS Max, 62 Ohms, 1.5w/ch

Volume Control:
31 steps, 2dB per/step, 62dB range

Mute Switch:
-90dB

Minimum Impedance:
> 10 Ohms
FEATURES
• Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB

• Adjustable loading 75Ω - 47kΩ

• Class A Headphone Amplifier

• Switchable Mono mode

• Subsonic filter

• External power supply

DOCUMENTS

User manual (EN)
