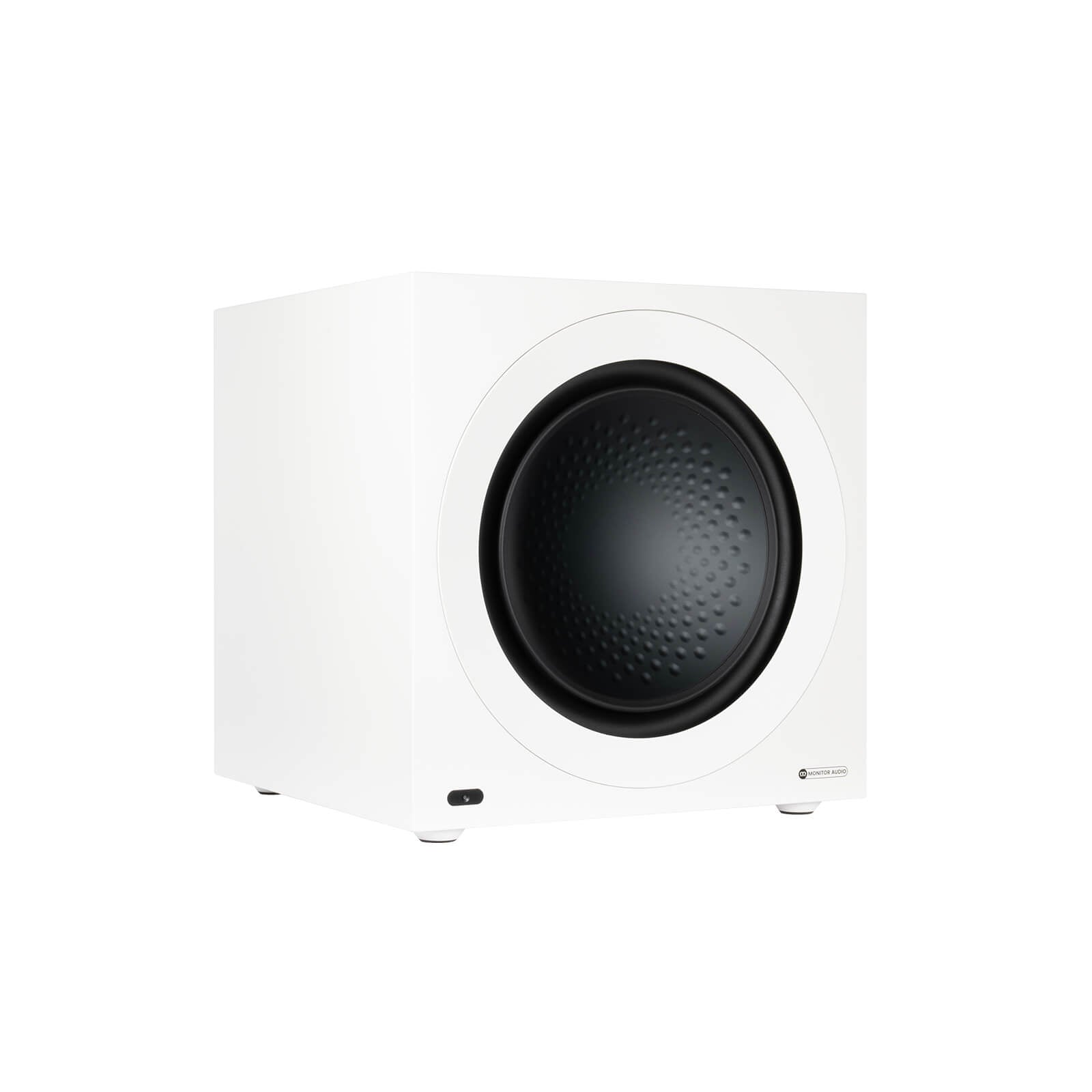

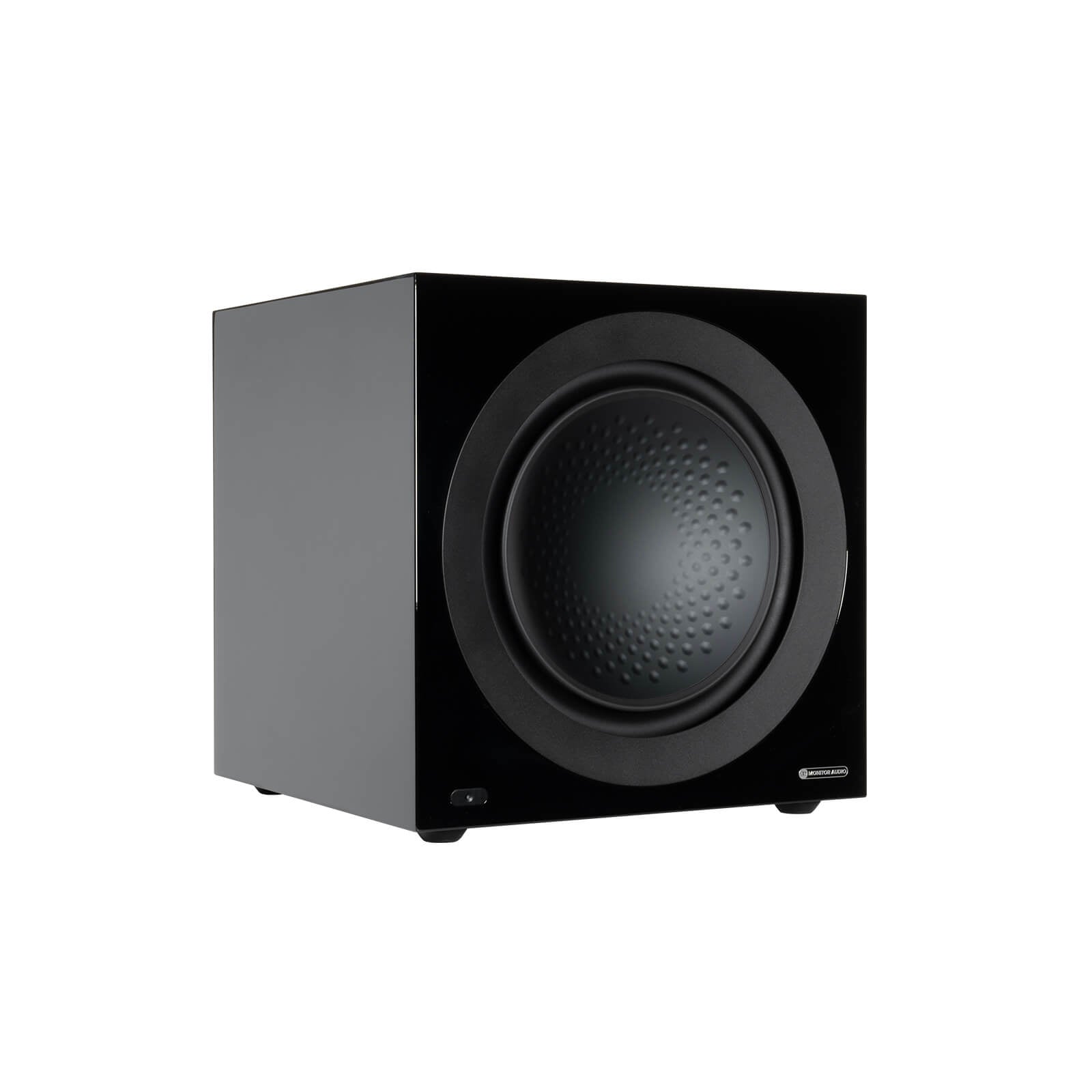

Monitor Audio Anthra W15, subwoofer

Monitor Audio Anthra W15 - is a premium subwoofer designed for those who seek the ultimate sound experience in their home theater or music system. With a powerful 2500 W amplifier and 15-inch high-excursion driver, the speaker delivers deep, powerful and accurate bass. Anthra W15 easily integrates into any home audio system, has convenient control via a color LCD display and the MaestroUnite app, allowing you to precisely adjust the sound to your space.

Frequency range: 16 Hz (-6 dB) to 400 Hz (-6 dB, LPF off)
Amplifier : 2,500 W Class-D (instant), 1,400 W (short-term continuous power)
DSP: 28-bit, configurable via MaestroUnite
Speaker: 15" RST II C-CAM high output driver

The W15 is the largest subwoofer within the Anthra subwoofer series. It features a 15” (38 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 2,500 Watt amplifier, housed within a comprehensive internally braced, sealed-box cabinet.

Features at a glance:
15” Rigid Surface Technology II | C-CAM high-excursion driver | Class-D 2500 Watt amplifier | Full-colour LCD display | RCA outputs | Massive motor assembles | Compatible with MaestroUnite | XLR inputs | XLR outputs | MaestroUnite Setup

Deep, Controlled Bass. Simply.

Engineered to deliver the deepest bass in the largest of spaces, the Anthra W15 subwoofer features a massively powerful 2,500 Watt Class-D amplifier driving a 15" (38cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W15 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

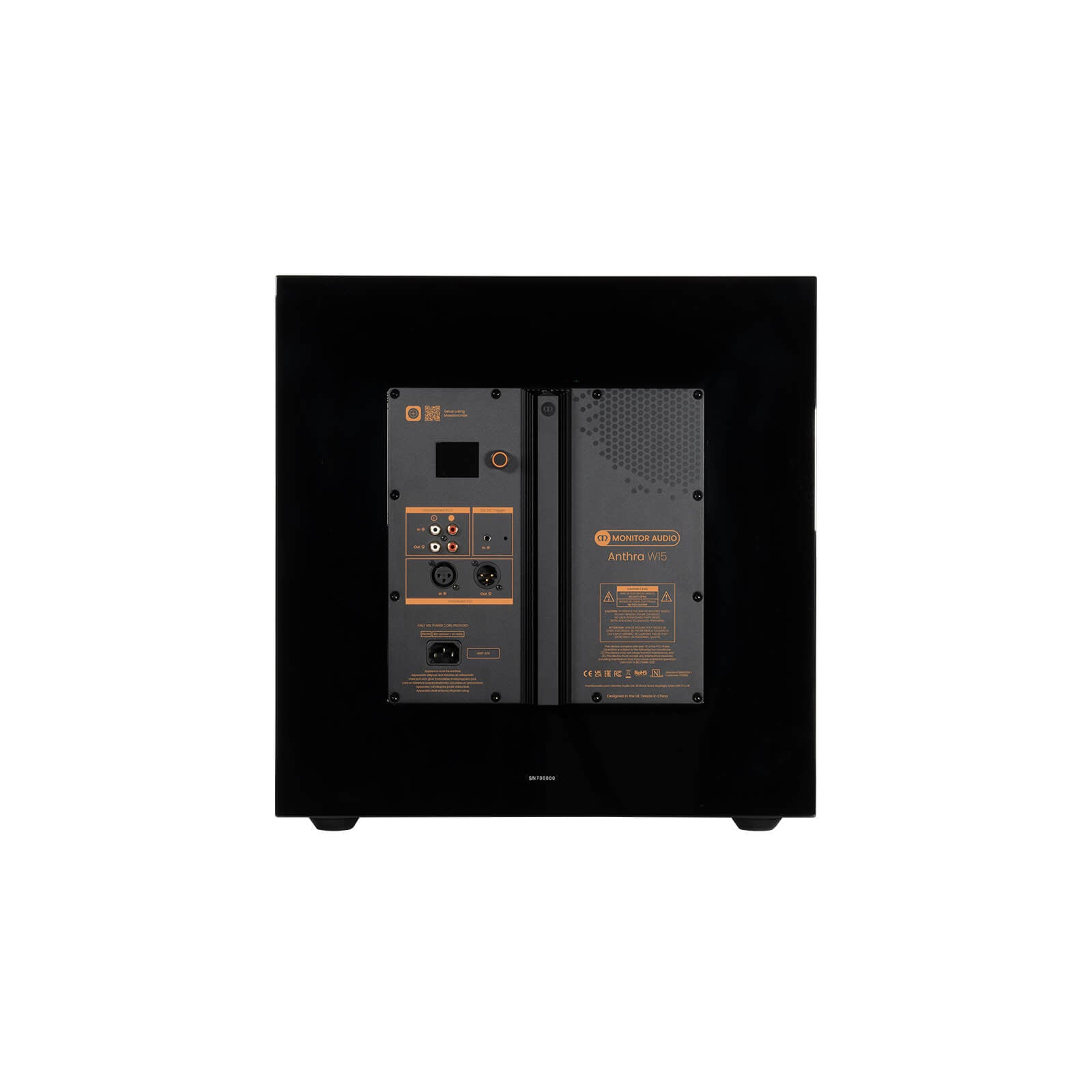

A full-color LCD display and rotary dial are located on the back panel to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

System Format
Active - Sealed Cabinet

Drive Unit Complement
1x 15" (381mm) High Linear-Excusion Triple Suspension Driver

Amplifier Classification
High-Efficiency Class-D

Lower Frequency Limit
-6dB @16Hz

Upper Frequency Limit
(LPF Off) -6dB @400Hz

Driver Excursion (pk-pk)
50mm

DSP
28 Bit 50 MIPS Configurable through MaestroUnite

Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals

Amplifier Output Power, 240Vac
Instantaneous: 2500 W*
Continuous short-term: 1400 W**

Amplifier Output Power, 120Vac
Instantaneous: 2500 W
Continuous short-term: 1400 W

LED UI Control
Brightness, On-Off

Phase Control
0-360 Degrees measured at LPF Crossover

Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct

Custom EQ
Configurable through MaestroUnite; 3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)

Volume Level
Wide adjustable input gain to allow maximum output from a wide range of input signals

Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)
Mono/LFE Balanced XLR

Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input

Mains Input Voltage
Universal Mains, 85-265VAC

External Dimensions (without feet) (HxWxD)
439 x 439 x 439 mm

Power Consumption
550W

Cabinet Construction
Braced 25 mm thick MDF with 36 mm front baffle

Grill

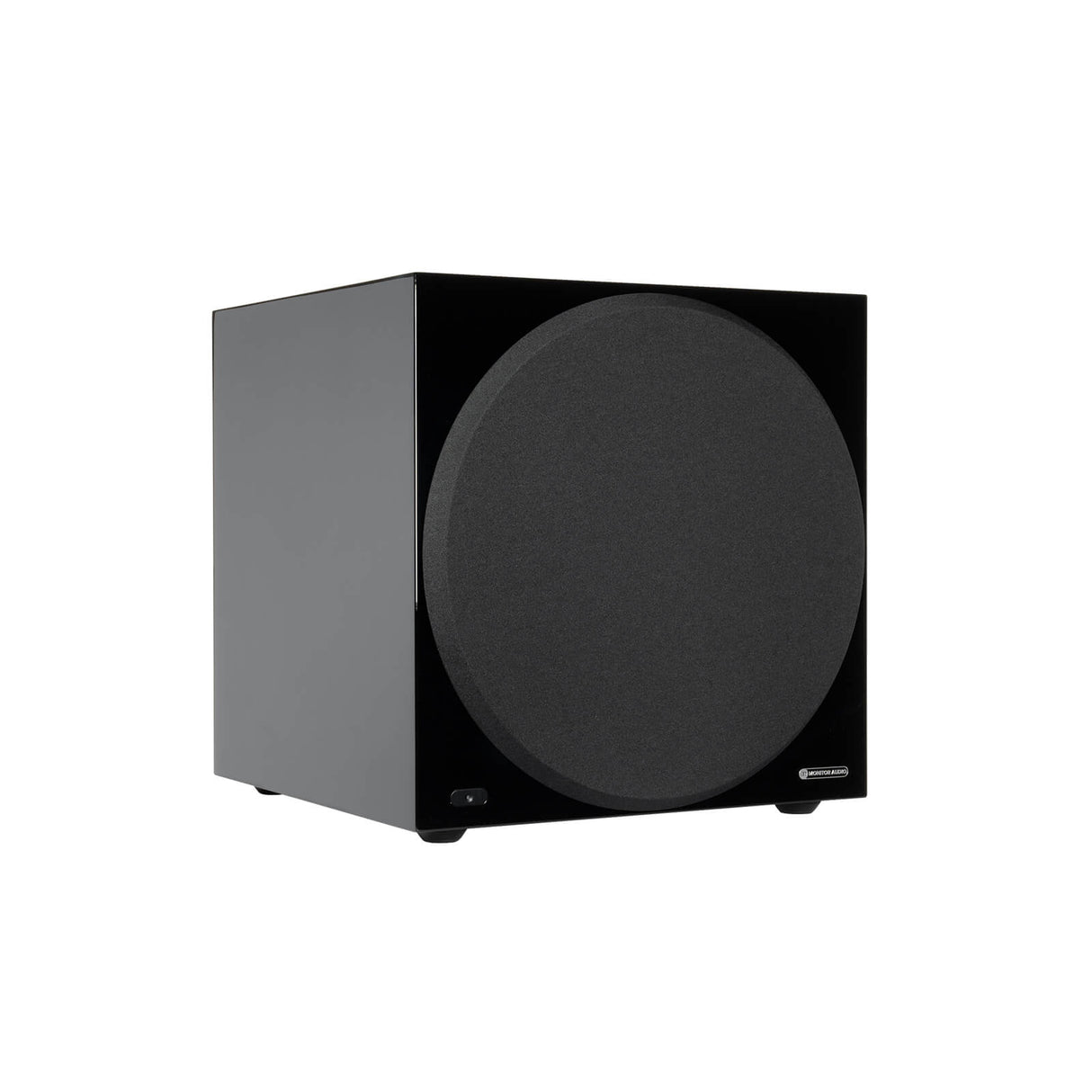

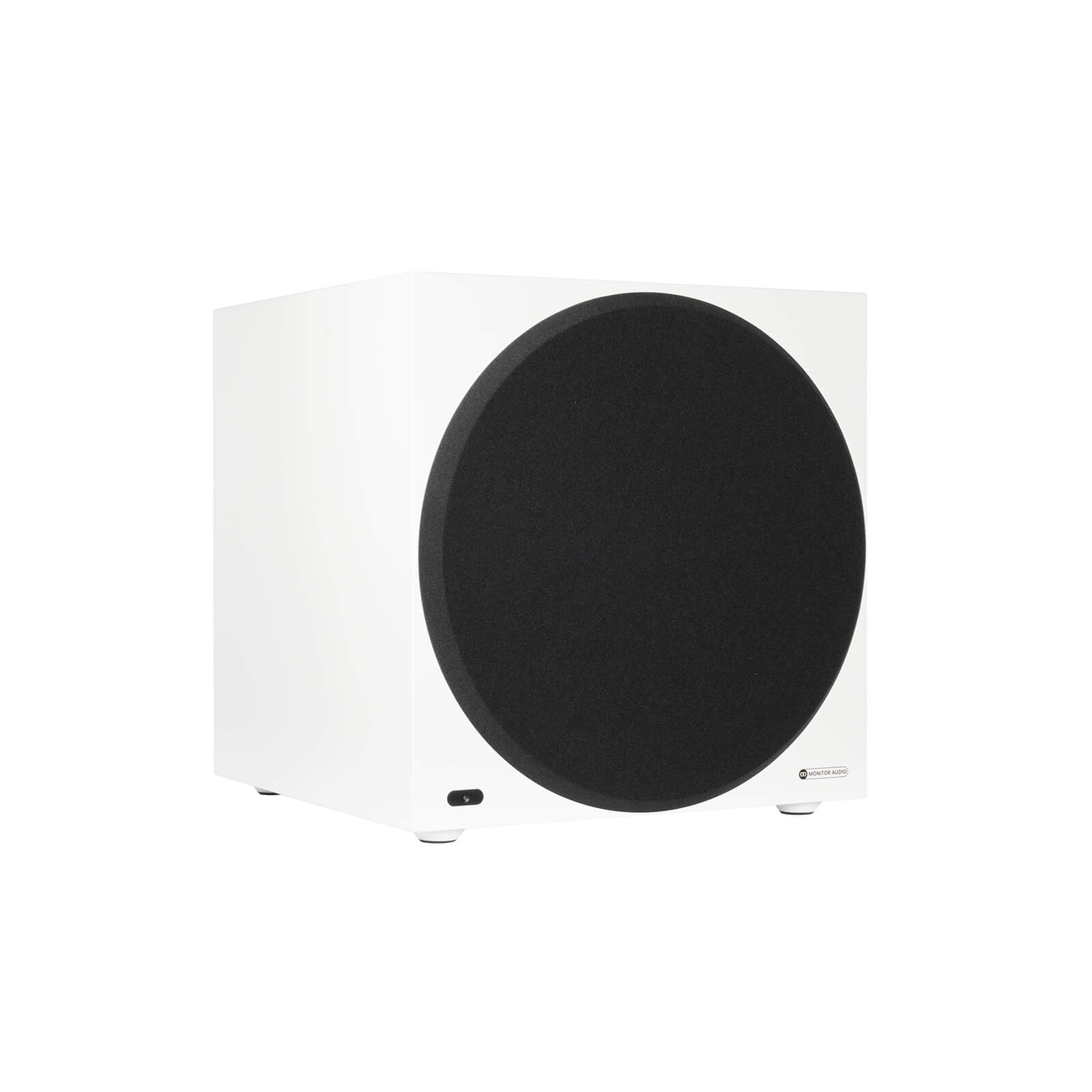

Cloth covered magnetically attached Grilles

Weight
35.41 kg (78 lb 1 oz)

* Maximum RMS output for an instantaneous signal
** Sinewave for 10 seconds
