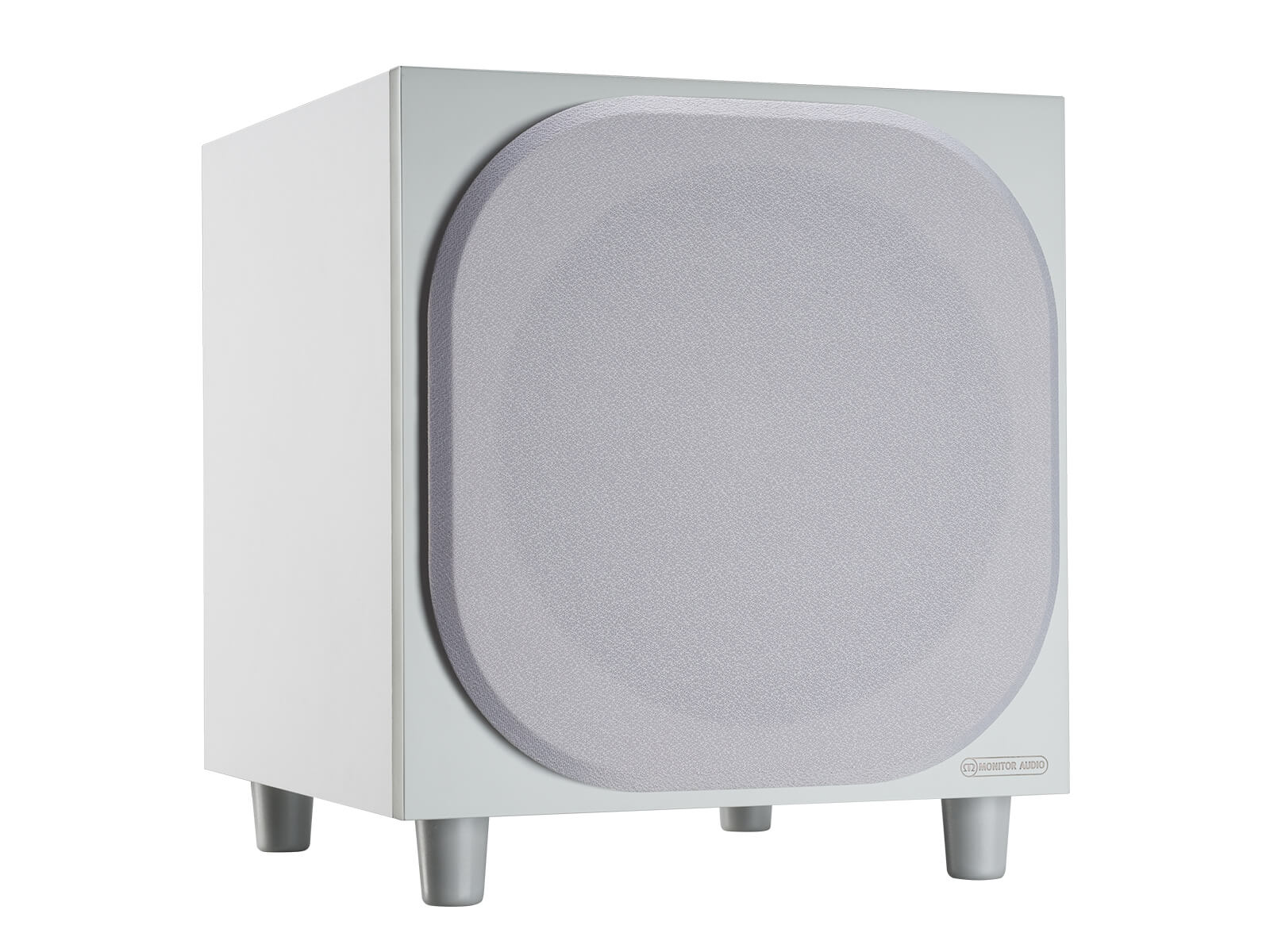

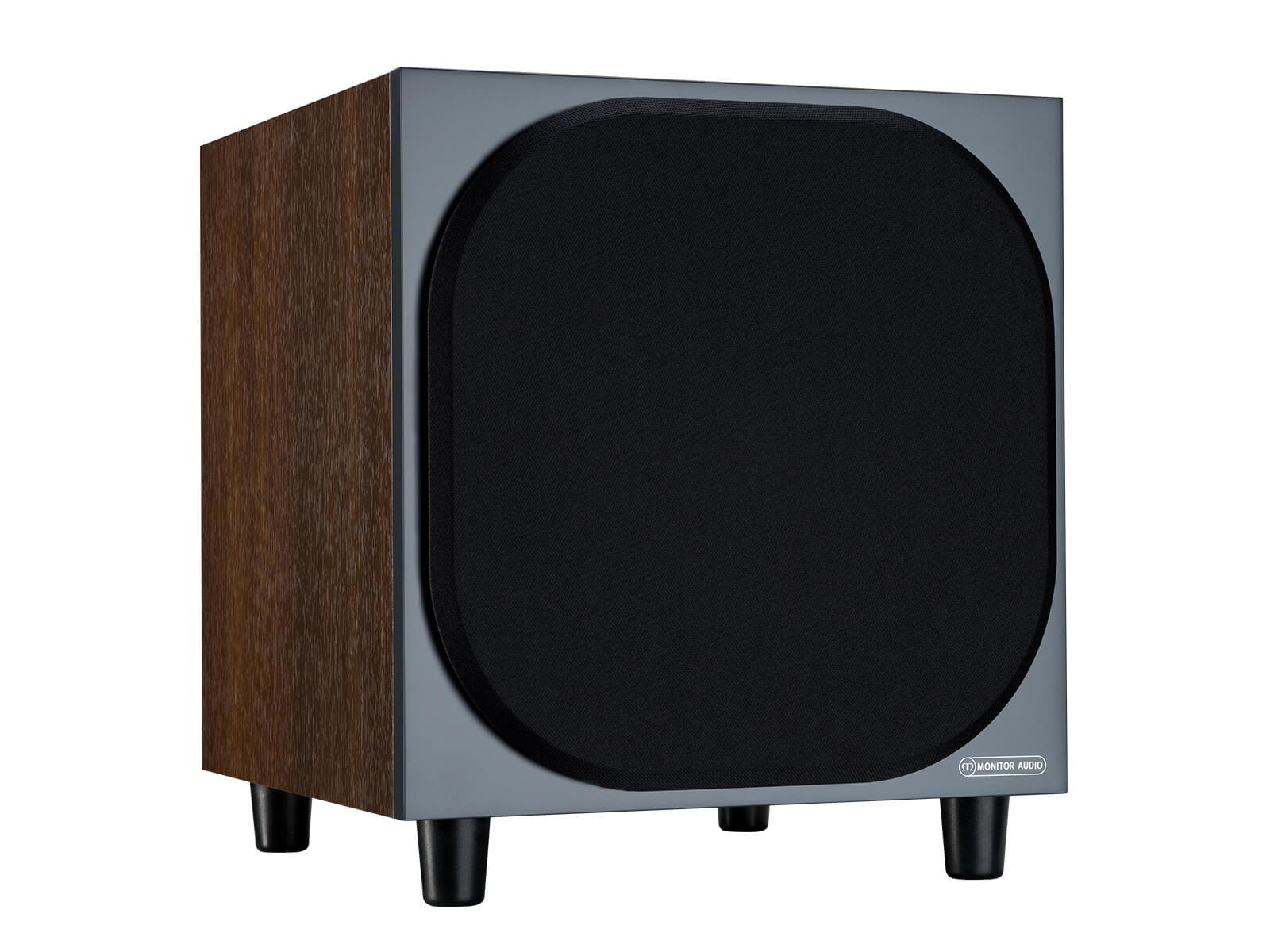

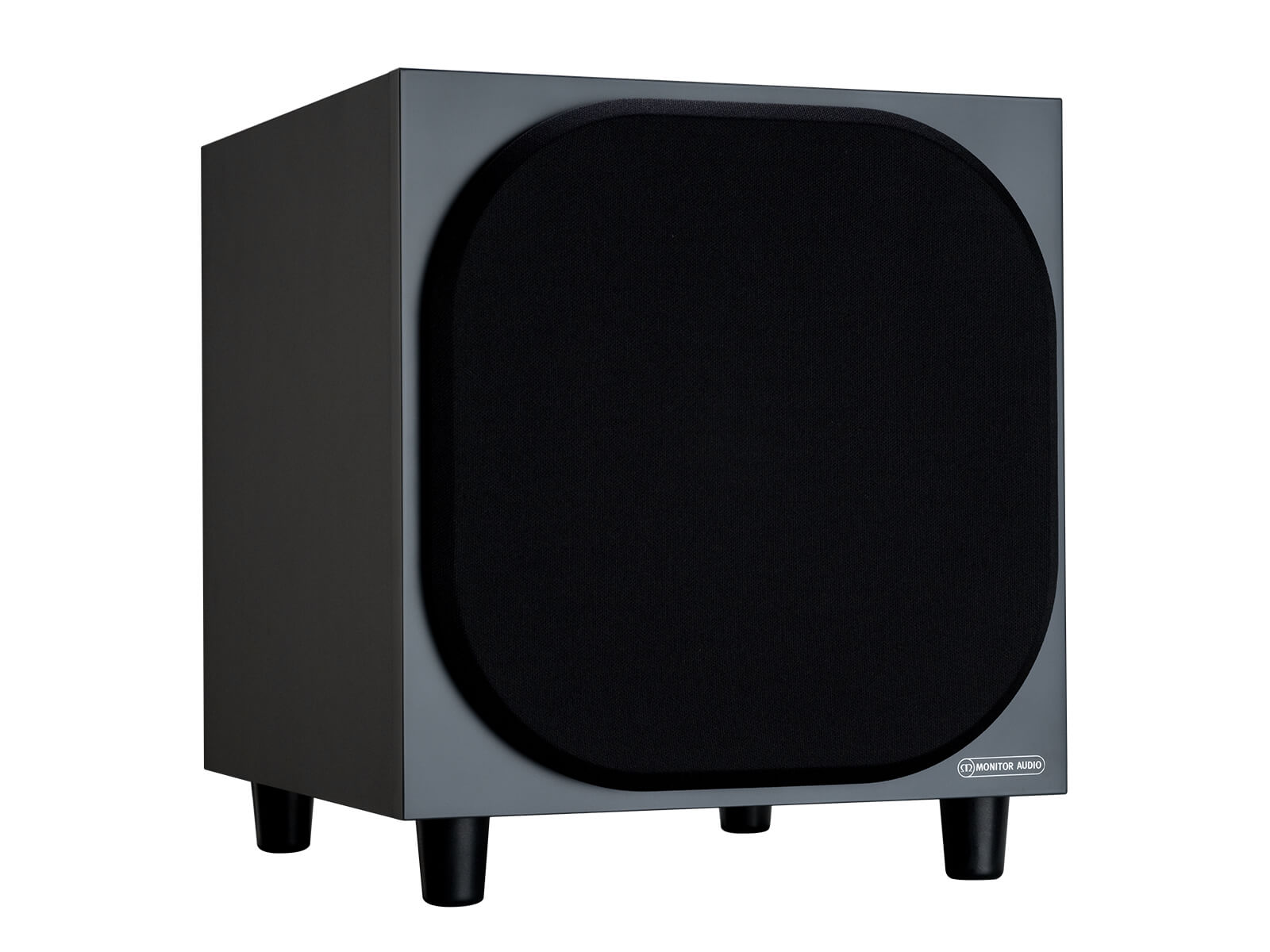

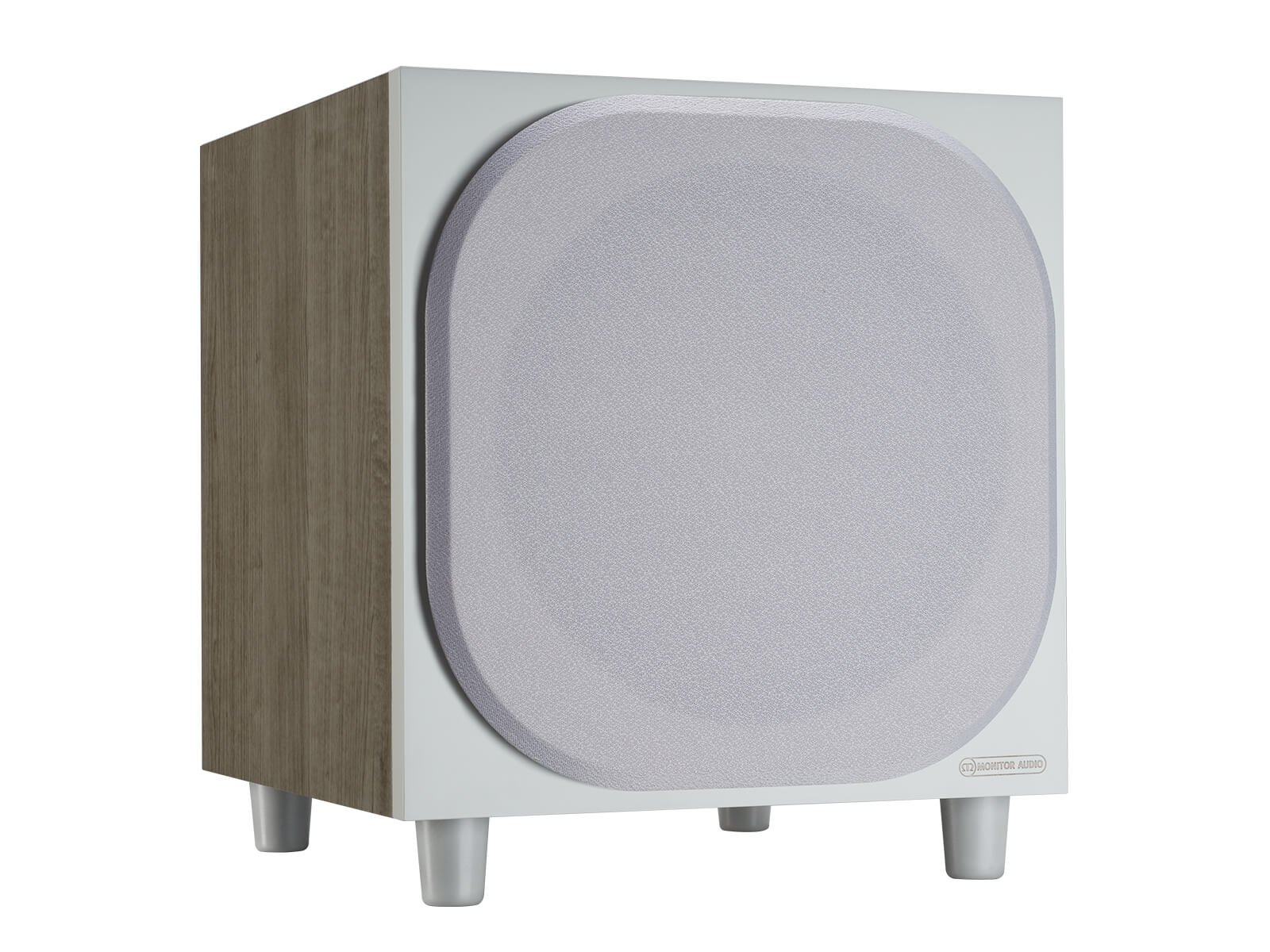

Monitor Audio Bronze W10 Subwoofer (Various Colors)

The Monitor Audio Bronze W10 is a new generation of subwoofers.
€780.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The updated model retains all the best sound qualities of its predecessor while maintaining high-quality and powerful bass!

  • Power: 220 W.
  • Class D amplifier.
  • 10" flat panel ABR.
  • The construction uses 18 mm MDF board.

DESCRIPTION

The Bronze W10's long-throw 10" C-CAM subwoofer driver combines with the 10" auxiliary bass radiator to bring a vivid realism to any performance.

Our engineers have acoustically improved the driver and bass radiator by reducing the moving masses and tuning the compliances in the system to improve the transient response - kick drums and explosions now have much more punch and precision. Reduced moving mass and improved rubber feet allow more energy to be transmitted directly into the room rather than being lost through mechanical vibrations through the floor and walls.

The Bronze W10 is a stunning addition to any room.

Key Features

  • Long-throw 10" (250 mm) driver featuring 'dished' C-CAM
  • 10" (250 mm) flat panel Auxiliary Bass Radiator (ABR) positioned underneath the unit
  • Class D amplifier with high current Switch Mode Power Supply (SMPSU)



        TECHNICAL DATA

        SPECIFICATIONS




        System Format

        Long-throw 10" driver featuring 'dished' C-CAM cone. 10" flat panel ABR (Auxiliary Bass Radiator).
        18 mm MDF internally braced construction

        Lower Frequency Limit

        -3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field) Default preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room)

        Upper Frequency Limit

        -6dB @ 150Hz

        Drive Unit Complement

        1 x 250 mm (10") C-CAM subwoofer driver featuring a 2" long throw voice coil

        Linear Driver Excursion

        17 mm peak to peak

        Amplifier Output

        220W

        Amplifier Classification

        Class D with high current Switch mode power supply (SMPSU)

        Phase Control

        0 Degrees & 180 Degree pure Invert

        Low Pass Filter Alignment

        4th order (24 dB/Octave), from 50 Hz to 120 Hz

        Equalization DSP

        3 pre-set modes: Music, Movie, Impact

        Auto Sensing

        Line Level >3mV. Auto Standby feature after 20 mins

        Audio Input/Output

        LFE unbalanced input RCA
        Stereo unbalanced inputs RCA

        Input Impedance

        20 kOhms input impedance

        12V Trigger

        3.5 mm mono mini-jack. 6 V threshold

        Electrical Certifications

        CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant)

        Mains Input Voltage

        110 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected)

        Power Consumption

        Maximum 300 W, Standby <0.5 W (ErP compliance)

        Fuse Type

        20mm T4AL 250VAC

        External Dimensions (Including Amp, Drivers and Terminals (H x W x D))

        321 x 321 x 364 mm (12 5/8 x 12 5/8 x 14 5/16 ")

        External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))

        366.5 x 321 x 364 mm (14 7/16 x 12 5/8 x 14 5/16 ")

        Weight (unpacked)

        13.4 kg (29 lb 9 oz)






        DOCUMENTS

        INSTRUCTIONS

        User Manual (EN).
