Monitor Audio

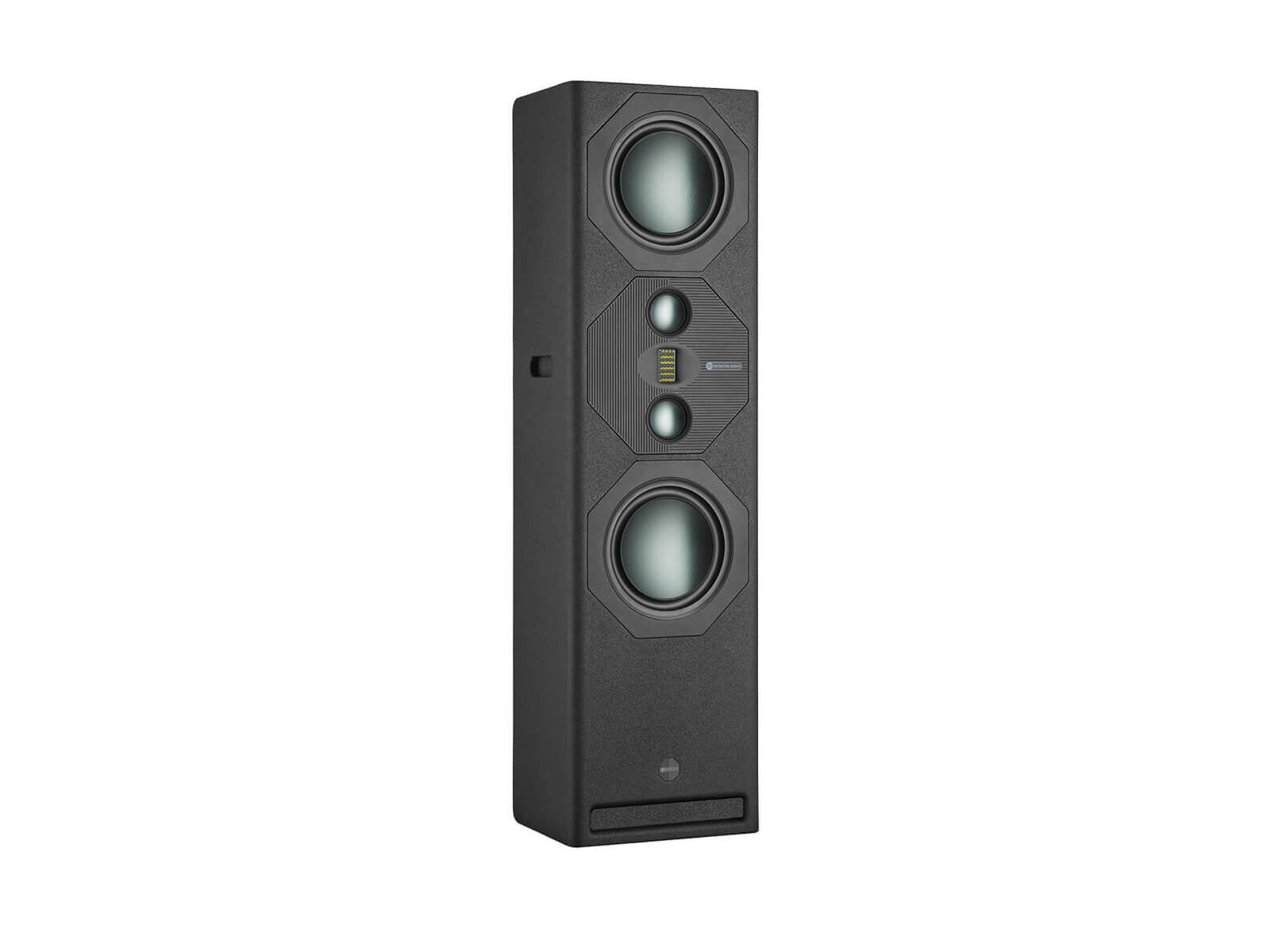

Monitor Audio Cinergy 300, wall speaker

The biggest speaker for the biggest sound.

€5,000.00 EUR

Monitor Audio Cinergy 300, wall speaker - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

You do not collect sound columns ?

We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.

Delivery home from € 4.99

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. The Monitor Audio Cinergy 300 uses the latest mid-range speaker technology to deliver the purest possible sound.

  • Recommended amplifier power: 350 - 1400 W.
  • Sensitivity: 90 dB.
  • Resistance: 4 ohms.


DESCRIPTION

Whether it's mounted with the unique isolation options included or even used as a floorstander, with professional installation as part of a Cinergy system, you'll have world-class cinema sound in your own home. Far superior to your local mainstream cinema, which is normally designed for larger groups to deliver the best median performance for everyone. Cinergy, on the other hand, is a cinema built around you and those closest to you.

Key Features

  • Unique isolation options reduce unwanted vibrations by up to 18dB for a professional cinema experience
  • Stacks with other Cinergy 300 and Cinergy Sub15 units to create a behind the screen 'sound wall'
  • Numerous mounting options, with a design perfectly suited to an in-cabinet mounting behind an acoustically transparent screen

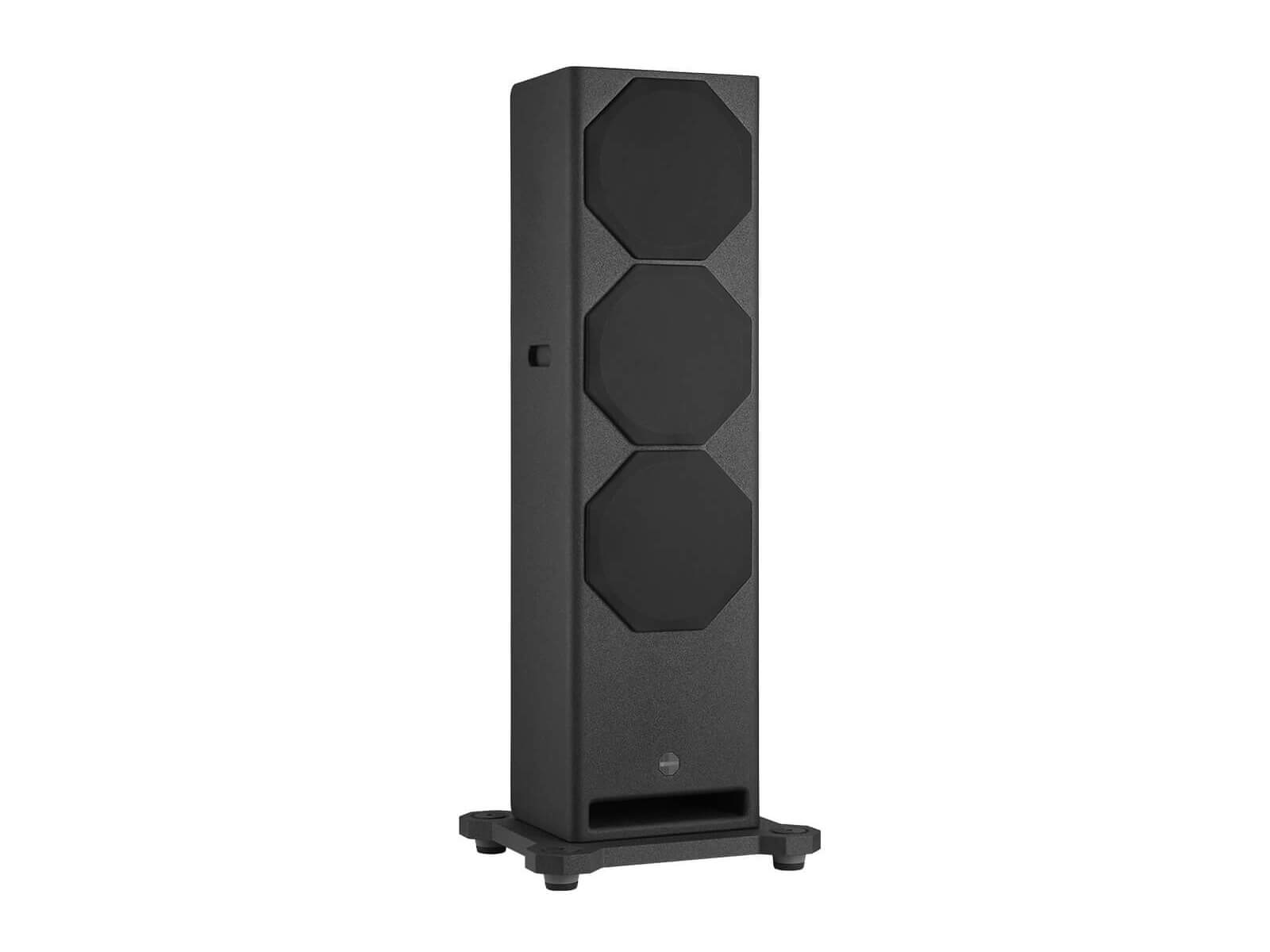

  • Plinth available with isolation features, which makes it possible to use the Cinergy 300 as a floorstander
  • Port bungs included in box to tailor the bass response along with EQ profiles for use with Monitor Audio Installation Amplifiers
  • Rotatable mid-tweeter array
  • Swappable mid-tweeter array
  • MPD high-frequency transducer with accuracy, clarity and lifelike sound
  • Mid-range driver with high power handling, high sensitivity, wide directivity
  • C-CAM mid-range driver with high power handling, high sensitivity, wide directivity
  • RDT II bass driver with exceptional high-power handling, high sensitivity, high excursion, low distortion
  • Crossover with performance of the highest level, even when pushed hard for long periods of time


TECHNICAL DATA

SPECIFICATIONS

THX Certified

THX® Certified Ultra

System Format

3 Way

Sensitivity (2.83 Vrms @ 1 M)

90 dB

Maximum Linear SPL**** (@1m, free space)

Continuous 109 dB, Peak 122 dB

Power Handling (RMS)

Continuous 350 W, Peak* 1400 W

Nominal Impedance

4 Ohms

Minimum Impedance (20 Hz - 20 kHz)

3.8 Ohms

Recommended Low Frequency Crossover Frequency

40 - 80 Hz (High Pass)

Recommended Amp Requirements (RMS)

200 - 1400 W (IA750-2 or IA750-4)

Bass Alignment

ported**

Port Tuning Frequency

38Hz**

LF Extension, In Wall, With Port Bungs (- 6dB)

42 Hz

LF Extension, In Free Space, No Port Bungs (- 6dB)

42 Hz

HF Extension (-6dB)

>30 kHz

Drive Unit Complement

2 x 8" RDT Driver
2 x 2.5" C-CAM Driver
1 x MPD Transducer

External Dimensions (Cabinet Only (H x W x D))

1080 x 300 x 240mm (42 1/2 x 11 13/16 x 9 7/16 ")

External Dimensions (Inc Grille) (H x W x D)

1080 x 300 x 253.6 mm (42 1/2 x 11 13/16 x 10")

Max External Dimensions (Inc all Fittings) (H x W x D)

1132 x 438 x 253.6 mm (44 9/16 x 17 1/4 x 10")

Weight

40.4 kg (88 lb 14 oz)

Conditions

* Calculated from a peak voltage, this is not a true power figure but useful for comparisons.

** When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.

*** Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile.

**** Tested with a music like noise signal with distortion and power compression remaining below audible limits.

thx

THX® Certified Loudspeakers.

THX® and the THX® Logo are the property of THX® Ltd., registered in the US and other countries.

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
INFORMACIJA

The biggest speaker for the biggest sound. The Monitor Audio Cinergy 300 uses the latest mid-range speaker technology to deliver the purest possible sound.

  • Recommended amplifier power: 350 - 1400 W.
  • Sensitivity: 90 dB.
  • Resistance: 4 ohms.


DESCRIPTION

Whether it's mounted with the unique isolation options included or even used as a floorstander, with professional installation as part of a Cinergy system, you'll have world-class cinema sound in your own home. Far superior to your local mainstream cinema, which is normally designed for larger groups to deliver the best median performance for everyone. Cinergy, on the other hand, is a cinema built around you and those closest to you.

Key Features
  • Unique isolation options reduce unwanted vibrations by up to 18dB for a professional cinema experience
  • Stacks with other Cinergy 300 and Cinergy Sub15 units to create a behind the screen 'sound wall'
  • Numerous mounting options, with a design perfectly suited to an in-cabinet mounting behind an acoustically transparent screen
  • Plinth available with isolation features, which makes it possible to use the Cinergy 300 as a floorstander
  • Port bungs included in box to tailor the bass response along with EQ profiles for use with Monitor Audio Installation Amplifiers
  • Rotatable mid-tweeter array
  • Swappable mid-tweeter array
  • MPD high-frequency transducer with accuracy, clarity and lifelike sound
  • Mid-range driver with high power handling, high sensitivity, wide directivity
  • C-CAM mid-range driver with high power handling, high sensitivity, wide directivity
  • RDT II bass driver with exceptional high-power handling, high sensitivity, high excursion, low distortion
  • Crossover with performance of the highest level, even when pushed hard for long periods of time


TECHNICAL DATA

SPECIFICATIONS

THX Certified

THX® Certified Ultra

System Format

3 Way

Sensitivity (2.83 Vrms @ 1 M)

90 dB

Maximum Linear SPL**** (@1m, free space)

Continuous 109 dB, Peak 122 dB

Power Handling (RMS)

Continuous 350 W, Peak* 1400 W

Nominal Impedance

4 Ohms

Minimum Impedance (20 Hz - 20 kHz)

3.8 Ohms
Recommended Low Frequency Crossover Frequency

40 - 80 Hz (High Pass)

Recommended Amp Requirements (RMS)

200 - 1400 W (IA750-2 or IA750-4)

Bass Alignment

ported**

Port Tuning Frequency

38Hz**

LF Extension, In Wall, With Port Bungs (- 6dB)

42 Hz

LF Extension, In Free Space, No Port Bungs (- 6dB)

42 Hz

HF Extension (-6dB)

>30 kHz

Drive Unit Complement

2 x 8" RDT Driver
2 x 2.5" C-CAM Driver
1 x MPD Transducer

External Dimensions (Cabinet Only (H x W x D))

1080 x 300 x 240mm (42 1/2 x 11 13/16 x 9 7/16 ")

External Dimensions (Inc Grille) (H x W x D)

1080 x 300 x 253.6 mm (42 1/2 x 11 13/16 x 10")

Max External Dimensions (Inc all Fittings) (H x W x D)

1132 x 438 x 253.6 mm (44 9/16 x 17 1/4 x 10")

Weight

40.4 kg (88 lb 14 oz)

Conditions

* Calculated from a peak voltage, this is not a true power figure but useful for comparisons.

** When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.

*** Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile.

**** Tested with a music like noise signal with distortion and power compression remaining below audible limits.

thx

THX® Certified Loudspeakers.

THX® and the THX® Logo are the property of THX® Ltd., registered in the US and other countries.
DOCUMENTS

INSTRUCTIONS

User Manual (EN).
