Monitor Audio CP-CT380IDC, ceiling speaker

This is a 3-way, universal Controlled Performance series speaker from Monitor audio.
€605.00 EUR

Monitor Audio CP-CT380IDC, ceiling speaker - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

This is a 3-way, universal Controlled Performance series speaker from Monitor audio. Quality sound and high performance guaranteed!

  • Recommended amplifier power: 3 0 - 120 W.
  • Frequency range: 50 Hz - 30 kHz.
  • Sensitivity; 89 dB.
  • Resistance: 4 ohms.

DESCRIPTION

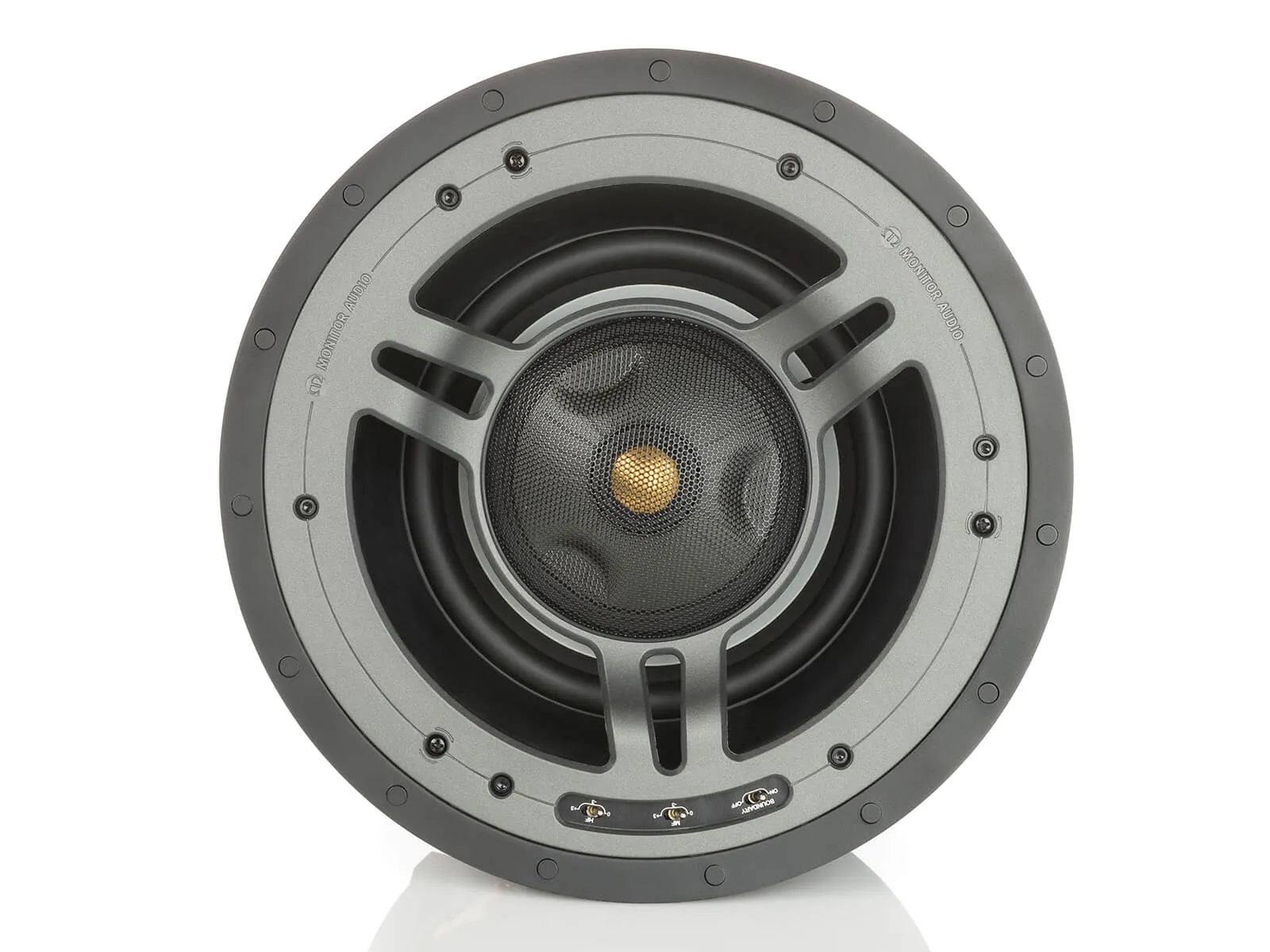

Incorporating Monitor Audio's innovative, pivoting Inverted Dual Concentric ( IDC ) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-CT380IDC represents the highest level of new CP performance. The IDC module houses a 4" C-CAM inverted midrange driver surrounding a 25 mm C-CAM Gold Dome tweeter .

Technology

  • Pivoting module consisting of IDC midrange driver and Gold Dome tweeter .
  • C-CAM bass driver featuring Rigid Surface Technology ( RST ).
  • High overall efficiency.
  • High frequency level adjustment (+/-3 dB).
  • Midrange frequency level adjustment (+/-3 dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximizing bass response and mid-range clarity.

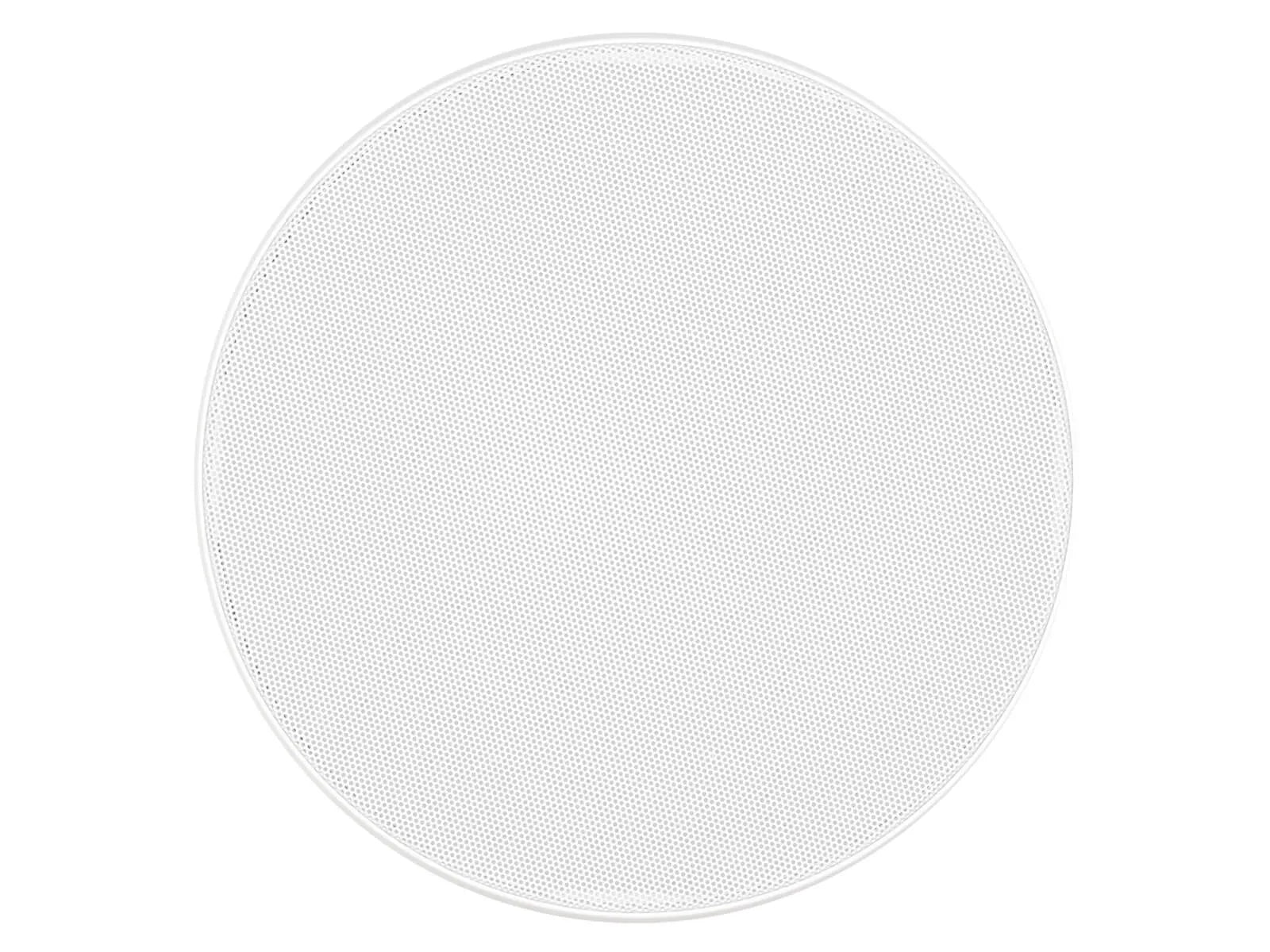

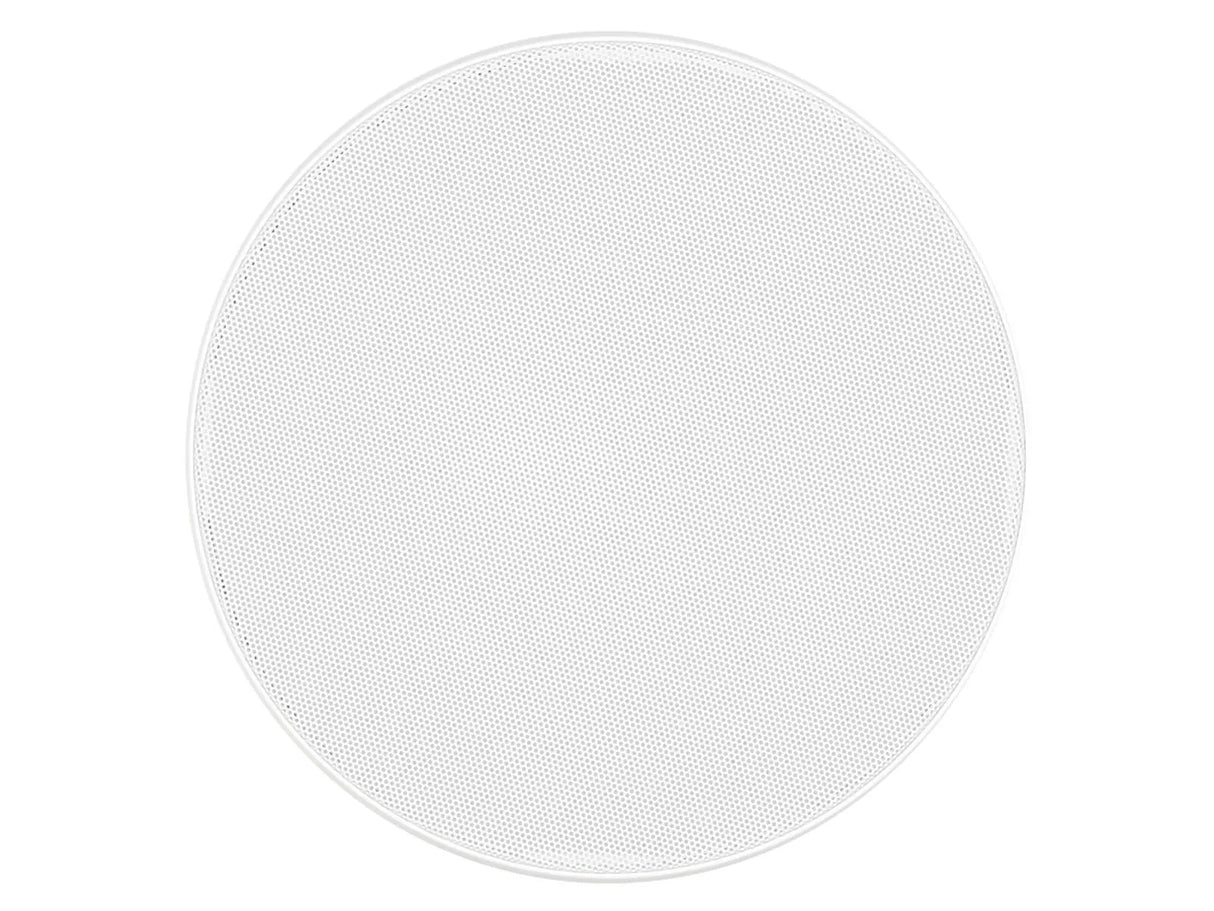

  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

TECHNICAL DATA

SPECIFICATIONS

50 Hz - 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

109.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 - 120 W

Crossover Frequency

Bass low pass: 300 Hz @ 6 dB / Octave
Mid: 300 Hz @ 6 dB / Octave
& 3 kHz @ 12 dB / Octave

Drive Unit Complement

3-Way
8" C-CAM RST cone bass driver
4" C-CAM IDC cone mid range driver
1" C-CAM Gold Dome tweeter
(tweeter & midrange driver combined in a pivoting module)

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+ 3dB/ 0dB/ -3dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)

309mm (12 3/16 ")

Overall Depth (Including Grille)

187mm (7 3/8 ")

Cut-Out Hole Diameter

274mm (10 13/16 ")

Mounting Depth

181mm (7 1/8 ")

Optional Square Grille - Outer Dimensions

309 x 309mm (12 3/16 ")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Connection

Gold plated 'push' type terminals

Weight

4.3 kg (9 lb 8 oz)

Pre-Construction Bracket

CB10 Pre-Construction Bracket (Light Brown)

Sold As

Single Unit


DOCUMENTS

INSTRUCTIONS

Use Manual (EN).
