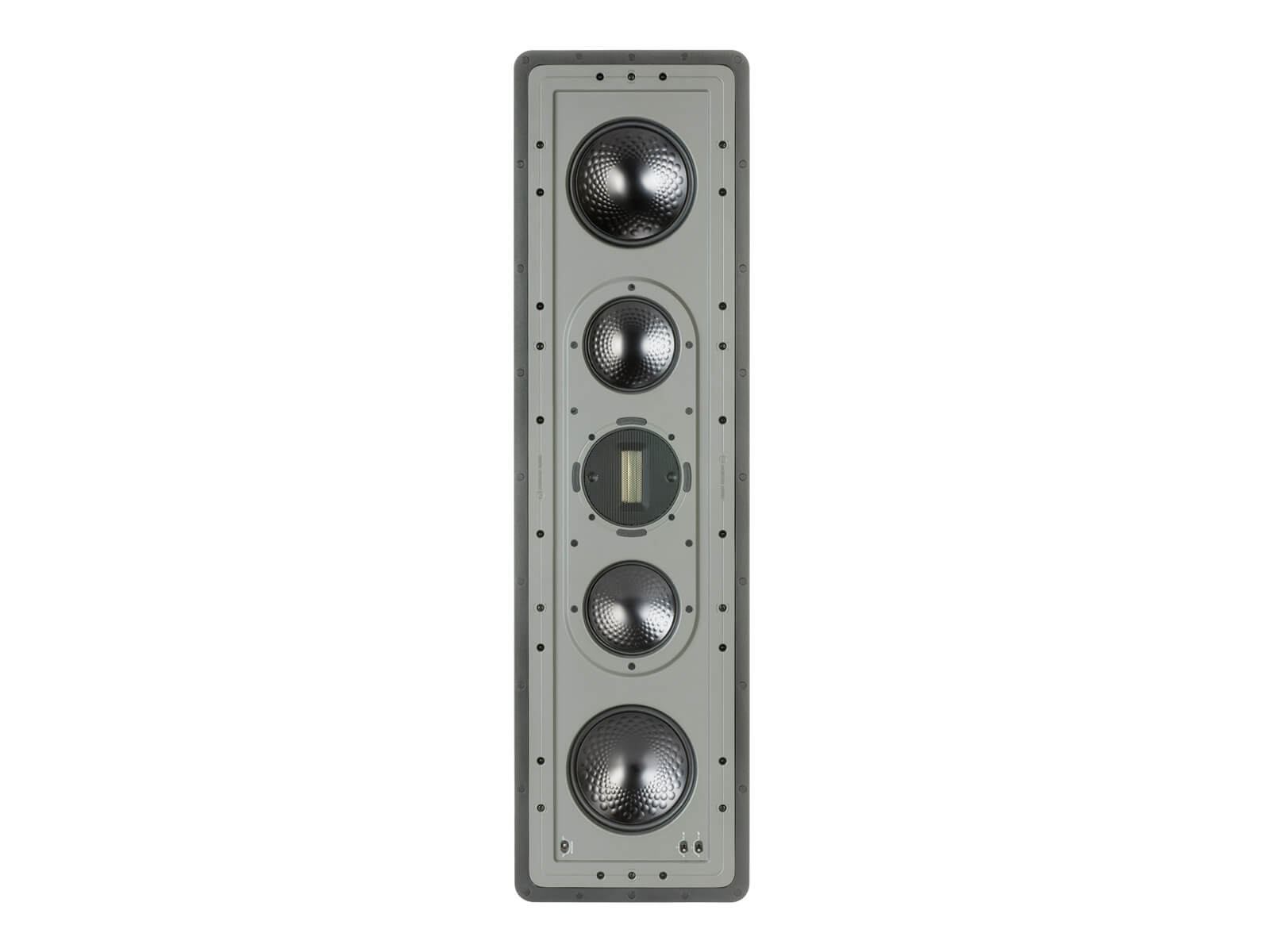

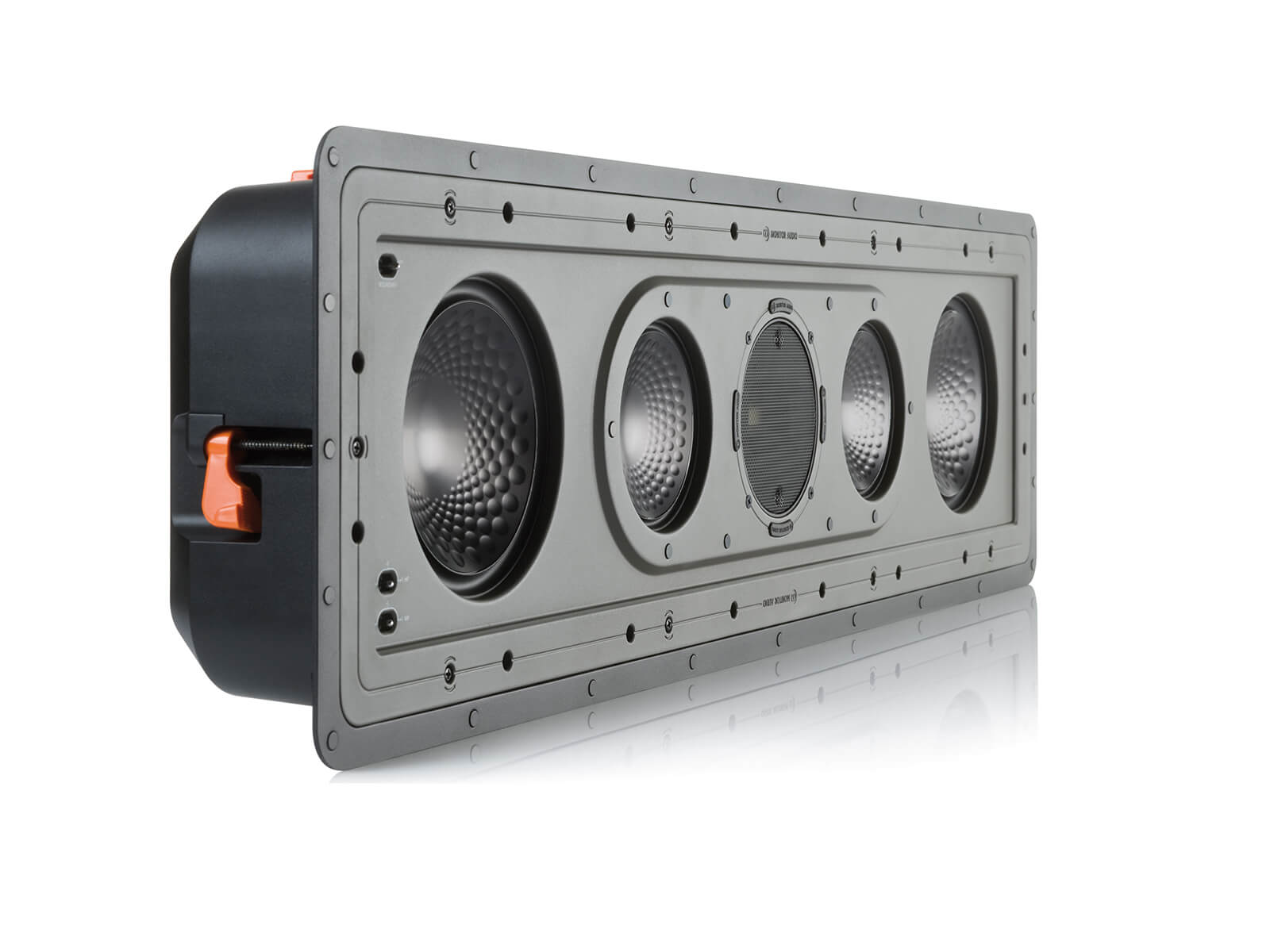

Monitor Audio CP-IW460X, wall speaker

Name: Monitor Audio CP-IW460X, wall speaker
Brand: Monitor Audio
SKU: SCPIW460X
Price: 2180.00 EUR
Availability: InStock

€2,180.00 EUR

Monitor Audio CP-IW460X, wall speaker - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

You do not collect sound columns ?

We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.

Delivery home from € 4.99

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

3-way in-wall speaker from Monitor Audio. The speaker exhibits one of the best performance indicators in its class and is perhaps the best sounding option!

Power: 150 W.
Frequency band: 50 Hz - 60 kHz .
Sensitivity: 89 dB.
Resistance: 6 Ohms.

DESCRIPTION

Technology

Dual 6.5” C-CAM bass drivers featuring RST 'dimpled' cone technology
Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
Dual 4” C-CAM mid-range drivers featuring RST 'dimpled' cone and underhung voice coil technologies
C-CAM Ribbon High Frequency transducer
Innovative HF rotating system to facilitate portrait or landscape orientation
Integrated back-box to provide rear sound isolation resulting in 'controlled performance'
Cast Polymer enclosure – designed to provide a high degree of rigidity and acoustic damping properties
High overall efficiency and maximum SPL for powerful home theater installations
High power handling
Three-way design in a symmetrical 'BMTM-B' configuration
High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
Trim-less, low profile magnetic grills provide an attractive, discreet visual aspect and easy installation and servicing

TECHNICAL DATA

SPECIFICATIONS

Frequency Response

50 Hz – 60 kHz (-6 dB typical in room response)

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

113.8 dBA

Power Handling (RMS)

150 W

Recommended Amplifier Requirements

60 - 150 W

Crossover Frequency

LF - 500 Hz @ 12 dB/Octave MF -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave HF - 3 kHz @ 18 dB/Octave

Drive Unit Complement

2 x 6.5” C-CAM Bass drivers with RST cone technology
2 x 4” C-CAM Mid-range drivers with RST cone technology
1 x C-CAM HF ribbon transducer

Adjustment Controls

Boundary Compensation (On/Off)
MF Level: +1/0/-1 (dB)
HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D)

907 x 257 mm (35 ^3/4 x 10 ^1/8 ")

Overall Depth (Including Grille)

102mm (4")

Cut-Out Dimensions

880 x 230 mm (34 ^21/32 x 9")

Mounting Depth

96mm (3 ^3/4 ")

Fixing Type

10 x Tri-Grip Dog leg fixings

Construction Material

Cast Polymer enclosure with die-cast Aluminum baffle (RoHS2 Compliant)

Weight

12.98 kg (28 lb 6 oz)

Pre-Construction Bracket

WB12 Pre-Construction Bracket (Green)

Sold As

Single Unit
