Monitor Audio

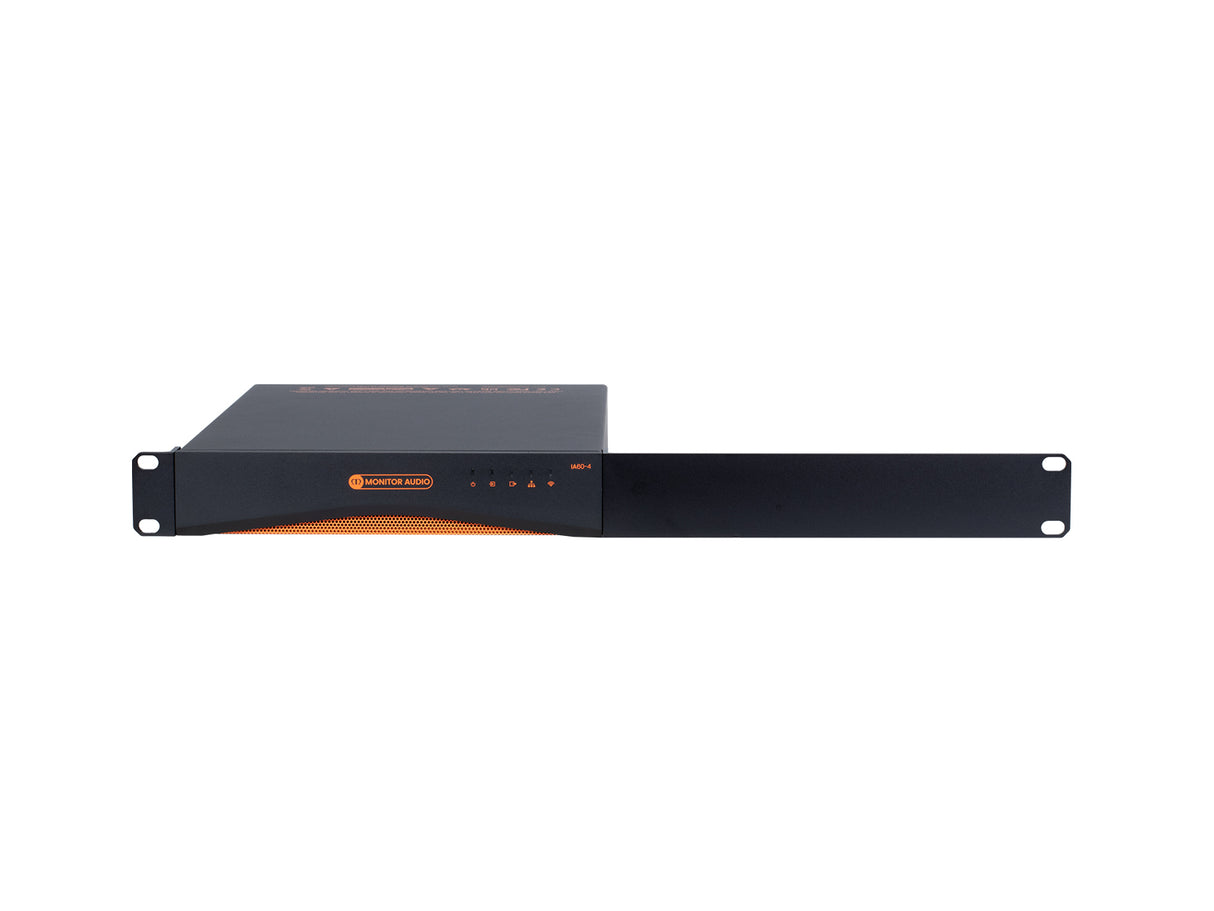

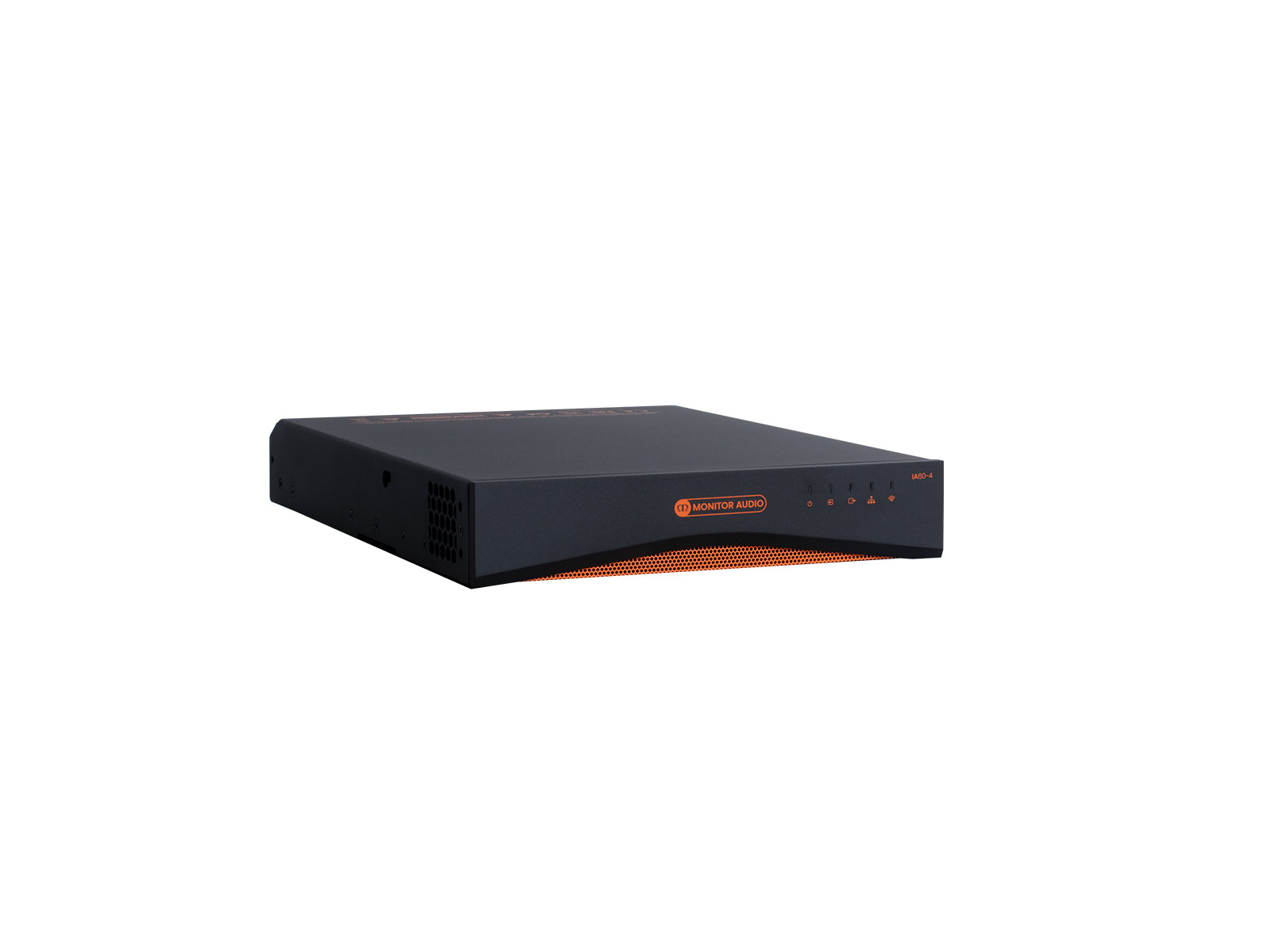

Monitor Audio IA60-4, home theater amplifier

The ultra-compact, incredibly versatile four-channel mounted amplifier IA60-4 can be configured to deliver four channels of 60W or two channels of 125W of power.

€1,350.00 EUR

Monitor Audio IA60-4, home theater amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Power: 2 x 60W or 2 x 125W.
  • Class D amplifier ensures high performance.
  • Fully customizable DSP amplifier with online configurator.


DESCRIPTION

Monitor Audio Installation Amplifiers are built to perform at the highest levels while taking up the least rack space. The IA60-4 may be entry-level, but it features full DSP matrix configuration and offers flexible power options: it can be configured to deliver four channels of 60W or 2 channels at 125 W or using power sharing it can deliver a single channel of 250 W with no loss of performance. All this from a rugged, 1U half-size space-saving design. The IA60-4 is ideal for two zone stereo applications, height channels within home theater Atmos solutions or small garden systems.


TECHNICAL DATA

SPECIFICATIONS

Channels

4

Output Power @ 4 Ohms/8 Ohms

4 x 60W SE*

Output Power @ 70/100V

2 x 125W BTL**

Powershare (up to)

1 x 250W

Power Consumption

75 W

Thermal Output

256 BTUs

Polarity (Default)

Non-inverting

Dimensions

44 x 220 x 325 mm (1 3/4 x 8 11/16 x 11 5/8 ")

Output Voltage

70Vp / 140Vpp (SE unloaded), 140Vp / 280 Vpp (BTL unloaded)

Signal to Noise Ratio

>106dB (A-weighted, 20 Hz - 20 kHz, 8 Ohm load)​

THD+N (typical).

<0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power)​

Frequency Response

+0/-0.25dB 20Hz - 20kHz (8 Ohm load, 3dB below rated power)

Protection Circuits​

Short circuit -, DC, Undervoltage -, Temperature - and Overload protection​

Power Supply​

Switch mode power supply with Power Factor Correction (PFC) and standby converter

Operating​ Voltage/Frequency

Universal Mains, 100 V - 240 V, 50 Hz - 60 Hz

Standby Consumption​

<0.5W

Accessories

Rack Mount Kit, Wall/desktop mount kit (sold separately)

Power Ratings​

1% THD @ 120Vac and 230Vac

Cabinet Finish

Black Anodized

* SE - Single Ended
** BTL - Bridge Tied Load

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
