The Monitor Audio IV140 is a wall-mounted, concealed speaker that delivers all the acoustic qualities of the best manufacturer!
- Recommended amplifier power: 20-50W .
- Frequency range: 75 Hz — 18 kHz (installed).
- Sensitivity: 82 dB.
- Impedance: 8 Ohms.
DESCRIPTION

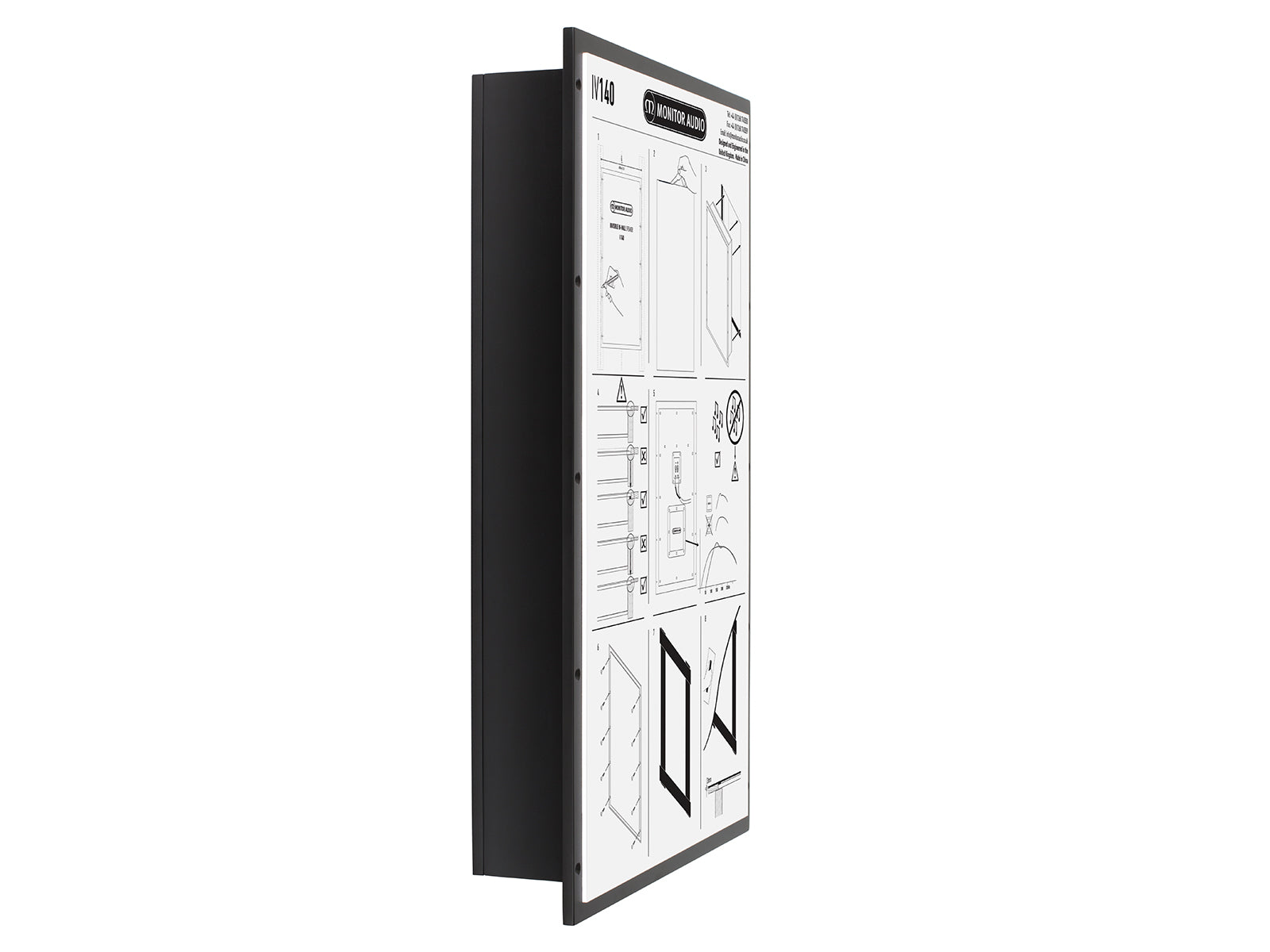

Concealed in-wall or in-ceilings, the speaker fits into all conventional 4" stud bays, leaving enough room for cabling. Once installed and skimmed with plaster, the speaker is completely out of sight, with paint, light wallpaper or fabric hiding it from view.
A large low-frequency transducer and two high-frequency transducers provide punchy, high-power bass and sound vibration. This two-way transducer design also features an integrated crossover to generate a wider frequency range and deliver crystal clear sound quality with smoother overall balance and character.

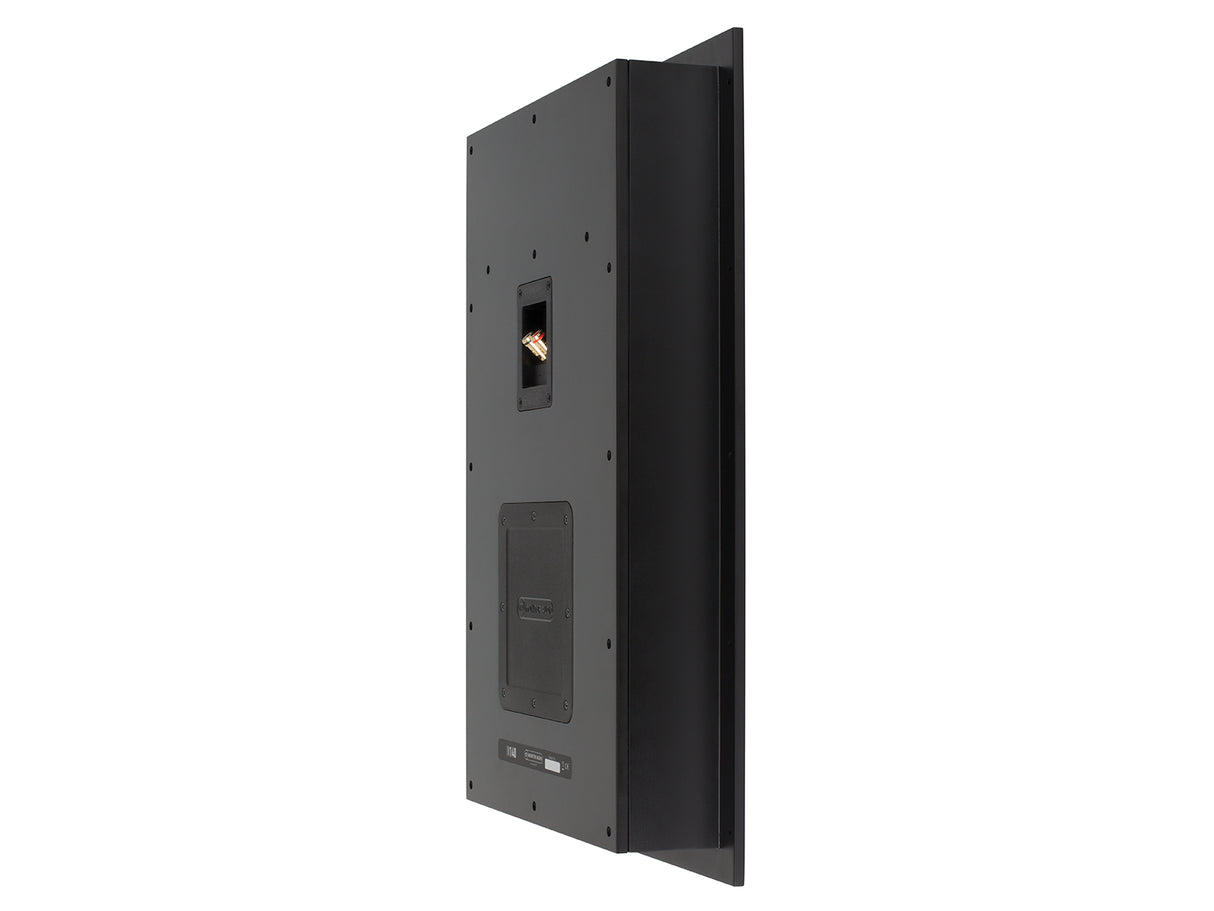

An integrated back box design isolates sound and ensures consistent, controlled performance. This rigid back box reduces sound emitted from the rear of the speaker, minimizing leakage into other rooms.
Monitor Audio's IV140 is protected against overload by automatic re-setting circuit breakers (PTC). These will attenuate output for a specific time period to allow the system to cool until normal operation can safely resume.
Technology
- 2-way system with integrated crossover
- Pre-construction speaker designed to be plastered in to create an 'invisible' appearance
- Low-frequency transducer, featuring high power ceramic magnetics and 40 mm voice coil
- Dual High-frequency transducers, incorporating high power Neo magnets and 30 mm voice coils
- Rigid MDF back box construction
- Integrated 'hybrid' controlled performance back box system – Fully sealed or open-back
- High Quality crossover – including metallised film capacitors and low loss steel core inductors
- Protected against overload by PTC's (automatically re-setting breakers)
- Ideal for home cinema, distributed audio, hospitality, retail and commercial background music applications (where visible discretion is key)
TECHNICAL DATA
SPECIFICATIONS
Frequency Response (-6 dB)
75 Hz — 18 kHz (CP sealed)
55 Hz — 18 kHz (Open back)
Sensitivity (1W@1M)
82 dB (when installed as directed)
Power Handling (RMS)
50 Watts (full range – IEC268-5 rating)
100 Watts Music program (Using Minimum 80Hz High Pass filter)
Recommended Amplifier Requirements
20-50 Watts (full range)
20-100 Watts (Using Minimum 80 Hz High Pass filter)
Drive Unit Complement
1 x Low-Frequency transducer
2 x High-Frequency transducer
Overall Dimensions (Including Grille (H x W x D))
642 x 401.5 mm (25 1/4 x 15 13/16 ")
Overall Depth
106mm (4 3/16 ")
Cut-Out Dimensions
591 x 350.5 mm (23 1/4 x 13 13/16 ")
Mounting Depth
94mm (3 11/16 ")
Connection
Sprung push type terminals - Gold plated
Fixing Type
Self-tapping screw
Construction Material
9mm MDF
Color / Finish
Black painted, white membrane
