Monitor Audio PLIC II, ceiling speaker

INFORMATION

This is a 3-way, multi- channel Platinum II series speaker from Monitor audio. Quality sound and high performance guaranteed!

• Recommended amplifier power: 5 0 - 150 W.
• Frequency band: 4 5 Hz - 60 kHz.
• Sensitivity; 90 dB.
• Resistance: 4 ohms.

DESCRIPTION

The latest product to join the Platinum II range, the PLIC II in-ceiling speaker, meets the demands put on speaker manufacturers by providing a winning combination of high quality sound, ease of installation and discreet design.

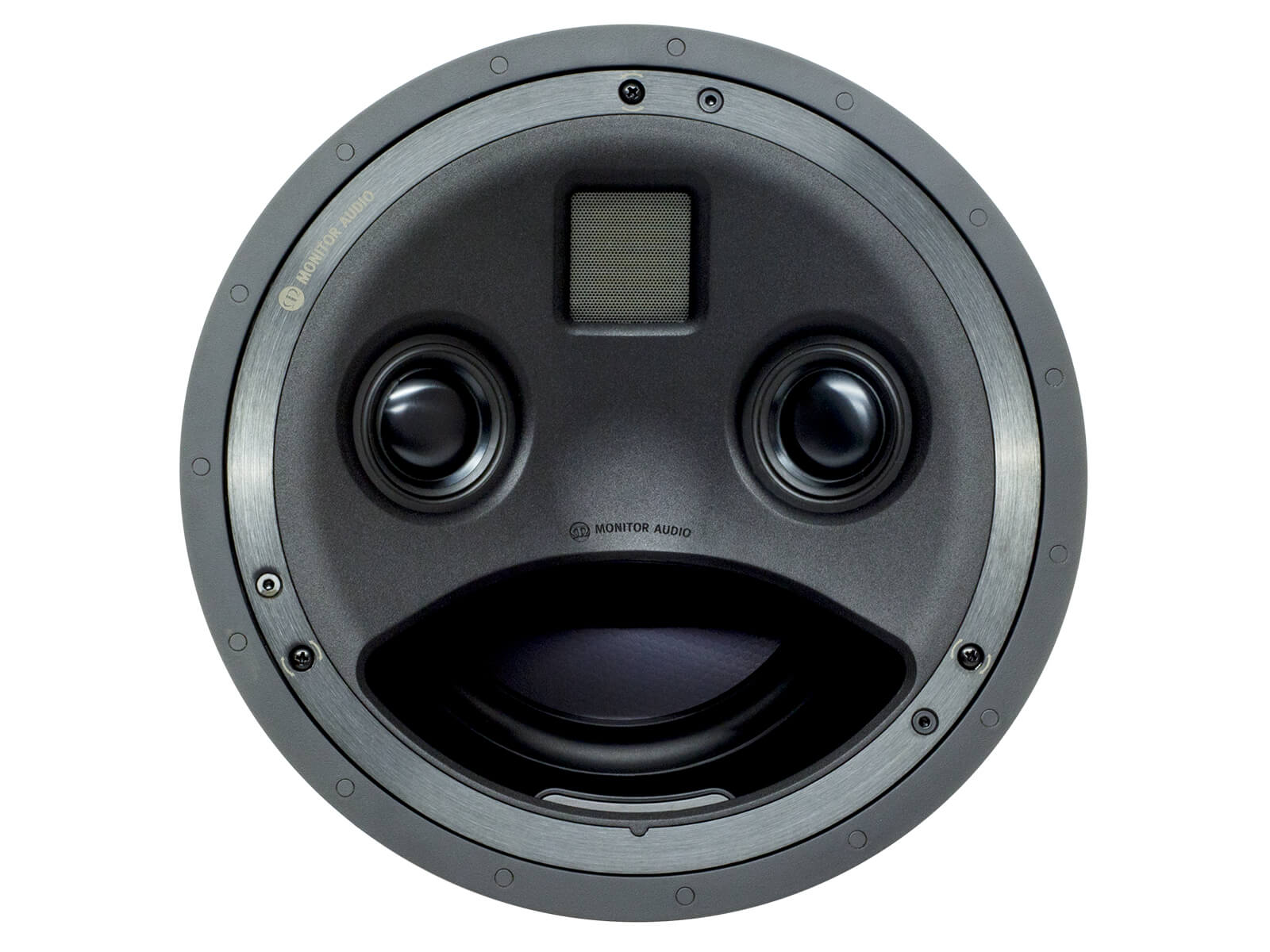

The Monitor Audio PLIC II in-ceiling speaker features an 8" long throw bass driver with Rigid Diaphragm Technology ( RDT II ) cone technology to provide immensely powerful bass lines. This is achieved by the RDT cone reacting to an audio signal with lightning fast precision without deformation. To provide the listener with a uniform frequency spectrum when the speaker is played at higher frequencies, additional dual mid-range drivers that feature C-CAM cone technology and Monitor Audio's Micro Pleated Diaphragm ( MPD ) transducer are mounted on a rigid aluminum baffle and directed towards the listening zone providing uniform mid and high frequency dispersion.

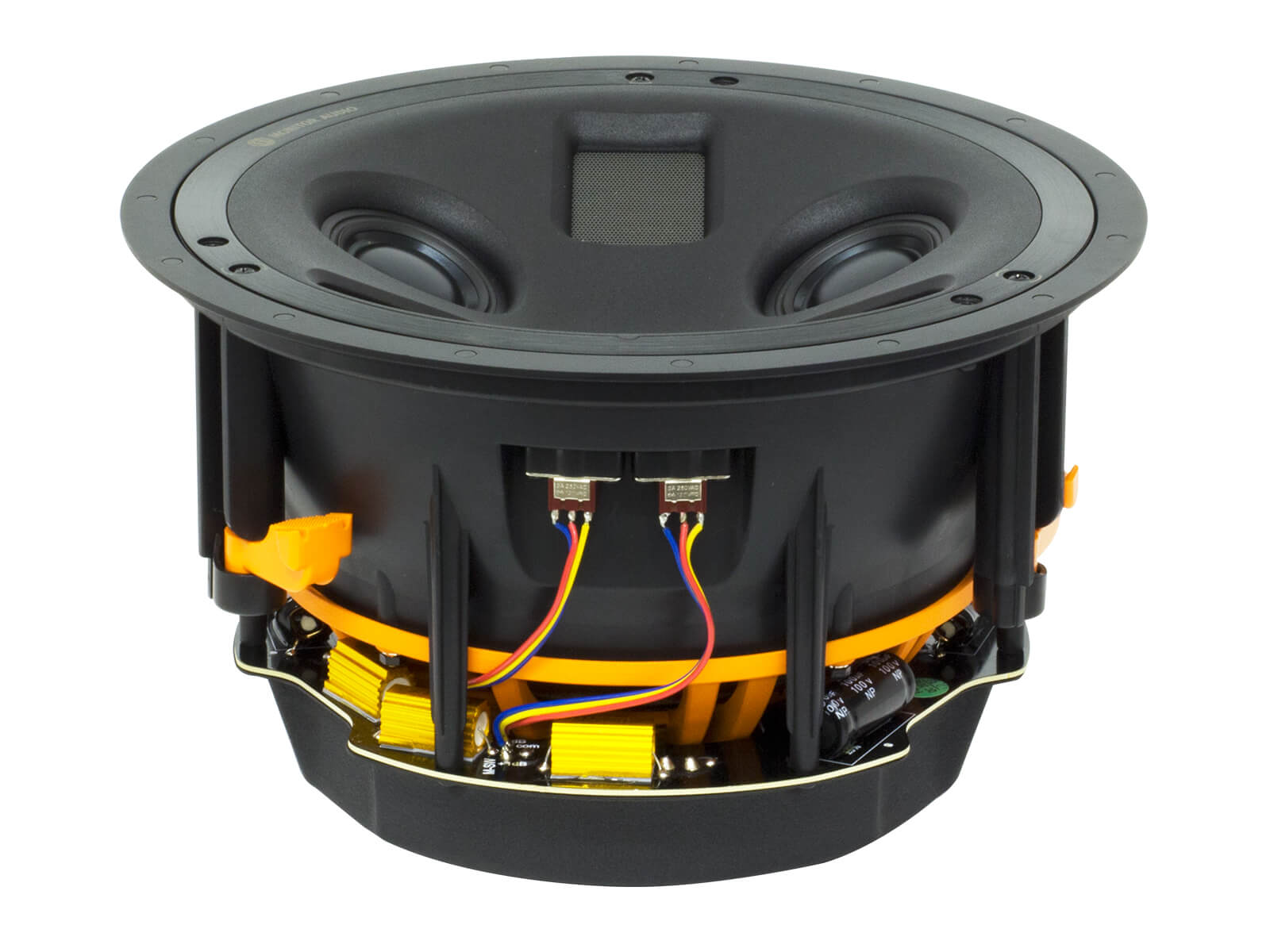

All PLIC II drivers employ a heavy duty motor system, which deploys an under-hung motor assembly to ensure the coil always remains in the gap, even when driven hard. The addition of copper 'shorting' rings greatly improves magnetic linearity and lowers intermodulation distortion, resulting in crisp and clear audio delivery. A world first for an in-ceiling speaker!

Designed for installation in both new build and retrofit projects, the PLIC II in-ceiling speaker features Monitor Audio's unique Tri-Grip fixing system. This 3-position 'dog leg' style fixing provides a larger contact surface area than other types. This system, combined with the magnetic grille, saves the installer both time and money by speeding up the speaker fitting process.

To ensure controlled audio performance, Monitor Audio has designed an MDF back box with pre-determined air volume of 24 L. The rigid box is available with pre-loaded internal damping material to provide the best possible sound absorption and reduce standing waves.

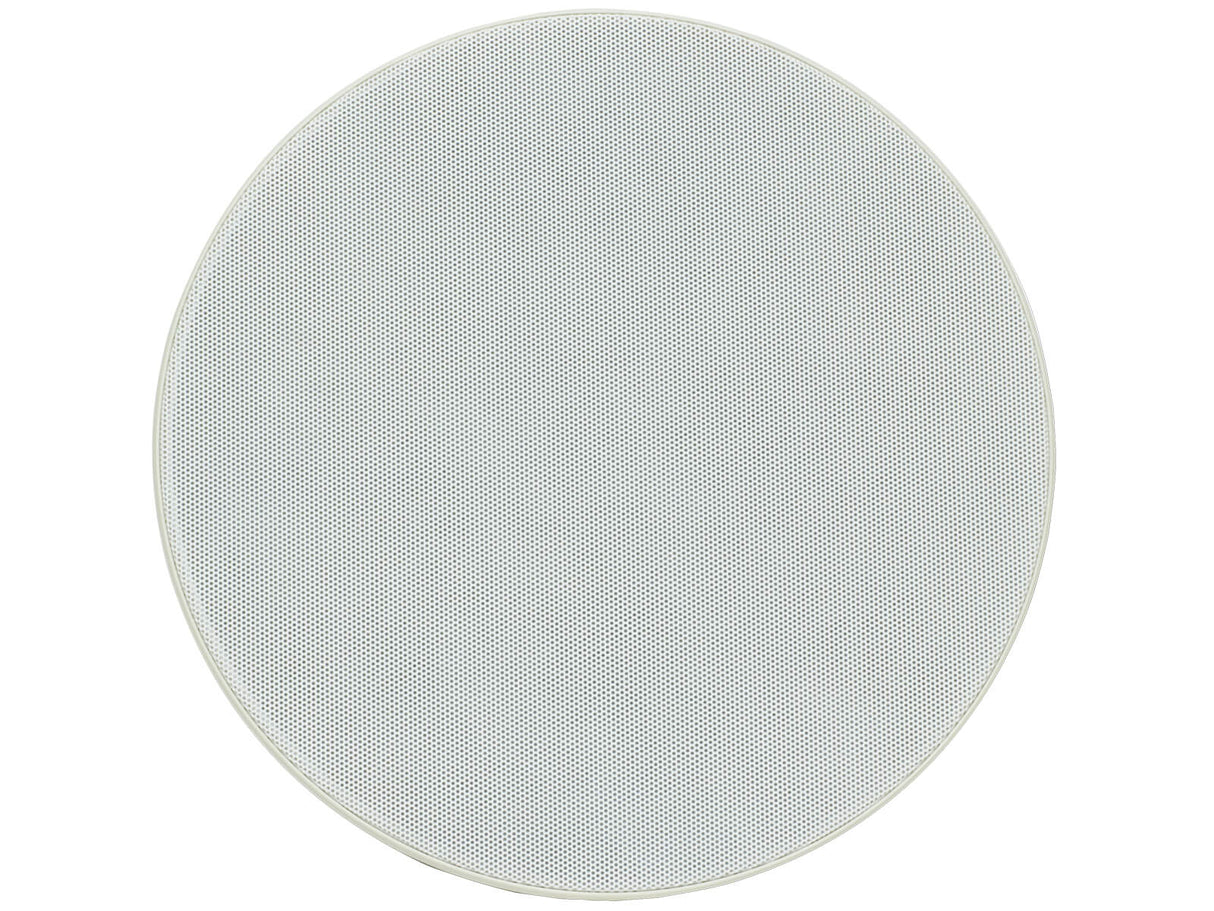

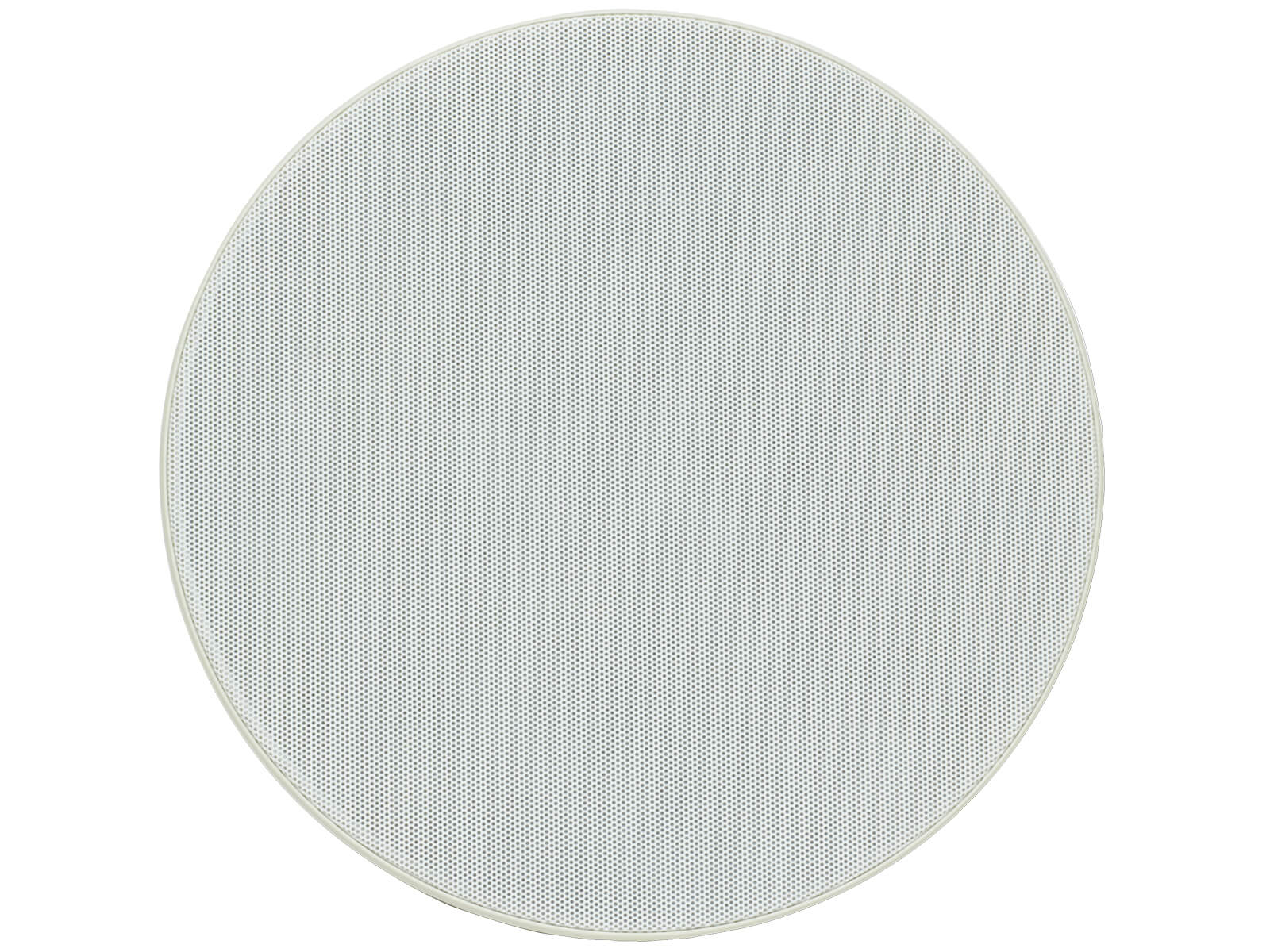

To satisfy the interior designer and end user, the circular grille can appear almost invisible, by being painted to match the room decor. Monitor Audio also offers a square option to match lighting fixtures and ventilation.

Optional square grille can be used with this model.

TECHNICAL DATA

SPECIFICATIONS

DOCUMENTS

INSTRUCTIONS

Use Manual (EN).
