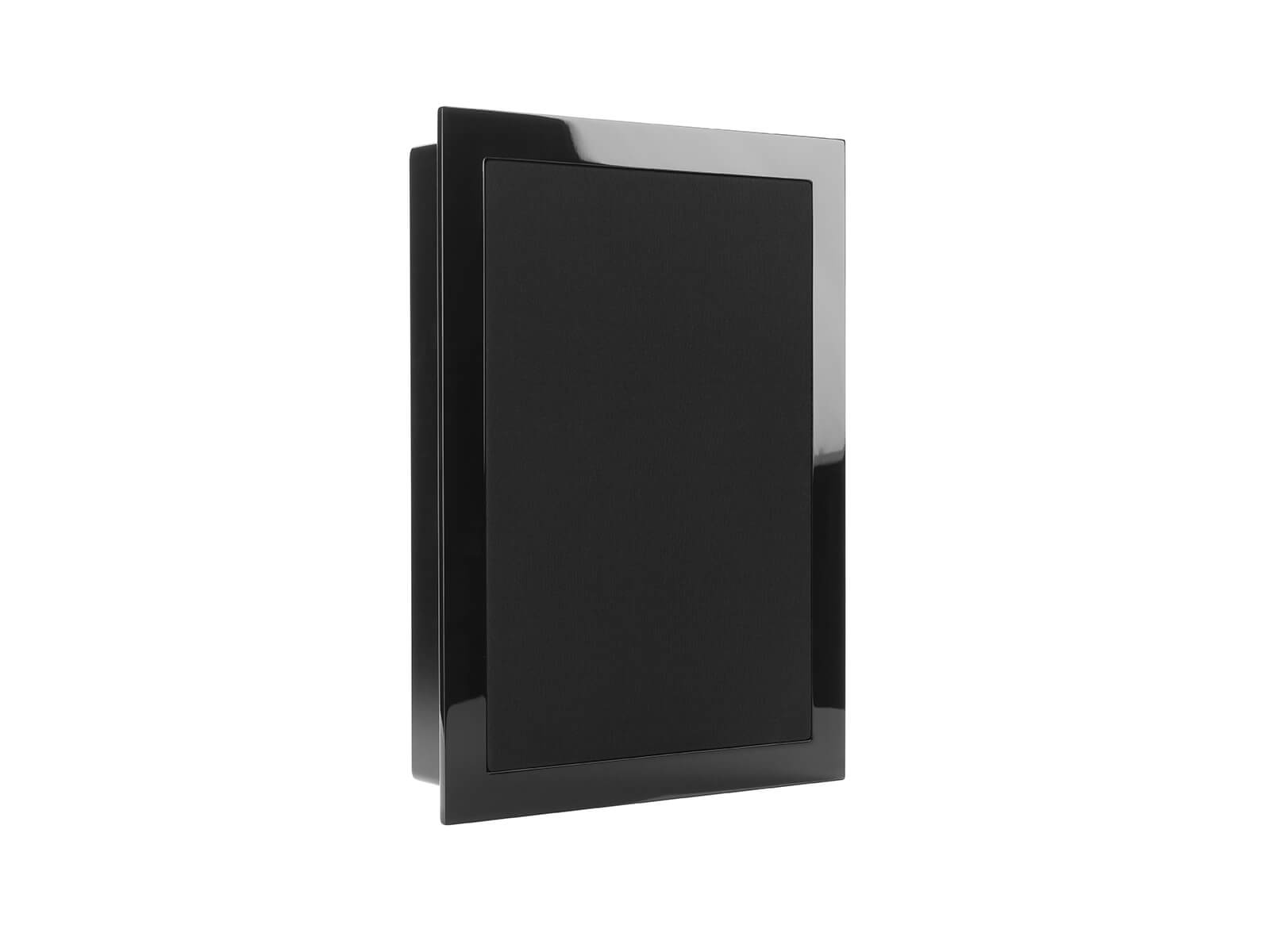

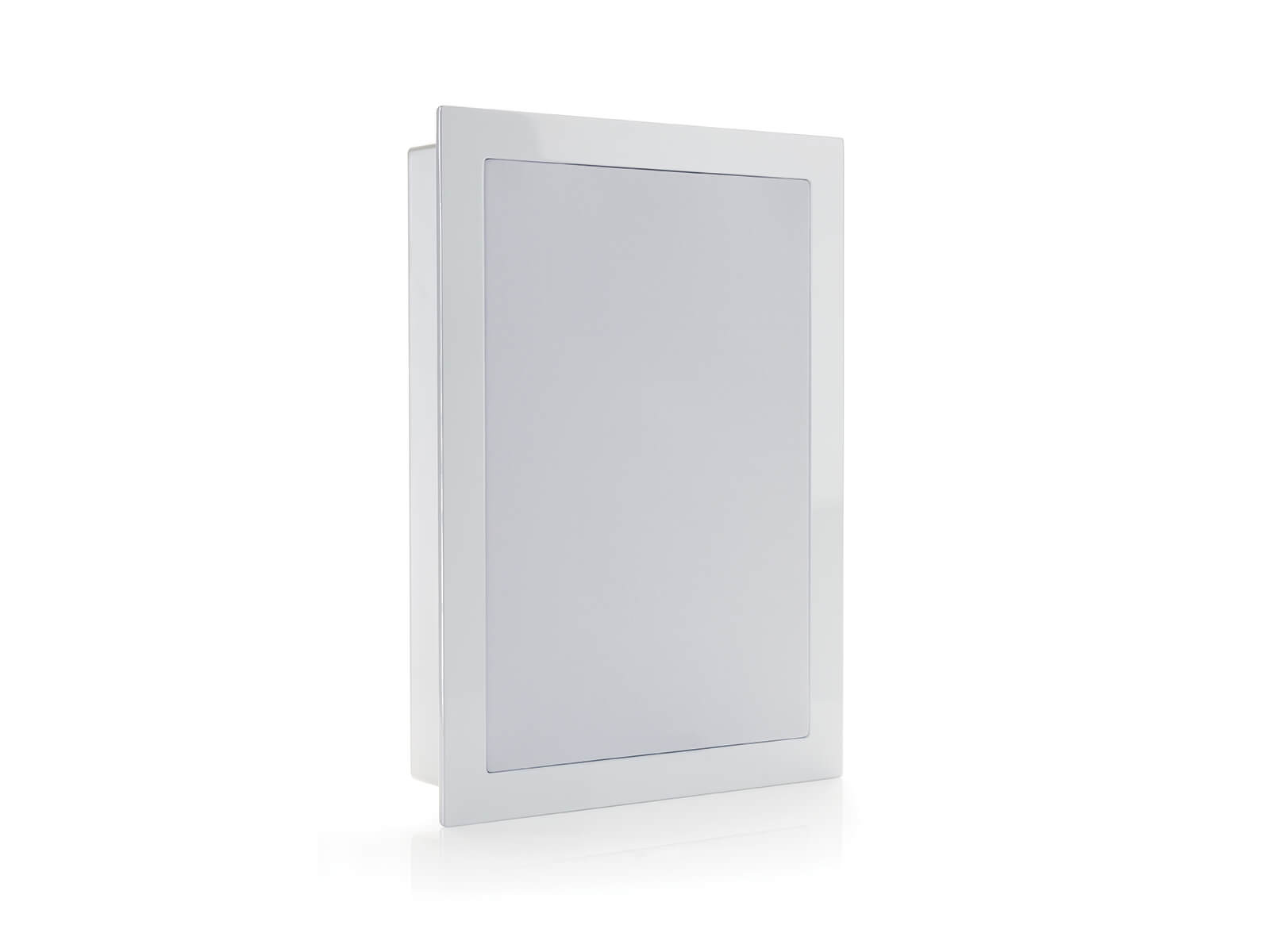

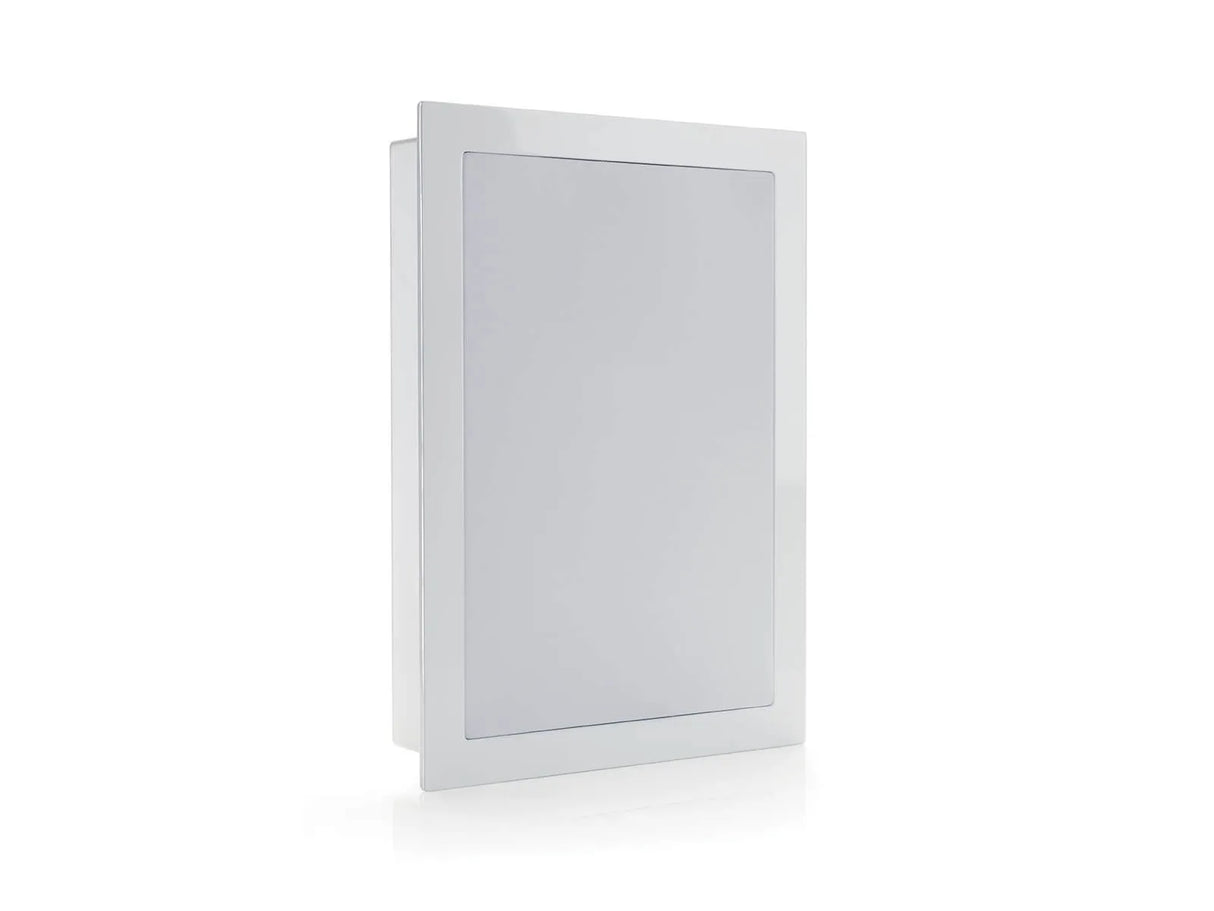

Monitor Audio SoundFrame 1 On-Wall, wall-mounted sound column (various colors)
Monitor Audio SoundFrame 1 On-Wall, wall-mounted sound column (various colors) - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
You do not collect sound columns ?
You do not collect sound columns ?
We have a solution for you! We invite you to come ➡️for audio equipment listening to our salon.
Delivery home from € 4.99
Delivery home from € 4.99
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up in the store for € 0
Pick up in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
. If necessary, this column can be installed with or without a frame.
- Power: 100W.
- Frequency band: 55 Hz — 35 kHz.
- Sensitivity: 86dB.
- Resistance: 8 ohms.
DESCRIPTION
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

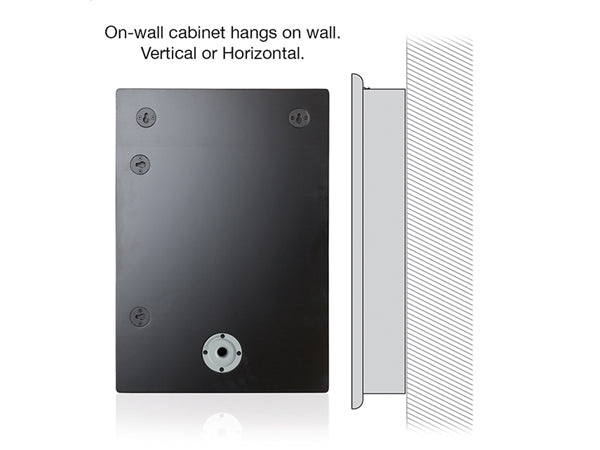

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.

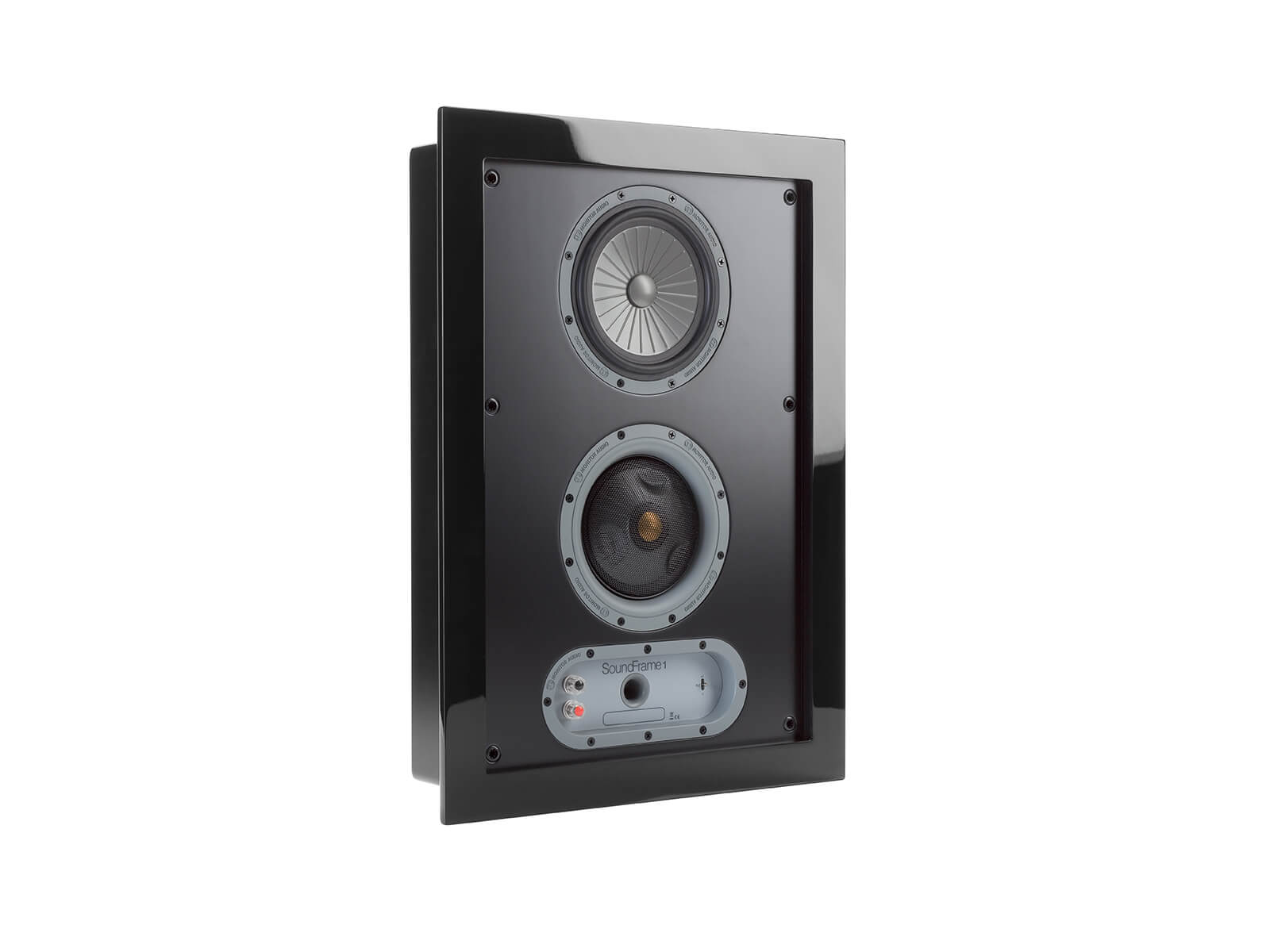

The SoundFrame 1 On-Wall utilizes a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.
Technology
- Quick and easy installation.
- Slender 87 mm (3.5") cabinet depth.
- Choice of high gloss white or black lacquer frames.
- SoundFrame 1 and SoundFrame 2: full range true 3-way configuration: pivoting IDC 100 mm mid-range/25 mm tweeter module, 6.5-inch C-CAM bass driver with RST cone for a super-fast life-like response.
- High frequency attenuation +- 3 dB.
- Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
TECHNICAL DATA
SPECIFICATIONS
Frequency Response
55 Hz — 35 kHz
Sensitivity (1W@1M)
86 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
100W
Maximum SPL
106 dBA
Recommended Amplifier Requirements
25 — 100 W
Bass Alignment
Sealed Box
Crossover Frequency
550 Hz & 3.3 kHz
System Configuration
3-Way
Drive Unit Complement
1 x 165 mm (6.5 inches) C-CAM mid/bass driver with RST
1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter
Dimensions (Including Frame (H x W x D))
539 x 389 x 87.5 mm (21 1/4 x 15 5/16 x 3 7/16 ")
Depth From Wall
87.5mm (3 7/16 ")
Weight
7.44 kg (16.37 lbs)
Sold As
Single Unit
