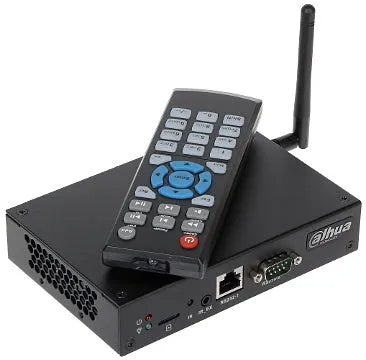

Monitor control device via TCP/IP DAHUA DPB18-AI

Monitor control device;
Industrial design, compact and lightweight, portable;
Supports video, image display, audio, text document, PDF, IPC display, time, meteorological information and other forms of data stream for advertising needs.

€379.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

Dahua Technology is one of the largest manufacturers of video surveillance products in the world, with a wide range of products and constant investment in new and advanced technologies. The video surveillance systems developed by Dahua Technology are perfectly adapted to the needs of both public spaces and corporate areas or individual buildings. Dahua video surveillance systems include a wide selection of IP video cameras, NVR recorders, HD-CVI video cameras and recorders and all the necessary accessories.

Dahua Technology products are divided into the following classes:

  • LITE - the best price-quality ratio, excellent solutions for individual needs.
  • PRO - professional products with extremely high quality and technical characteristics.
  • ULTRA - products for exceptional needs.

VIDEO


EXEMPLARY CONNECTION DIAGRAM


1. Operator
2. DPB18-AI
3. Digital signage
4. Advertising screen

TECHNICAL DATA

Supported resolutions : 3840 x 2160 px - 8.3 Mpx , 4K UHD (max)
Video output : 1 x HDMI
Audio outputs : 1 x Jack 3.5 mm socket
Support for two-way audio streaming :
Network interface :
  • 1 x RJ45 10/100/1000 Base-T
  • Wi-Fi module
    • Default IP Address : 192.168.1.108
    Estimated User Fig. / admin password : admin / admin
    Serial Ports :
  • 1 pc. RS-232 @ D-Sub
  • 1 pc. RS-232 @ RJ-45
    • Alarm inputs/outputs :
    Operating system : Android 5.1.1
    Selected features :
  • Functions of the remote time switch - the ability to adapt to the time of year and other dates
  • Main multimedia format service, picture service, video rewind, notes and other playback with split screen
  • Display time, date, week, weather forecast, etc. Service
  • Supports the display of programming material outside the network, saving network bandwidth and occupancy
    • Meals : 12 V DC / 1 A (power supply included)
    Working temperature : -10 °C ... 55 °C
    Weight : 0.44 kg
    Dimensions : 160 x 108 x 30 mm
    Manufacturer / Brand : DAHUA
    Warranty : 3 years
