NAD  |  Bar code: 5703120230566

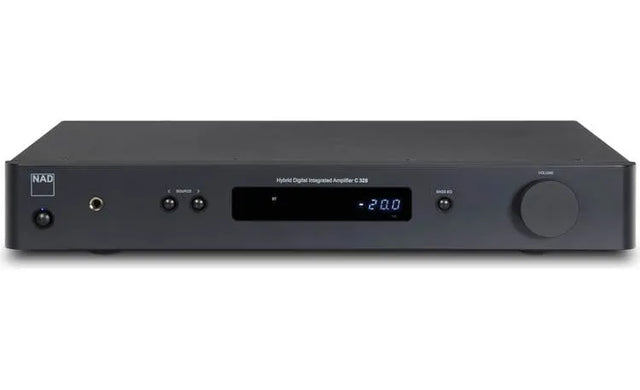

NAD C 328, Hybrid Stereo Integrated Audio Amplifier with DAC

When it comes to Classic series amplifiers, no feature is left out.
Regular price 749,00 €

NAD C 328, Hybrid Stereo Integrated Audio Amplifier with DAC - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

  • Free delivery in Lithuania from 100 €: courier or parcel locker
  • Pick up at our showroom in Kaunas, Armatūrininkų g. 1
  • Pay in instalments available
  • 14-day returns
Questions about this product? +370 683 90000 Write to us

▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.


Delivery

In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.

Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.

Pick up in store

You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.

We recommend calling before you arrive: +370 683 90000

Opening hours: Mon-Fri 9:00-18:00

INFORMATION

Low-noise circuits, precise volume control and precise channel balance are the main characteristics of the C 328.

  • Continuous output power into 8 ohms and 4 ohms 50 W (ref. 20 Hz-20 kHz at nominal THD, both channels on).
  • THD (20Hz - 20kHz)<0.005% at 1V output.
  • Signal-to-noise ratio >100 dB (A-weighted, 32 ohms, ref. 2 V output, unity gain).
  • Frequency response ±0.3 dB (20 Hz - 20 kHz).
  • Output impedance 11 ohms.

DESCRIPTION

Getting the Basics Right

When it comes to Classic Series amplifiers, no feature is overlooked. Low noise circuits, precise volume control action, and accurate channel balance are all key characteristics of the C 328. With the added bonus of proper input and output impedance traits, plus high overload margins and stability with difficult speaker loads, the C 328 is the best choice for audiophiles who are just starting to build their dream systems. The C 328 also includes a MM phono stage with precisely correct RIAA equalization, high overload margins, extremely low noise, and an innovative circuit to suppress infrasonic noise that is present on all LPs—all without affecting bass response.

Versatility in Spades

The line inputs of the C 328 can accommodate all kinds of analogue source components. It offers ideal input impedance attributes with linear, ultra-low noise buffer amplifiers to prevent any sonic degradation caused by improper loading of the source device. The C 328 also features a separate headphone amplifier with low output impedance and very high output voltage capability, enough in fact to drive even high impedance studio monitor headphones. The low impedance line outputs can also connect to a subwoofer to further extend the versatility of the C 328.

Ready for Streaming

With support for Bluetooth, you can instantly connect and listen to the music service of your choice, or wirelessly stream music and playlists stored directly on your smartphone, tablet or computer. Plus, with its high performance digital circuitry, Bluetooth streaming has never sounded as good as it does with the C 328.

Sophisticated Power

Since moving away from old-fashioned linear power supplies and Class AB output stages, NAD has developed even better performing circuits based on switch mode power supplies and Class D output stages. Once thought to be inferior to traditional topologies, NAD's advanced work in this area has led to some of the best performing amplifiers on the market today. These new designs are linear over a wide bandwidth and provide consistent performance into all speaker loads, delivering a dramatic advancement.

The power supply of the C 328 is able to provide over 100 watts of audio output when needed. The C 328 can operate with any AC mains voltage from 100V to 240V and provides pure DC power to all of its various stages. This extremely efficient supply also provides near perfect regulation of voltage across a wide range of conditions and provides a solid noise-free foundation for the amplifying stages.

The C 328 uses a customized version of the proven Hypex UcD output stage. This allows for massive power with nearly immeasurable distortion and noise in the audible range. Every detail of this design has been carefully crafted and perfectly executed to wring out the best possible performance. The perfect starter amp for audiophiles and music lovers alike, the C 328 will flawlessly deliver NAD's signature flexibility and expansive power.




    TECHNICAL DATA

    SPECIFICATIONS

    Analog In/Headphone Out

    • Continuous output power into 8 Ohms
      and 4 Ohms
    • 50W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
    • THD (20 Hz - 20 kHz)
    • <0.005% at 1 V out
    • Signal-to-Noise Ratio
    • >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
    • Frequency response
    • ±0.3 dB (20 Hz - 20 kHz)
    • Output impedance
    • 11 ohms

    Analog In/Subwoofer Out

    • THD (20 Hz - 20 kHz)
    • <0.005% at 1 V out
    • Signal-to-Noise Ratio
    • >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
    • Frequency response
    • ±0.2 dB (20 Hz - 20 kHz)
    • Output impedance
    • 200 ohms

    Analog In/Speaker Out

    • THD (20 Hz - 20 kHz)
    • <0.03 % (100 mW to 40 W, 8 ohms and 4 ohms)
    • Signal-to-Noise Ratio
    • >95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms)
    • Frequency response
    • ±0.3 dB (20 Hz - 20 kHz)

    Phono In/Speaker Out

    • THD (20 Hz - 20 kHz)
    • <0.03 % (200 mW to 40 W, 8 ohms and 4 ohms)
    • Signal-to-Noise Ratio
    • >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
    • Frequency response (RIAA deviation)
    • ±0.3 dB (20 Hz - 20 kHz)

    Note: The RIAA response is consistent with a pre-emphasis that is rolled off at 50kHz by a second order filter, such as used in Neumann cutting lathes.

    Power consumption

    • at ECO Standby mode
    • 0.5 Watts*
    • at Control Standby mode
    • 0.6 Watts**
    • OFF mode (Power switched OFF)
    • 0 Watts

    * – After 20 minutes of no user interface interaction and no active source input
    ** – With established wireless Bluetooth connectivity and 20 minutes of no user interface interaction and no active source input

    NOTE: Bluetooth connectivity is always live when configured.

    Dimensions & Weight

    • Gross dimensions (W x H x D)
    • 435 x 70 x 285 mm (17 1/8 x 2 13/16 x 11 1/4″)
    • Even weight
    • 4.9 kg (10.8 lbs)
    • Shipping weight
    • 5.9 kg (13.0 lbs)

            DOCUMENTS

            INSTRUCTIONS

            User Manual (EN).
