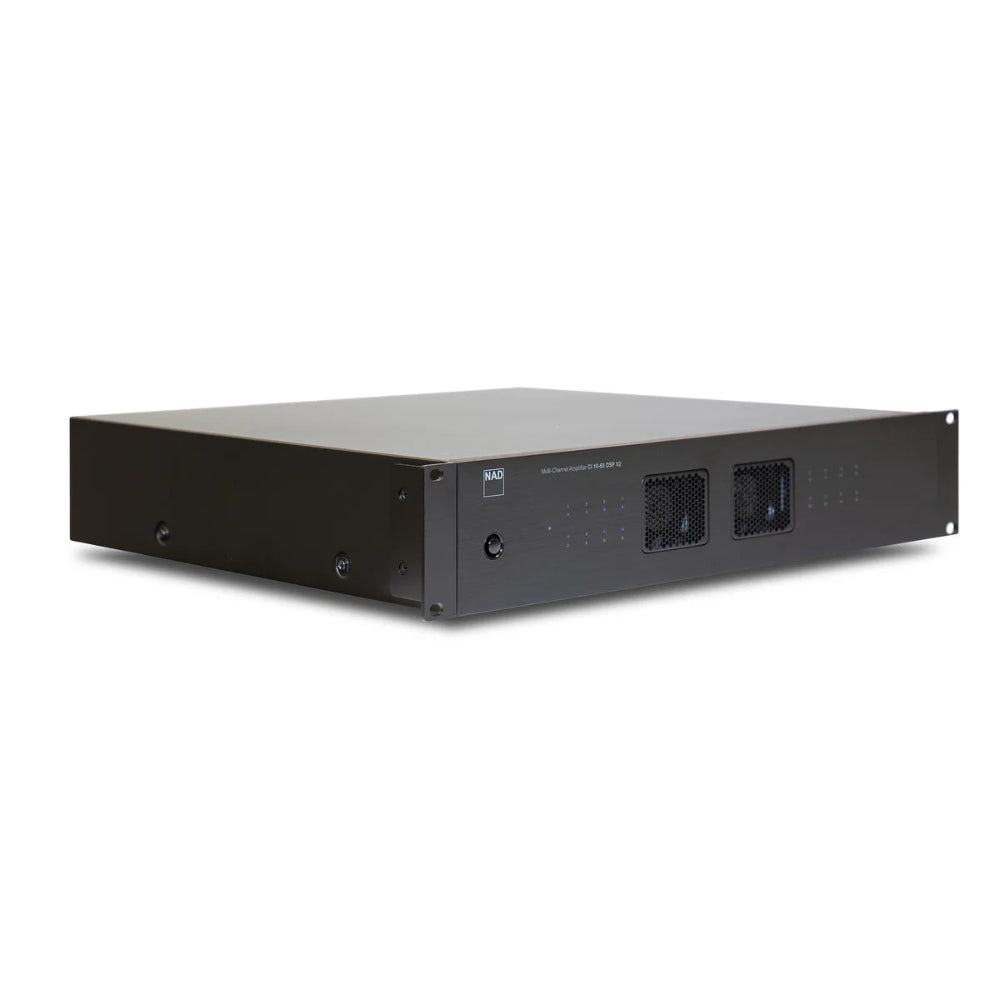

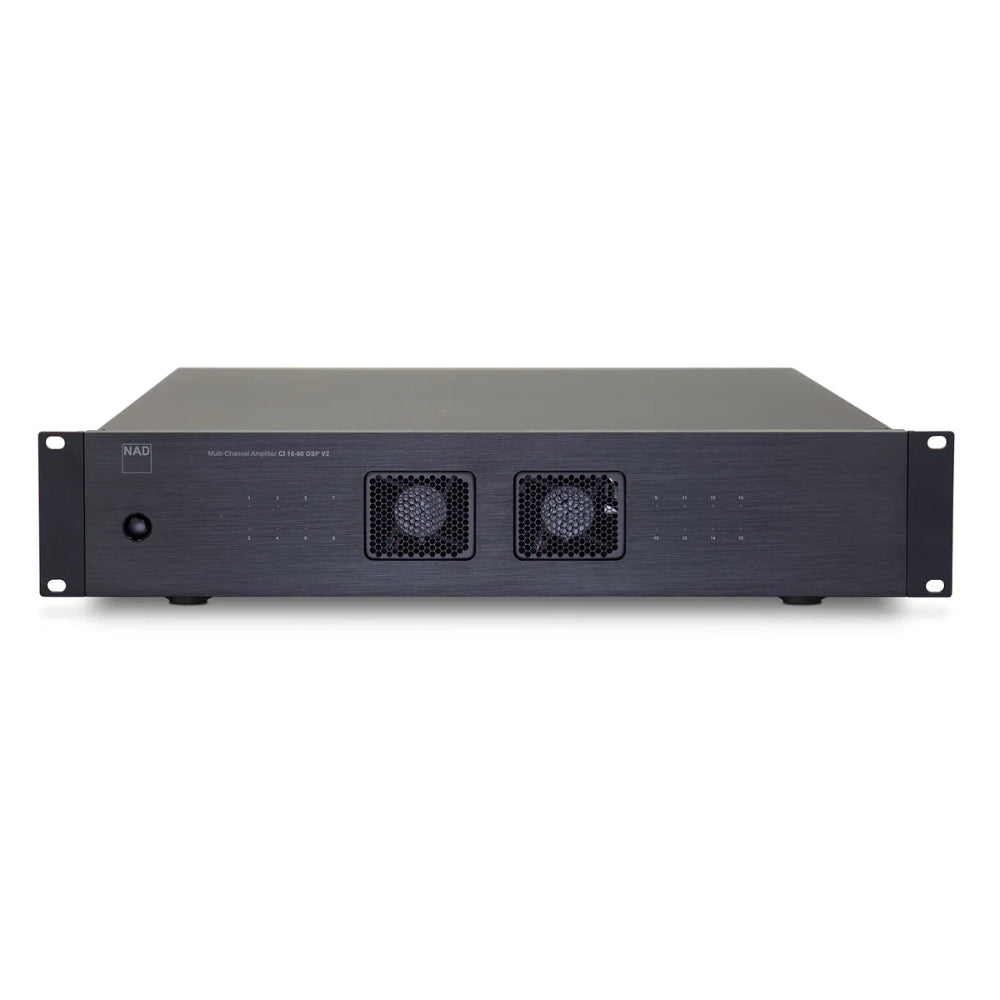

NAD CI 16-60 DSP V2, 16-channel amplifier with DSP

INFORMACIJA

NAD CI 16-60 DSP V2 - a professional 16-channel amplifier with integrated DSP, designed for modern multiroom and commercial audio systems. This model ensures stable, efficient, and high-quality sound reproduction even during long-term operation. Utilizing advanced HybridDigital™ technology, the amplifier features low heat emission and energy consumption, making it ideal for continuous operation. The integrated DSP allows for precise sound optimization based on the room and speakers, ensuring consistent quality across all zones.

Power: 60 W / channel (8 Ω); 65 W / channel (4 Ω); 140 W (bridge mode, 8 Ω)
THD: 0.05%
Signal-to-noise ratio: 80 dB
Frequency response: 20 Hz – 20 kHz

DESCRIPTION

The NAD CI 16-60 V2 Multi-Channel Amplifier designed specifically for modern custom installation systems. Delivering sixteen channels of clean, efficient power, the CI 16-60 V2 is a perfect match for the NAD CI580v2 Four Zone Network Music Player, making a high quality but extremely cost effective combination for distributed audio and system, where reliability and consistency are critical. NAD’s HybridDigital™ amplification ensures stable performance with reduced heat and energy consumption, making it well suited for continuous operation. With simple set up via the web UI, flexible channel configuration, and dependable sound quality, the CI 16-60 V2 provides a robust amplification platform for scalable whole-home and commercial audio systems.

KEY FEATURES
16 channels of HybridDigital amplification for distributed audio systems
60 watts per channel into 8 ohms
Bridgeable channel pairs for high-power output when required
Rack-mount chassis for space-efficient installations
Optimized for continuous, long-term operation

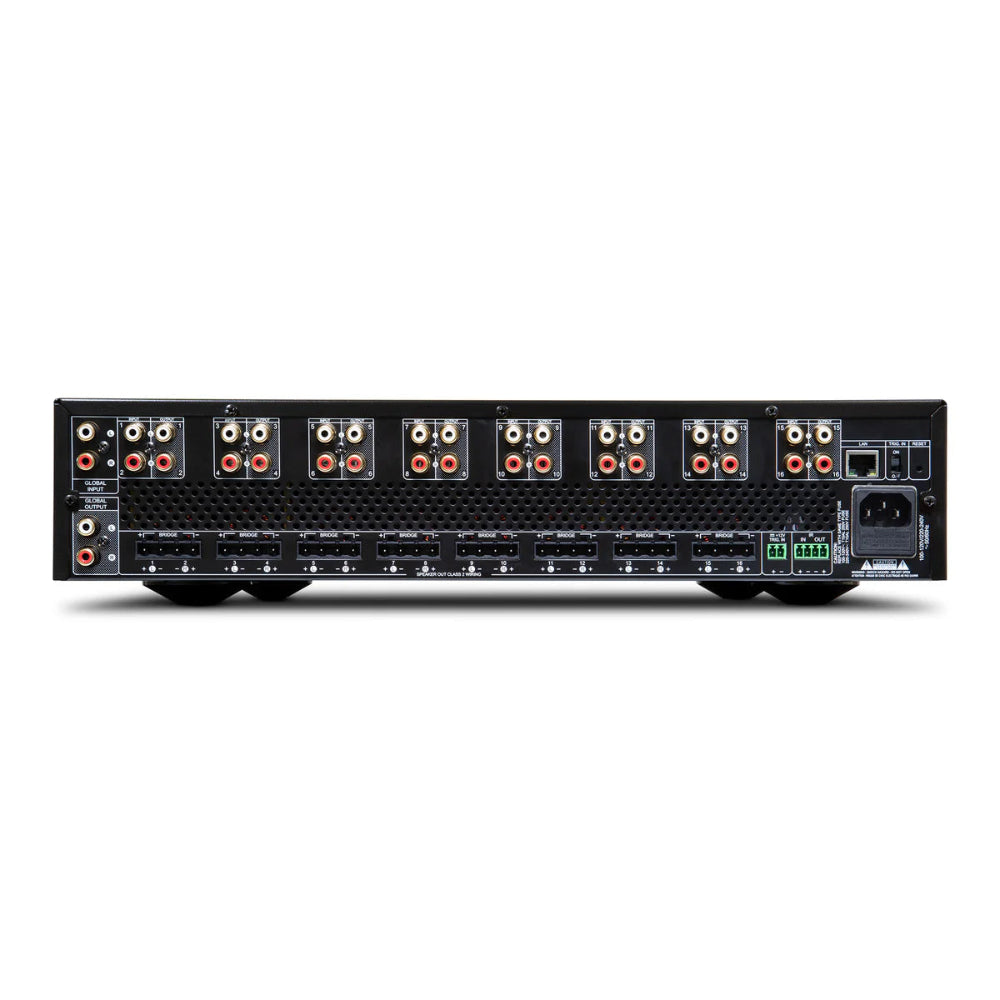

Line-level inputs and loop outs forflexible system compatibility
Automation-friendly trigger and control options
Designed for scalability in large multi-zone systems

High-Density Amplification for Multi-Zone Systems
The CI 16-60 V2 delivers sixteen channels of amplification from a 2u rack-mount chassis, allowing installers to power multiple zones efficiently. The CI 16-60 V2 provides a clean, centralized solution for multi-zone amplification from the minimal rack space.

Refined HybridDigital Performance
At the core of the CI 16-60 V2 is NAD’s HybridDigital amplification, chosen for its balance of efficiency, stability, and soundquality. By minimizing noise and distortion, the amplifier delivers consistent performance into 8 or 4 ohm speakers loads, it also maintains clear and dynamic sound whether listening to low level background music or listening more loudly when entertaining

Flexible Channel Configuration
Bridgeable channel pairs allow the CI 16-60 V2 to adapt to varying power requirements within the same installation. Installers can allocate additional output to zones that need more headroom while maintaining standard power delivery elsewhere.

FULL DISCLOSURE POWER
NAD has always provided real world power specification for amplifiers; we refer to this as FDP (or Full Disclosure Power). It means that the power rating provided refers to continuous power, with all channels driven simultaneously into an 8ohm load, using a full frequency test tone and with THD at rated power. This is especially important when delivering high performance audio systems where meeting a clients expectations on performance and reliability are essential, and allows the integrator to specify an amplifier that will meet the demands of the system.

INTEGRATED DSP FOR SYSTEM ACCURACY
The CI 16-60 DSP V2 incorporates onboard digital signal processing to help installers fine-tune performance to the loudspeakers and environment. DSP allows for precise adjustment to achieve balanced output and consistent tonal response across zones, while providing protection for the speakers with the use of Peak and RMS Limiters.

TECHNICAL SPECIFICATIONS

GENERAL
Continuous output power into 8 ohms    60 W (all channels driven, 1kHz 0.05% THD
into 4 ohms    65 W (all channels driven, 1kHz 0.05% THD
Continuous output power into 8 ohms at Bridged mode    140 W (all channels driven, 1kHz 0.05% THD
THD (1 W to 50 W, 8 ohms and 4 ohms)    0.05 % (20 Hz – 3 kHz)
Signal-to-Noise Ratio    80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (all channels driven)    60 W (1 kHz 8 ohms 1 % THD)
Clipping power into 8 ohms at Bridged mode    150 W (1 kHz 1 % THD - all channels driven)
IHF Dynamic Power (all channels driven)    8 ohms: 65 W
IHF Dynamic Power (two channels driven)    8 ohms: 70 W
IHF dynamic power (Bridged mode, all channels driven)    8 ohms: 270 W
IHF Dynamic Power (two channels driven)    8 ohms: 280 W
Peak output current    15 A (1 ohm, 1 ms)
Damping factor    110 (20 Hz to 1 kHz 8 ohms)
Frequency response    ±1dB (20 Hz - 20 kHz)
Channel separation    60 dB (1 kHz)
Maximum undistorted input level    2900 mV
Input sensitivity (for 50 W in 8 ohms, maximum volume)    760 mV
Input impedance    20 kohms//220pF
Analog input audio sense threshold (one channel with signal)    3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz)
Trigger IN level    3 - 30 Vdc
Standby power    0.5W
DIMENSION AND WEIGHT
Gross dimensions (W x H x D)*    483x100x435mm
Net Weight    10.3 kg (22.7 lbs)
Shipping Weight    12.8 kg (28.2 lbs)
*Specifications subject to change without notice.
