Naim

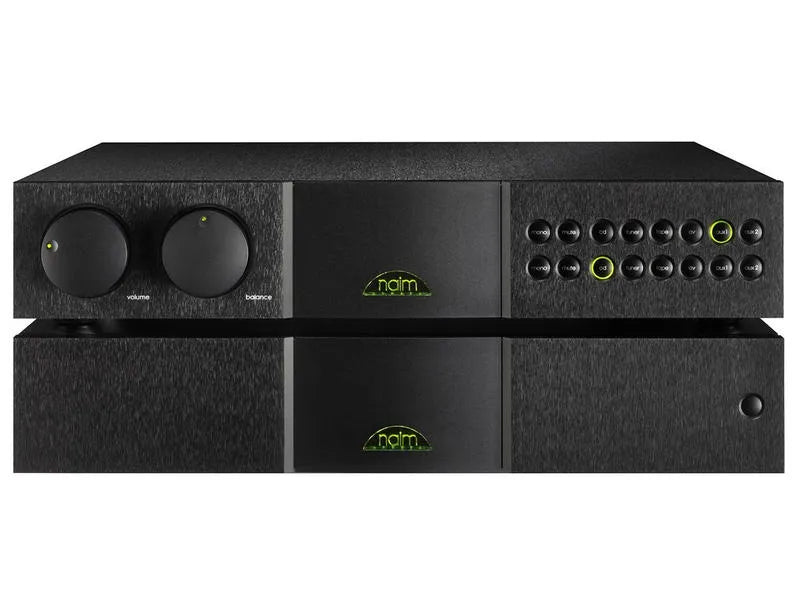

Naim NAC 552 inc 552 PS, Preamplifier + Power Supply

NAC 552 is the next series following Statement NAC S1.
Regular price 28 999,00 €

Naim NAC 552 inc 552 PS, Preamplifier + Power Supply - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

  • Free delivery in Lithuania from 100 €: courier or parcel locker
  • Pick up at our showroom in Kaunas, Armatūrininkų g. 1
  • 14-day returns
Questions about this product? +370 683 90000 Write to us

▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.


Delivery

In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.

Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.

Pick up in store

You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.

We recommend calling before you arrive: +370 683 90000

Opening hours: Mon-Fri 9:00-18:00

INFORMATION

NAC 552 is the next series following Statement NAC S1. Its unique dual-body construction sets it apart from the competition, just as its sound quality reflects our core features, which we've spent years refining.

  • Input sensitivity: 75mV.
  • Input impedance: 47kΩ
  • Output Impedance: <50Ω.
  • Load resistance: 10kΩ (min.).
  • Audio input: 7x DIN, 2x RCA.

DESCRIPTION

Our preamplifiers epitomize everything we believe in. Starting with our revolutionary NAC 12 back in 1974, Naim Audio preamplifiers have both rewritten the rules and set the standards for others to follow. The NAC 552 is second only to our Statement NAC S1: its distinctive two-box configuration marks it out from the competition just as surely as its unfettered musicality reflects our core values. It's one of the best preamplifiers we've ever produced, and by extension, among the best in the world.

Features
  • Two-box configuration for optimum rejection of electromagnetic interference
  • Split-rail power supply featuring 800VA toroidal transformer, three smoothing capacitors and new Discrete Regulator (DR)
  • Fully suspended sub-chassis for superior isolation of sensitive circuit boards
  • AV bypass mode for simple connection to an existing AV system
  • Support for both DIN and RCA inputs to facilitate connection into a wider range of systems
  • Independent listen and record banks for maximum flexibility
  • Assignable inputs for enhanced usability with a range of sources
    Technology & Craft

    Like every component in our flagship 500 Series range, the NAC 552 has been developed without compromise or constraint. Its two-box design, which houses the power supply components in a separate enclosure to better control electromagnetic interference, is classically Naim Audio. By contrast, the 552 PS DR power supply itself employs radically new thinking, including a new split-rail configuration that virtually eliminates power supply noise in the signal earth.

    The sound-critical electronics of the NAC 552 are mounted on a brass sub-chassis, which is fully suspended on coil springs at a frequency below the threshold of human hearing. This method of suspension maximizes isolation, hence minimizing the effect of vibration on the highly sensitive electronic components. Carefully selected precision rotary potentiometers with precious metal wipers are used to preserve music integrity and ensure long-term stability.

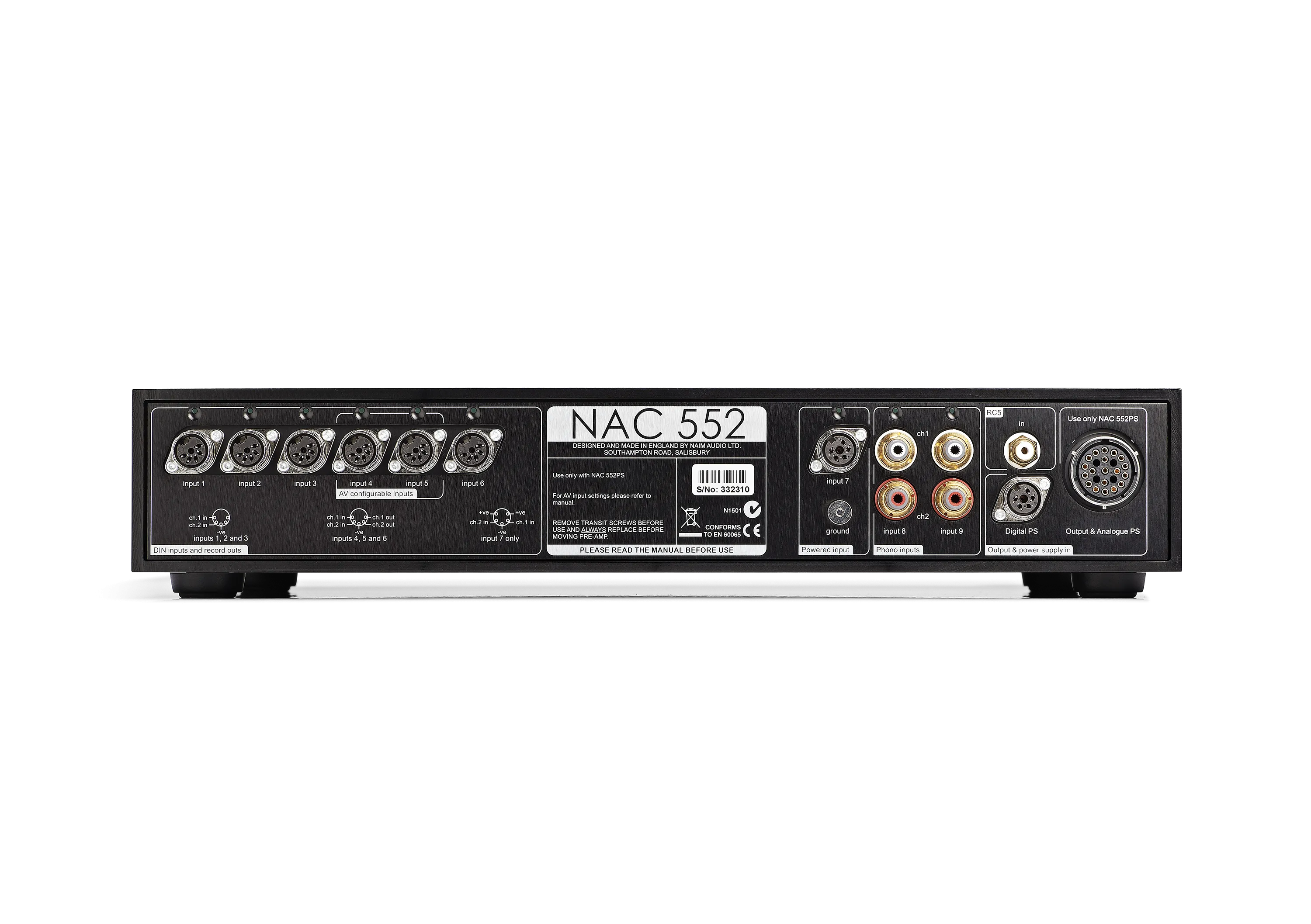

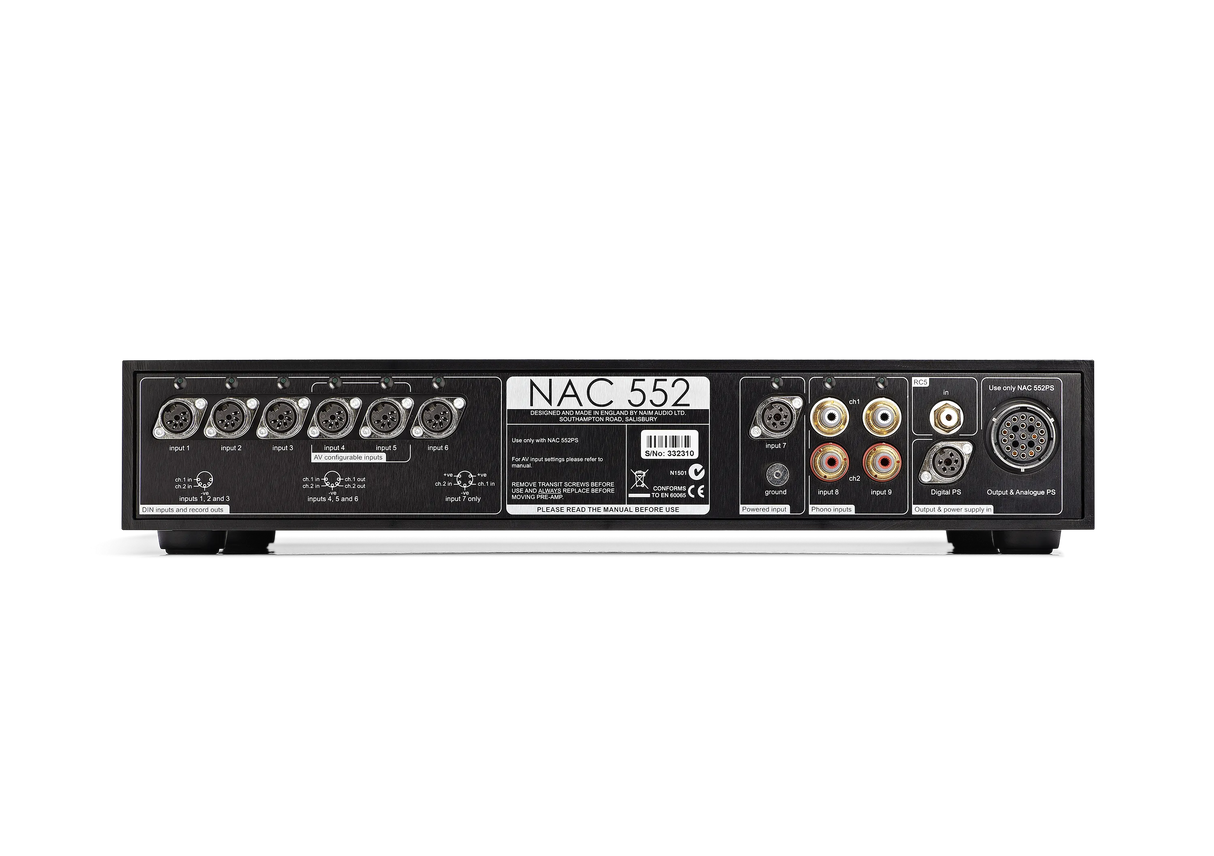

    The NAC 552's six inputs can be selected directly from either the front panel or the remote control. In addition to the usual DIN inputs, preferred for their superior earthing and impedance matching, the NAC 552 owner can configure two of the inputs for use with the more common RCA phono type connectors, enabling the use of alternative components with pre-owned interconnects.

    TECHNICAL DATA

    SPECIFICATIONS


    Audio Inputs
    Other Inputs

    Two inputs configurable for unity gain

    Input Impedance

    47 kΩ

    Analog

    7 x DIN, 2 x RCA

    Input Sensitivity

    75 mV

    Audio Outputs
    Audio Outputs

    1 x variable, 3 x fixed (DIN)

    Line Outputs Variable (level)

    775mV

    Line Outputs Fixed (level)

    75mV, 600Ω

    Load Impedance

    10kΩ (min)

    Output Impedance

    <50Ω

    Power Outputs

    Hire a phono amplifier

    Connectivity
    RS232

    Optional (DE9 female)

    Remote Input

    RCA on rear (RC5)

    Finish
    Case

    Brushed and black anodised

    Front

    Brushed and black anodised

    Physical
    Weight

    12.9 kg

    Dimensions (HxWxD)

    87 x 432 x 314 mm

    Power
    Power Supply Options

    552 PS

    Supply Voltage

    +/-12V, 24V, 32V

    Supplied with
    Supplied with

    552 PS, Power-Line, R-Com and Burndy

    Upgrades
    Power Supply

    552 PS

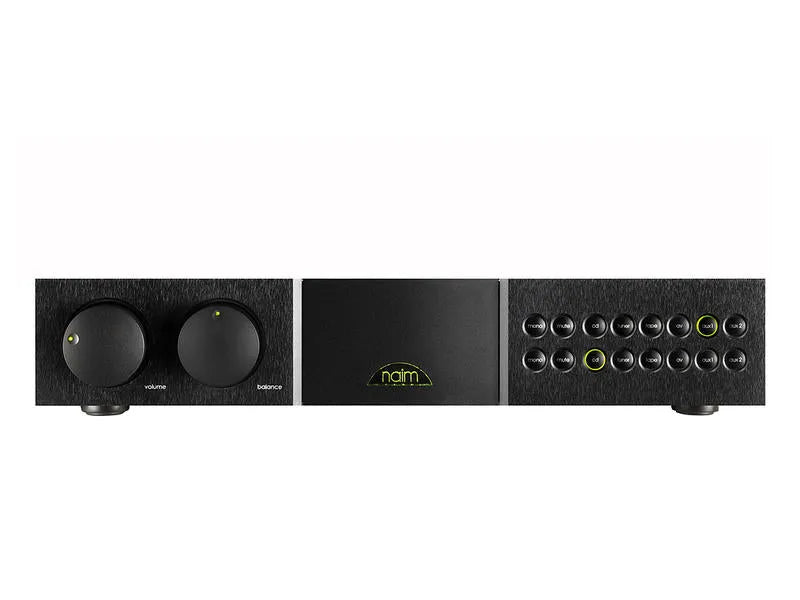

    User Control
    Front Panel

    Volume control, balance control, sixteen button matrix

    Handheld

    NARCOM-4 Remote Control

    Remote Control

    Infrared (RC5)

    552 PS
    Audio Outputs
    Power Outputs

    7 x +/-12V, 1 x 12V, 2 x 24V, 1 x 31V

    Finish
    Case

    Brushed and black anodised

    Front

    Brushed and black anodised

    Physical
    Shipping Weight

    17.5 kg

    Shipping Dimensions

    240 x 590 x 500 mm

    Dimensions (HxWxD)

    87 x 432 x 314 mm

    Power
    Mains Supply

    100V, 115V, 230V; 50 or 60Hz

    Supplied with
    Supplied with

    R-Com, Power-Line, SNAIC

    DOCUMENTS

    INSTRUCTIONS

    User Manual (EN).
