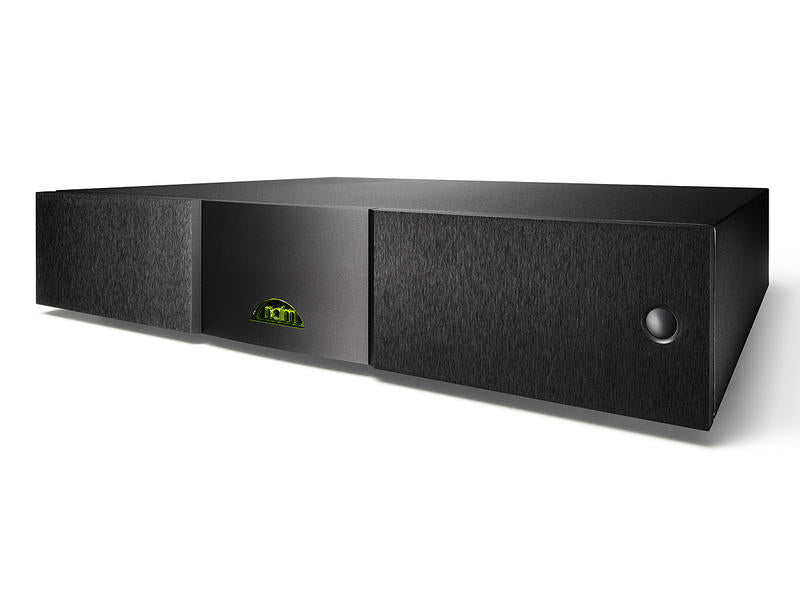

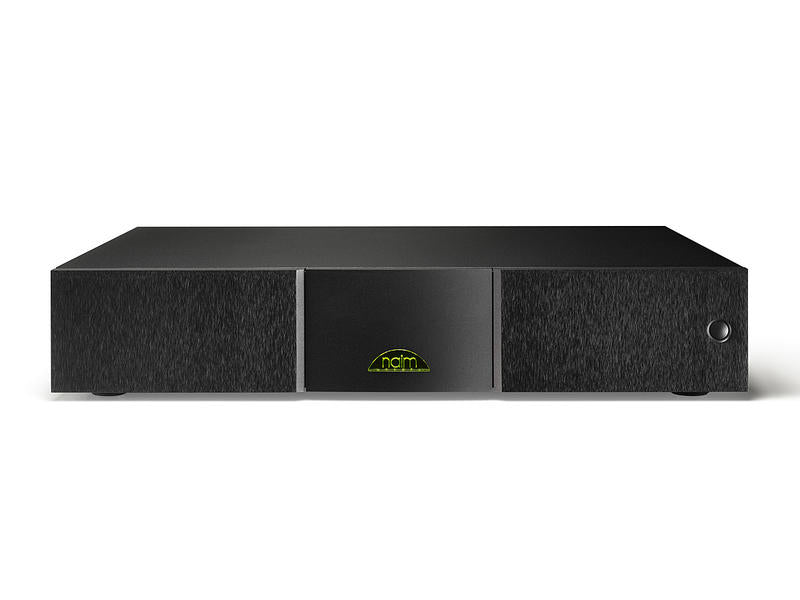

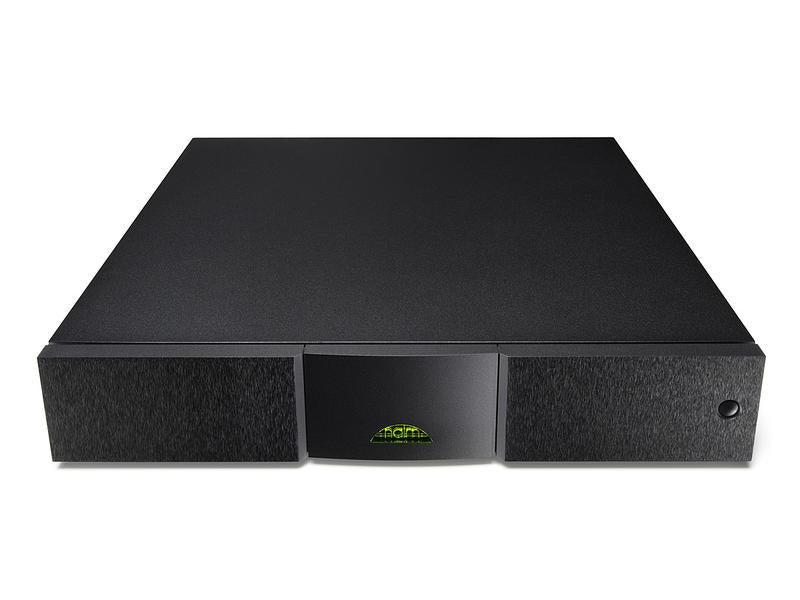

Naim NAP 200 DR, audio power amplifier

One of the latest, the NAP 200 takes advantage of the technology and years of research that went into the NAP 500 amplifier.
€2,899.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

One of the latest, the NAP 200 takes advantage of the technology and years of research that went into the NAP 500 amplifier. Many of the inventions that were in the 500 series were used to create this version as well.

  • Power: 70W/channel, 8Ω.
  • Input impedance: 18kΩ.
  • Output volume: +29dB.
  • Frequency range: -3dB at 3Hz - 50kHz.

DESCRIPTION

First designed by Naim Audio founder Julian Vereker in 1971, the NAP 200 has Naim Audio musicality written into its DNA. As our first production amplifier, no single product encapsulates our philosophy better. Its design is simple and uncompromising, with a single-minded focus on one thing: creating an enduring musical connection with the listener.

More recently, the NAP 200 has benefited from the years of research that went into it NAP 500 amplifier. Many of the developments from the 500 Series project have helped to revitalize its electronic design and componentry bringing significant and hard-earned gains to performance. Beneath this new technology, however, it retains the values ​​that helped make it an icon: simplicity, focus and sheer musicality.

New Technology

The NAP 200 has been revitalized and reintroduced in 2015 with the addition of a Naim Audio DR (Discrete Regulator) module to power its partnered Naim Audio preamplifier. This comes alongside small improvements to some internal components and layout that combine to lift its musical performance even further than the original.

Features
  • 70W per channel output into 8 Ohms
  • Large custom-designed transformer providing 300VA of transient power
  • Internal power supply to allow direct connection of a NAC 152 XS, NAC 202 weather NAC 282 preamplifier
Technology & Craft

Like the flagship NAP 500, the NAP 200 uses a new circuit design with improved earthing arrangements built on a very high quality, anti-resonance main audio circuit board. Anti-vibration, resonance-controlling feet serve to protect the sensitive internal components from microphonic vibration and unwanted external interference.
A new, top-quality 430VA toroidal transformer provides more than 300VA of transient power. Separate windings provide dedicated left and right channel rectified power supplies with two smoothing capacitors per channel. The NAP 200 also has a separate winding providing a preamplifier power supply. This enables it to be used in a two-box amplifier configuration with a Naim Audio preamplifier such as the NAC 202. The Naim Audio NAP 200 is stable into any load and can drive a 2-ohm load for long periods of time.


TECHNICAL DATA

SPECIFICATIONS

Audio Inputs
Input Impedance

18 kΩ

Analog Input

1 x 4-pin DIN

Audio Outputs
Minimum Load Impedance

2Ω

Power Outputs

Hire a pre-amplifier

Frequency Response

-3dB at 3Hz - 50kHz

Good

+29dB

Finish
Case

Black powder coated

Front

Brushed and black anodised

Physical
Shipping Weight

14.2 kg

Shipping Dimensions

240 x 590 x 500 mm

Weight

11.6 kg

Dimensions (HxWxD)

87 x 432 x 314 mm

Power
Mains Supply

100V, 115V, 230V; 50 or 60 Hz

Power Consumption

11 VA

Speaker Outputs
Power Output

70W/channel, 8Ω

Transient

300 VA

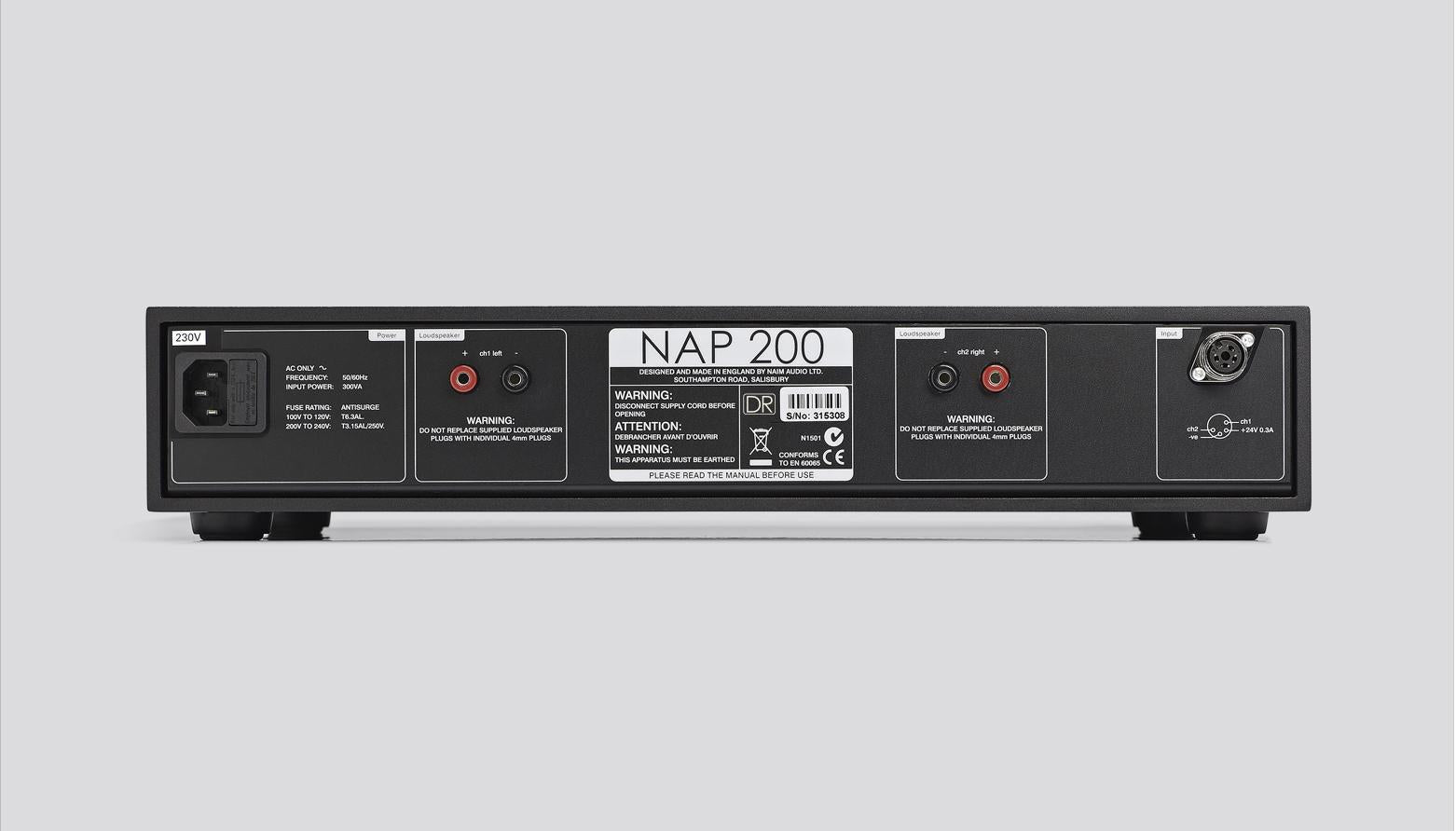

Speaker Outputs

L & R, 4mm banana sockets

Supplied with
Supplied with

SNAIC, Power-Line Lite mains cable (UK denominations only)


DOCUMENTS

INSTRUCTIONS

User Manual (EN).
