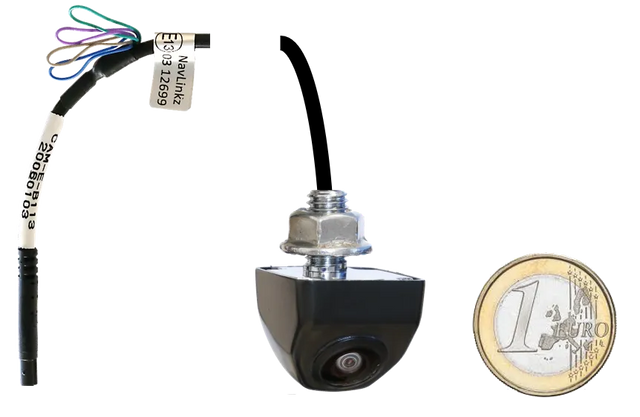

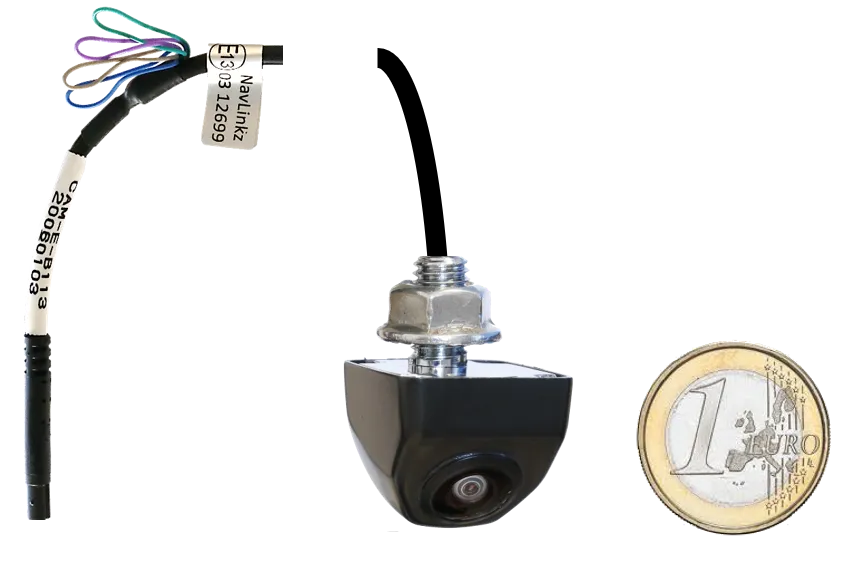

NAVLINKZ CAM-N113. Universal rear view camera

€129.00 EUR

NAVLINKZ CAM-N113. Universal rear view camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

A rear view camera that facilitates reverse parking.
Suitable for all non-factory multimedia systems with a linear video signal input for the rear view camera.

  • Sensor type: CMOS 1/4 inch HD.
  • Viewing angle: 180°.
  • Resistance standard: IP69K.

Mini NTSC mount-under-front- and rear-view camera in black metal housing. Simple installation through threaded tube with cable guide and counter nut. Horizontal base frame and vertical mounting possible. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

SPECIFICATIONS

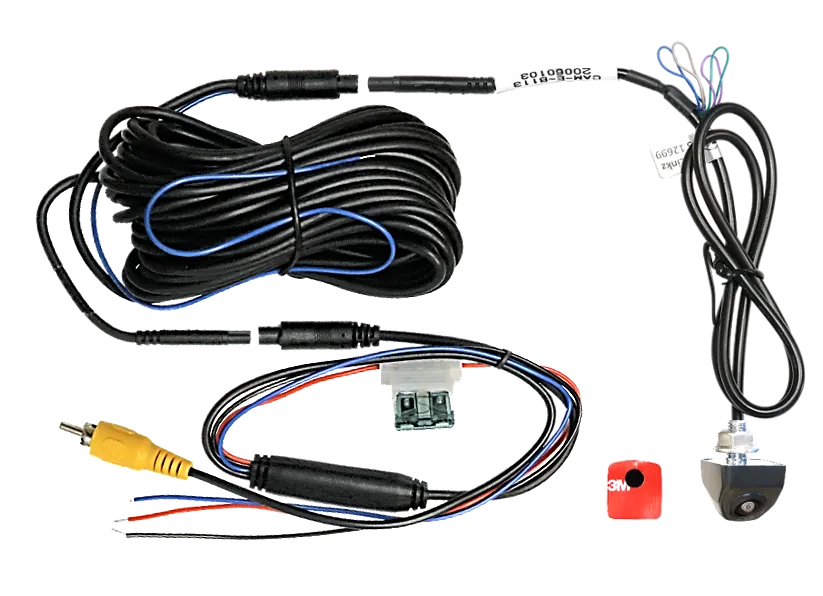

  • Mini camera NTSC in metal housing (black)
  • Cable-guided thread tube with counternut
  • System cable with throughput, eg for reverse signal
  • Horizontal mount-under and vertical mount-on possible
  • Mirroring can be switched off - suitable also as front camera
  • Sensor type CMOS 1/4 inch HD NTSC low-light sensitive
  • Bezel F1.2
  • Light sensitivity 0.01 Lux, 800 TV lines
  • Angle horizontal=140°, vertical=105°, diagonal=180°
  • Guide-lines‘ width selectable between car and truck
  • Guide-lines can be switched off
  • Protection class IP69K
  • Suitable for permanent operation (ACC)
  • Video connection: RCA male connector
  • System cable of camera: 4pin 3V



Dimensions

Camera housing (without thread tube) 25 x 27.7 x 22mm (W x D x H)
Diameter camera connector 4.5 mm
Total cable length 9.00am




Specifications

Operating voltage +12V/24V DC (6~28V)
Current consumption 50mA
Operating temperature -30°C to +75°C
Storage temperature -40°C to +80°C
