NAVLINKZ VAN-VN01-X, rear view camera AHD/CVBS Volkswagen Crafter

NAVLINKZ VAN-VN01-X - Rear view camera for Volkswagen Crafter 2 (SY/SZ) and MAN TGE (from 2017).
Regular price 189,00 €

NAVLINKZ VAN-VN01-X, rear view camera AHD/CVBS Volkswagen Crafter - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

  • Free delivery in Lithuania from 100 €: courier or parcel locker
  • Pick up at our showroom in Kaunas, Armatūrininkų g. 1
  • We install at our service centre in Kaunas. Book installation
  • 14-day returns
Questions about this product? +370 683 90000 Write to us

▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.


Delivery

In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.

Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.

Pick up in store

You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.

We recommend calling before you arrive: +370 683 90000

Opening hours: Mon-Fri 9:00-18:00

INFORMATION

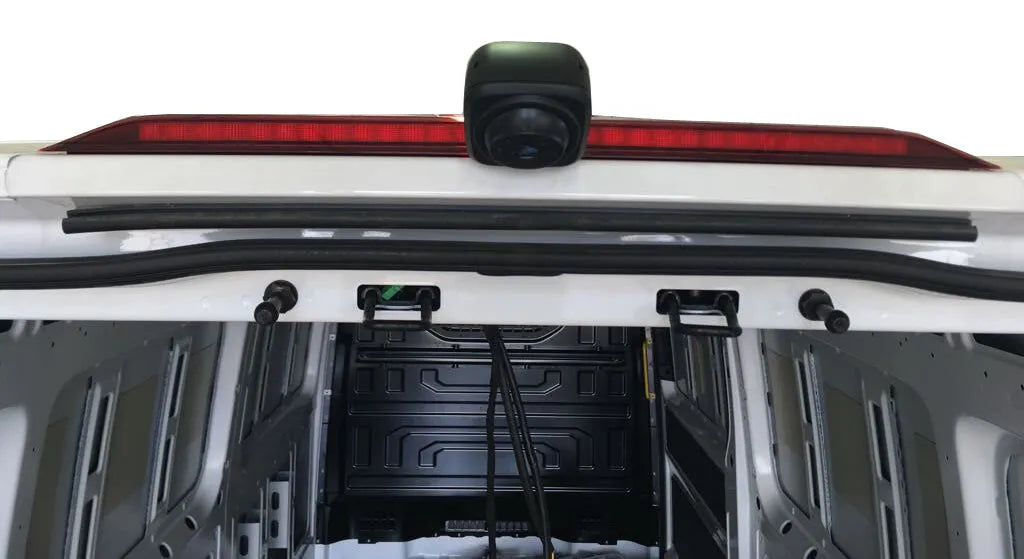

NAVLINKZ VAN-VN01-X - Rear view camera for Volkswagen Crafter 2 (SY/SZ) and MAN TGE (from 2017). The camera is mounted on the third brake light of the factory, ensuring aesthetic integration without additional modifications. The camera angle is adjustable in three steps vertically, and infrared illumination allows for clear vision even at night or in poor lighting.

Compatibility: VW Crafter 2, MAN TGE from 2017.
Resistance class: IP69
Viewing angles: 160° horizontal, 90° vertical, 185° diagonal
Sensor type: CMOS 1/4"

DESCRIPTION

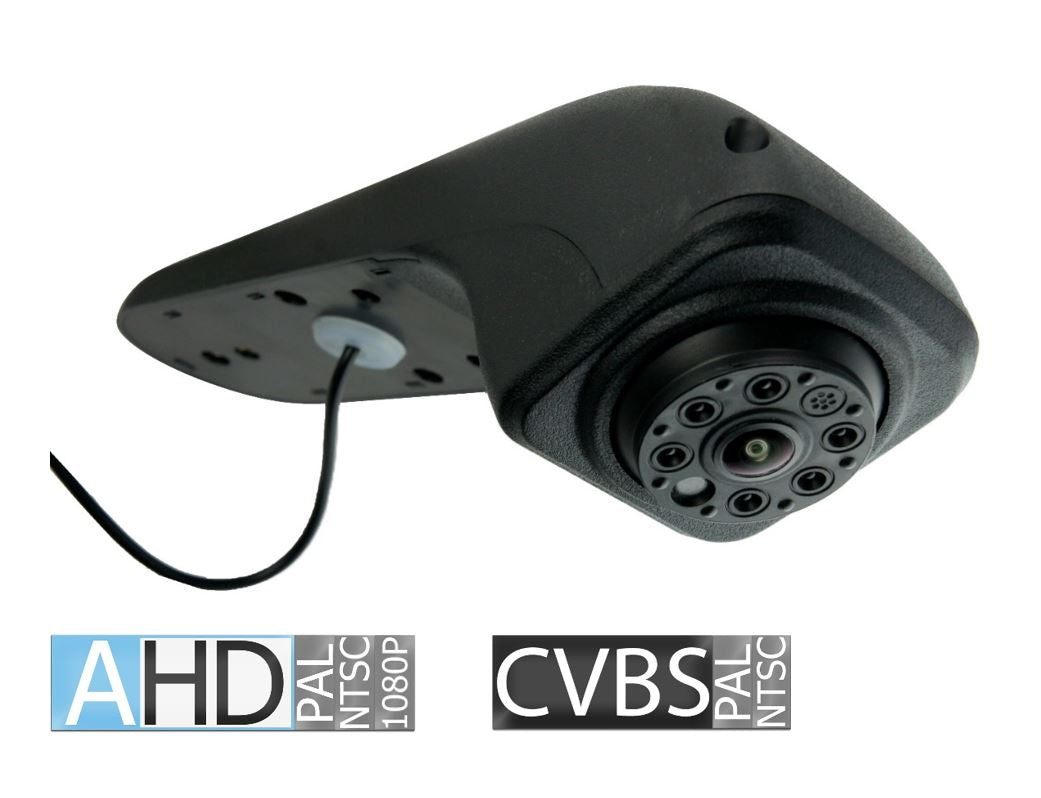

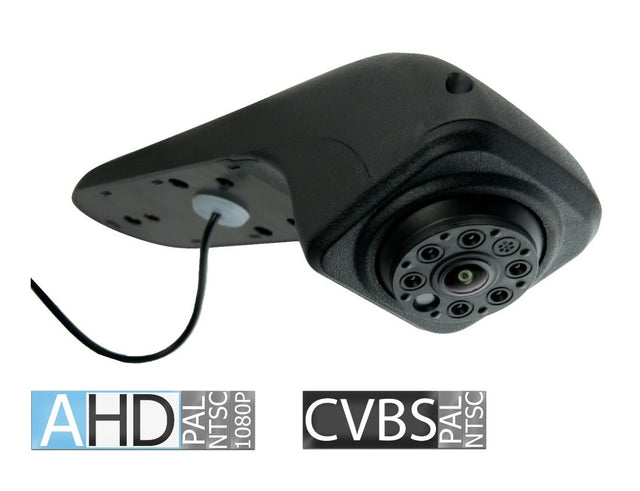

Vehicle-specific roof holder with switchable AHD1080p/CVBS and PAL/NTSC rear-view camera. To be mounted at the rear end. Fits Volkswagen Crafter2 und MAN TGE 2017-.

Vehicle-specific switchable AHD1080p/CVBS and PAL/NTSC body-mounted rear-view camera. Easy assembly on the factory third brake light.
Professional system harness with sufficient length and automotive connectors. Easy to lay cable due to a small cable and connector diameter. With IR-lighting for better visibility in the dark.

Product features

  • Camera with vehicle-specific holder

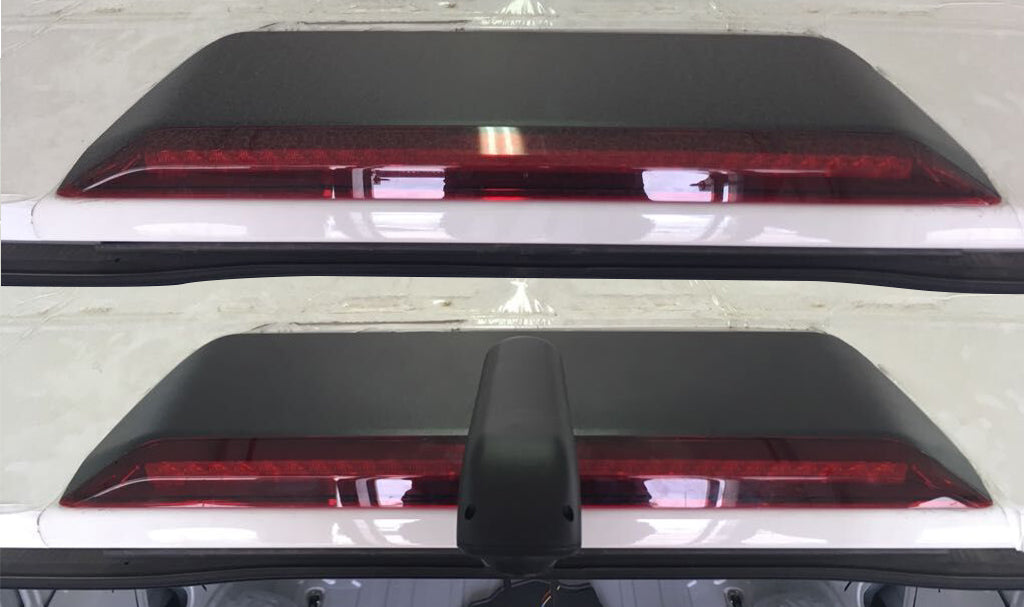

  • Mounted onto 3rd factory brake light (see pictures)
  • Camera position can be adjusted in 3 steps vertically
  • Sensor type CMOS 1/4 inch
  • Resolution AHD(1080p) / CVBS(480p) switchable
  • Frame rate 25fps (PAL) / 30fps (NTSC) switchable
  • Possible video output formats: AHD 1080p NTSC, AHD 1080p PAL, CVBS NTSC or CVBS PAL
  • Aperture F1.36
  • Light sensitivity 0.02 LUX
  • Infrared night vision LED
  • Angle horizontal 160°, vertical 90°, diagonal 185°
  • Mirrored picture (fixed)
  • Guidelines can be switched off
  • Protection class IP69
  • Mini 4pin-BM system harness, integrated throughput wire (blue) for rear-view signal

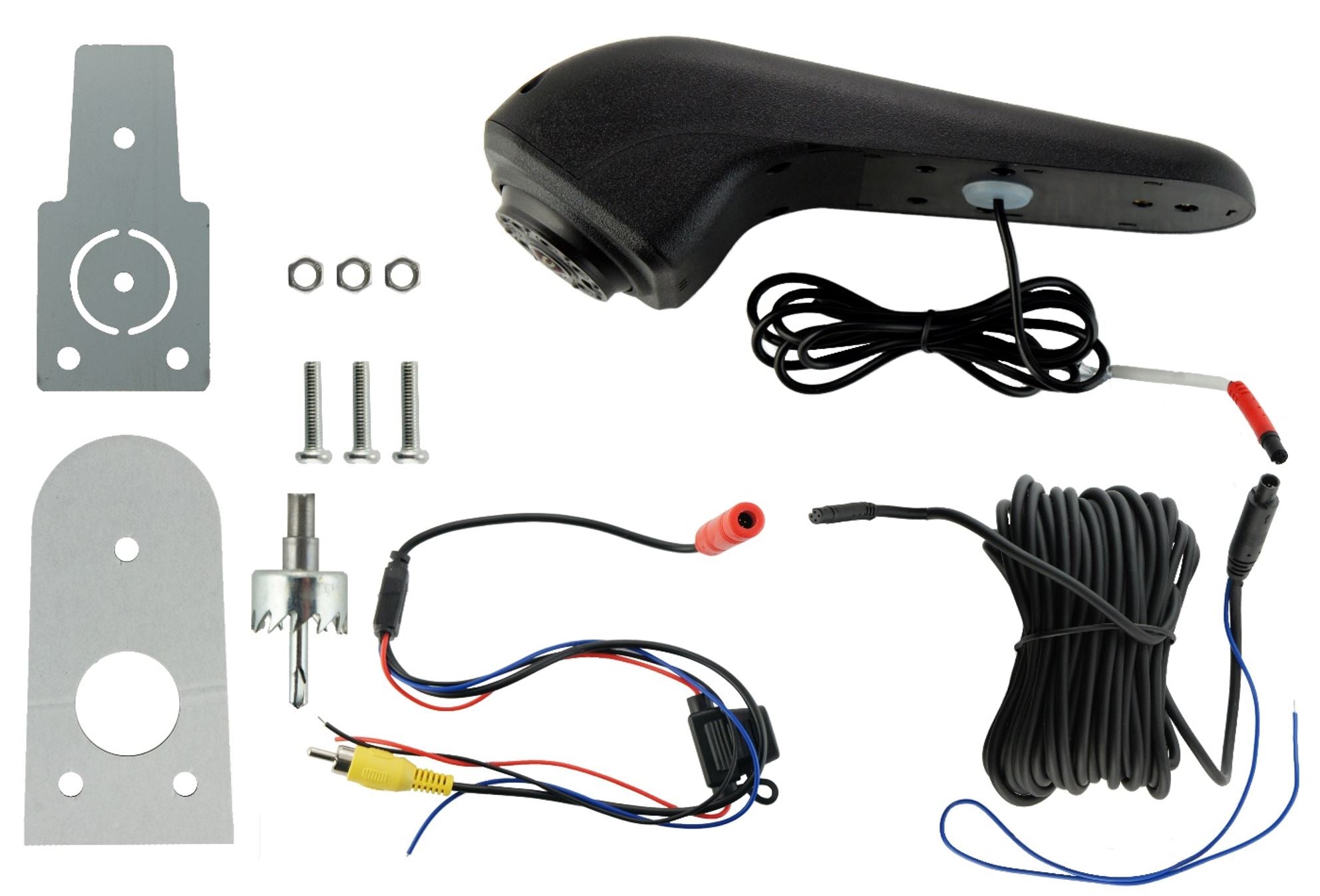

  • 11.80m total system cable length, consists of:
    - 1.40m cable fixed on camera to female 4pin-BM (⌀ 5mm)
    - 10.00m extension cable male 4pin-BM to female 4pin-BM
    - 0.40m adapter male 4pin-BM to male RCA and power wires

TECHNICAL DATA

Compatibility
Brand Model
MAN TGE model years from 2017 up
Volkswagen Crafter 2 (SY/SZ) model years from 2017 up
Dimensions
Overall with camera approx. 64 x 68 x 208mm (W x H x D)
Overhang camera approx. 80 mm
Specifications
Operating voltage +12V DC
Current consumption max. 190mA
Suitable for permanent power (ACC) No
Operating temperature range -30°C to +75°C
Storage temperature range -40°C to +80°C
