Neoline G-TECH X76, two-camera FULL HD video recorder

INFORMATION

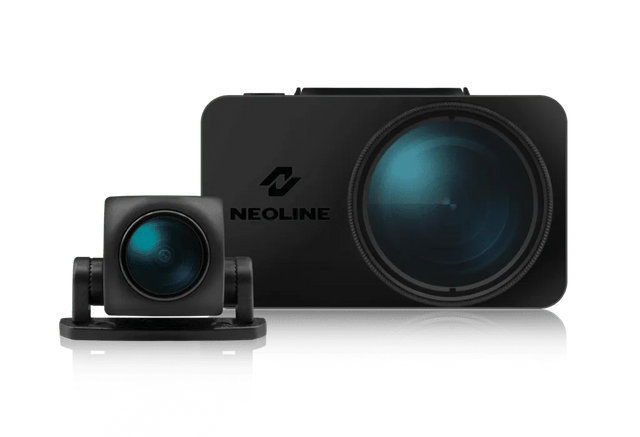

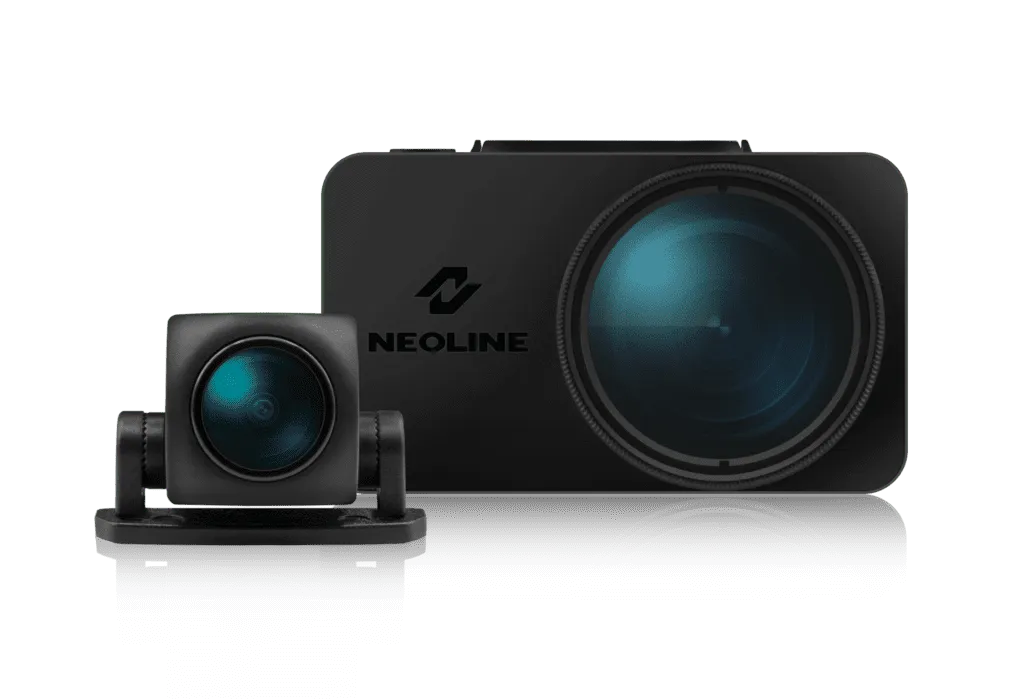

• Two cameras (front and back) recording the image
• Camera resolution: Full HD Max (1920 x 1080 / 30 frames per second)
• Camera viewing angle: 140°
• Memory card support: 8Gb-256Gb MicroSD (Class 10)
• Motion detector
• Parking mode

DESCRIPTION

ERGONOMICS & INTERFACE

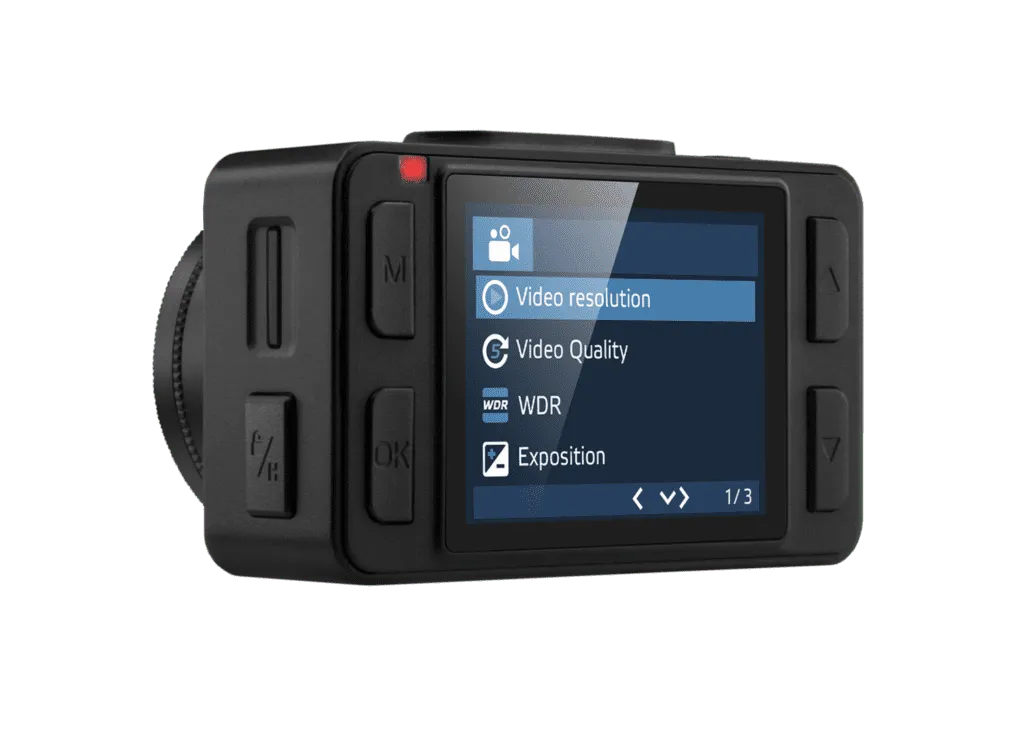

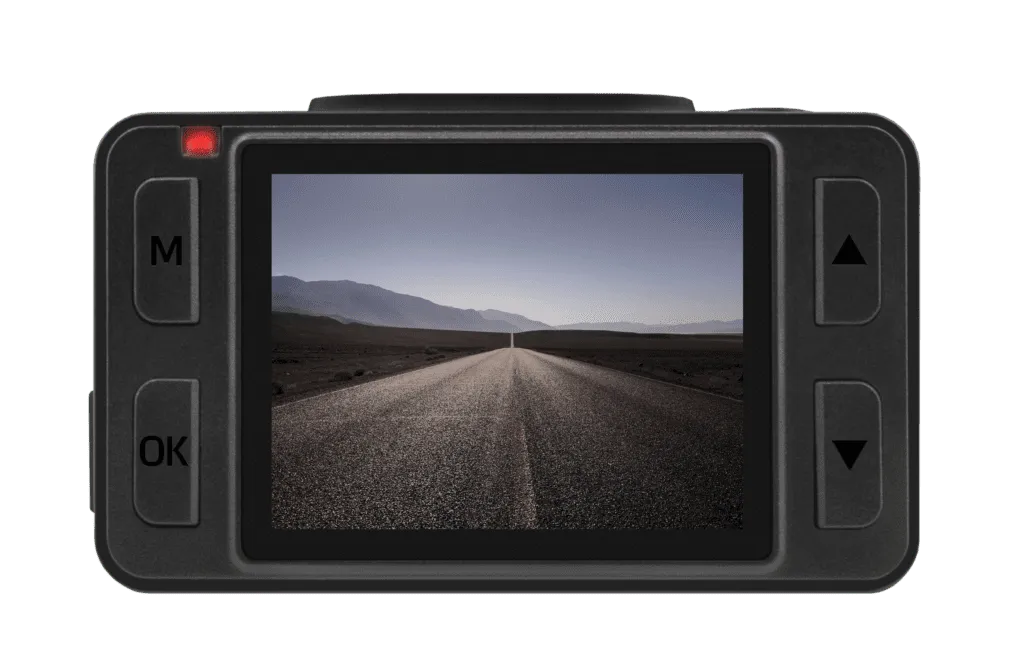

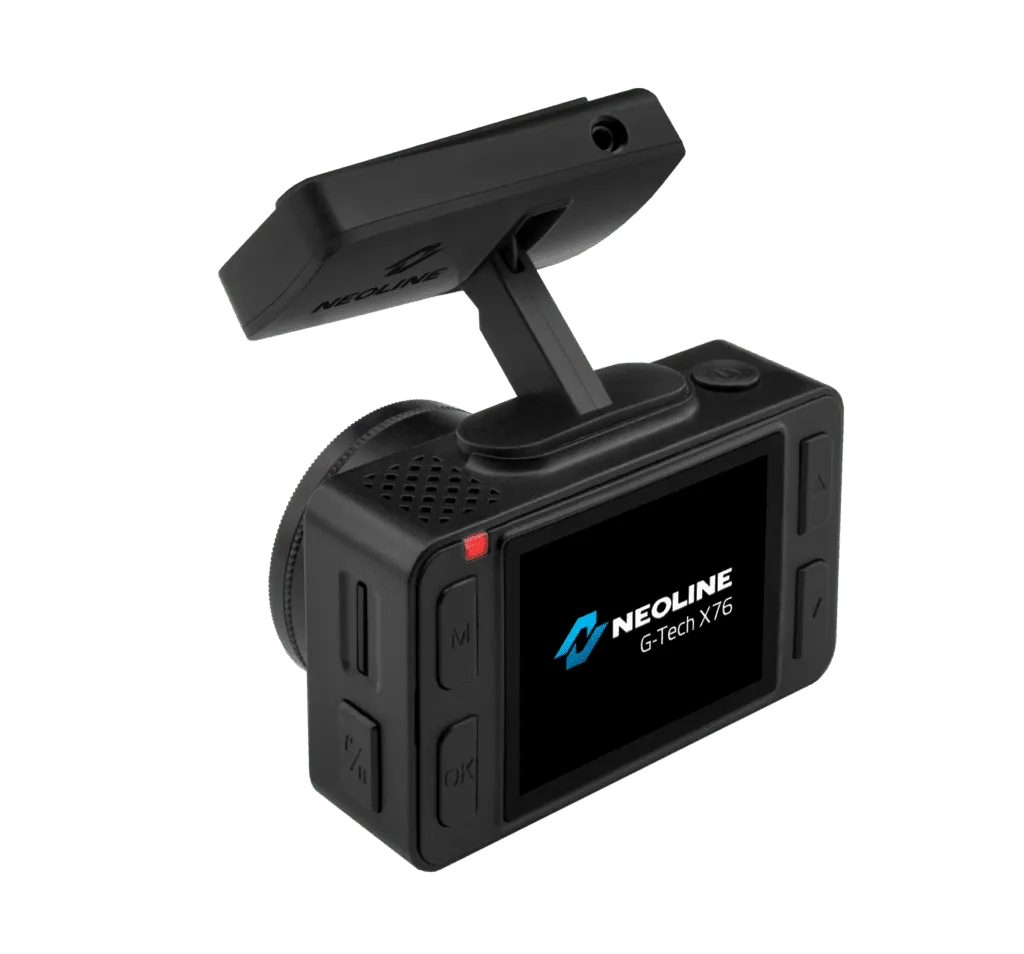

The compact case of NEOLINE G-Tech X76 is fitted with convenient, easy-to-operate buttons, which allocation allows to change settings of the device without even looking at the device. With a 2-inch IPS display, the user can adjust the settings and view the videos with true-color imaging from any angle.

HOT-KEY

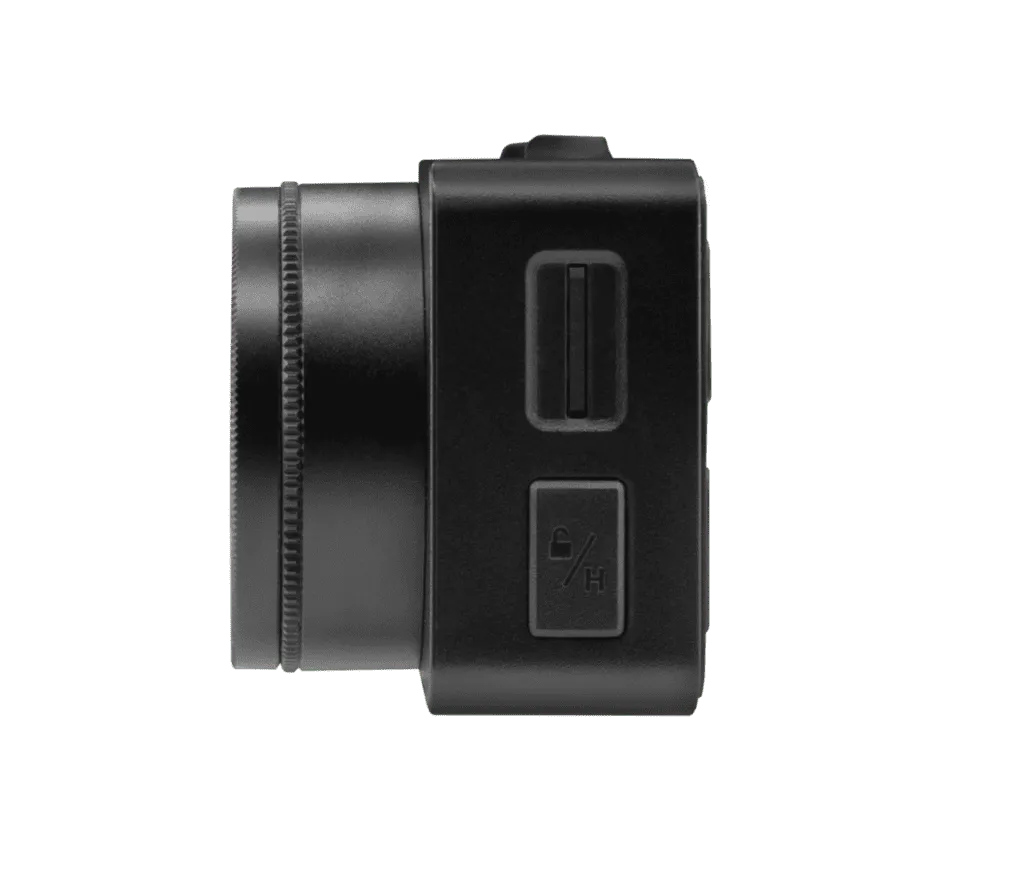

HOT KEY button serves to disable recording when necessary. Hold it down to access extra options like Parking Mode.

NIGHT MODE
NEOLINE G-Tech X76 features first-class optics and matrix, as well as a special algorithm which guarantees a highly detailed picture in the hard lighting conditions.

HIGH CONTRAST VIDEO
NEOLINE G-Tech X76 has a WDR function that keeps the video well balanced in terms of a wide range of lighting conditions, such as back lighting or quickly changing light. This is particularly important during the entrance / exit from a tunnel or in case of bright direct sunlight. Due to the WDR function, NEOLINE G-Tech X76 makes high-quality videos even in the most challenging conditions.

EXTENDED PARKING MODE
The parking mode in NEOLINE G-Tech X76 offers a wide selection of settings, voice prompting and alerts to provide you with a conclusive evidence base in case of a road accident or illegal activities at the parking area.

STOP RECORD SIGNAL
To prevent any situations in which video records are absent, NEOLINE G-Tech X76 gives a special sound signal when the recording stops.

MAGNETIC HOLDER

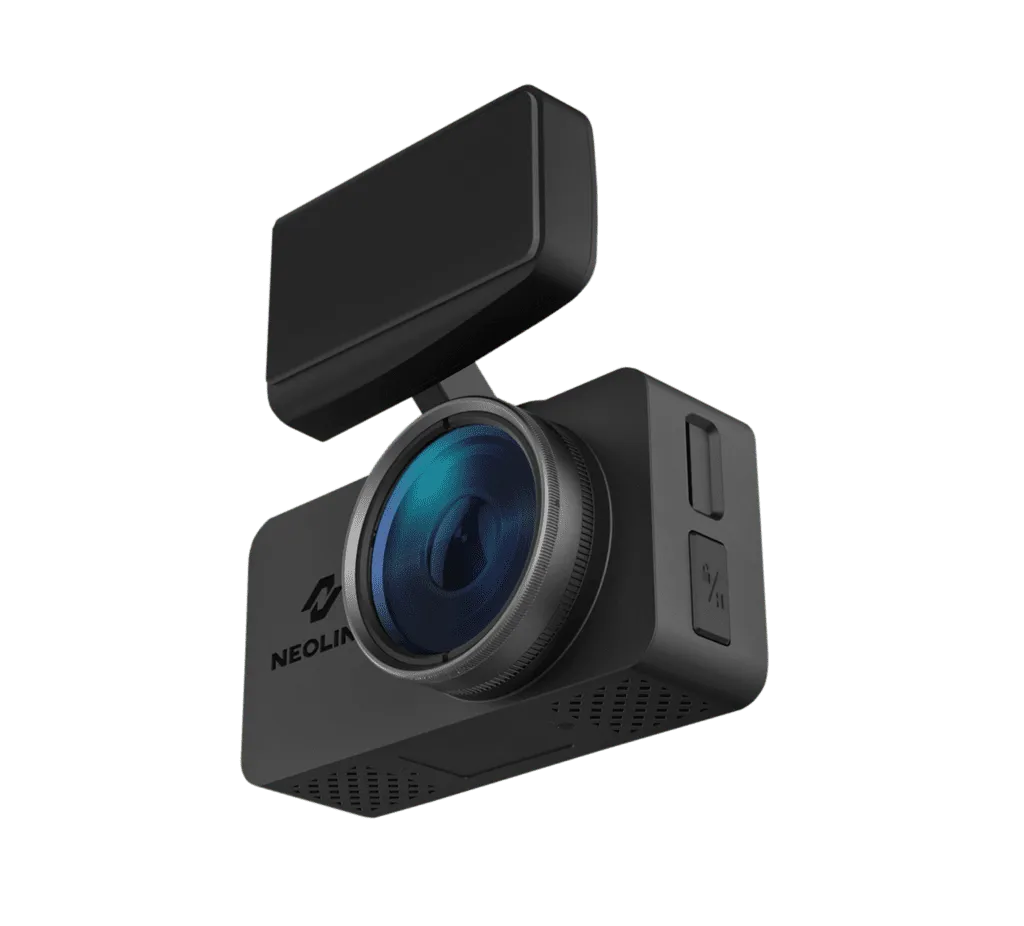

NEOLINE G-Tech X76's magnetic holder with active recharge makes it easy to mount the dash camera and take it away, no wires involved.

HIGH QUALITY VIDEO
Due to a powerful Novatek CPU, SONY sensor and lens with 1:1.8 aperture NEOLINE G-Tech X76 provides high quality and detailed video. Such hardware allows NEOLINE G-Tech X72 to record Full HD 1920*1080 resolution footage at 30 fps, which provides a detailed, high-quality video both in daylight and at night.

ANTIGLARE CPL FILTER

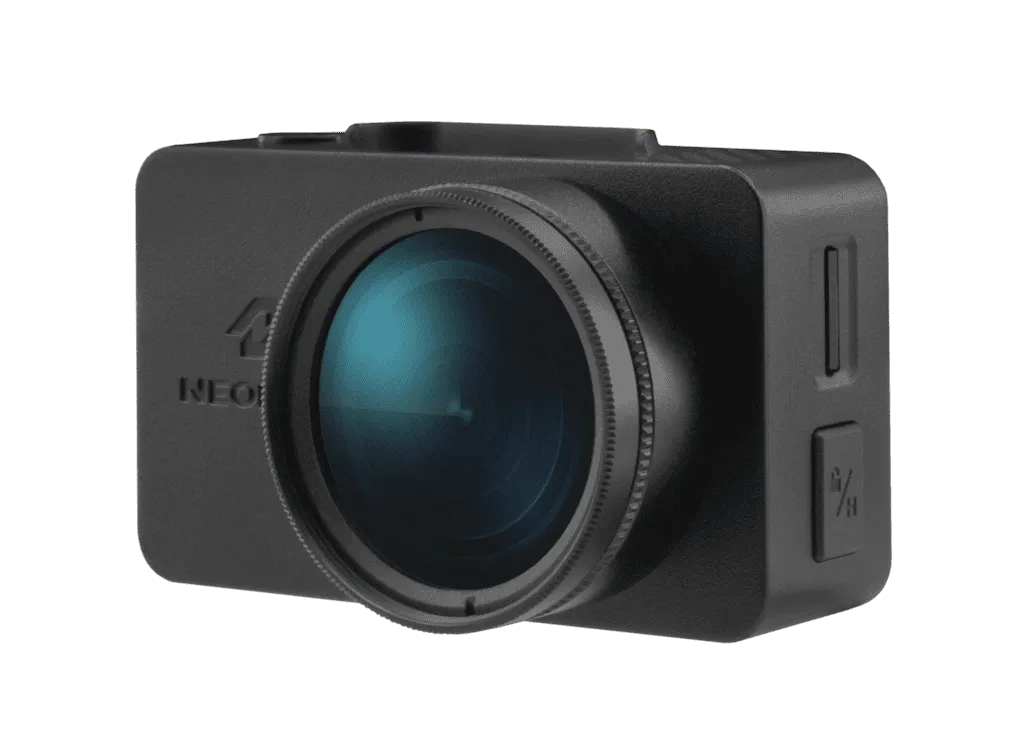

A 37mm antiglare CPL filter is placed over the NEOLINE G-Tech X76 lens to prevent sunlight flecks and interior object reflections on the windshield. The CPL filter also significantly improves image contrast.

WIDE VIEWING ANGLE
Due to 140° wide view angle NEOLINE G-Tech X76 covers five traffic lanes without distorting the picture. It will surely record everything that happens on the road.

PROTECTION FROM DIFFICULT WEATHER CONDITIONS
NEOLINE G-Tech X76 comes with a capacitor instead of a battery. Capacitors are more heat-resistant and are generally more durable than batteries. It helps to solve many typical problems that other dashcams have, including overheating, battery explosion hazard, losing the latest files.

TECHNICAL DATA

Specifications

Front camera resolution: Full HD Max (1920x1080 / 30 fps) with enhanced bitrate Full HD Eco (1920x1080 / 30 fps) with standard bitrate HD 60fps (1280x720 / 60 fps) HD 30fps (1280x720 / 30 fps) VGA (640x480 / 30 fps) )
Rear camera resolution: Full HD 1920*1080 (30 fps)
Rear camera cable length: 10m
Rear camera protection class: IP67
Sony sensor
Front & rear 140° viewing angle
Screen size: 2 in., IPS
Integrated super capacitor*
Antiglare CPL filter
Recording format: MP4
Integrated mic/speaker
WDR feature
G-sensor
Parking mode
Night mode
Loop recording: 1/2/3/5 min
Continuous recording
Auto power-on
Date/time stamp
Number plate stamp
8Gb-256Gb MicroSD (Class 10)
Storage temperature: -20°C (-4°F) to +70°C (158°F)
Operating temperature: -10°C (14°F) to +60°C (140°F)
Input voltage: DC5 V, 1.5 A
Memory unit input voltage: DC12-24 V
Dimensions: 74x42x35 mm
Weight: 93 g

Equipment

• Neoline G-Tech X76 Dual
• Magnetic holder with 3M tape
• Anti-glare CPL filter
• Rear Full HD camera
• Rear camera cable
• Car charger with USB connector
• User manual
• Warranty card

DOCUMENTS

User manual (EN)
