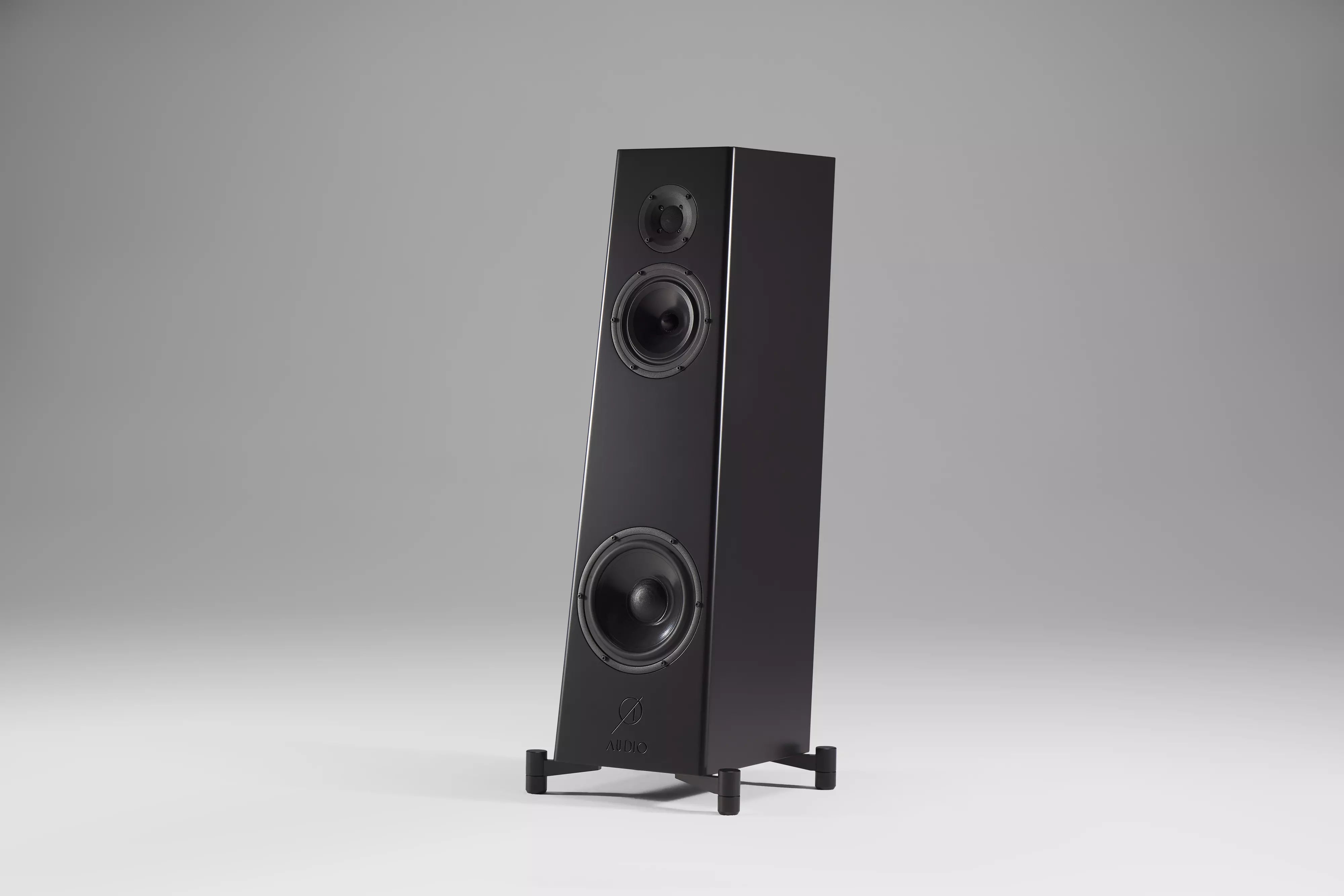

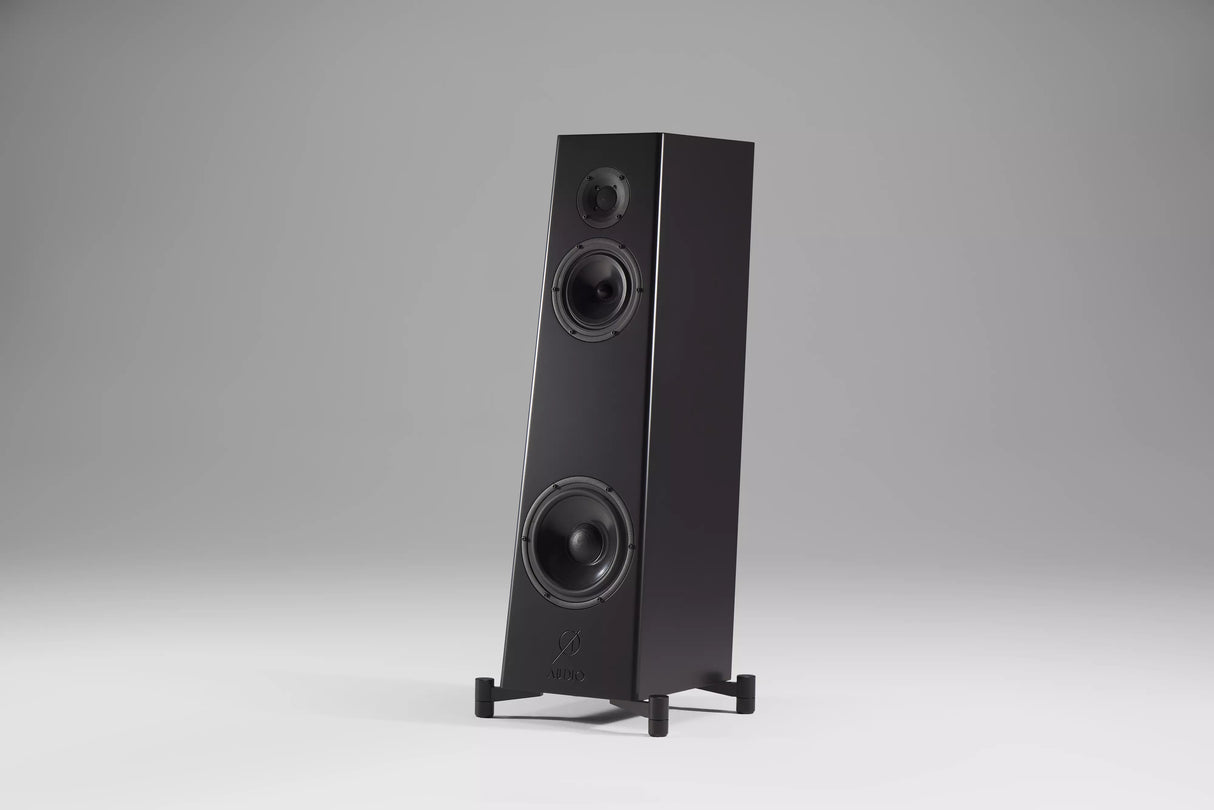

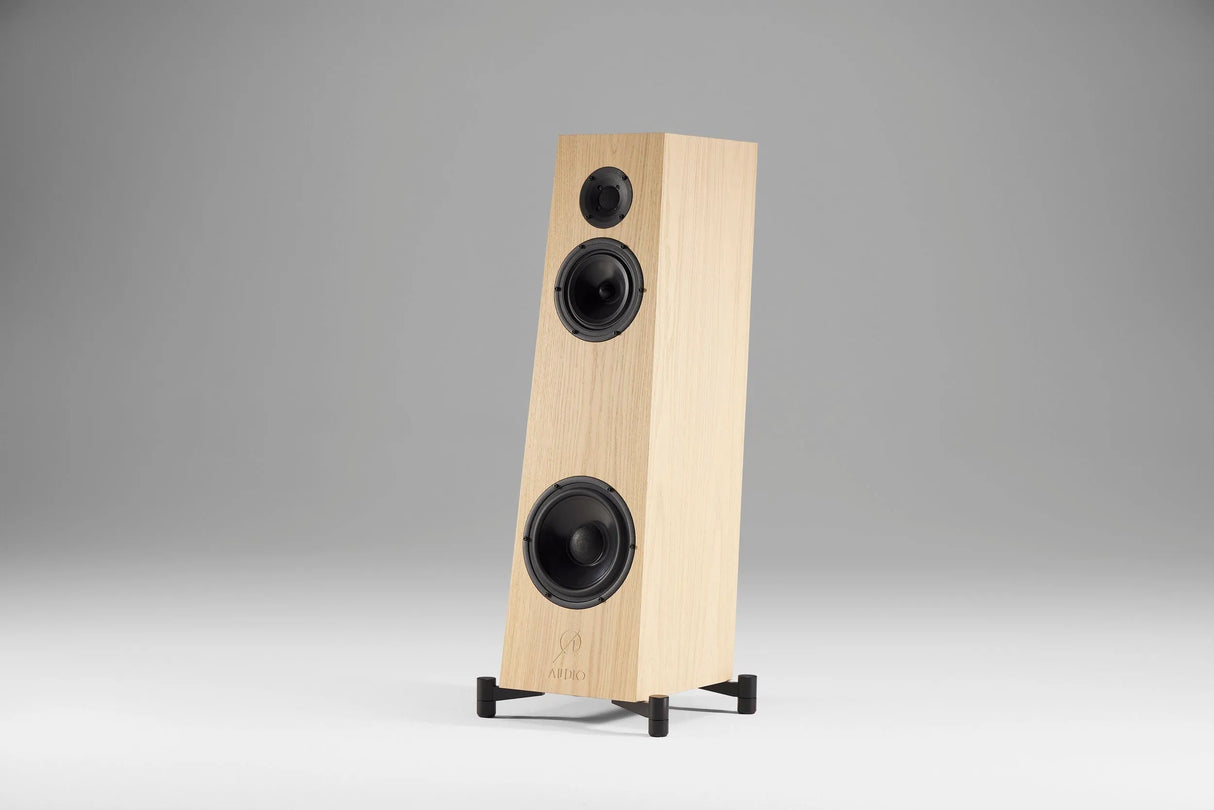

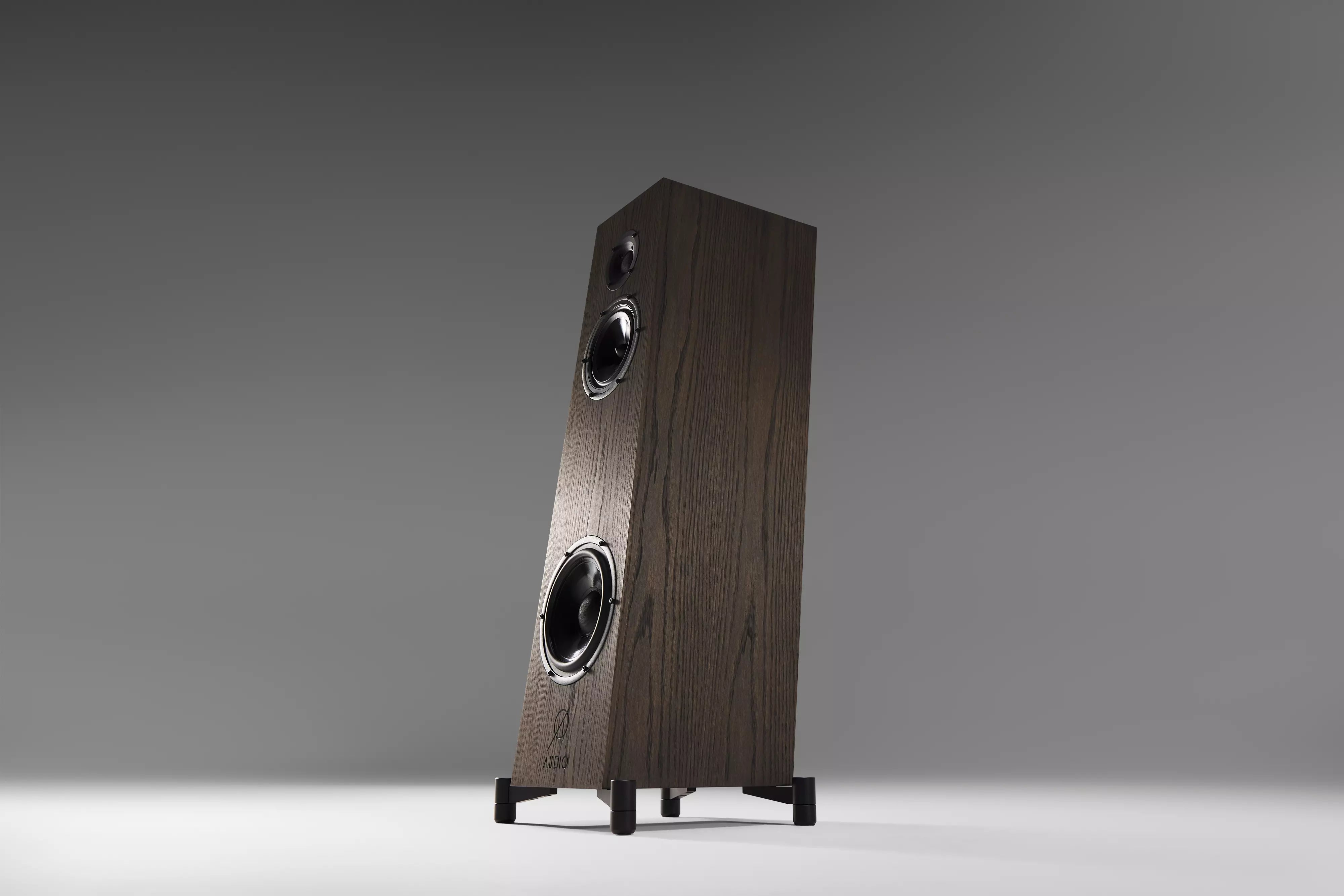

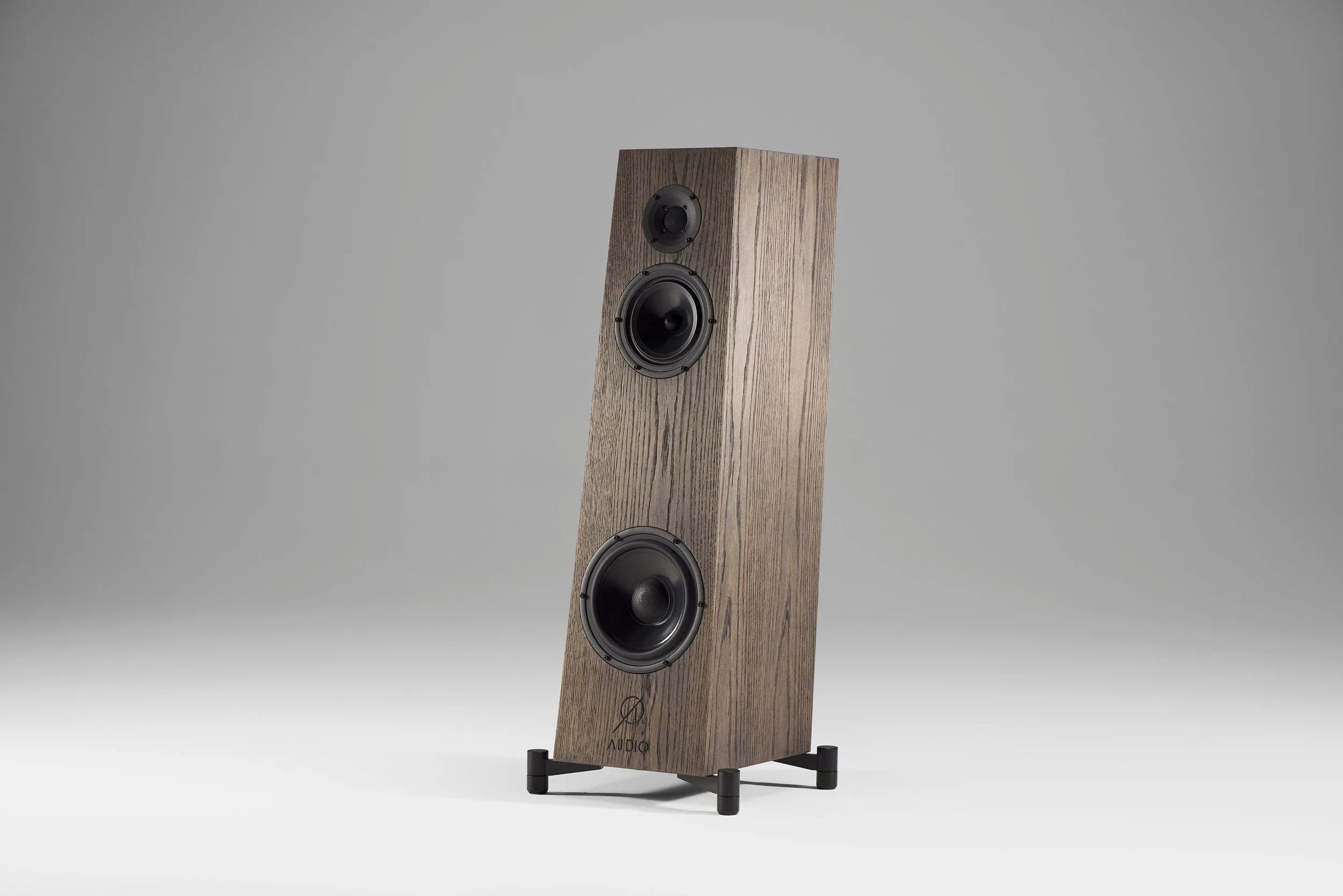

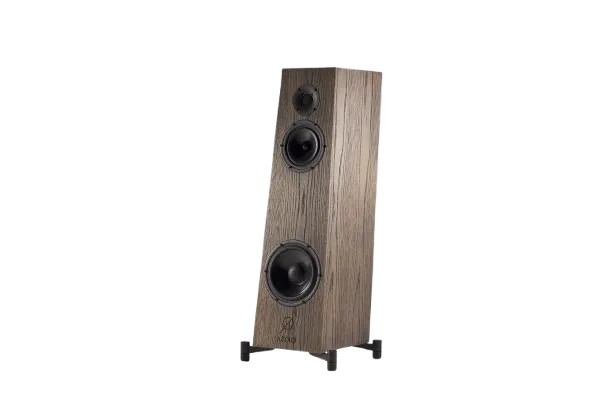

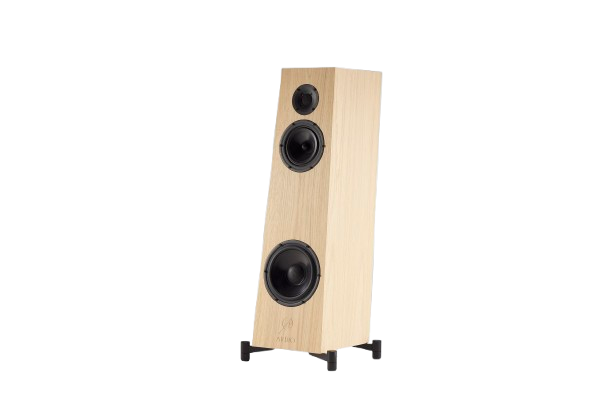

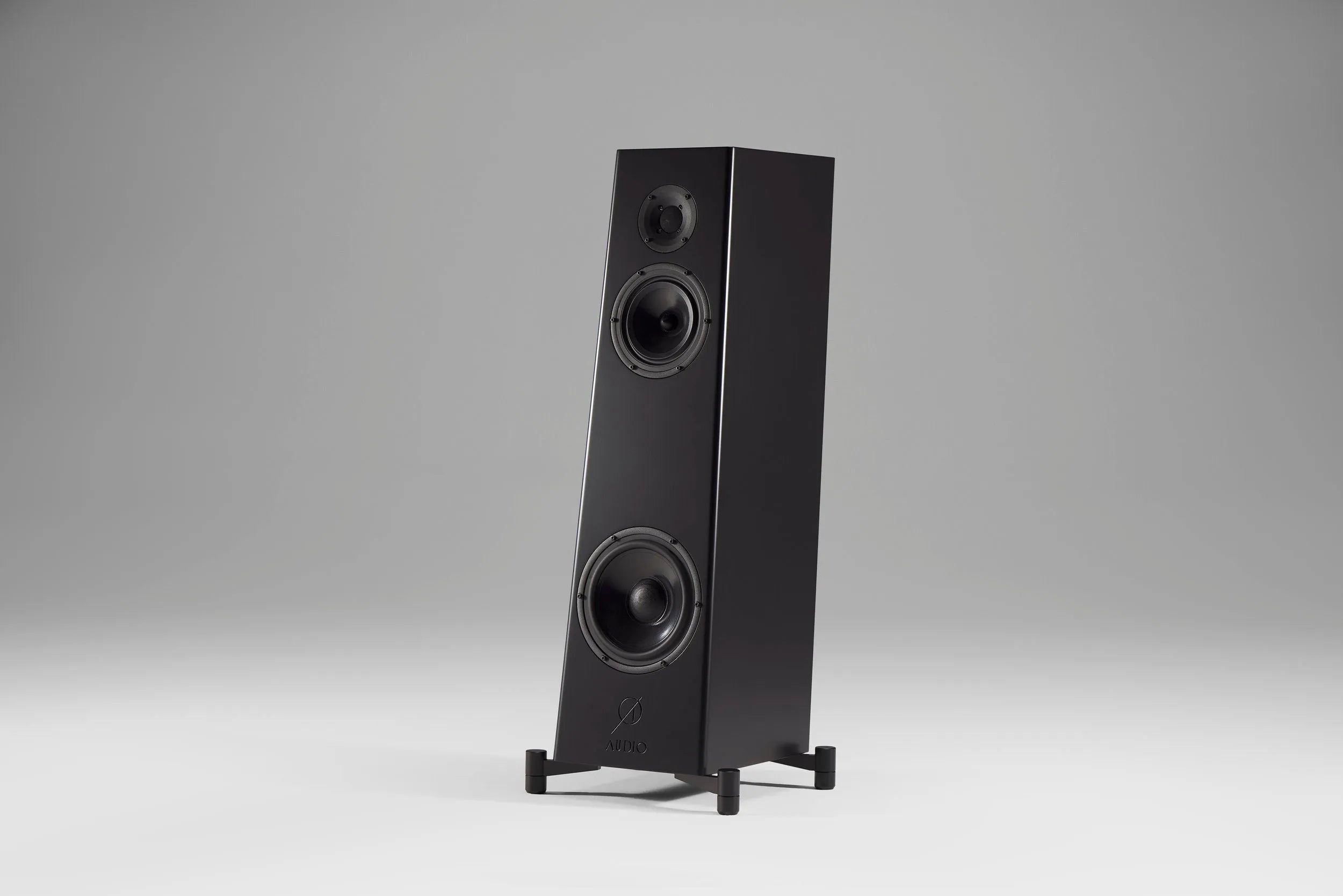

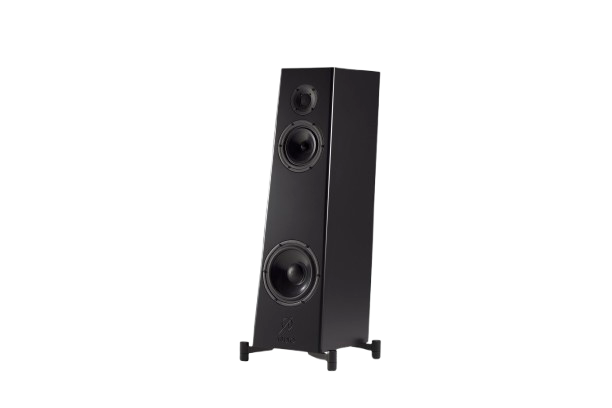

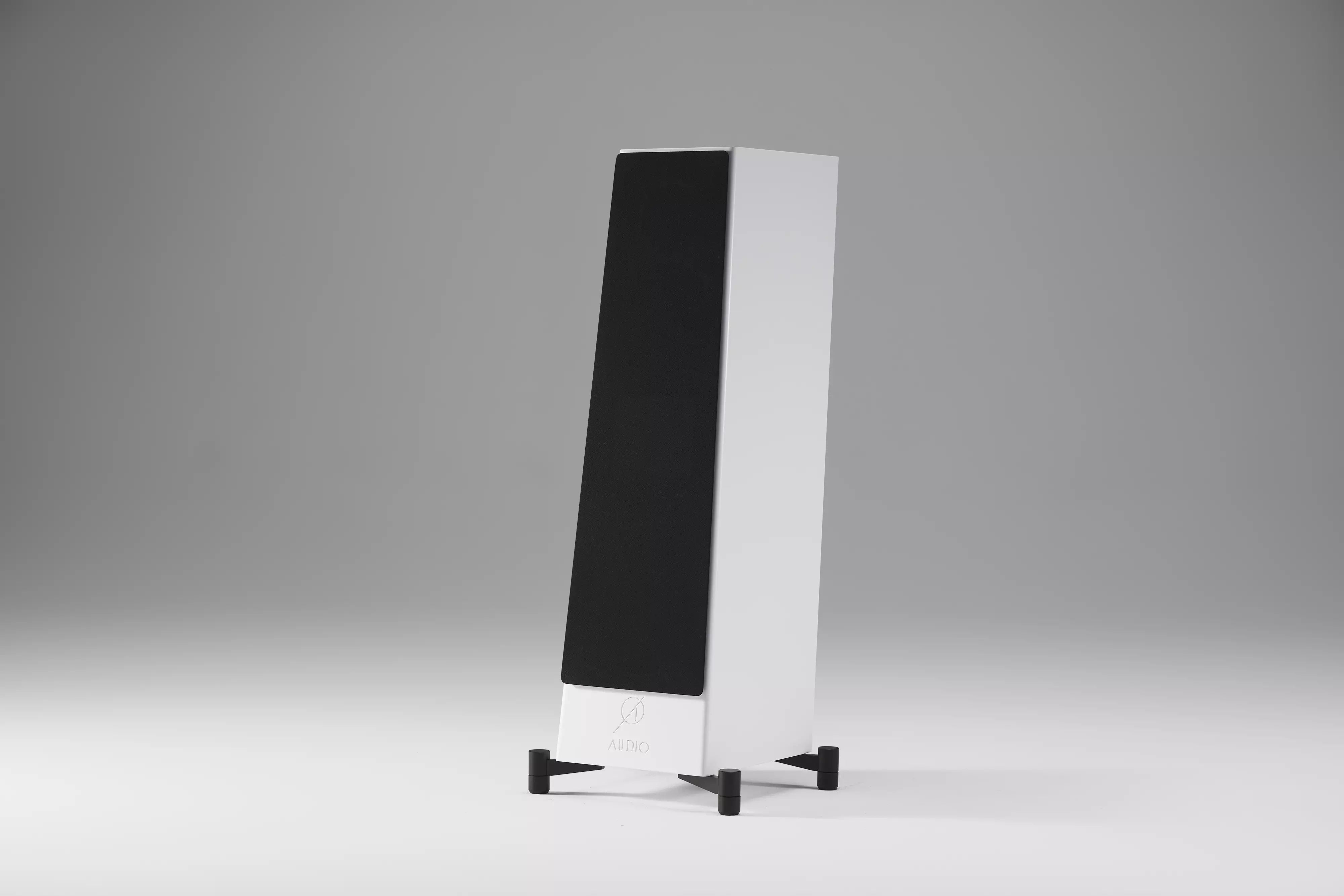

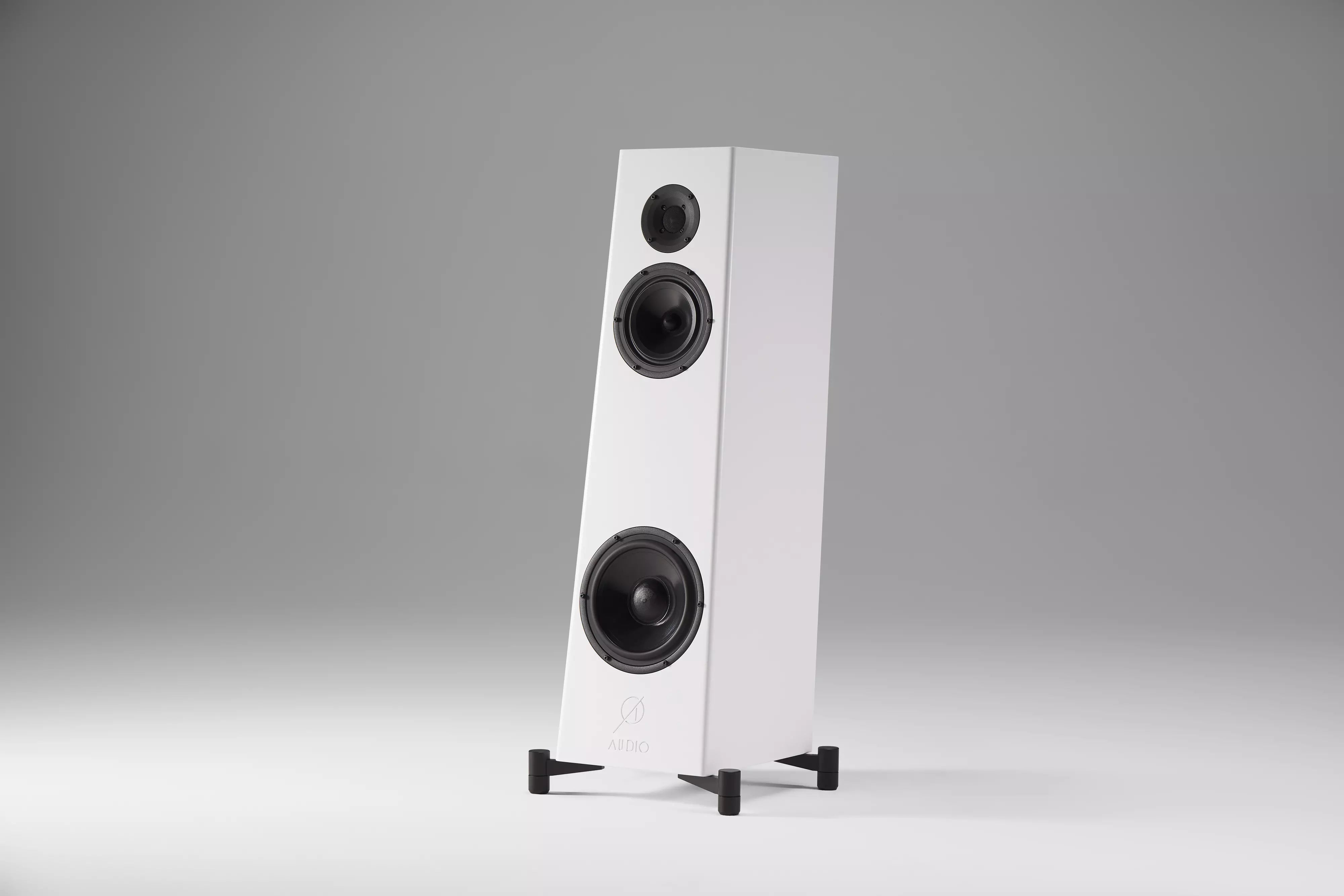

Ø Audio FRIGG 02, floor standing speakers (various colors)

INFORMACIJA

Ø Audio FRIGG 02 - floorstanding 3-way speakers, created by combining the highest quality components and the latest technology. They stand out with their compact design, but provide a powerful, detailed and wide sound stage. This model is developed in collaboration with SEAS and uses advanced audio technologies, such as the DXT waveguide tweeter and the unique TPCD dome membrane. The speakers are adapted to real listening rooms, and their hybrid low-pass filter ensures a smooth and natural sound. Ø Audio FRIGG 02 cabinet is carefully reinforced to reduce resonances and improve acoustic performance.

Price per pair.

3-band design with hybrid low-pass filter
Sensitivity: 90 dB
Impedance: 8 ohms (min. 3.8 ohms)
Frequency range: 29 Hz - 30 kHz
Tweeter: Metamodal TPCD dome with DXT waveguide
Midrange: 180mm hand-coated paper cone (titanium frame)
Woofer: 220mm hand-coated paper cone (titanium frame)
Bass reflex with holes in the bottom of the cabinet
Dimensions: 98.5 x 21 x 34 cm (width with legs – 37 cm); Weight: 30 kg

DESCRIPTION

FRIGG 02 is the start of a new era for Ø Audio.

More conventional looking speakers, but with a true Ø Audio DNA. The FRIGG Series is definitely more than meets the eye.

The FRIGG Series Model 02 is a 3-way floorstanding loudspeaker. It's a no-nonsense design meticulously developed and crafted to take on even more expensive competitors.

With a compact footprint, and modest physical appearance, FRIGG 02 surprises listeners with a powerful, detailed and large soundstage. Yet it treats delicate passages with beautiful tone and precision.

Directivity Control

Just like our larger horn-based models, FRIGG 02 also has a directivity-controlled tweeter. The patented DXT-technology provides directivity control despite being a compact waveguide.

This technology provides an even sound characteristic within the working area of ​​the waveguide.

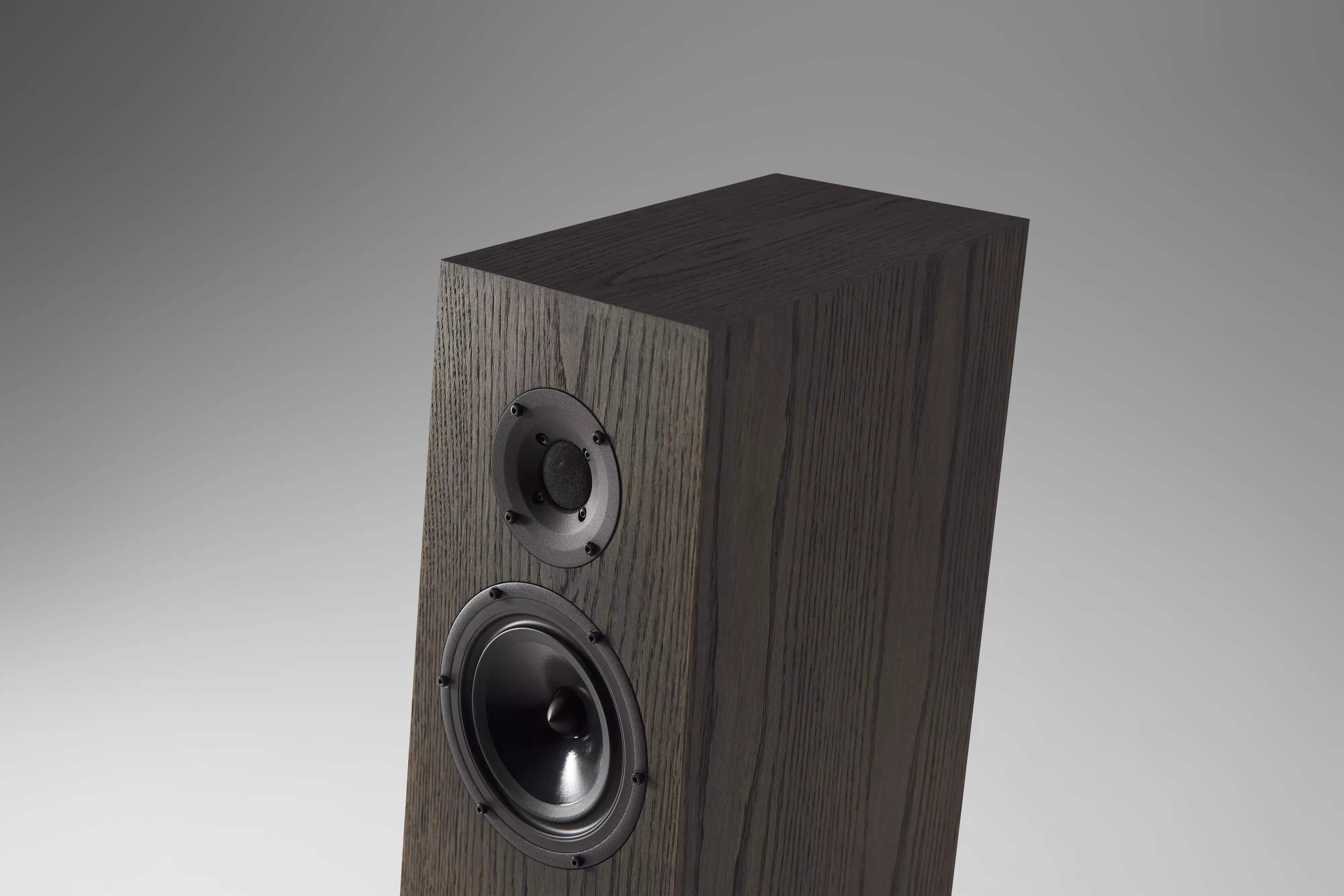

The Tweeter

Coupled to the DXT waveguide is a special dome tweeter developed in cooperation with the Norwegian company SEAS. The dome is a unique Metamodal Spread Tow Carbon Fiber design. Also called TPCD. The unique feature of our TPCD-dome is that it's developed to combat modal behaviors in the dome.

This is the first time a tweeter with these combined technologies has been used in a commercial loudspeaker.

The Midrange

Our midrange driver is where classic meets progression. Together with SEAS we combined a classic hand-coated paper cone on a 26mm titanium former and an inverted surround with a modern low-distortion motor system.

The result is a low distortion midrange with a beautiful tone.

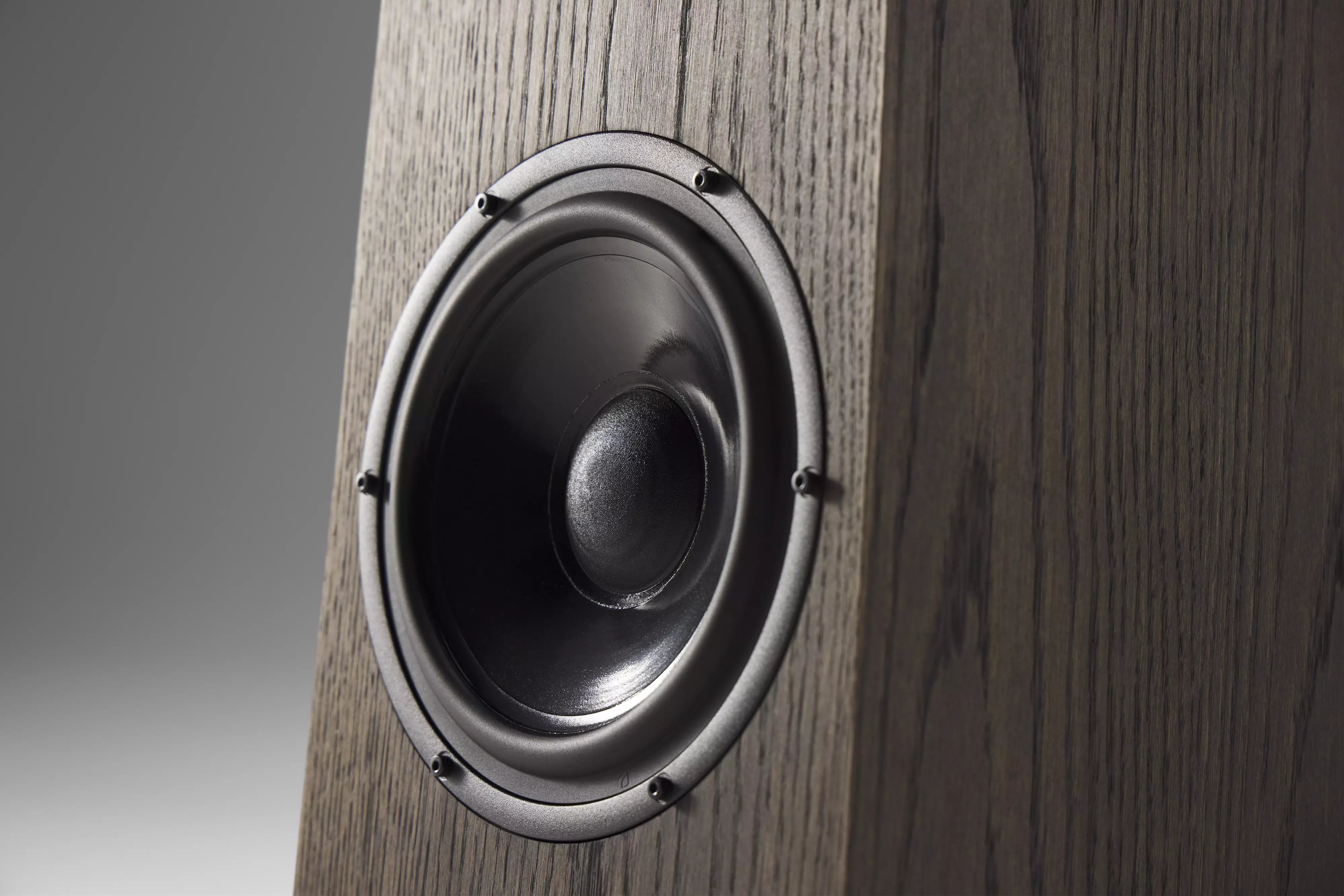

The Woofer

To match the midrange driver, again we combined our vision with the expertise of the engineers at SEAS. A matching hand-coated cone on a 52mm titanium former and a large motor structure secure the deep and dynamic bass response.

"To design a more traditional loudspeaker to follow in the footsteps of our Award-Winning Icon, we had to up our game and take on the "big boys""
— Sveinung D. Mala | CoFounder

The Crossover

Some say the crossover is the heart of the speaker, others say it's the brain. We say that it's both.

A crossover has two main functions. One is to control the acoustic response of the drivers, the other, which of course is linked very closely to the first, is to give the speaker its character.

We design the crossovers to get the best performance out of every speaker. Many designers claim that one topology is superior to another, which in our opinion is not only false, but it limits the possibilities to get the best sound out of a specific design.

For FRIGG 02 we ended up with a hybrid low order crossover. This crossover is a strong contributor to the coherent sound as well as the lively sensation of almost "being there".

The crossover was designed with the help of modern measurement and simulation tools with numerous listening sessions during the process. FRIGG 02 is designed to work in real-world listening environments, not to just measure well in controlled environments.

The crossover uses very high-quality parts.

The Enclosure

Top quality drives, crossovers and other parts can only take you part of the distance. The enclosure is a vital part of the end-result.

The FRIGG 02 enclosure is meticulously designed to be the best possible housing for the drivers and other components. Both acoustically and mechanically. It's a resonance-free sandwich-design which is strategically damped and braced.

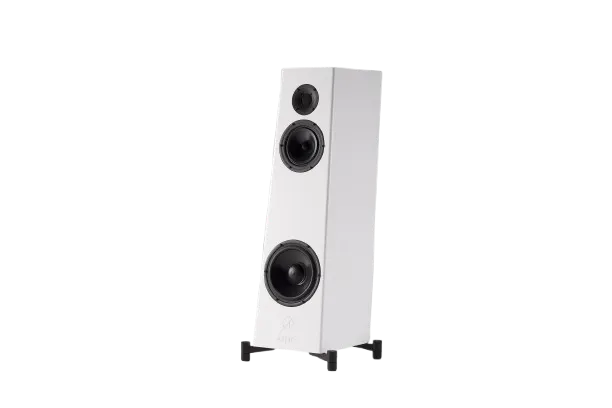

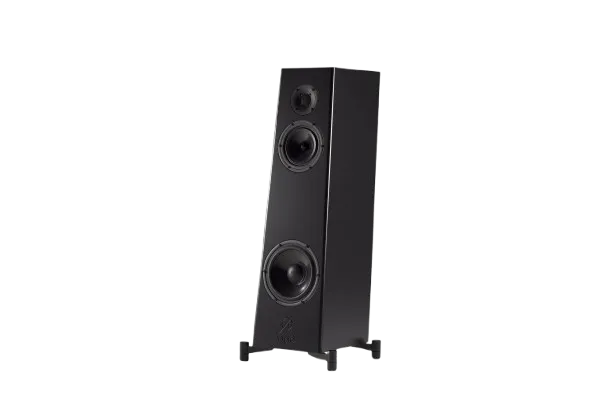

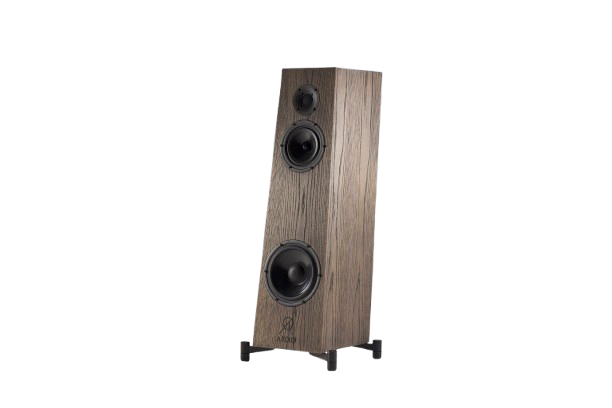

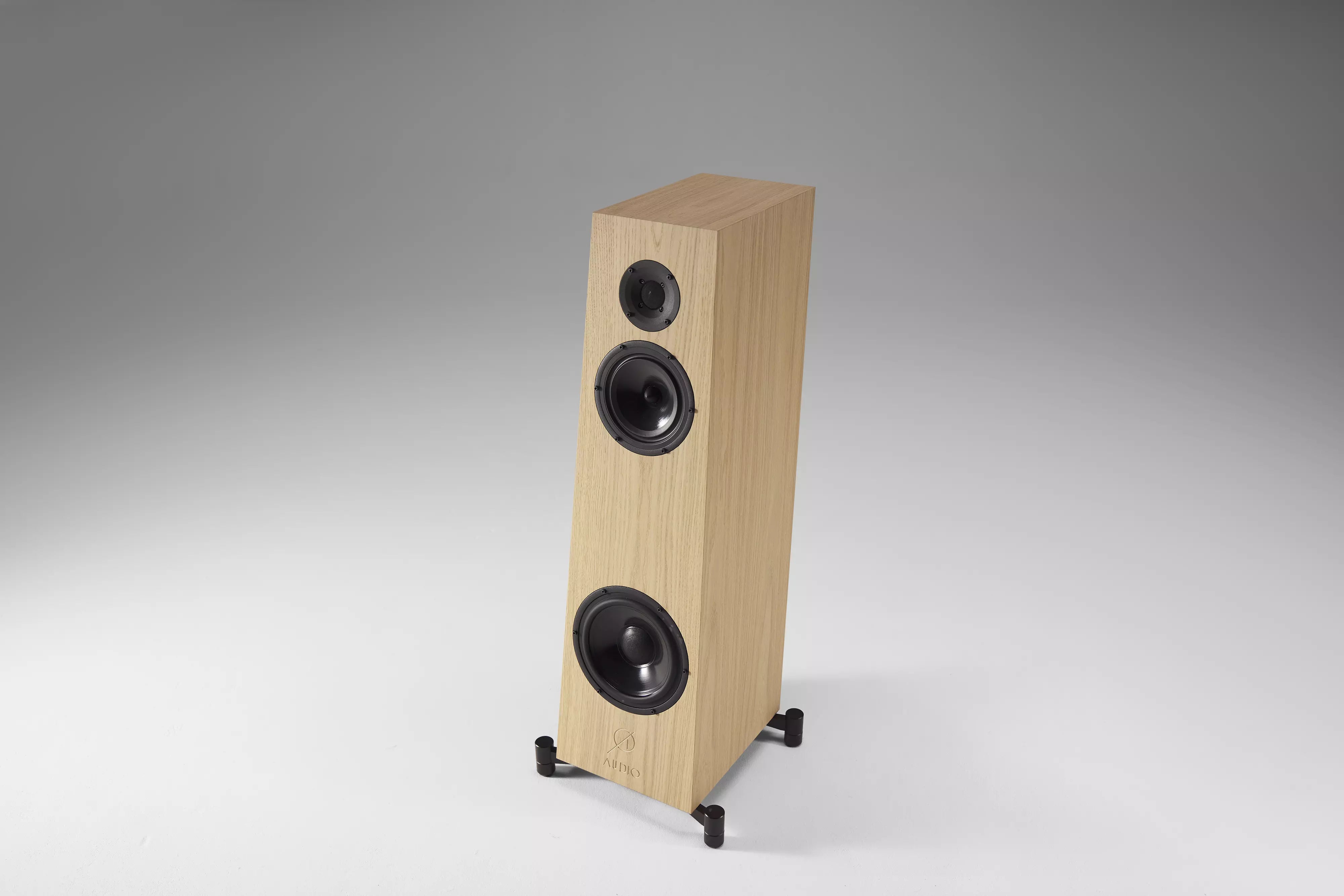

We offer enclosures in different Matte painted and veneer finishes.

TECHNICAL DATA

Construction: 3-way Hybrid Low Order
Sensitivity: 90db
Frequency range: 29hz–30khz
Impedance: 8ohm (minimum 3.8ohm)
Tweeter: Metamopdal TPCD Dome with DXT-lens
Midrange: 180mm hand coated Paper cone(titanium former)
Woofer: 220mm hand coated paper cone (titanium former)
Bass reflex (port in bottom of cabinet)
Dimensions: 98.5x21x34cm (HxWxD)
Width including feet: 37cm
Weight: 30kg
