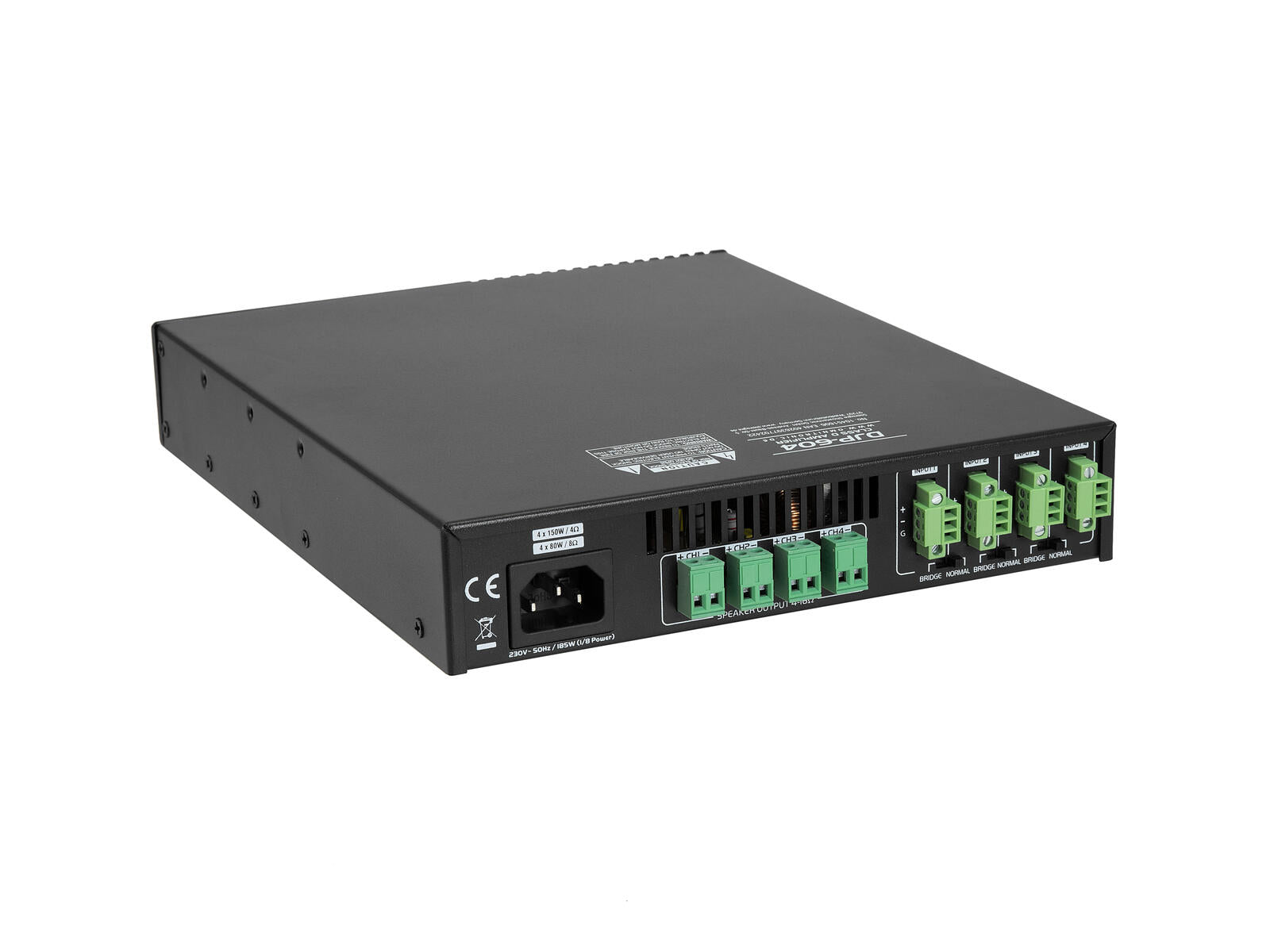

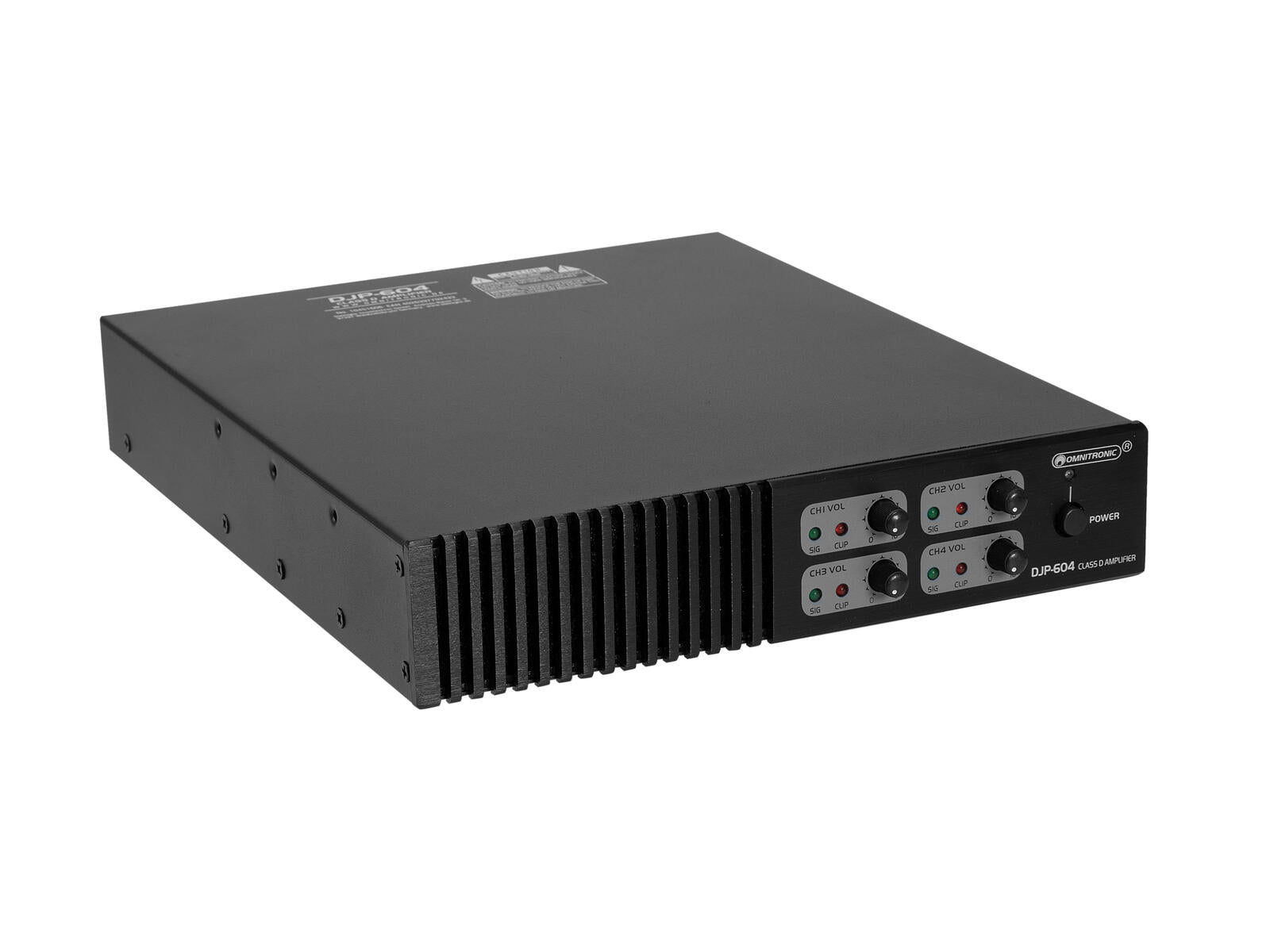

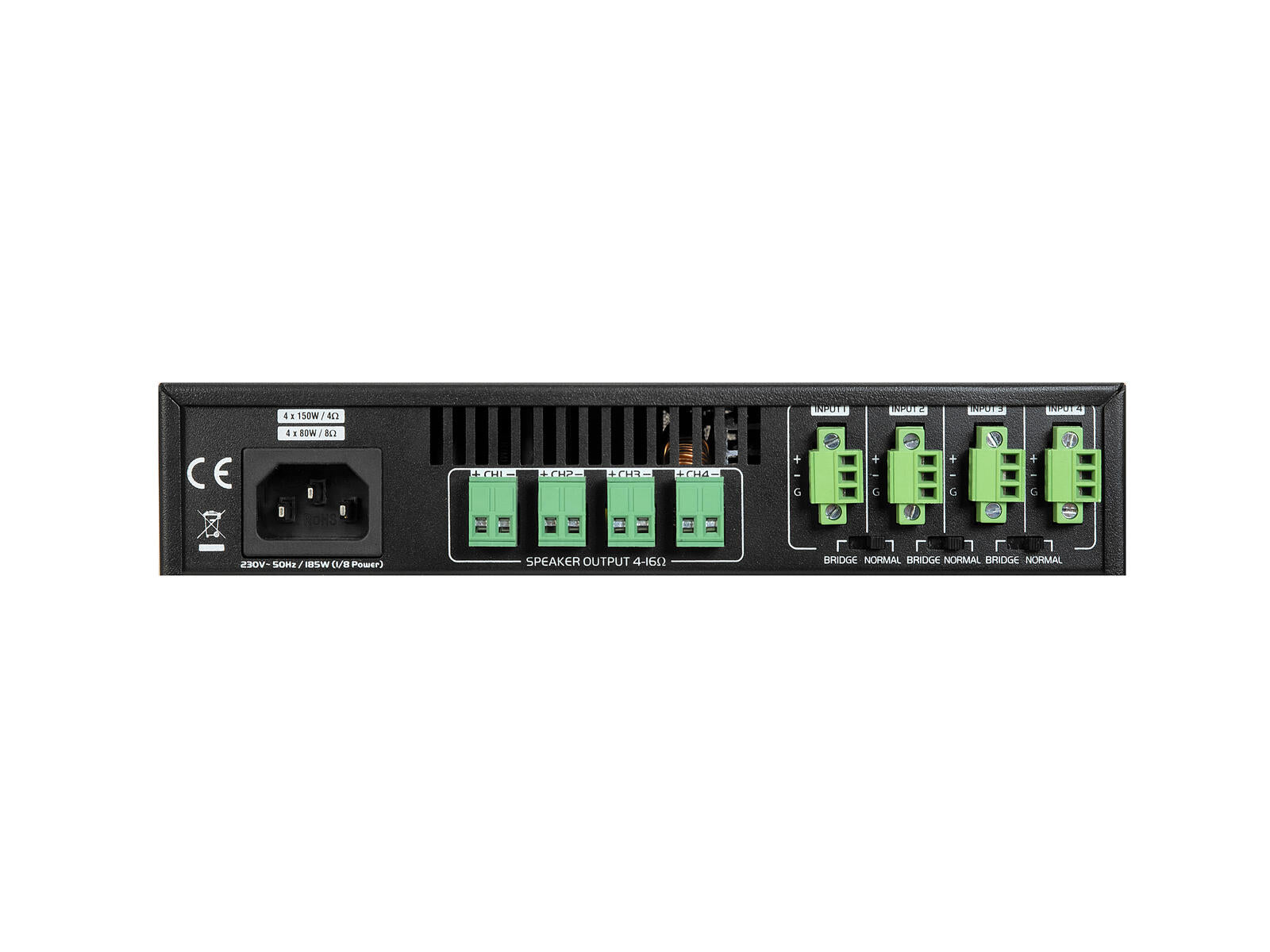

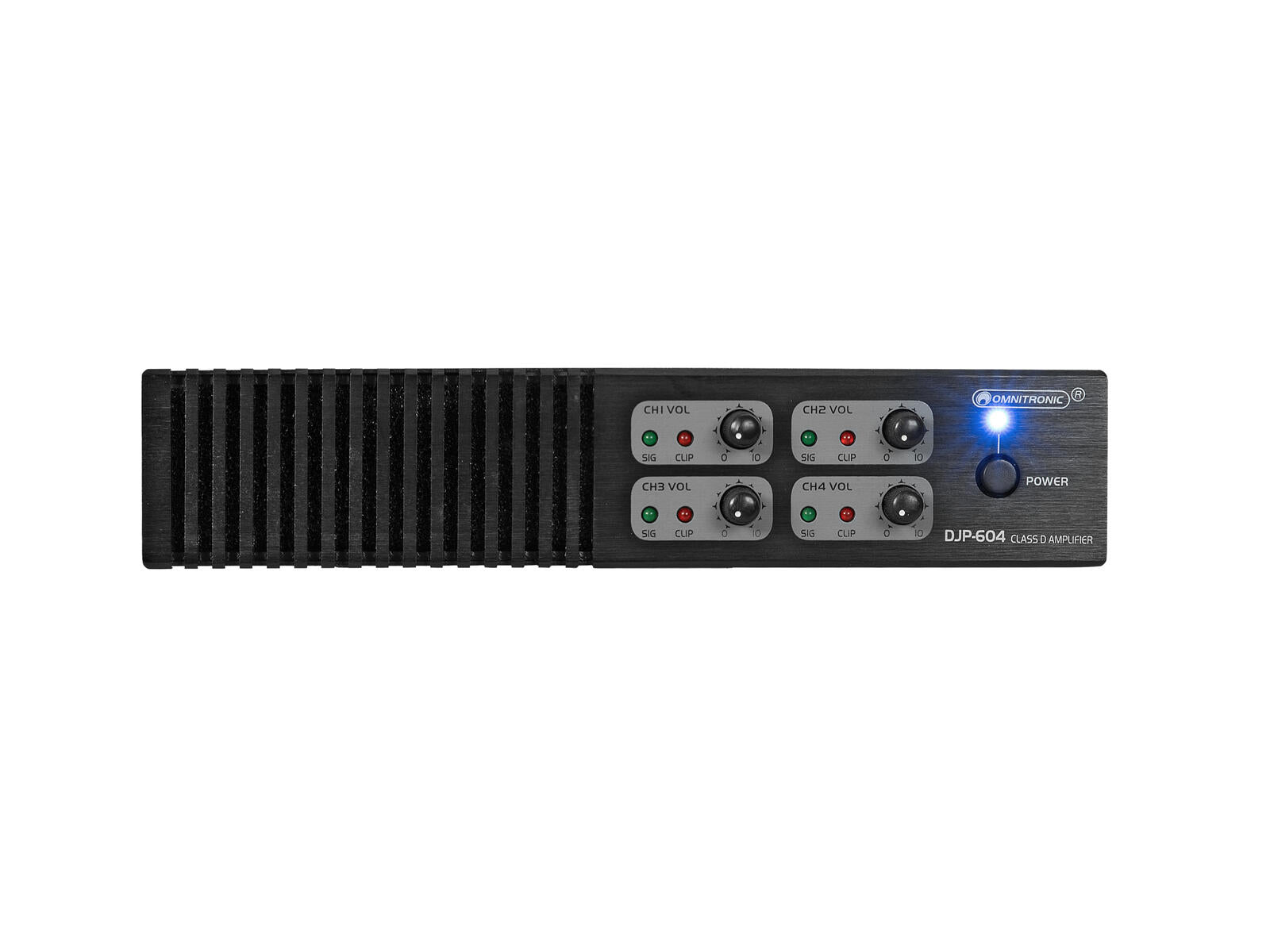

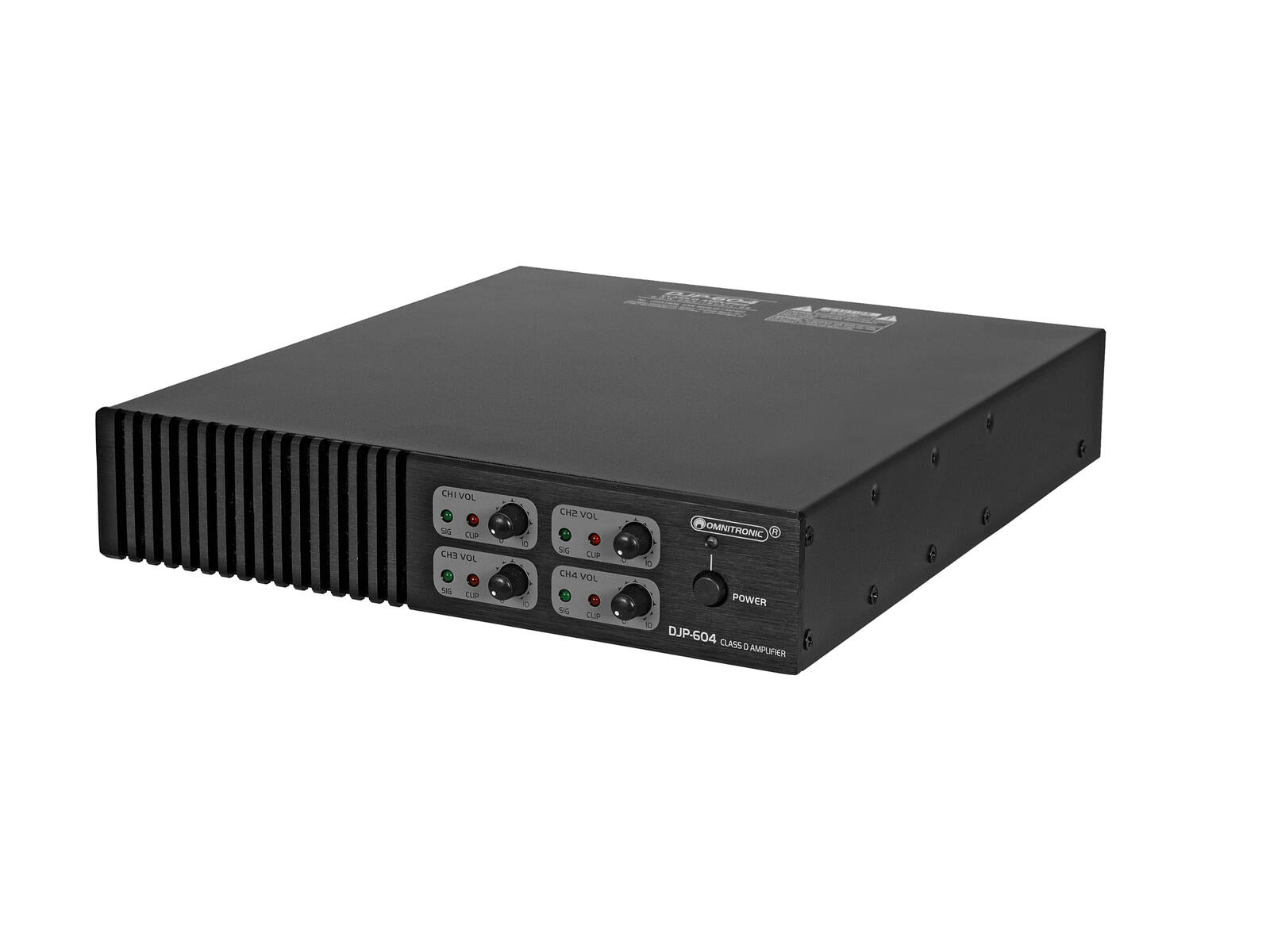

OMNITRONIC DJP-604 4-channel class D amplifier

4-channel Class D amplifier in a 9.
€349.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA



5" housing, 4 x 150 W / 4 ohm, 4 x 80 W / 8 ohm

  • Inputs linkable for flexible configuration
  • Extremely low weight and height due to integrated switch-mode power supply
  • Level control for each channel
  • Rugged steel housing with aluminum front panel
  • Desktop console housing
  • Includes mounting brackets for single and dual rack or wall installation
  • Applications: Installation; restaurants, bars, and hotels; sports centers/gyms


Package contents
  • 1 x user manual
  • 1 x amplifier
  • 4 x feet
  • 6 x brackets
  • 8 x screws
  • 1 x power cord


Power supply: 230 V AC, 50 Hz
Power consumption: 185 W 1/8 power
Output power: 4 x 150 W RMS (4 ohm)
4 x 80 W RMS (8 ohm)
Power connection: Mains input via IEC connector (M) mounting version, power cord with safety plug (included)
Frequency range: 20 - 20,000 Hz
S/N ratio: >105 dB
Impedance: Input: 20 kOhm, bal.
Input: 10 kOhm, unbal.
Housing color: Black
Circuit: Class D
Damping factor: >300
Controls: Power switch, level control for each channel
Protection: Soft start; short circuit; overheat; overload; VHF; DC voltage
Status LED: Power, signal, clip
Connections: Input: line via 4 x screw terminal
Output: speaker via 4 x screw terminal
Material: Metal
Housing design: Desktop console housing
(19") 48.3 cm rack installation possible
Dimensions: Width: 21.4 cm
Depth: 26.5 cm
Height: 4.4 cm
Weight: 2.46 kg
