OMNITRONIC PA system AZX active M

The OMNITRONIC PA set AZX ensures professional sound quality and versatility for various event needs.

€1,499.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

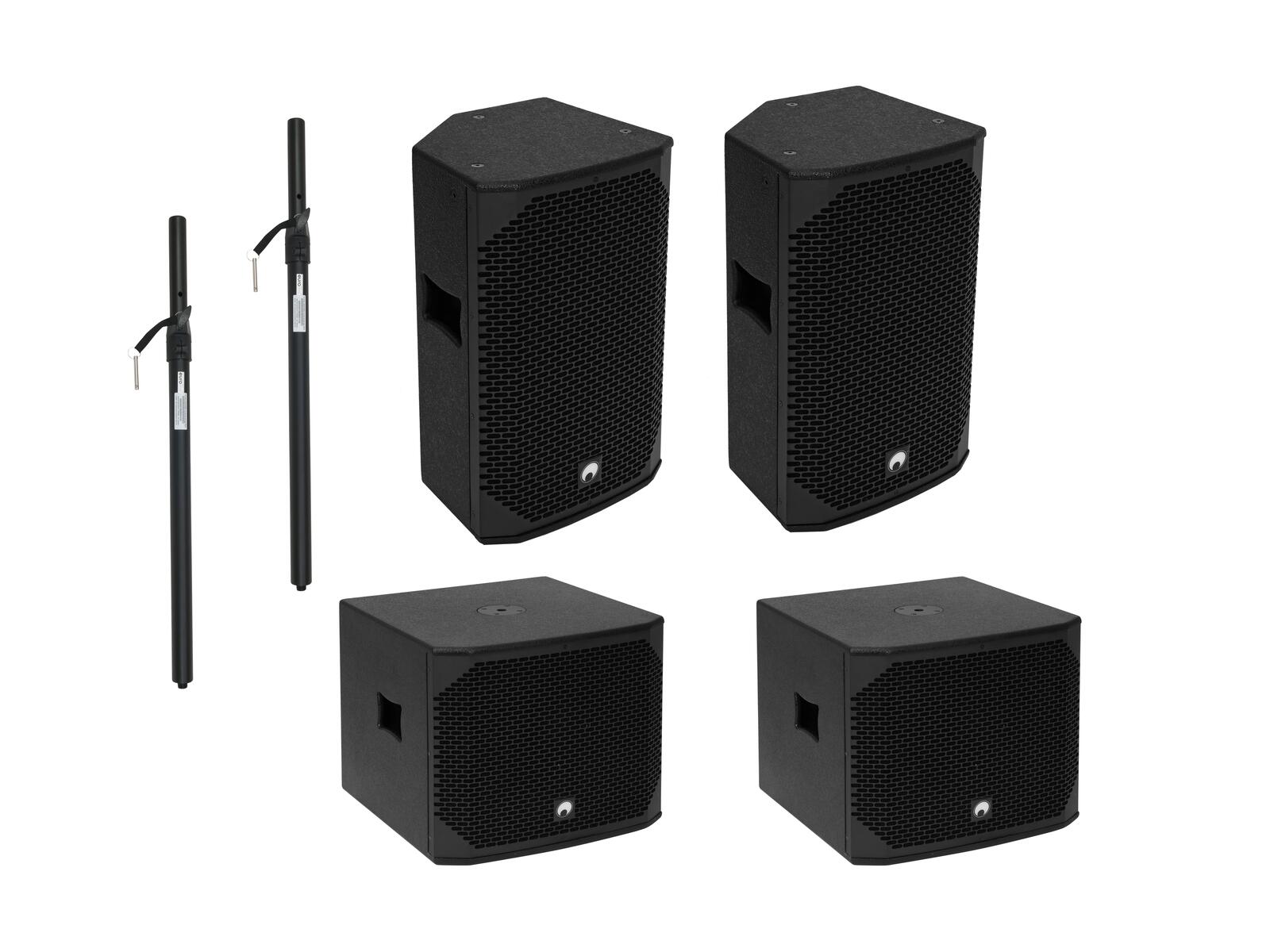

2x AZX-115A active PA subwoofer 400W, 2x AZX-212A 2-way active speakers 250W and 2x distance poles

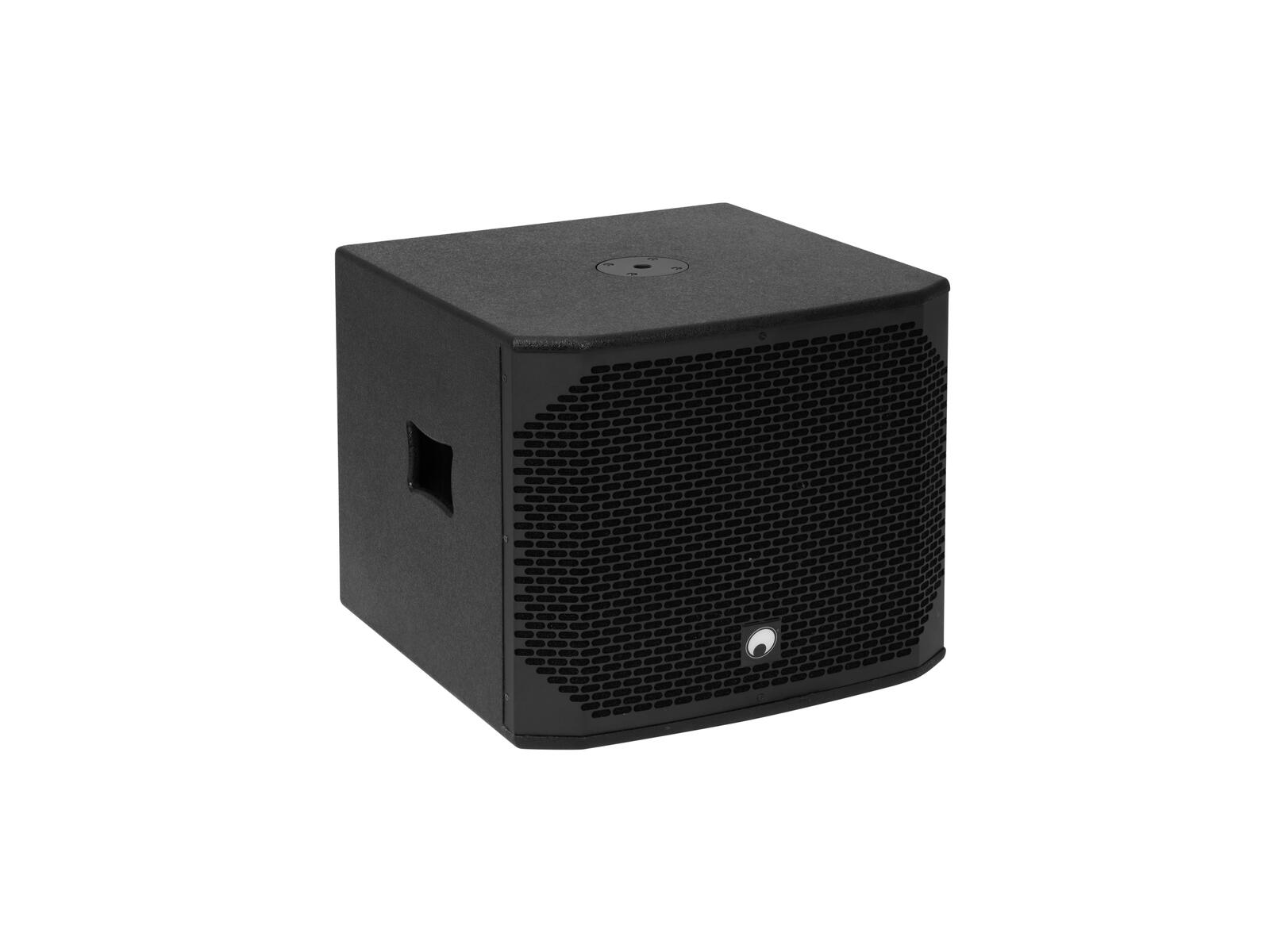

OMNITRONIC AZX-115A active PA subwoofer 400W

Active 15" PA bass-reflex subwoofer, 400 W RMS

  • 38 cm (15") woofer with 63 mm voice coil
  • Class D amplifier with 400 W
  • XLR inputs and parallel outputs L/R
  • XLR output L/R with high-pass filter
  • Adjustable crossover frequency 80-200 Hz
  • Black metal grille with acoustic foam
  • Durable carrying handle
  • Areas of application: clubs/dance schools; installation; mobile use; mobile DJs/entertainers; rental

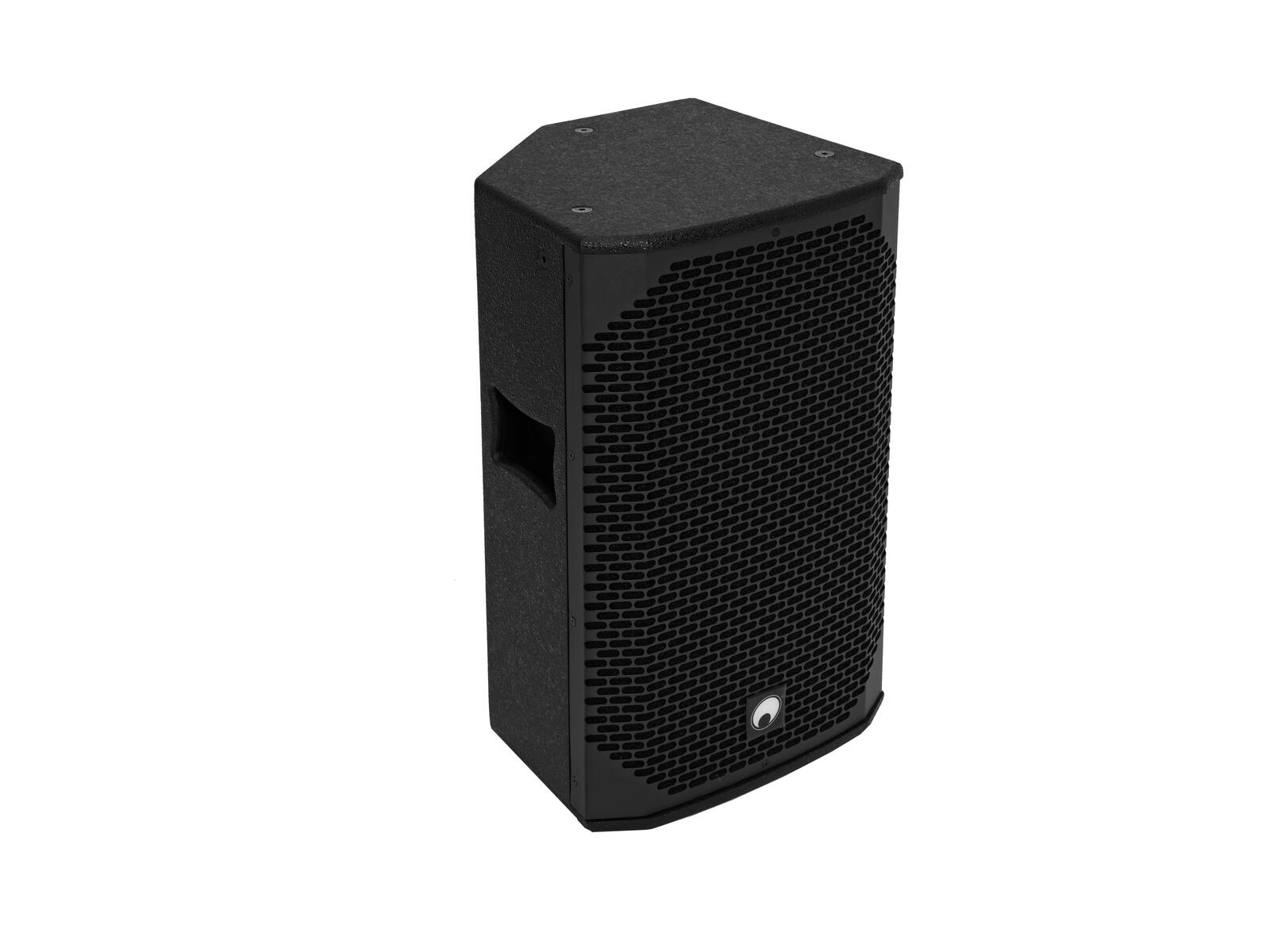

OMNITRONIC AZX-212A 2-way active speaker 250W

Active speaker with 12" woofer, 1.35" driver, 200 W RMS LF, 50 W RMS HF

  • 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
  • Balanced signal input XLR/6.3 mm jack, switchable mic/line
  • HF adjustment -4 dB, -2 dB, 0 dB
  • Dual flange
  • With suspension points
  • Black metal grille with acoustic foam
  • Durable carrying handle
  • Application options: standing; hanging; monitor; on a stand
  • Areas of application: clubs/dance schools; installation; mobile use; mobile DJs/entertainers; rental

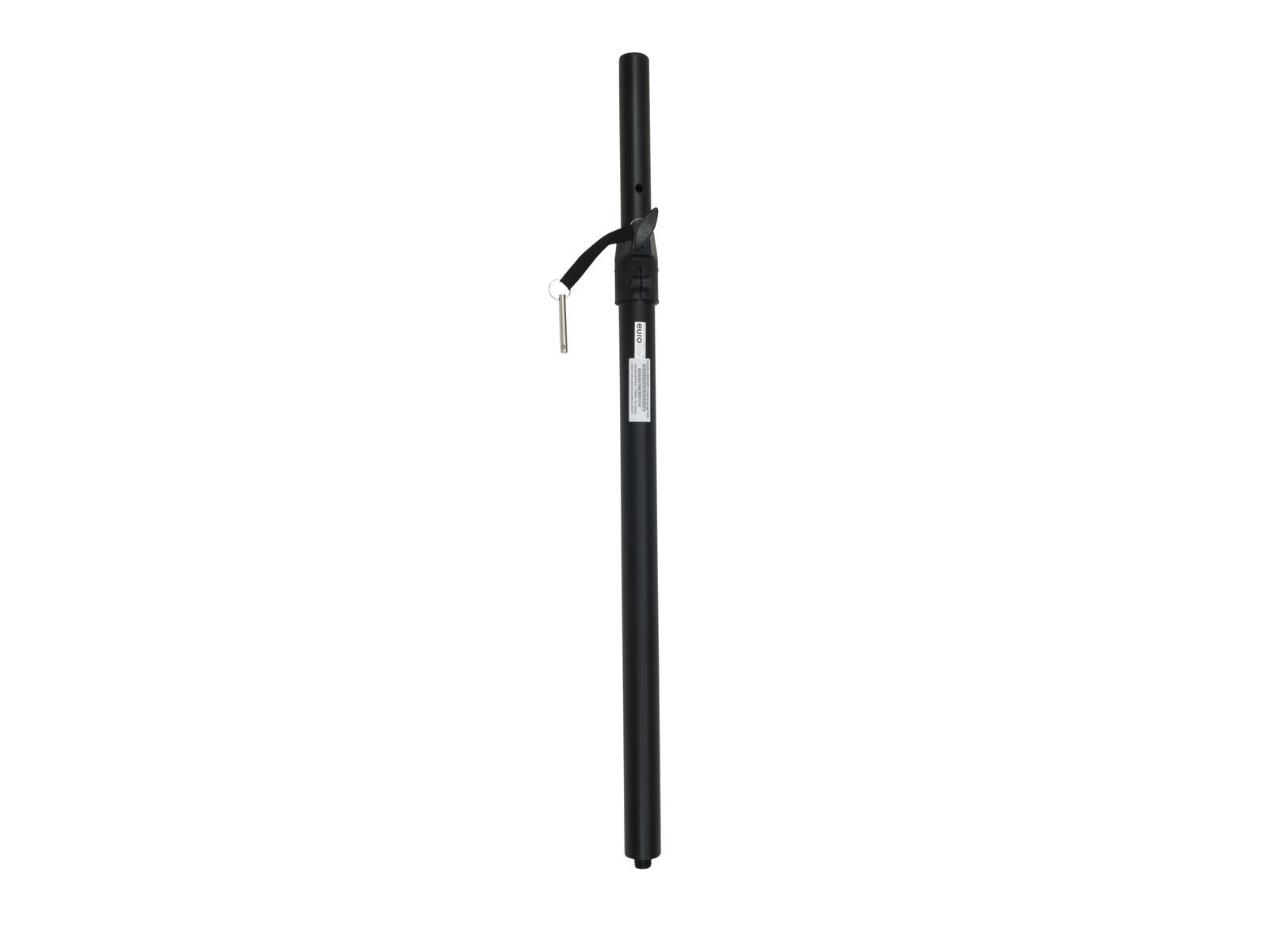

OMNITRONIC distance pole subwoofer/satellite M20

Variable distance pole, M20 thread, height adjustment 75-130 cm, maximum load 30 kg

  • Connecting tube for satellite systems
  • Locking screw and nut
  • Powder-coated steel version
  • Adjustable height
  • M20 thread


Scope of delivery

2 x OMNITRONIC AZX-115A active PA subwoofer 400W

  • 1 x subwoofer
  • 1 x user manual
  • 1 x power cord

2 x OMNITRONIC AZX-212A 2-way active speaker 250W

  • 1 x user manual
  • 1 x power cord
  • 1 x compact speaker cabinet

2 x OMNITRONIC distance pole subwoofer/satellite M20

  • 1 x distance pole
  • 1 x user manual


Weight: 92.40 kg
OMNITRONIC AZX-115A active PA subwoofer 400W
Power supply: 230 V AC, 50 Hz
Power output: 650 W
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power cord with safety plug (supplied)
Device fuse: 5 x 20 mm, T 3.15 A fuse, replaceable
Power output: Nominal: 400W RMS
Frequency range: 40 - 250 Hz
Sensitivity: 94 dB (1W/1m)
Mounting system: M20 thread
Circuitry: Class D
Control elements: Phase reverse switch
Controls: Limiter
Status LED: Limit, power, signal
Connections: Input: line via 2 x 3-pin XLR
Output: line via 2 x 3-pin XLR
Output: high-pass via 2 x 3-pin XLR
Crossover frequency: 80-200 Hz
Speaker: 1 x woofer 15"
Basket material: steel
Voice coil low 2.5"
Speaker type: Subwoofer
Design type: Vented
Carrying handle: 1 piece/pcs
Material: MDF (medium density fiberboard), 15 mm
Color: Black, textured coating, painted
Dimensions: Width: 53 cm
Depth: 55 cm
Height: 47 cm
Weight: 26.15 kg
OMNITRONIC AZX-212A 2-way active speaker 250W
Power supply: 230 V AC, 50 Hz
Power output: 650 W
Protection class: Protection class I
Power connection: Mains input via IEC connector (M) mounting version power cord with safety plug (supplied)
Power output: Nominal: 200W RMS LF
Nominal: 50W RMS HF
Frequency range: 55 - 20000 Hz
Sensitivity: 95 dB (1W/1m)
Mounting system: Dual flange: Ø 35mm (0° / 5°)
Suspension points: 7 x M10 thread
Circuitry: Class D Biamp
Control elements: Power switch, input sensitivity switch, tone control, level control
Controls: Limiter
Status LED: Limit, power, signal
Connections: Input: 1 x 3-pin XLR/6.35mm jack (F) combo socket (mounting version)
Output: line via 1 x 3-pin XLR
Input channels: 1 x mono with mic-line switch via combo socket (XLR/jack), channel control via rotary knob
Equalizer: Master: 1 x 2-band tone control
Speaker: Woofer 12" with ferrite magnet
Basket material: steel
Cone material: cardboard/paper
Voice coil low 2"
Compression tweeter voice coil high 1.35"
Speaker type: Compact speaker cabinet
Carrying handle: 1 piece/pcs
Material: MDF (medium density fiberboard), 15 mm
Color: Black, textured coating, painted
Dimensions: Width: 37 cm
Depth: 35.2 cm
Height: 62.2 cm
Weight: 19.15 kg
OMNITRONIC distance pole subwoofer/satellite M20
Maximum load: 30 kg
Tube diameter: 41 - 35 mm
Height: Maximum: 130 cm
Maximum: 75 cm
Distance pole length: ...
