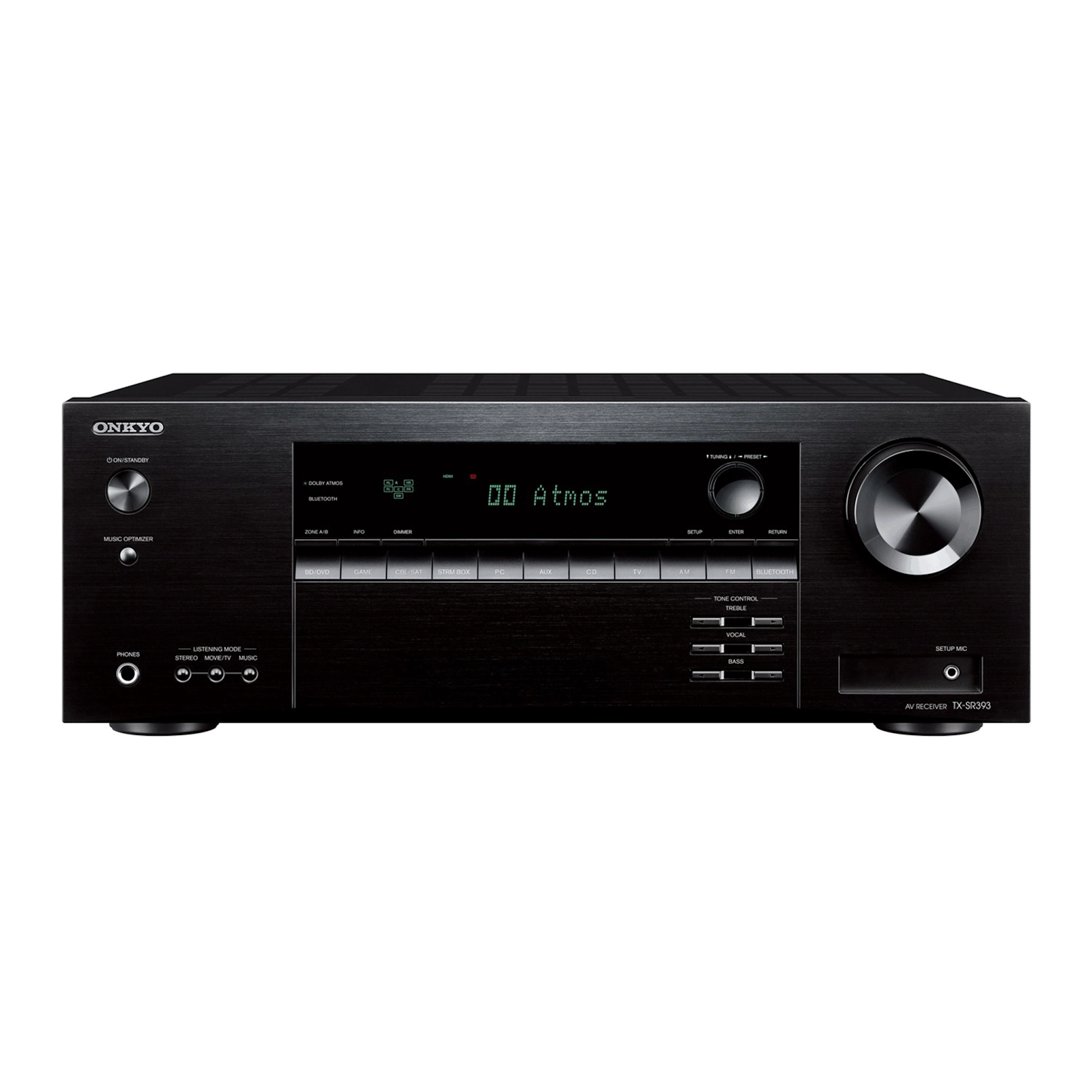

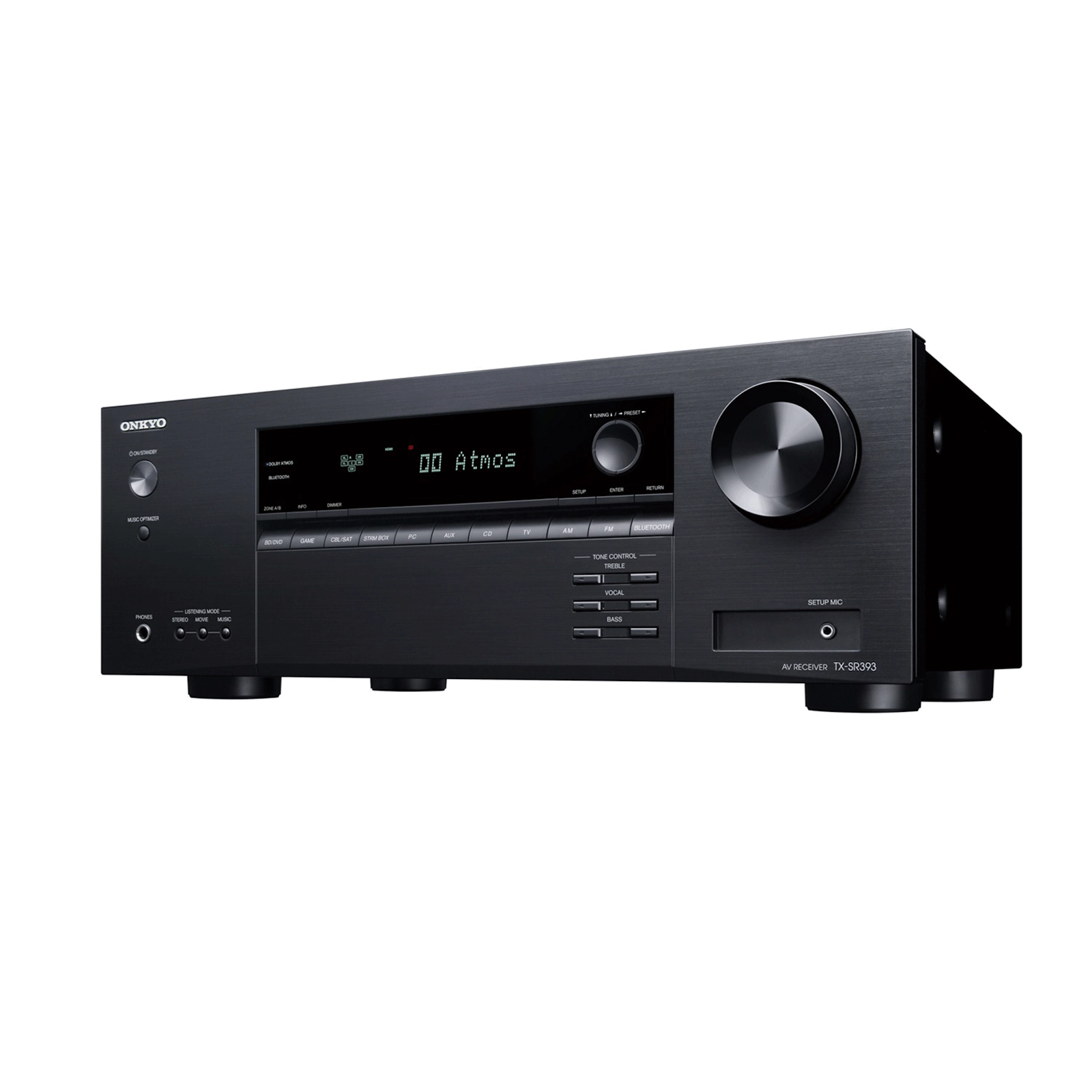

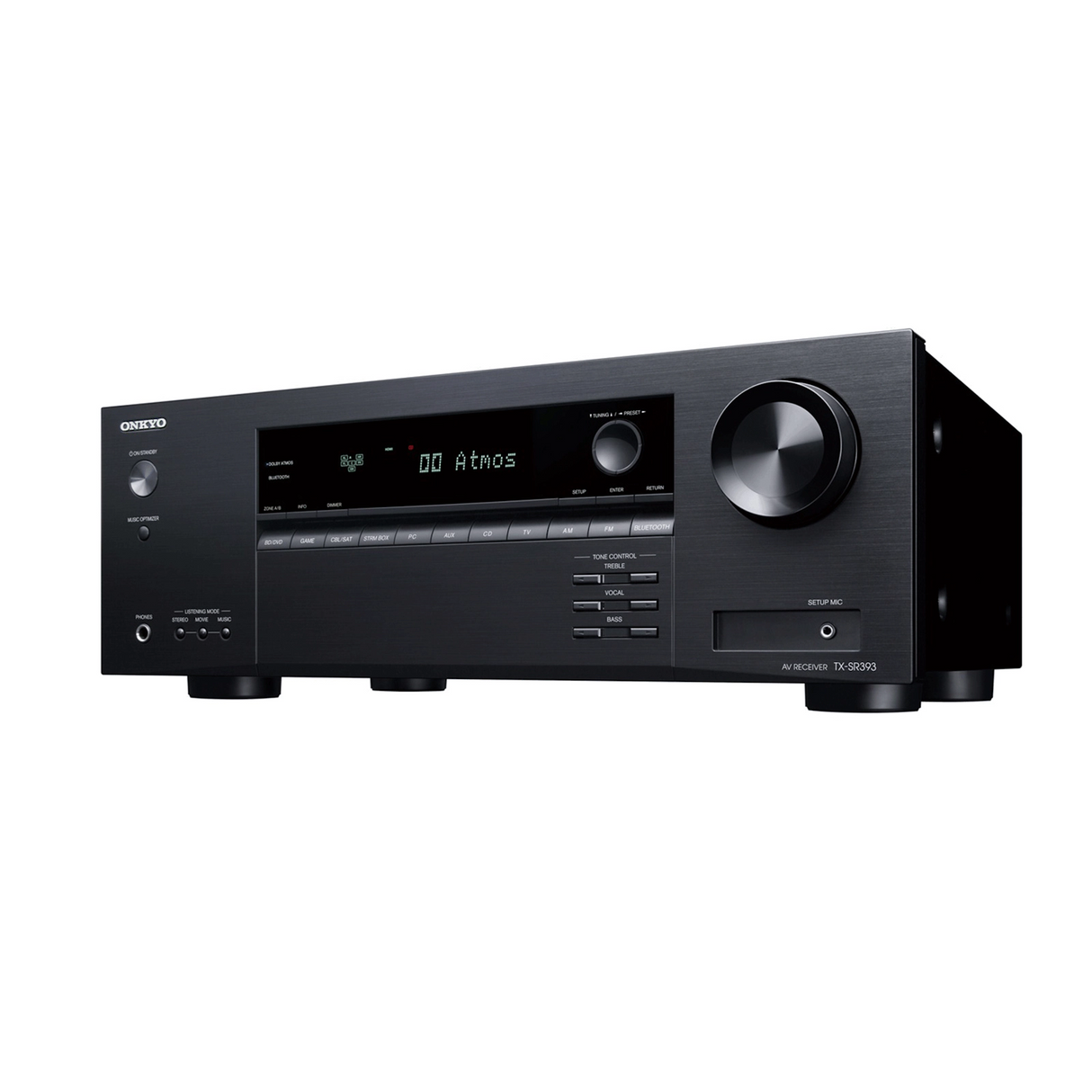

Onkyo TX-SR393, AV Receiver-Amplifier

Choose the speaker layout that suits your room: from a space-saving 2.
€499.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

1 channel configuration enhanced with 3D surround sound with Dolby Atmos Height Virtualizer* or DTS Virtual: X® to a 3.2.2 channel system for natural object sound reproduction.

  • Power: 5 x 80W.
  • 4K resolution.
  • Dolby Atmos, Dolby True HD
  • DTS:X, DTS-HD Master Audio

DESCRIPTION

Ready for 4K Entertainment

Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision ® , and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.

TX SR393 Connectivity 2000x1333

Smooth and Easy Bluetooth Streaming

Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.

TX NR6100 Dolby Atmos 2000x1333

Dolby Atmos® and DTS:X® – Setting Sound Free

Dolby Atmos® and DTS:X ® formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in the latest films and games. You can also enjoy your 3D speaker layout with classic titles. Dolby Surround® and DTS ® Neural:X finds overhead cues in legacy soundtracks and upmixes for awesome spatial realism.

TECHNICAL DATA

SPECIFICATIONS

Features

AMPLIFIER

# Channels 5.2
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) 80 Watts, 0.08% THD
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC) 155 Watts, 10% THD
Dynamic Audio Amplification -
HCPS (High Current Power Supply) ✓
Non-Phase Shift Amplifier -
THX Certified -
Certified 4 Ohms Performance ✓
Discrete Output Stage Circuitry ✓
Amplifier Design -
Independent Block Construction (Amp/Preprocessor) -
Bi-amp Capability For Front -

PROCESSING

Dolby Atmos ✓
32-Bit Digital Signal Processing Engine ✓
Dolby Atmos Height Virtualizer ✓
Dolby Surround® upmixing ✓
Dolby Decoder Dolby Atmos, Dolby True HD
DTS:X ✓
DTS Virtual:X ✓
DTS Neural:X upmixing ✓
DTS Decoder DTS:X, DTS-HD Master Audio
Dolby® Pro Logic IIz upmixing for stereo and multichannel soundtracks -
ONKYO GAME Surround Modes -
VLSC for Noiseless Audio Processing -
THX Processing Mode -
CinemaFILTER ✓
AccuEQ Room Calibration ✓
Phase-Matching Bass Boost -
Direct/Pure Mode ✓/-
Pure Direct Analog Path Mode -
Advanced Music Optimizer ✓
384K/32 Bit DACs ✓
192K/24 Bit DACs -

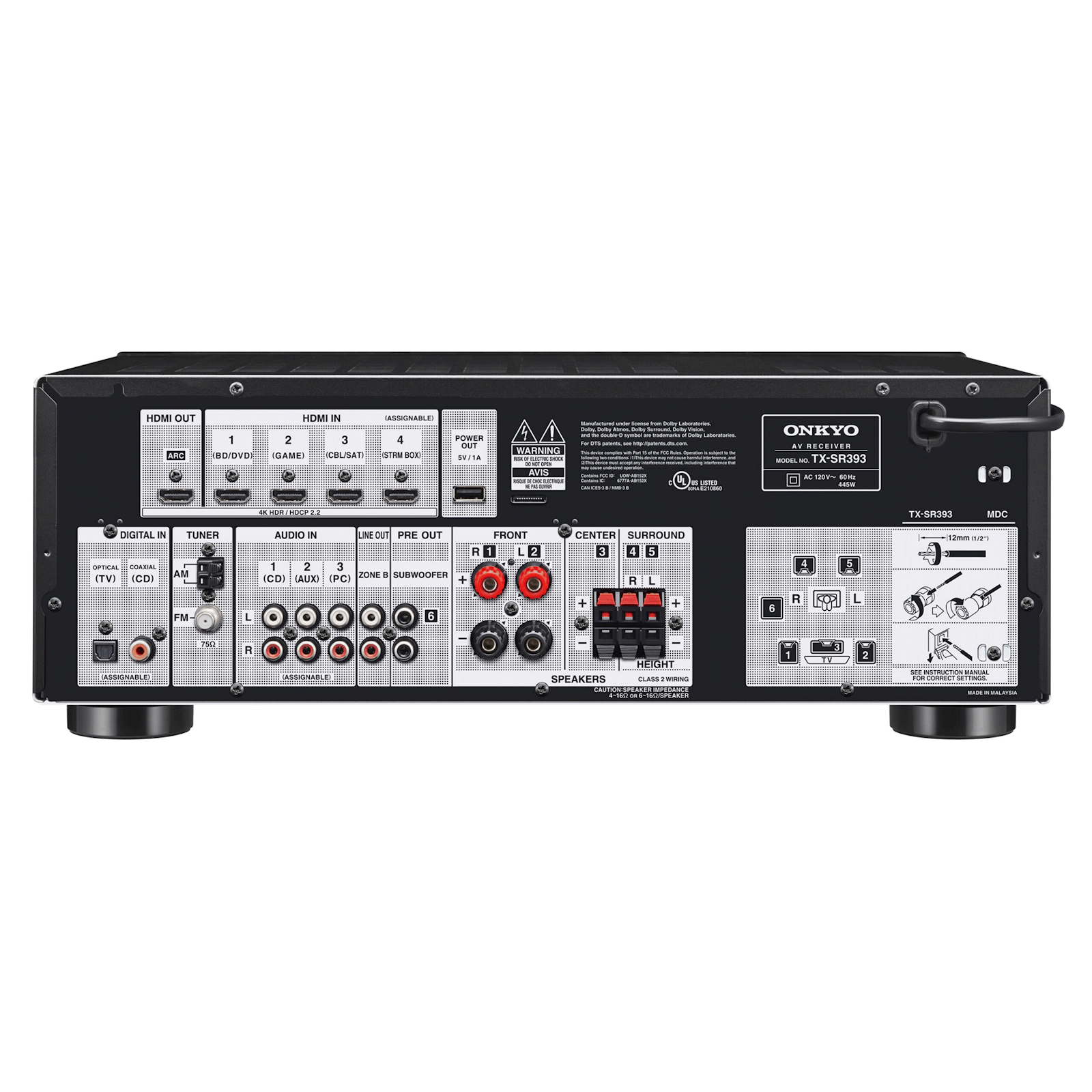

CONNECTIVITY

Analog Audio IN 3
Phono Input -
Digital Audio IN (OPT/COAX) 1 / 1
Composite Video I/O -
Component Video I/O -
Front Panel HDMI -
Front-Panel A/V -
USB Input ✓
HDMI I/O 4 / 1
HDMI 4K/60 Hz- Capable HDMI Terminals ✓
HDCP 2.3 Copy-Protection Compatibility ✓(Enabled with a future firmware update)
HDMI Support for High Dynamic Range ✓
HDMI Support for 3D, Audio Return Channel and CEC ✓
BT.2020 Support ✓
HDMI Support for Deep Color, xvColor, LipSync ✓
HDMI Support for DVD-Audio, SACD, Multichannel PCM ✓
Analog To HDMI Upconversion -
1080p to 4K Upscaling ✓
4K Passthrough ✓
Analog Pre-Outs Dual Subwoofer
Speaker A/+B -
Powered Zone 2 ✓
Powered Zone 3 -
Zone B Line Out ✓
Zone 2 Line Out -
Zone 2 Video Out -
Zone 2 Digital to Analog Audio Conversion -
Zone 3 Line Out -
Whole House Mode -
FireConnect Multi-room Audio -
Airplay -
Google Cast -
Supports Onkyo Remote App -
Internet Radio Capable -
Spotify Connect Support -
Tidal -
Streaming Audio From PC / Network -
Hi-Res Streaming Audio Formats -
Streaming Audio From USB memory -
Wireless Network -
Bluetooth ✓(Version 4.2, Profile: A2DP 1.3, AVRCP 1.5)

INTEGRATION ACCESS

RS-232 -
IR Input -
IR Output -
Ethernet -
ONKYO-RI System Control -
RIHD (Remote Interactive Over HDMI) -
12V Trigger -

MISCELLANEOUS

spec

AMPLIFIER SECTION

All Channels 80 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC) 155 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)
THD+N (Total Harmonic Distortion + Noise) 0.06% (20 Hz–20 kHz, 8 Ohms, 1 Channel Driven, 50 W)
Input Sensitivity and Impedance 200 mV / 47k Ohms (Line)
Frequency Response 10 Hz - 100 kHz /+ 1 dB, -3 dB (Direct Mode)
Tone Control ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 109 dB (Line, IHF-A)
Speaker Impedance 4 ohms to 16 ohms

VIDEO SECTION

Videos 1.0 Vp–p ±5% / 75 Ohms (Composite)

TUNER SECTION

FM 87.5 MHz - 107.9 MHz
A.M 530 kHz to 1.710 kHz
FM/AM Preset Memory 40 stations

GENERAL

Power Supply AC 120 V~, 60 Hz
Power Consumption 445 W
Standby Power Consumption 0.1 W
Dimensions (W x H x D) 17 1/8" x 6 5/8" x 12 15/16" (435 x 160 x 328 mm)
Weight 18.1 lbs (8.2 kg)

CARTON

Dimensions (W x H x D) 20 11/16" x 9 7/16" x 15 15/16" (525 x 240 x 405 mm)
Weight 23.1 lbs. (10.5 kg)

UPC CODE

(B) 889951001430

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
