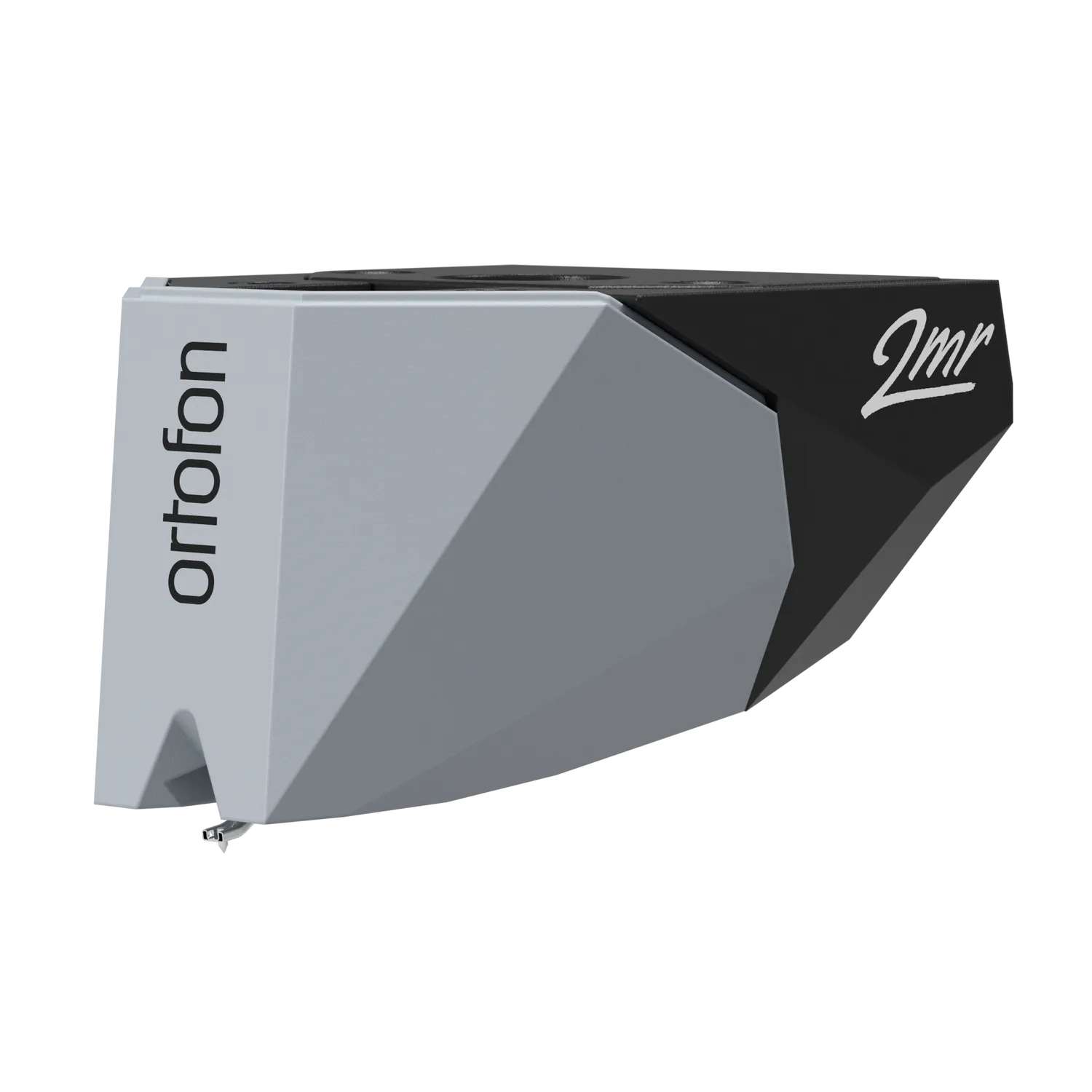

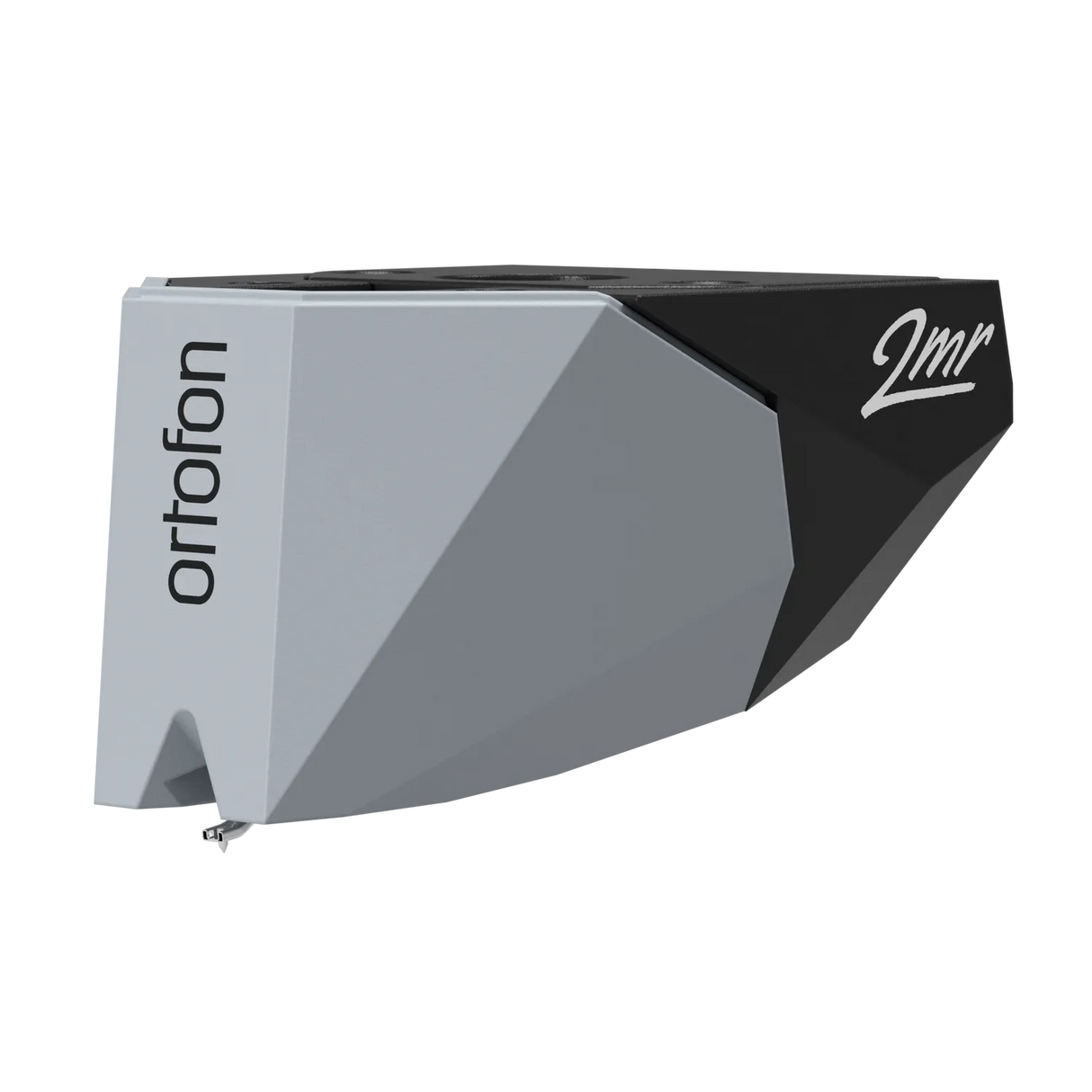

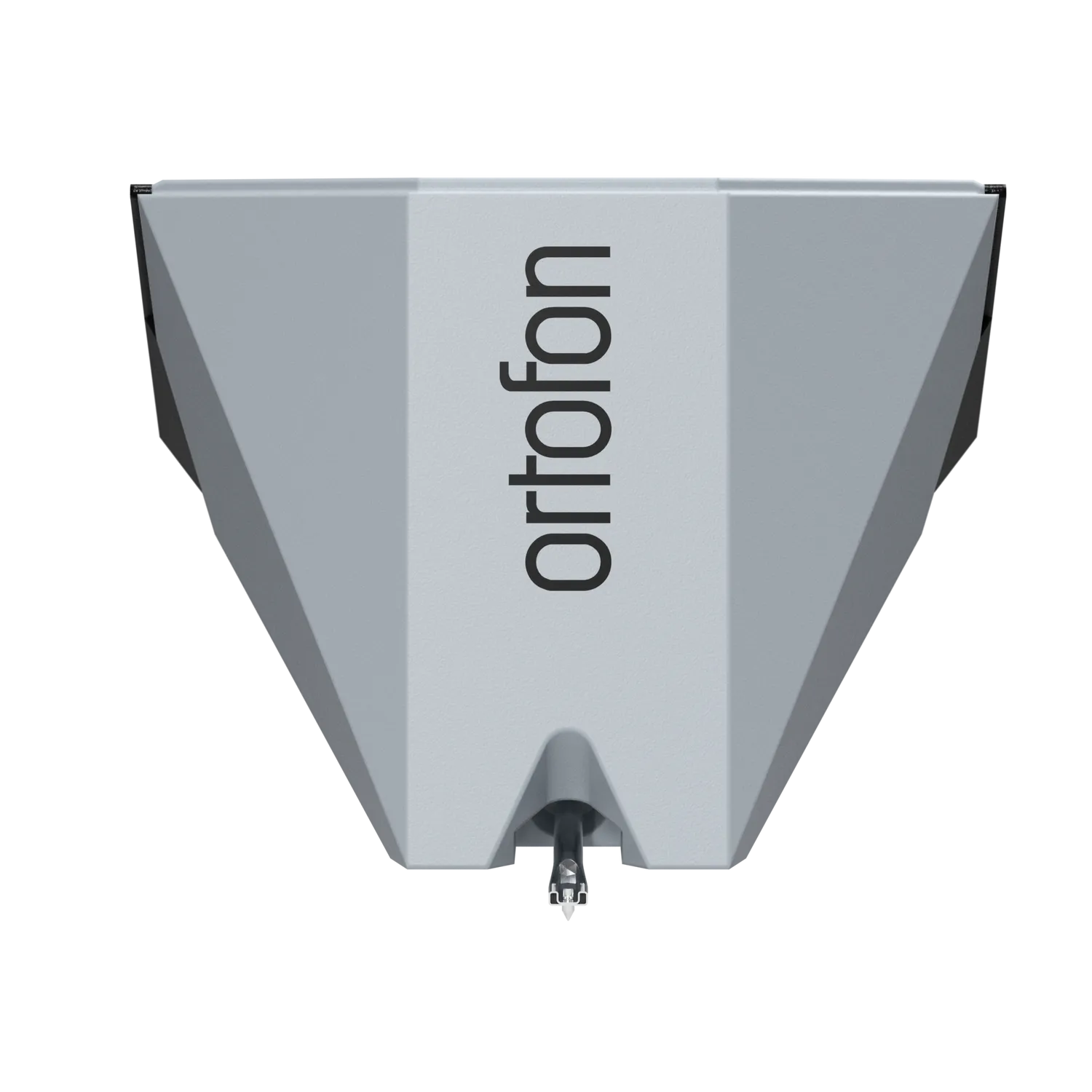

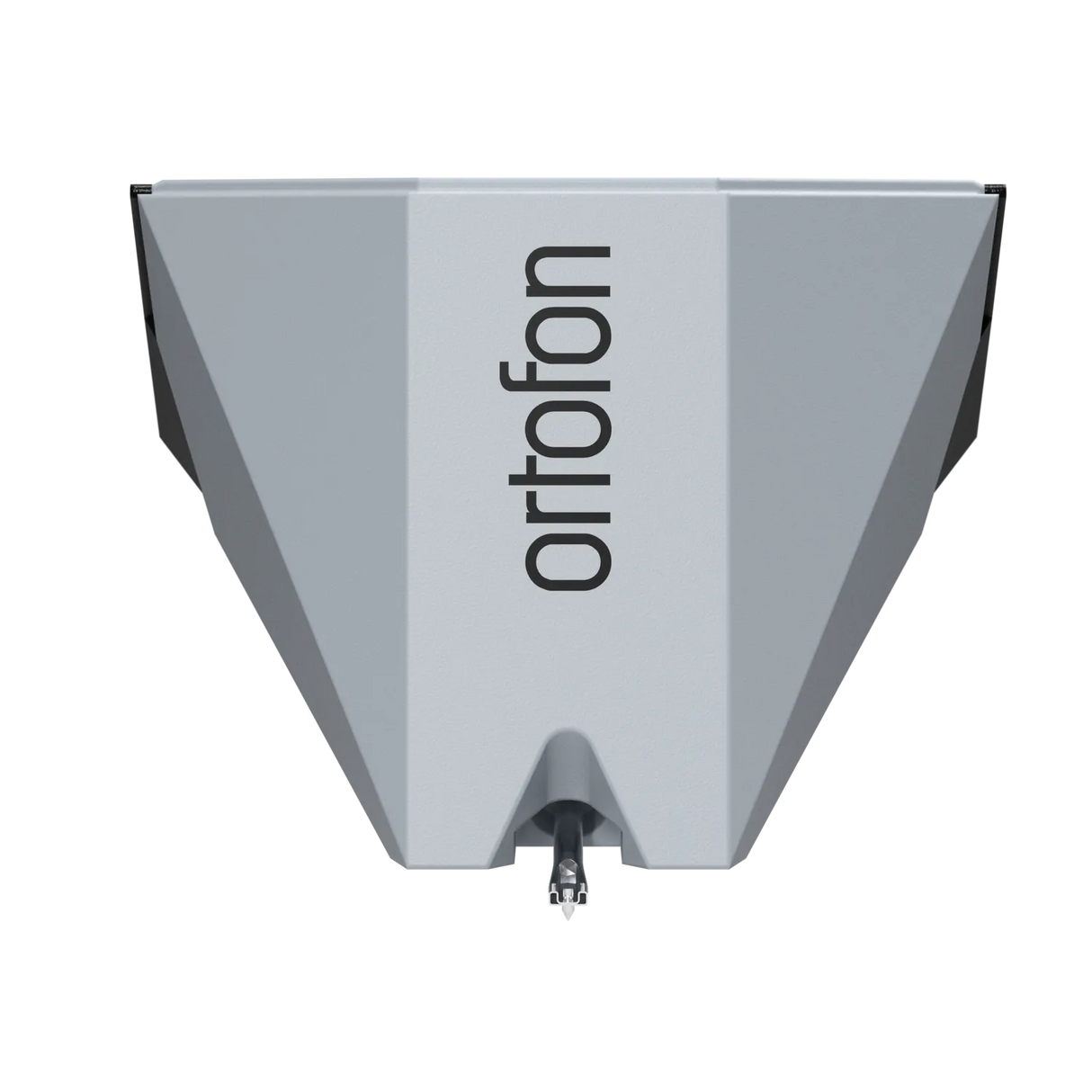

Ortofon 2MR 78, cartridge

Travel back in time with the "2MR 78 Mono" cassette, specially designed to play 78 rpm shellac records.
€149.00 EUR

Ortofon 2MR 78, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Travel back in time with the "2MR 78 Mono" cassette, specially designed to play 78 rpm shellac records. Immerse yourself in the authentic nostalgia of monophonic vinyl records, brought to life with unparalleled accuracy and fidelity.

  • Tracking capability at 315 Hz and recommended tracking force of 70 µm.
  • Compliance, dynamic, lateral 18 µm/mN
  • Feather type Spherical
  • Nib tip radius R 65 µm
  • Tracking force range 1.6-2.0 g (16-20 mN)
  • Recommended tracking force 1.8 g (18 mN)


    DESCRIPTION

    Made for Mono

    Stylus

    The 2MR 78 features a stylus tip with a spherical diamond, perfect for playback of 78 rpm shellac records. These unique records necessitate a larger stylus profile, and the 2MR 78 flawlessly accommodates this requirement, ensuring optimal playback quality and preserving the authenticity of your cherished collection.




    High-performance motor system

    Output

    The 2MR 78 features a high-performance motor system incorporating unique to Ortofon quad coils with split pole pins and uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.


    TECHNICAL DATA

    SPECIFICATIONS

    • Output voltage at 1 kHz, 5cm/sec
      4 mV
    • Frequency response 20 Hz - 20 kHz
      3 / - 1 dB
    • Tracking ability at 315Hz at recommended tracking force
      70 µm
    • Compliance, dynamic, lateral
      18 µm/mN
    • Stylus type
      Spherical
    • Stylus tip radius
      R 65 µm
    • Tracking force range
      1.6-2.0g (16-20mN)
    • Tracking force, recommended
      1.8 g (18 mN)
    • Tracking angle
      20°
    • Internal impedance, DC resistance
      700 Ohms
    • Cartridge color
      Black/Grey
    • Recommended load resistance
      47 kOhm
    • Internal inductance
      350 mH
    • Stylus color
      Grey
    • Recommended load capacitance
      150-300 pF

    DOCUMENTS

    INSTRUCTIONS

    User Manual (EN).
