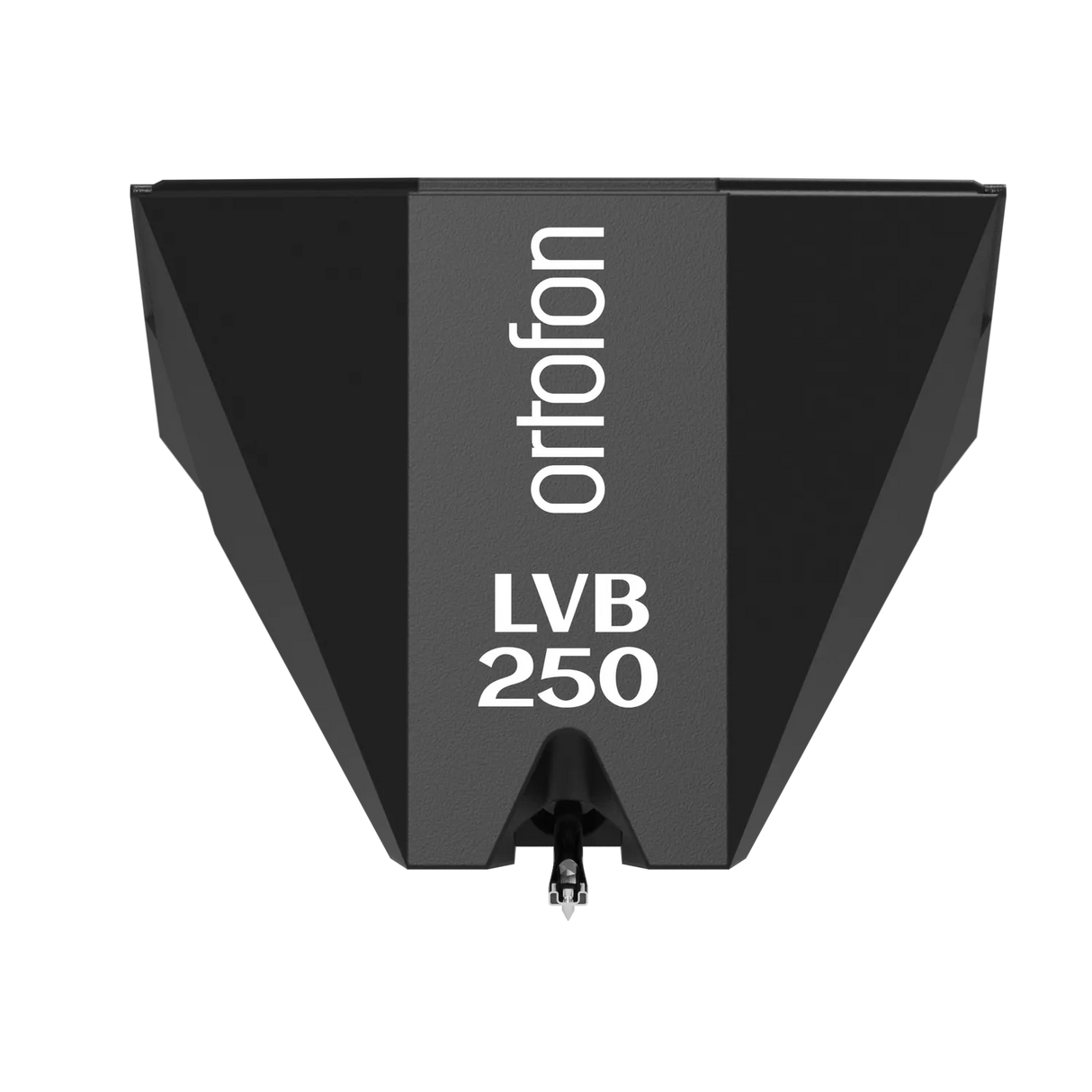

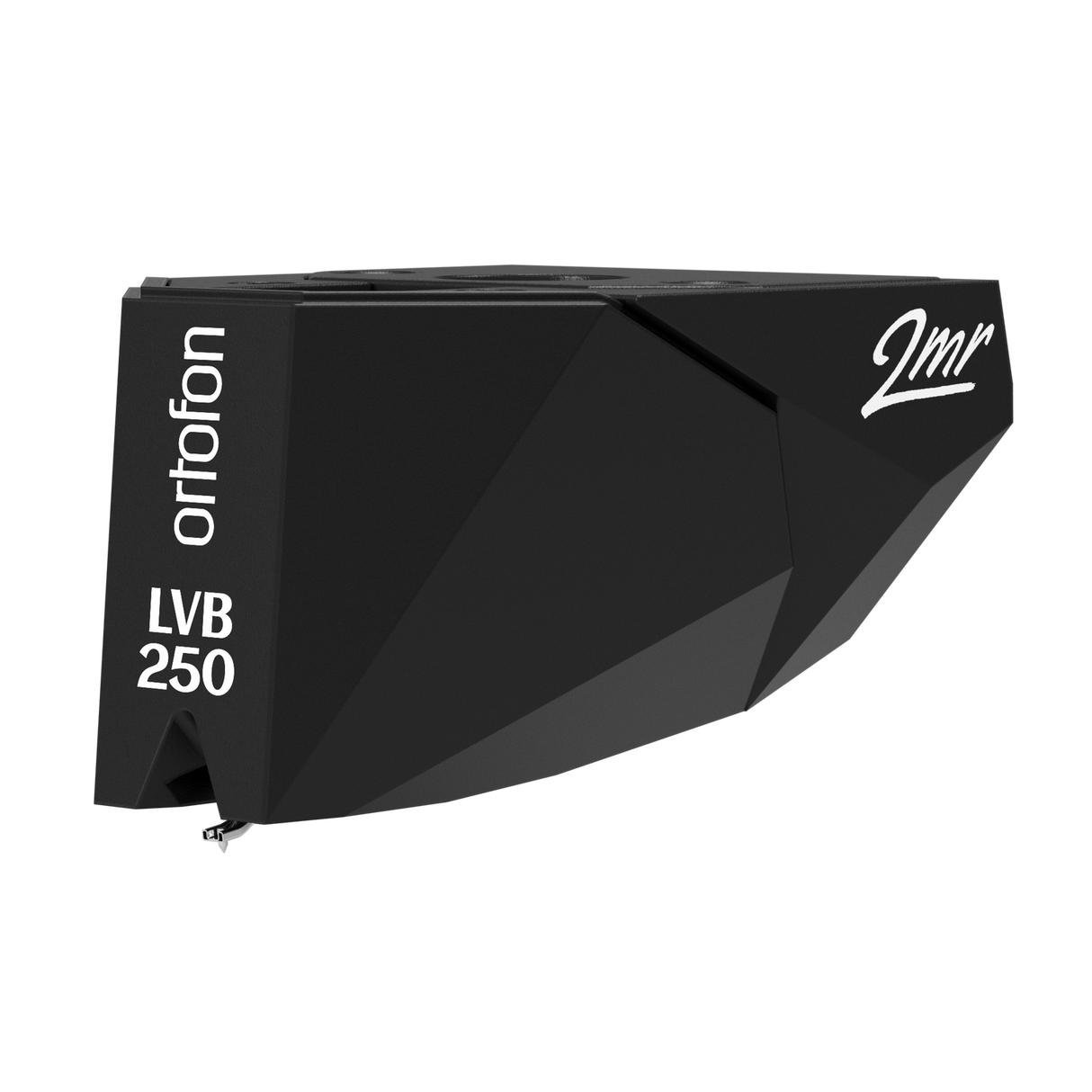

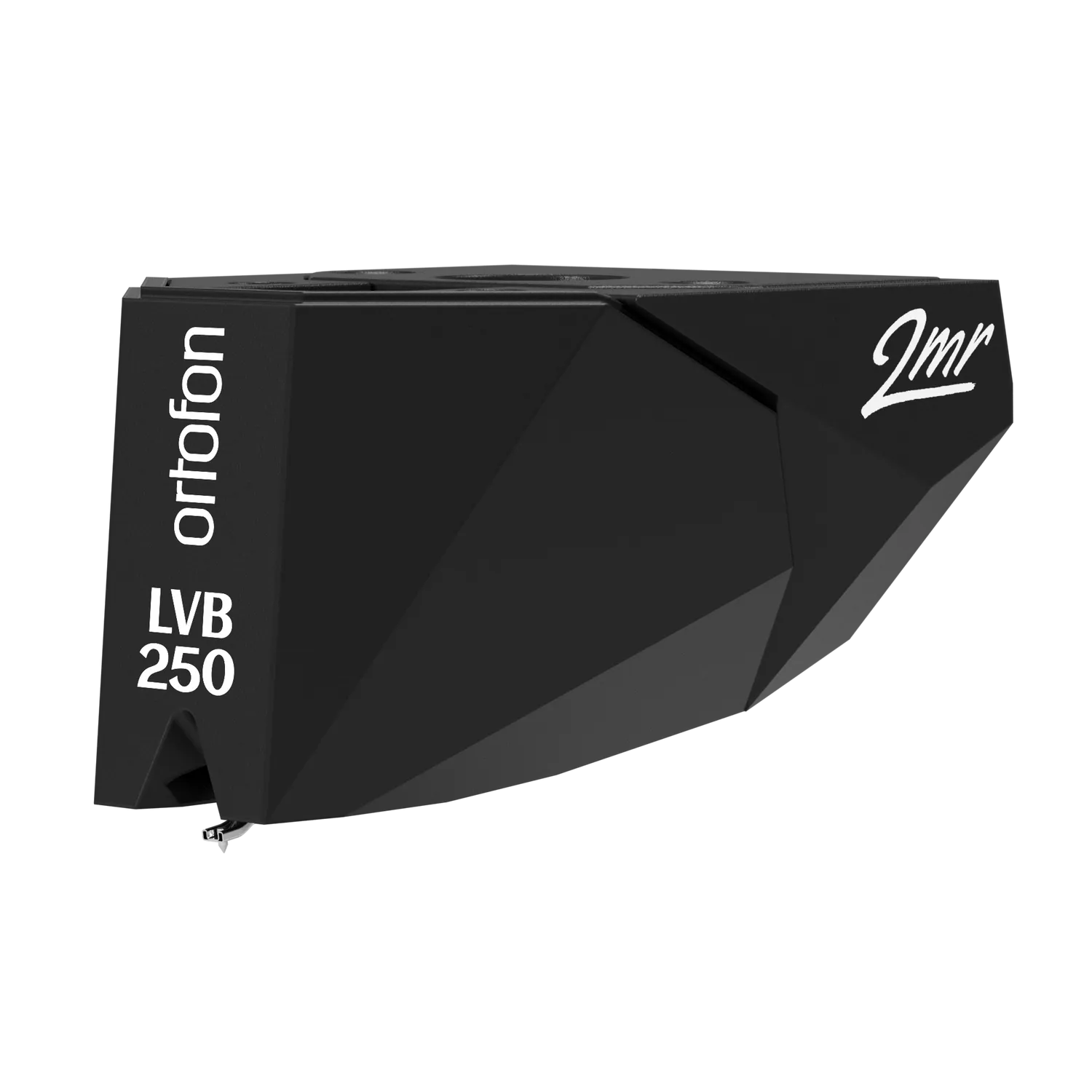

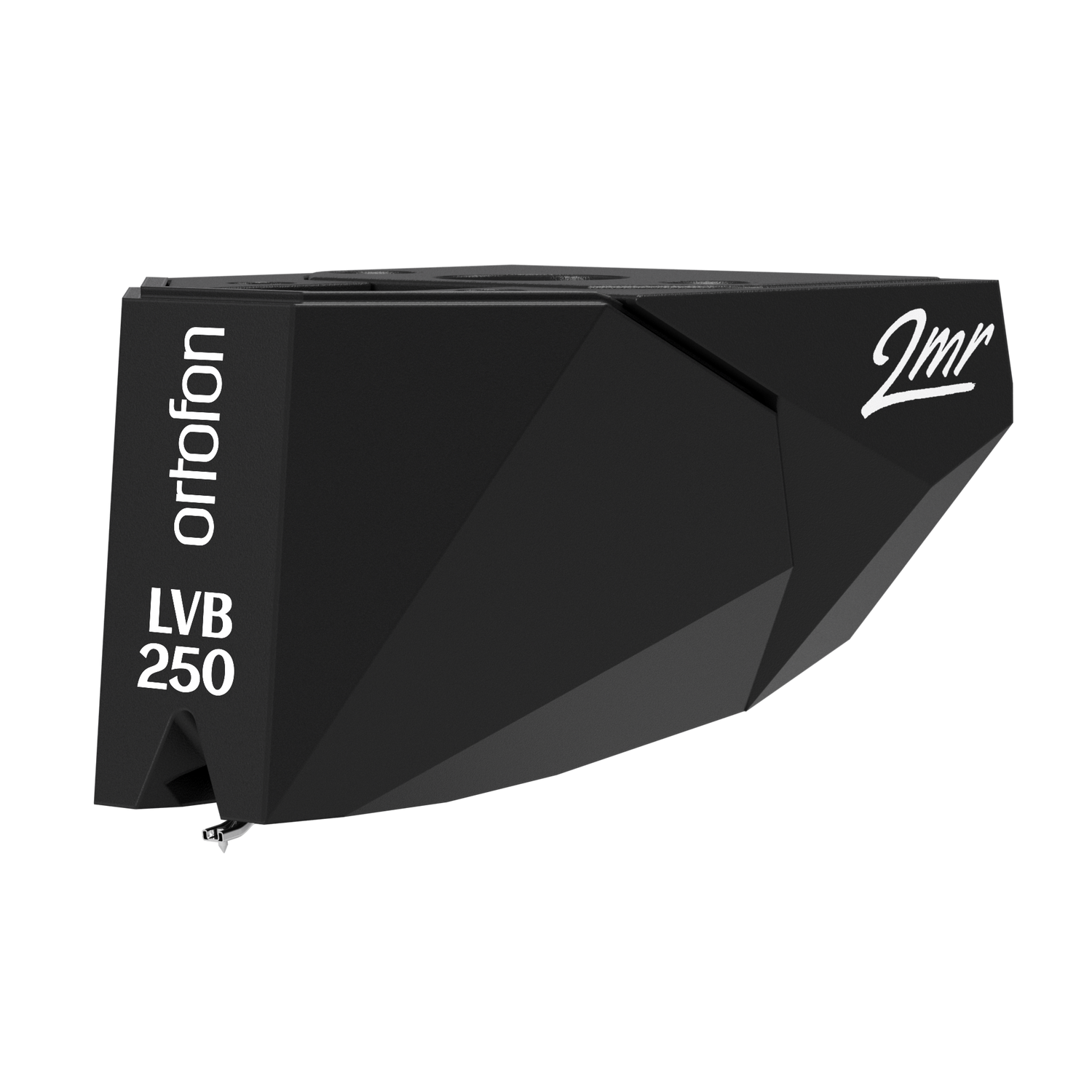

Ortofon 2MR Black LVB 250, cartridge

The 2MR Black LVB 250 improves upon the excellent design of the 2M Black by adding a boron console and our proprietary Nano Tube suspension system.
€999.00 EUR

Ortofon 2MR Black LVB 250, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Tracking capability at 315 Hz and recommended tracking force of 80 µm.
  • Compliance, dynamic, lateral 22 µm/mN.
  • Feather type "Nude Shibata" on a boron console.
  • Feather tip radius r/R 6/50 µm.
  • Tracking force range 1.5-1.7 g (15-17 mN).
  • The recommended tracking force is 1.6 g (16 mN).

DESCRIPTION

Like having the artist in the room with you

Accuracy level

The 2M Black is an amazing cartridge and, by many, considered the ultimate in moving magnet. So, why would we attempt to create something even better? Because perfection runs in our blood. The 2MR Black LVB 250 upgrades the great build of the 2M Black, and the result is a sound so precise and so detailed that you feel like you have let the artist into your house and have them playing right in your living room.


Nude Shibata diamond on a boron cantilever

Stylus

The 2M Black LVB 250 upgrades the great build of the 2M Black with a Nude Shibata diamond on a boron cantilever. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.

The Nude Shibata stylus' slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures remarkably detailed reproduction throughout the spectrum, including even the highest frequencies.

TECHNICAL DATA

SPECIFICATIONS

  • Channel balance at 1 kHz
    < 1 dB
  • Output voltage at 1 kHz, 5cm/sec
    5 mV
  • Channel separation at 1 kHz
    > 27 dB
  • Channel separation at 15 kHz
    15 dB
  • Frequency response 20 Hz - 20 kHz
    + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force
    80 µm
  • Compliance, dynamic, lateral
    22 µm/mN
  • Stylus type
    Nude Shibata on Boron cantilever
  • Stylus tip radius
    r/R 6/50 µm
  • Tracking force range
    1.5-1.7 g (15-17 mN)
  • Tracking force, recommended
    1.6 g (16 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.2 kOhm
  • Cartridge colour
    Black
  • Cartridge weight
    6 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    630 mH
  • Stylus color
    Black
  • Recommended load capacitance
    47 kOhm
