Ortofon

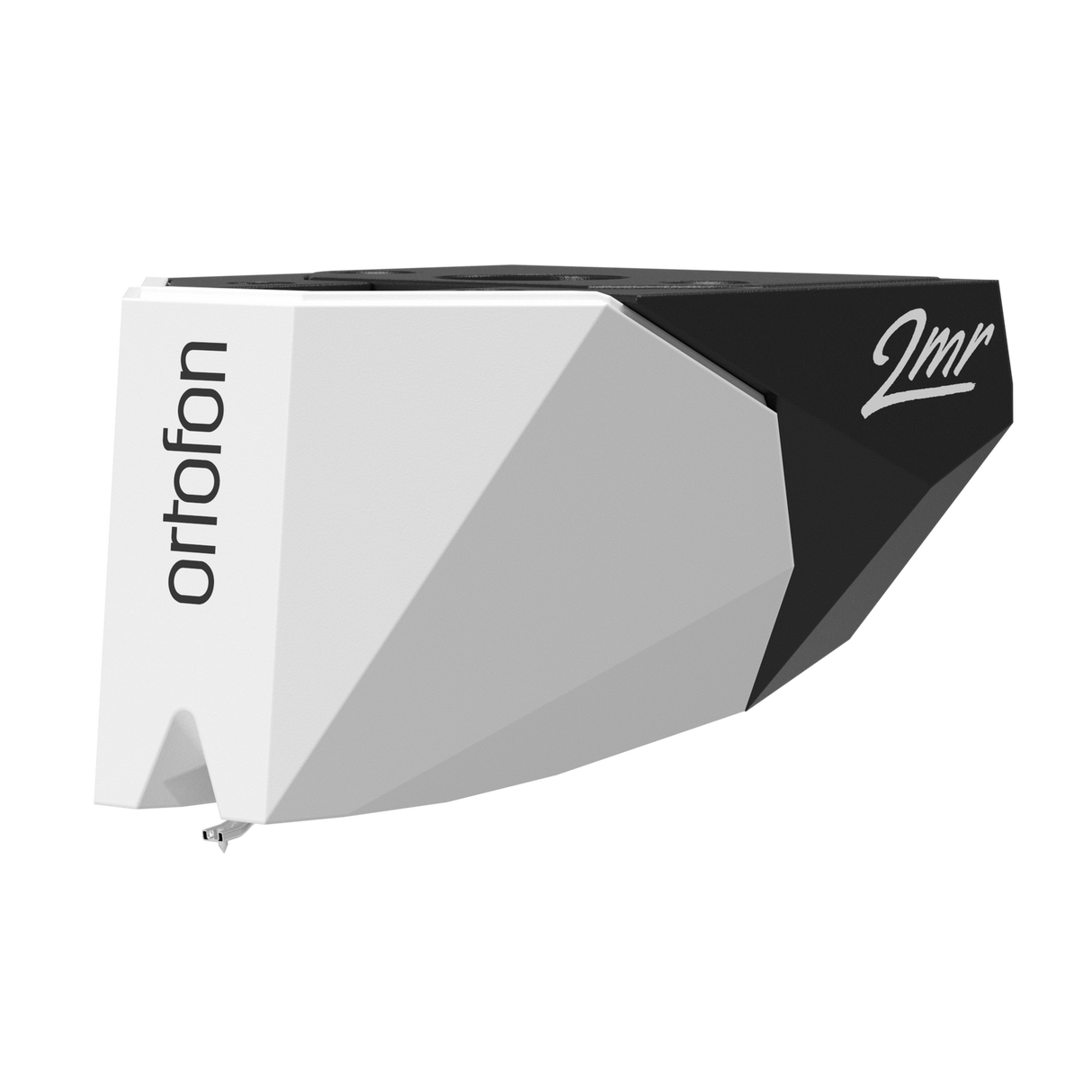

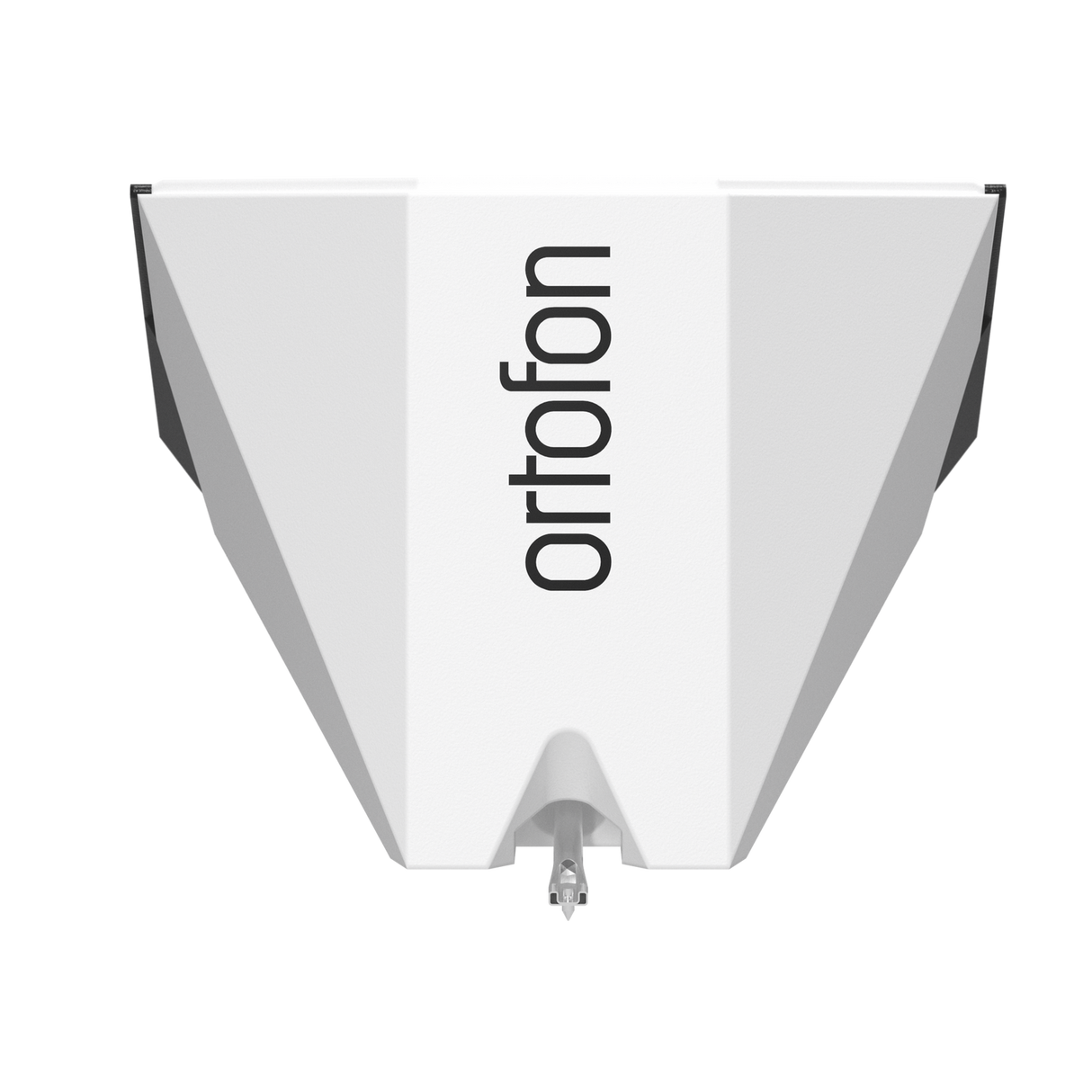

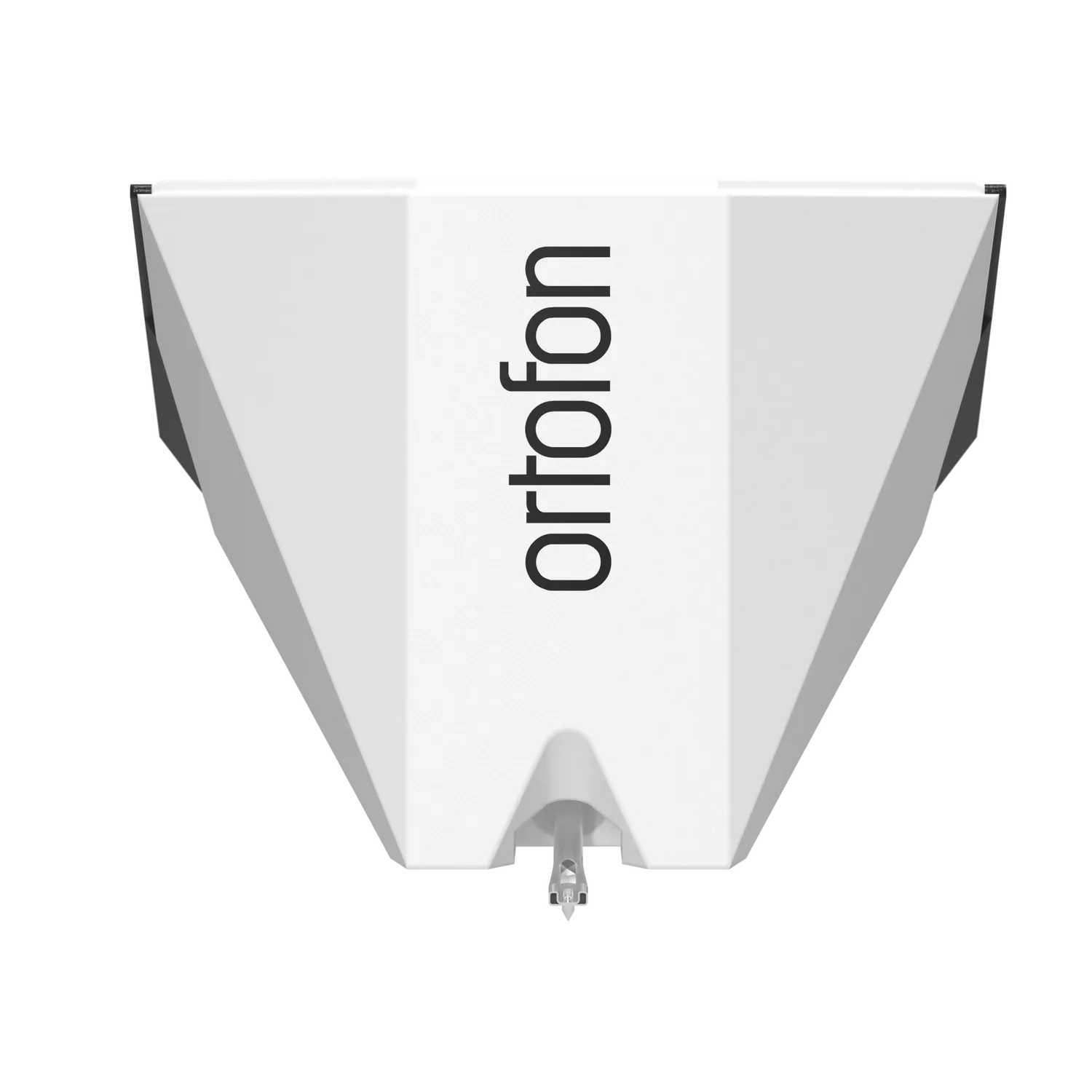

Ortofon 2MR Mono, cartridge

Travel back in time with the 2MR 78 Mono cassette, specially designed for 78 rpm.
€399.00 EUR

Ortofon 2MR Mono, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. for playing shellac records. Immerse yourself in the authentic nostalgia of mono vinyl records, brought to life with unparalleled precision and fidelity.

  • Compliance, dynamic, lateral 18 µm/mN.
  • Feather tip radius R18 µm.
  • Tracking force range 1.6-2.0 g (16-20 mN).
  • The recommended tracking force is 1.8 g (18 mN).


    DESCRIPTION

    Step into an Era of Authenticity with the 2MR Mono Cartridge, thoughtfully crafted with a stylus' tip that features an R 18µm Nude Spherical diamond to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.

    Ortofon 2MR Mono features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
    With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

    Stylus

    The 2MR 78 features a stylus tip with a spherical diamond, perfect for playback of 78 rpm shellac records. These unique records necessitate a larger stylus profile, and the 2MR 78 flawlessly accommodates this requirement, ensuring optimal playback quality and preserving the authenticity of your cherished collection.

    Enjoy true mono

    Output

    The 2MR Mono features a high-performance motor system with quad coils and Ortofon's very own invention: the split pole pins. The 2MR Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.


    Designed for optimized fitting on low-profile turntables

    Compatibility

    The 2MR Mono 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

    TECHNICAL DATA

    SPECIFICATIONS

    • Output voltage at 1 kHz, 5cm/sec
      4 mV
    • Frequency response 20 Hz - 20 kHz
      + 3 / - 1 dB
    • Tracking ability at 315Hz at recommended tracking force
      70 µm
    • Compliance, dynamic, lateral
      18 µm/mN
    • Stylus tip radius
      R18 µm
    • Tracking force range
      1.6-2.0 g (16-20 mN)
    • Tracking force, recommended
      1.8 g (18 mN)
    • Tracking angle
      20°
    • Internal impedance, DC resistance
      700 ohms
    • Cartridge colour
      Black/White
    • Cartridge weight
      6 g
    • Recommended load resistance
      47 kOhm
    • Internal inductance
      350 mH
    • Stylus color
      White
