Ortofon

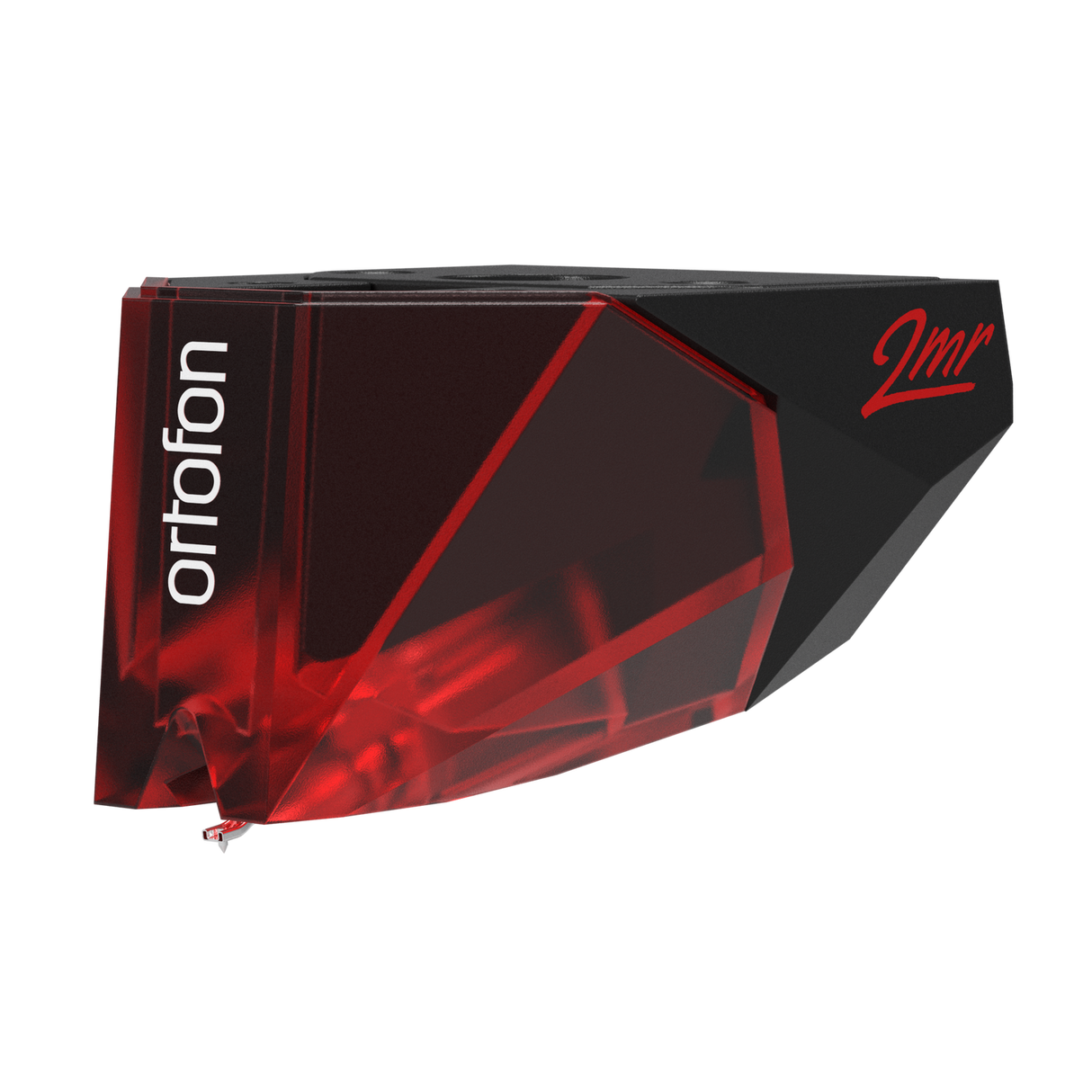

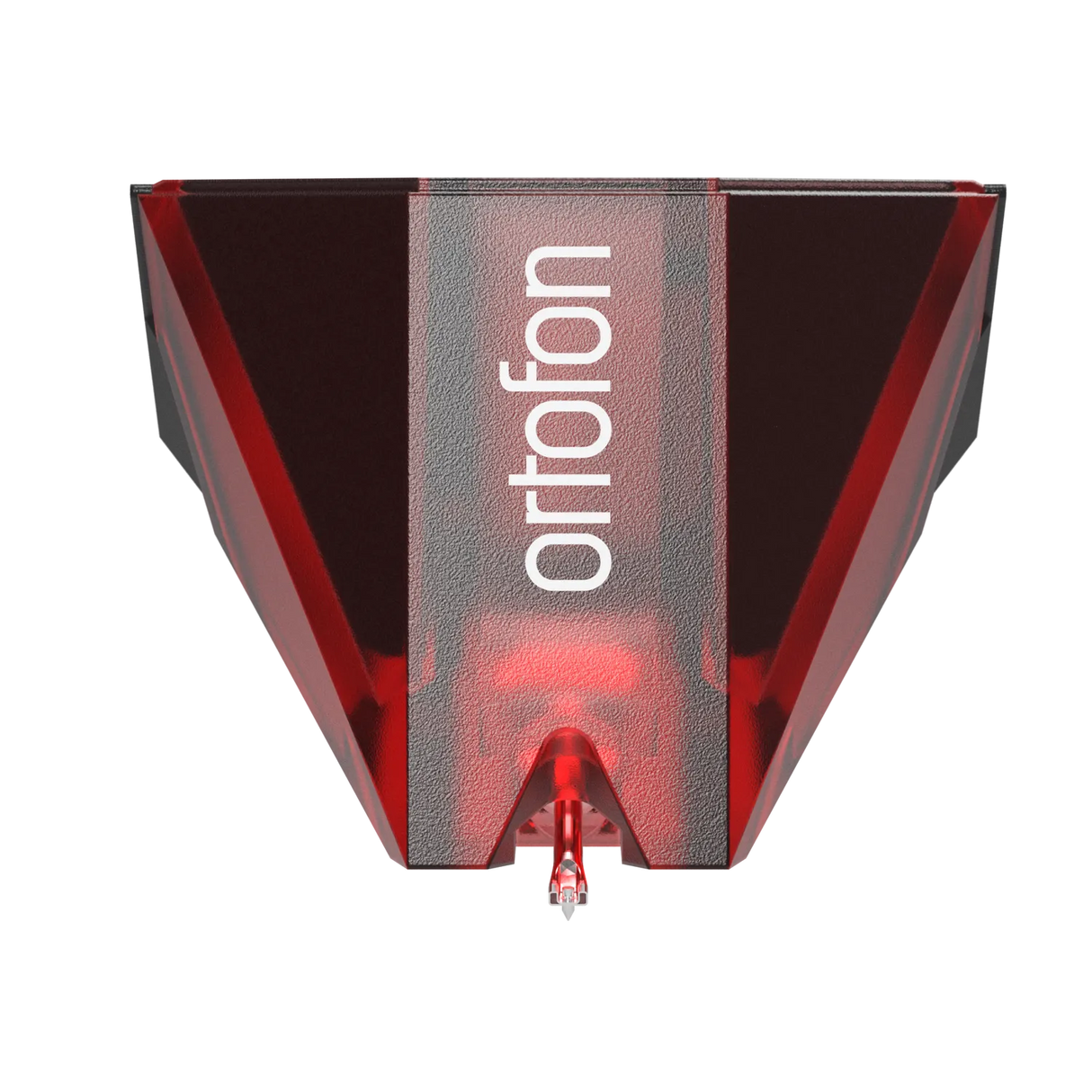

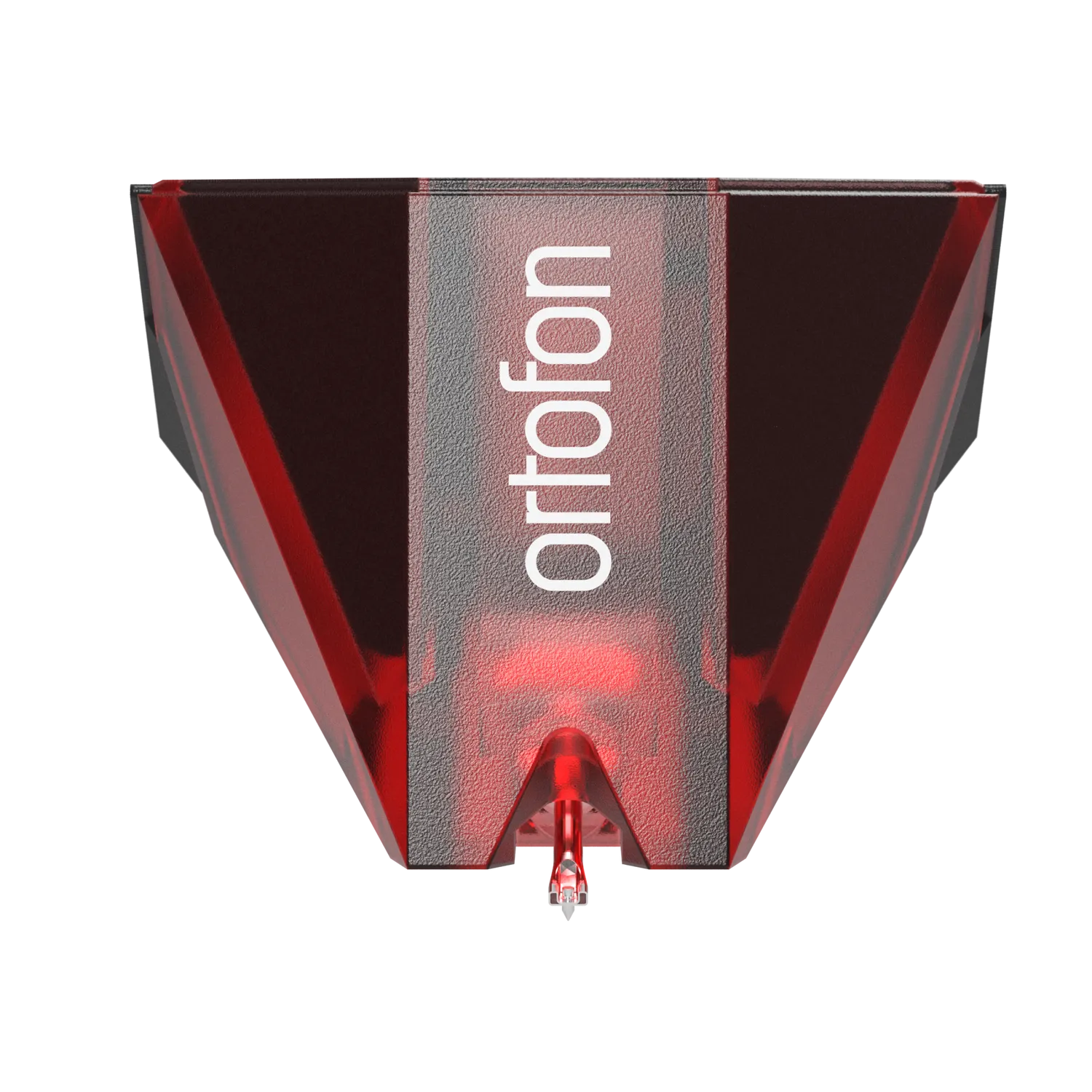

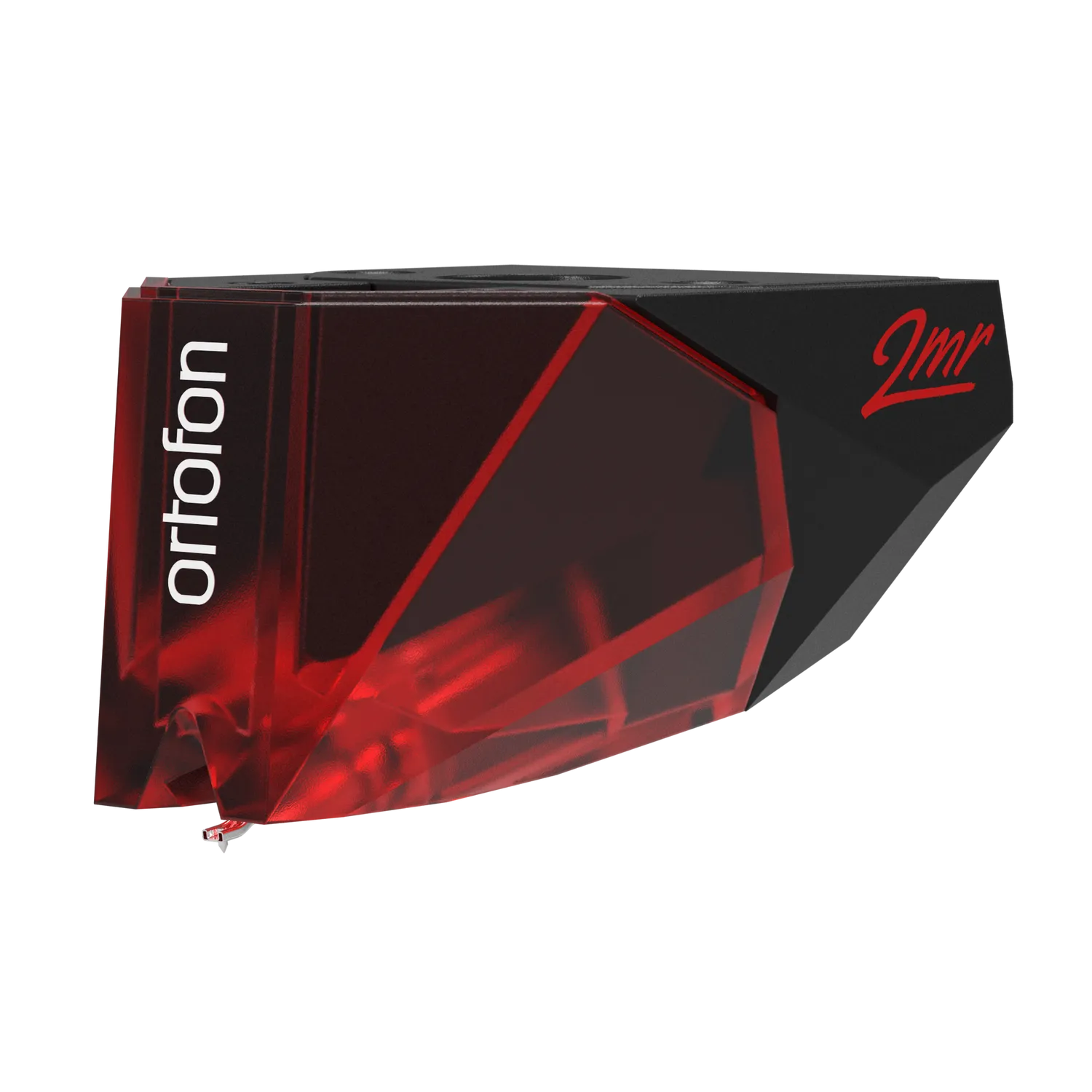

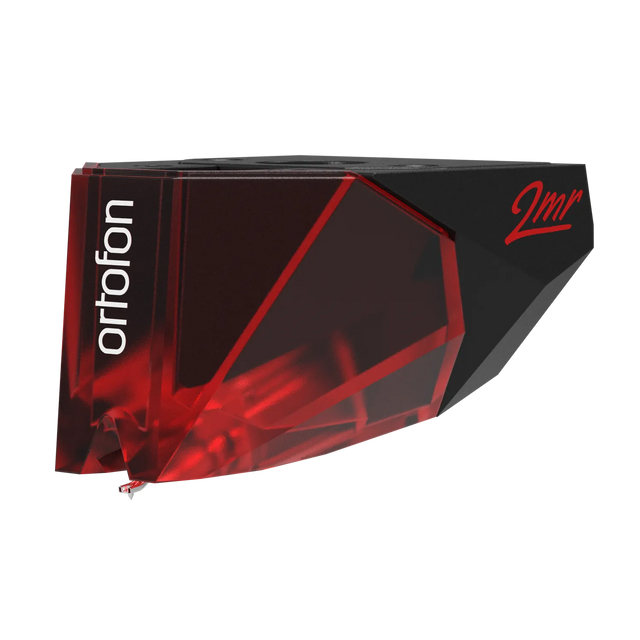

Ortofon 2MR Red, cartridge

The Ortofon 2MR series is designed with a newly designed cartridge body for optimal attachment to low-profile turntables.
€99.00 EUR

Ortofon 2MR Red, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Output voltage at 1 kHz, 5 cm/sec. 5.5 mV.
  • Tracking capability at 315 Hz and recommended tracking force of 70 μm.
  • Compliance, dynamic, lateral 18 μm/mN.
  • Type Elliptical on an aluminum console.
  • Recommended tracking force 1.8 g.
  • Coil wire material: Copper
  • Cartridge weight: 6 g.


DESCRIPTION

The Ortofon 2MR series is designed with a newly developed cartridge housing for optimized fitting on low-profile turntables. With its ultra-slim 3mm height reduction, seamless integration is guaranteed. The cartridge's slimline body eliminates the need for spacers or modifications, ensuring quick, easy mounting with just two screws.

Experience unmatched compatibility with all 2M styles and revel in the high-performance motor system featuring quad coils and split pole pins, exclusive to genuine Ortofon cartridges.

Taking a step into music itself

Accuracy level

With the 2MR Red you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry. The 2MR Red delivers an open, dynamic sound with a slight touch of warmth. .


Designed for low-profile turntables

Compatibility

The Ortofon 2MR Red features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

TECHNICAL DATA

SPECIFICATIONS

  • Output voltage at 1 kHz, 5cm/sec
    5.5 mV
  • Tracking ability at 315Hz at recommended tracking force
    70 μm
  • Compliance, dynamic, lateral
    18 μm/mN
  • Stylus type
    Elliptical on Aluminum cantilever
  • Tracking force, recommended
    1.8 g
  • Coil wire material
    Copper
  • Cartridge weight
    6 g
  • 2MR cartridge weight
    6 grams
  • Recommended load resistance
    47 kOhm
  • Recommended load capacitance
    150 - 300 pF

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
