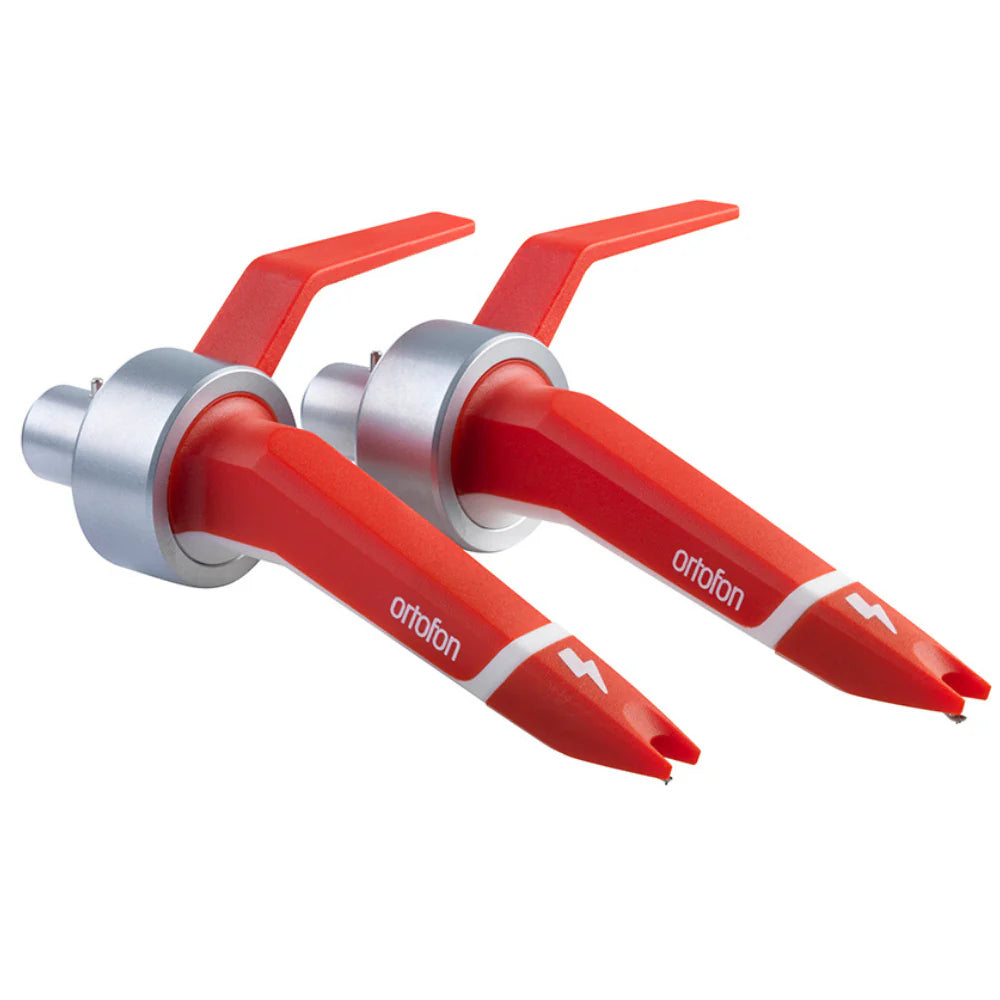

Ortofon Concorde MKII Twin Digital, replacement stylus
The Concorde MKII Twin Digital is an innovative solution for DJs who use timecode vinyl and regular vinyl.
Ortofon Concorde MKII Twin Digital, replacement stylus - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA

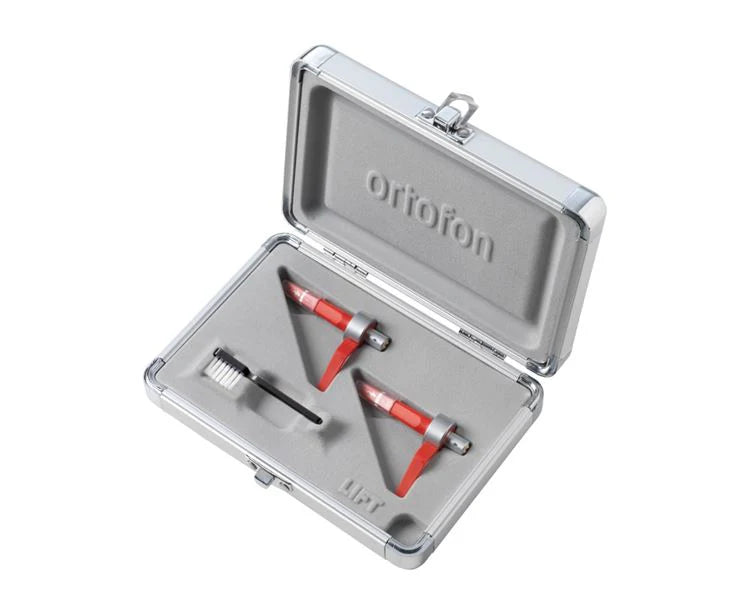

. The set includes two Concorde MKII Digital cartridges with pre-installed styluses, conveniently packaged in a sturdy case.DESCRIPTION
This cartridge is designed to extend the life of clockwork vinyl records, reduce decoding errors, and ensure optimal sound.
Durability and protection
- Concorde MKII Digital extends the life of clockwork vinyls by reducing their wear and tear.
- Reduces errors in interpreting clock signal data, ensuring smooth operation.
High sound quality
- Optimized 10 mV output voltage improves signal-to-noise ratio.
- Ensures smooth and accurate transmission of the clock signal to the software.
Spherical stylus – less wear and tear
- The spherical stylus not only perfectly reproduces the soundtrack, but also reduces vinyl wear while maintaining optimal sound quality.
TECHNICAL DATA
- Stylus type: Spherical diamond
- Stylus tip radius: R 18 μm
- Output voltage (1 kHz, 5 cm/s): 10 mV
- Channel balance (1 kHz): 1 dB
- Channel separation (1 kHz): 22 dB
- Tracking capability (315 Hz): 100 μm
- Internal resistance: 1200 Ohm
- Internal inductance: 850 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200–400 pF
- Weight: 18.5 g
- Recommended tracing force: 4 g
- Tracking force range: 3-5 g
- Interchangeable stylus: Stylus CC MKII Digital
