Ortofon

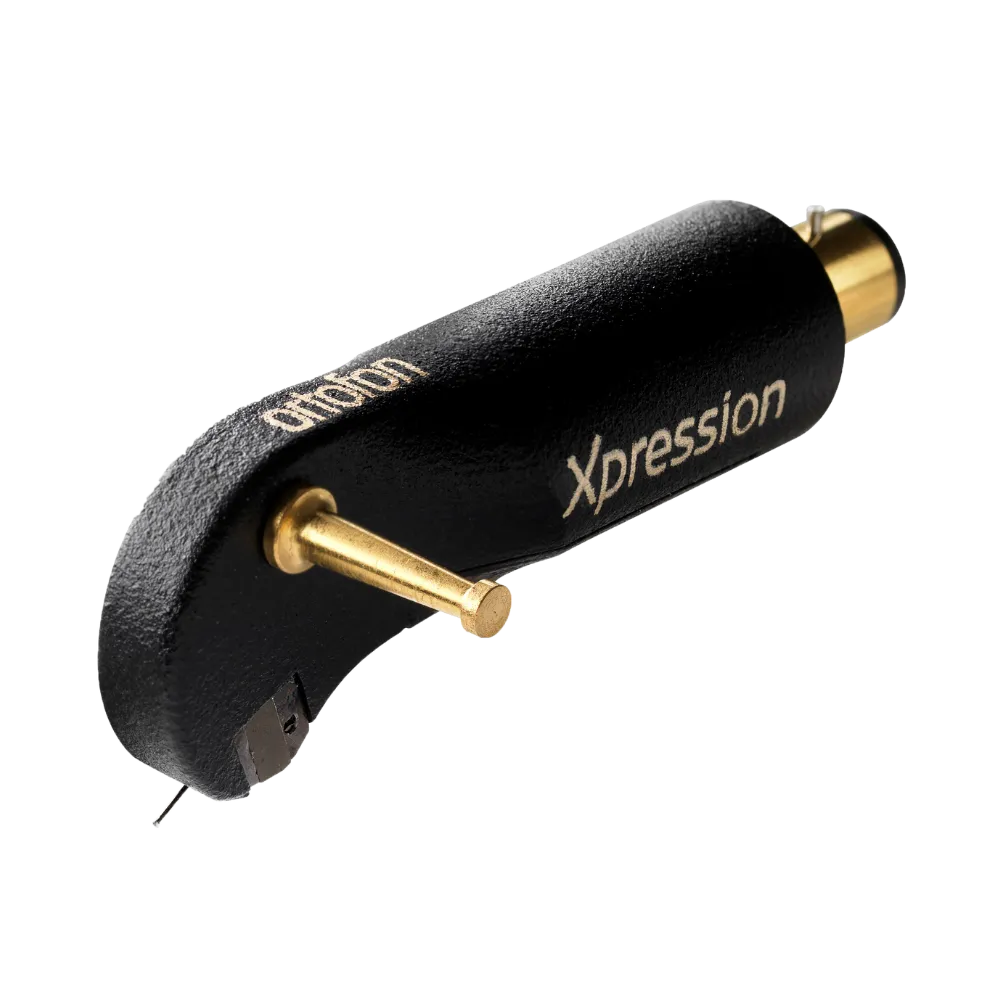

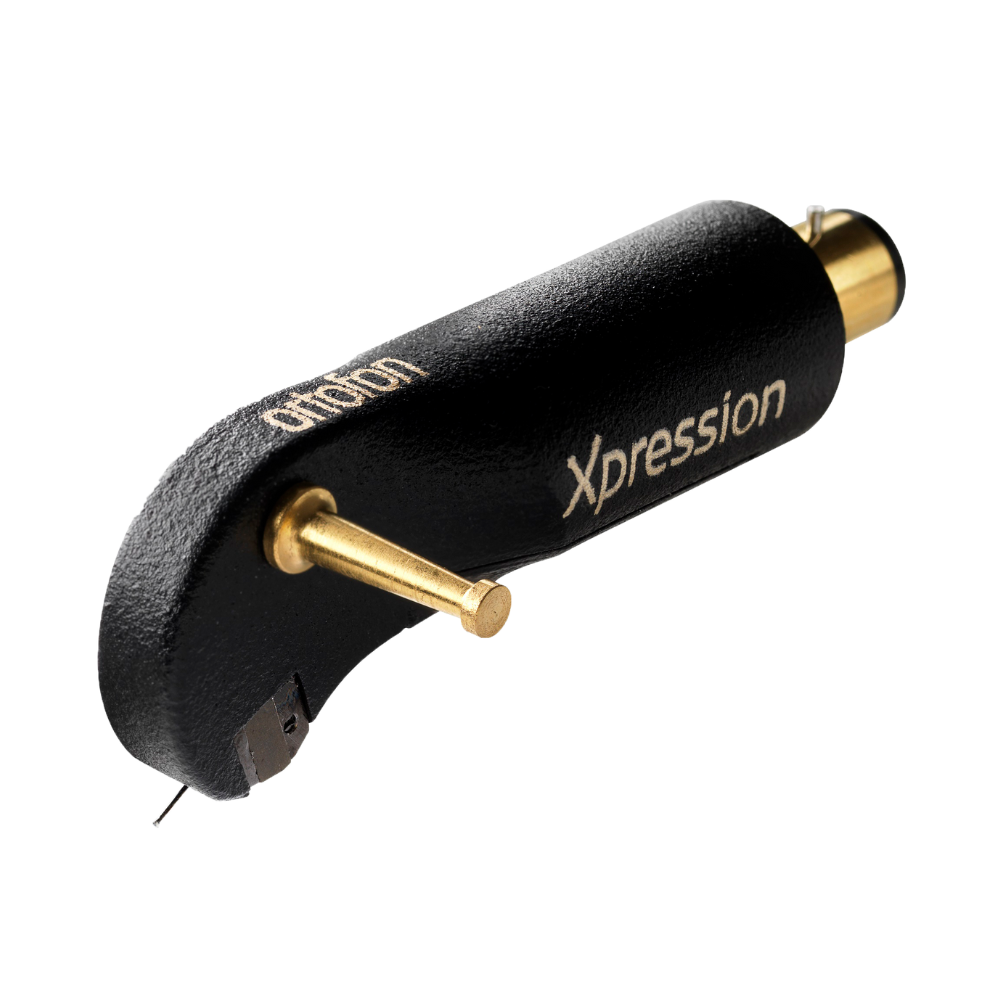

Ortofon Expression, cartridge

The Xpression cartridge fills the gap between SPU type cartridges and High-End cartridges such as the MC A90 and MC Windfeld designed to be mounted on the head shell.
€5,499.00 EUR

Ortofon Expression, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Tracking capability at 315 Hz and a recommended tracking force of 80 μm.
  • Compliance, dynamic, lateral 11 μm/mN.
  • Type: Specially polished Nude Ortofon Replicant 100 on diamond console.
  • The radius of the touch pen tip r/R 5/100 μm.


    DESCRIPTION

    The Xpression cartridge bridges the gap between the SPU-type cartridges and High-End cartridges like the MC A90 and the MC Windfeld designed for headshell mounting.

    The result is a high-performance moving coil cartridge with the convenience of a standard headshell connector, which provides a simple and elegant method of directly connecting the generator and tonearm via the Xpression's one-piece body.


    Elegant design without compromise

    Accuracy level

    The Xpression, although derived from the materials and techniques employed with the A90 cartridge, finds a superb sonic balance between the literal precision of the A90 and the powerful dynamics and fluid body of its SPU predecessors.

    Because of the nature of SLM-based construction, each cartridge body is cosmetically unique and will show small dimples or lines under close examination.


    Ortofon Replicant 100

    Stylus

    The Xpression features an ultra-fine and extra polished version of the unique Ortofon Replicant 100 stylus on Boron Cantilever. The Replicant 100 is also used in the MC A90, MC Windfeld, MC Anna, and MC Cadenza Bronze cartridges, providing more responsive and transparent sound reproduction.

    One of the preconditions for linear reproduction with a wide frequency range and optimal tracking performance is a diamond - the shape of which is as close as possible to the original cutting needle.

    This diamond is incredibly small and light but has an extraordinarily large vertical contact surface despite its minimal radius of rounding. Correctly fitted at a vertical angle of 23 degrees, an Ortofon Replicant Stylus 100 will read the musical information in the grooves of a record with a greater degree of accuracy than any other kind of needle.

    Benefits of high-end materials

    Cartridge body


    By combining the utilization of this SLM process and our WRD system, we are confident that the perfect mechanical integration of this cartridge with your tonearm will result in a significant and breathtaking increase in dynamics, staging, resolution, and richness. Ultrahigh purity silver is used for the internal wiring between the generator and the standard headshell connector.

    Finally, the bottom cover has been constructed from a special proprietary TPE (Thermo-Plastic Elastomer) material, which provides extremely high damping. You simply experience more drama and greater breadth, height, and depth in the sound scenario.

    TECHNICAL DATA

    SPECIFICATIONS

    • Output voltage at 1 kHz, 5cm/sec
      0.5 dB, 0.2 mV
    • Channel separation at 1 kHz
      25 dB
    • Channel separation at 15 kHz
      20 dB
    • Frequency response 20 Hz - 20 kHz
      +/- 2dB
    • Tracking ability at 315Hz at recommended tracking force
      80 μm
    • Compliance, dynamic, lateral
      11 μm/mN
    • Stylus type
      Special polished Nude Ortofon Replicant 100 on Diamond cantilever
    • Stylus tip radius
      r/R 5/100 μm
    • Tracking force range
      2.5 - 2.8 g
    • Tracking force, recommended
      2.6 g
    • Tracking angle
      23°
    • Internal impedance, DC resistance
      6Ω
    • Recommended load impedance
      >10 Ω
    • Cartridge body material
      SLM Titanium
    • Cartridge colour
      Silver/Black
    • Cartridge weight
      17.5 g
