Ortofon

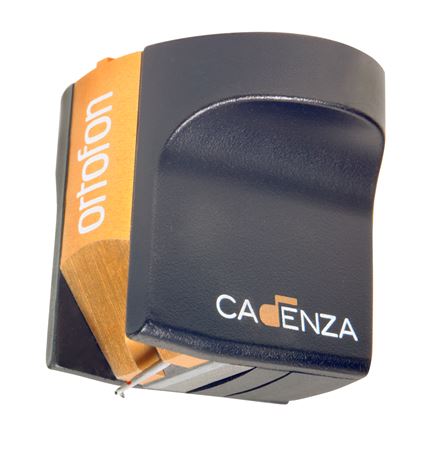

Ortofon MC Cadenza Bronze, turntable head

Cadenza Bronze is a true high-end reference cartridge that delivers music with extreme precision, impact and dynamics.
€2,799.00 EUR

Ortofon MC Cadenza Bronze, turntable head - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Stylus type: Nude Ortofon Replicant 100 on conical aluminum cantilever.
  • Frequency band: 20 Hz - 20 kHz - +/-1.5 .
  • Pressure power: 2.2-2.7 g (22-27 mN) .

DESCRIPTION

The Cadenza Bronze model uses a Replicant 100 stylus and a conical aluminum cantilever.
The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.
Field Stabilizing Element/FSE, is used for optimal linearity especially during complex crescendo passages.


TECHNICAL DATA

SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.4 mV
  • Channel balance at 1 kHz - < 1 dB
  • Channel separation at 1 kHz - > 24 dB
  • Channel separation at 15 kHz - > 20 dB
  • Frequency response 20 Hz - 20 kHz - +/-1.5
  • Tracking ability at 315Hz at recommended tracking force *) - 80 µm
  • Compliance, dynamic, lateral - 12 µm/mN
  • Stylus type - Nude Ortofon Replicant 100 on conical aluminum cantilever
  • Stylus tip radius - r/R 5/100 µm
  • Tracking force range - 2.2-2.7 g (22-27 mN)
  • Tracking force, recommended - 2.5 g (25 mN)
    *) Typical value
  • Tracking angle - 23°
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - 50-200 Ohm
  • Cartridge body material - Stainless steel / Aluminum
  • Cartridge color - Bronze/Black
  • Cartridge weight - 10.7 grams

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
