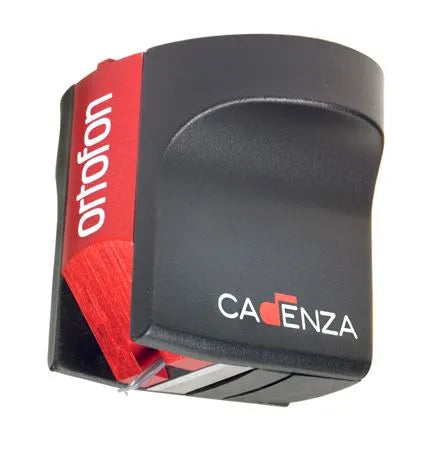

Ortofon MC Cadenza Red turntable head

€1,499.00 EUR

Ortofon MC Cadenza Red turntable head - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.


Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

The Cadenza Red model uses a Nude Fine Line stylus with a cylindrical aluminum cantilever. The radius of the sensor tip is r/R 8/40 µm.

  • Stylus type: Nude Fine Line on Alu cantilever .
  • Frequency band: - 20 Hz - 20 kHz - +3/-1 .
  • Pressure power: 2.2-2.7 g (22-27 mN).

The Cadenza Mono model is made with a Nude Fine Line stylus and a cylindrical aluminum cantilever. The stylus radius is r/R 8/40 µm.
The coils are made from 6NX (99.9999%) pure silver wire. An improved winding process on the armature allows a better channel balance.
For easy use the pins are connected so you get the same signal from both pairs of connecting pins.
Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback the sound is relaxed, homogeneous and moderate.


SPECIFICATIONS

  • Output voltage at 1 kHz 5 cm/sec - 0.45 mV
  • Frequency response 20 Hz - 20 kHz - +3/-1
  • Tracking ability at 315 Hz at recommended tracking force *) - 70 μm
  • Compliance, dynamic, lateral - 12 μm/mN
  • Stylus type - Nude Fine Line on Alu cantilever
  • Stylus tip radius - r/R 8/40 μm
  • Tracking force range - 2.2-2.7 g (22-27 mN)
  • Tracking force recommended - 2.5 g (25 mN)
  • Tracking angle - 20º
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - 50-500 Ohm
  • Cartridge body material - Stainless steel Aluminum
  • Cartridge color - Natural/Black
  • Cartridge weight - 10.7 g

INSTRUCTIONS

User Manual (EN).
