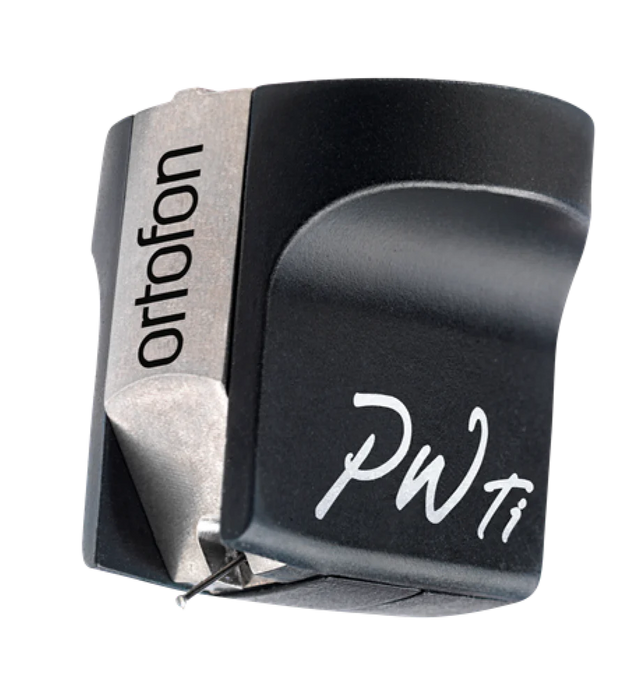

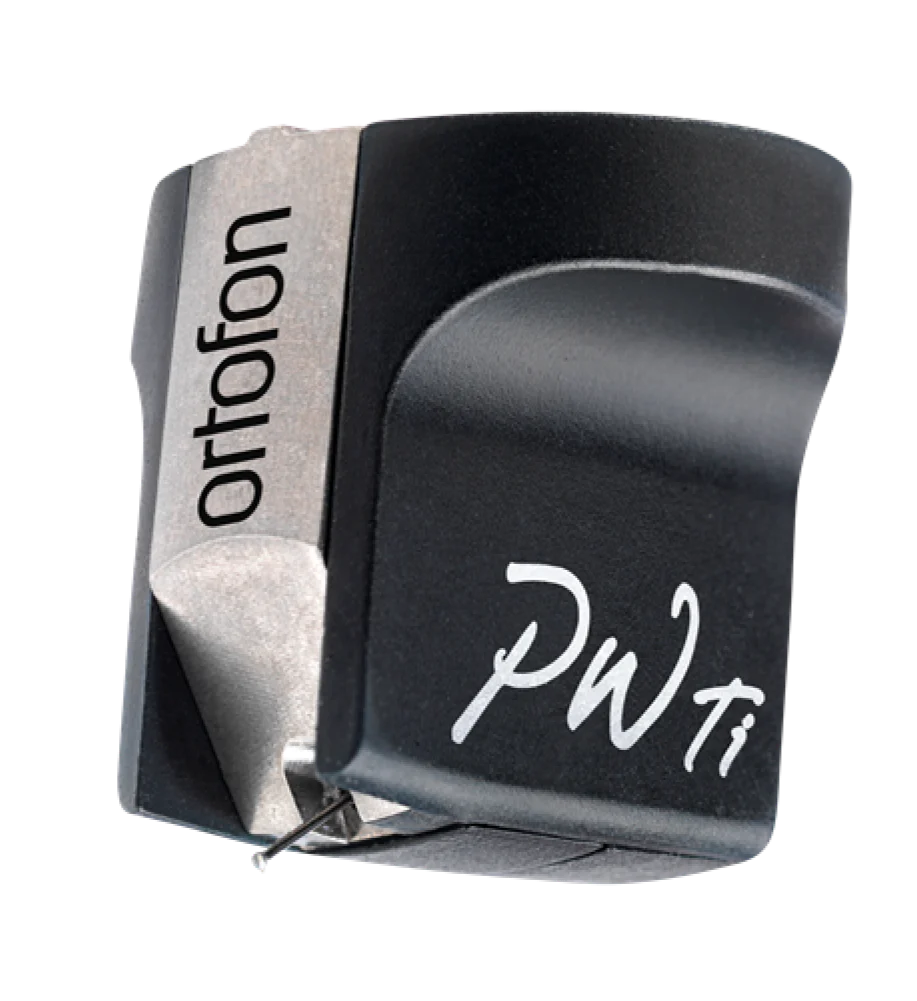

Ortofon MC Windfeld Ti turntable head

Our extensive knowledge of vibration properties, characteristics in various shapes and materials, expertise in magnetism, mechanical design and new technologies have been used to optimize the MC Windfeld model.
5 499,00 €

Ortofon MC Windfeld Ti turntable head - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

  • Free delivery in Lithuania from 100 €: courier or parcel locker
  • Pick up at our showroom in Kaunas, Armatūrininkų g. 1
  • Pay in instalments available
  • 14-day returns
Questions about this product? +370 683 90000 Write to us

▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.

Delivery

In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.

Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.

Pick up in store

You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.

We recommend calling before you arrive: +370 683 90000

Opening hours: Mon-Fri 9:00-18:00

View allTurntable heads.

INFORMATION

  • Stylus type: Special polished Nude Ortofon Replicant 100 on Diamond cantilever.
  • Frequency range: 20 Hz - 20 kHz +2 dB/- 1 dB.
  • The case is made of: SLM Titanium and stainless steel.

DESCRIPTION

Unsurpassed analog reproduction

Accuracy level

Our extensive knowledge of vibration properties, characteristics in different shapes and materials, competencies in magnetism, mechanical design, and new technologies has been applied for optimization of the MC Windfeld model.

When combined with Ortofon's world-class knowledge in analog sound reproduction, the MC Windfeld Ti will undoubtedly provide sound which is literally unsurpassed and simply has to be experienced.



Ortofon Replicant 100

Stylus

Another precondition for linear reproduction with a wide frequency range and optimal tracking performance is a diamond - the shape of which is as close as possible to the original cutting stylus.

As featured in the entire Exclusive Series, the MC Windfeld Ti makes use of Ortofon's Replicant 100 diamond, known for its thin and light profile and extraordinarily large vertical contact surface. Since the Replicant 100 is closest to the shape of the cutting stylus, it can trace with accuracy unparalleled by any other stylus in existence. Special polishing of the diamond along with the use of a Boron cantilever offers remarkable transparency, speed, and responsiveness beyond that of any other combination.

Benefits of high-end materials

Cartridge body


The SLM technology and high precision process eschews traditional techniques: considered an engineering breakthrough, the SLM process welds fine particles of Titanium together, layer-by-layer, to construct a single piece body devoid of extraneous material. This technique allows for precise control of the density of the body material, allowing for extremely high internal damping.

The final result provides freedom over vibrations within the cartridge body material. The use of Titanium in the MC Windfeld Ti has provided a further improvement to the overall rigidity of the structure, the cartridge weight and its dynamic capability.




Zero-loss transmission

Boron cantilever

Using Ortofon's Aucurum coils of gold-plated, 6NX oxygen-free copper allows for zero-loss transmission of the diamond's movements via its Boron cantilever. This combination, which has also been employed for use in the MC Windfeld, MC A90, and MC A95 cartridges, combines low moving mass with an extremely high degree of rigidity.



Special designed armature

Magnetic system

The magnet system is based on an extremely strong, compact neodymium magnet, which makes the generator system both compact and lighter through its minimal dimensions.

Inspired by the elements of MC A95 design, the MC Windfeld Ti makes use of a specially designed armature comprised of a metal alloy which is less magnetic than normal iron. This provides a noteworthy benefit to the dynamic capabilities of the cartridge. The reason for this is that our high-tech armature has almost no influence on the magnetic field during movement. Hence, when combined with the Aucurum coils of gold-plated 6NX oxygen-free copper, it delivers perfect reproduction of the cantilever movements without compromise.

Any trace of remaining magnetic influences that would create distortion is prevented by the use of a Field Stabilizing Element (FSE) - a small cylinder of conductive material strategically placed inside the magnet system, which guarantees that the force field remains stable regardless of the movement of the armature. FSE improves the channel separation, while at the same time minimizing dynamic distortion and intermodulation.

Increased dynamics

Rubber suspension


One of the important components is Ortofon's patented Wide Range Damping system (WRD), in which a small, heavy platinum disc is sandwiched between two rubber absorbers, both with different properties. This ensures not only an exceptional tracking performance but also creates a perfect damping through the entire frequency range. Because of this, distortion and resonance are virtually eliminated.

The Wide Range Damping system enables MC Windfeld Ti to achieve the most linear frequency response and the highest upper frequency limit ever, which at the same time tracks a fantastic 90 μm at a vertical tracking force of 2.3 grams. The result is increased dynamics, resolution, and richness in detail.

TECHNICAL DATA

SPECIFICATIONS

  • Channel balance at 1 kHz
    0.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    0.2 mV
  • Channel separation at 1 kHz
    25 dB
  • Channel separation at 15 kHz
    20 dB
  • Frequency response 20 Hz - 20 kHz
    +2 dB/- 1 dB
  • Tracking ability at 315Hz at recommended tracking force
    90 μm
  • Compliance, dynamic, lateral
    13 μm/mN
  • Stylus type
    Special polished Nude Ortofon Replicant 100 on Diamond cantilever
  • Stylus tip radius
    r/R 5/100 μm
  • Tracking force range
    2.0-2.5 g
  • Tracking force, recommended
    2.3 g
  • Tracking angle
    23°
  • Internal impedance, DC resistance
    6Ω
  • Recommended load impedance
    > 10 Ohms
  • Coil wire material
    Aucurum
  • Cartridge body material
    SLM Titanium and Stainless Steel
  • Cartridge colour
    Titanium/Black
  • Cartridge weight
    11 g
