Ortofon

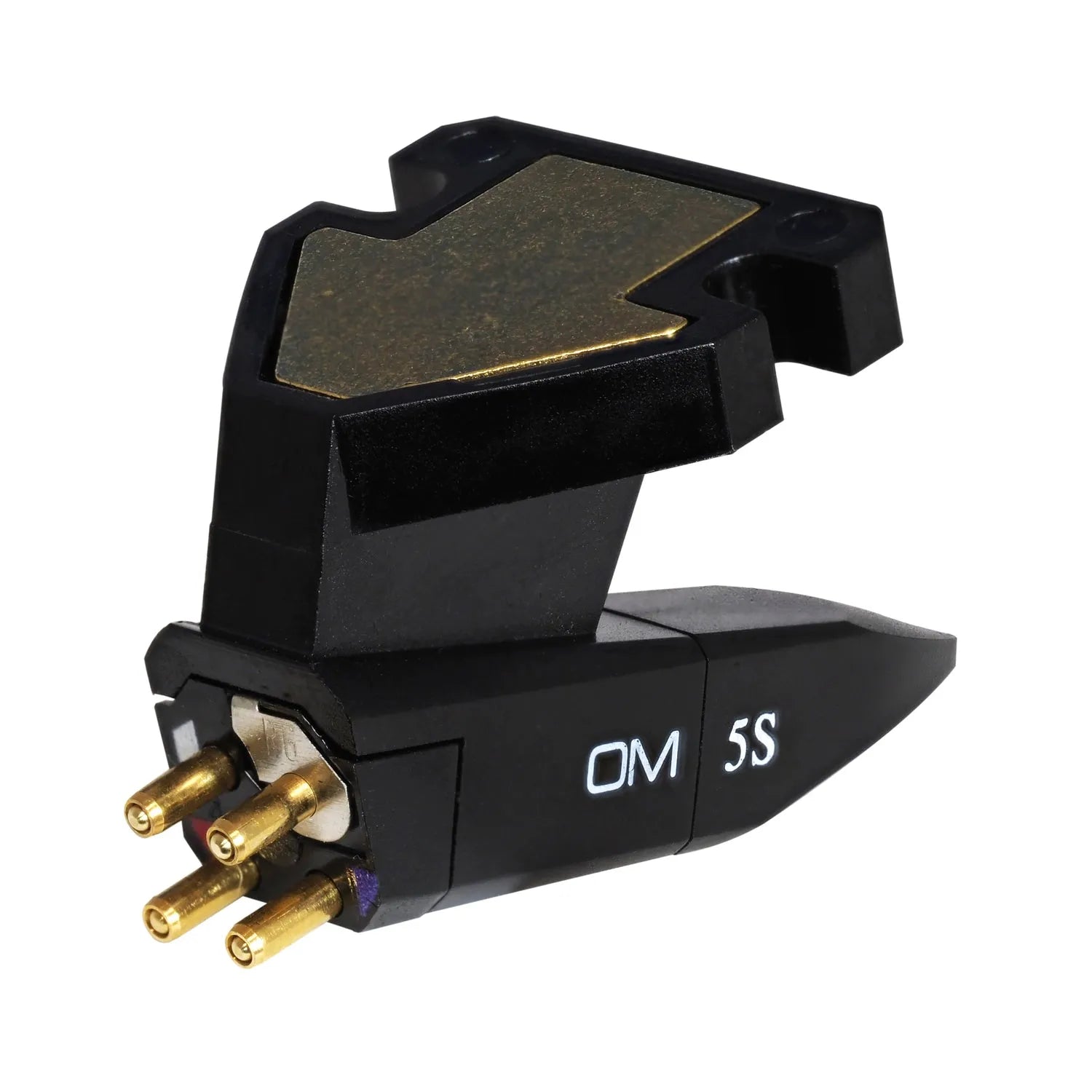

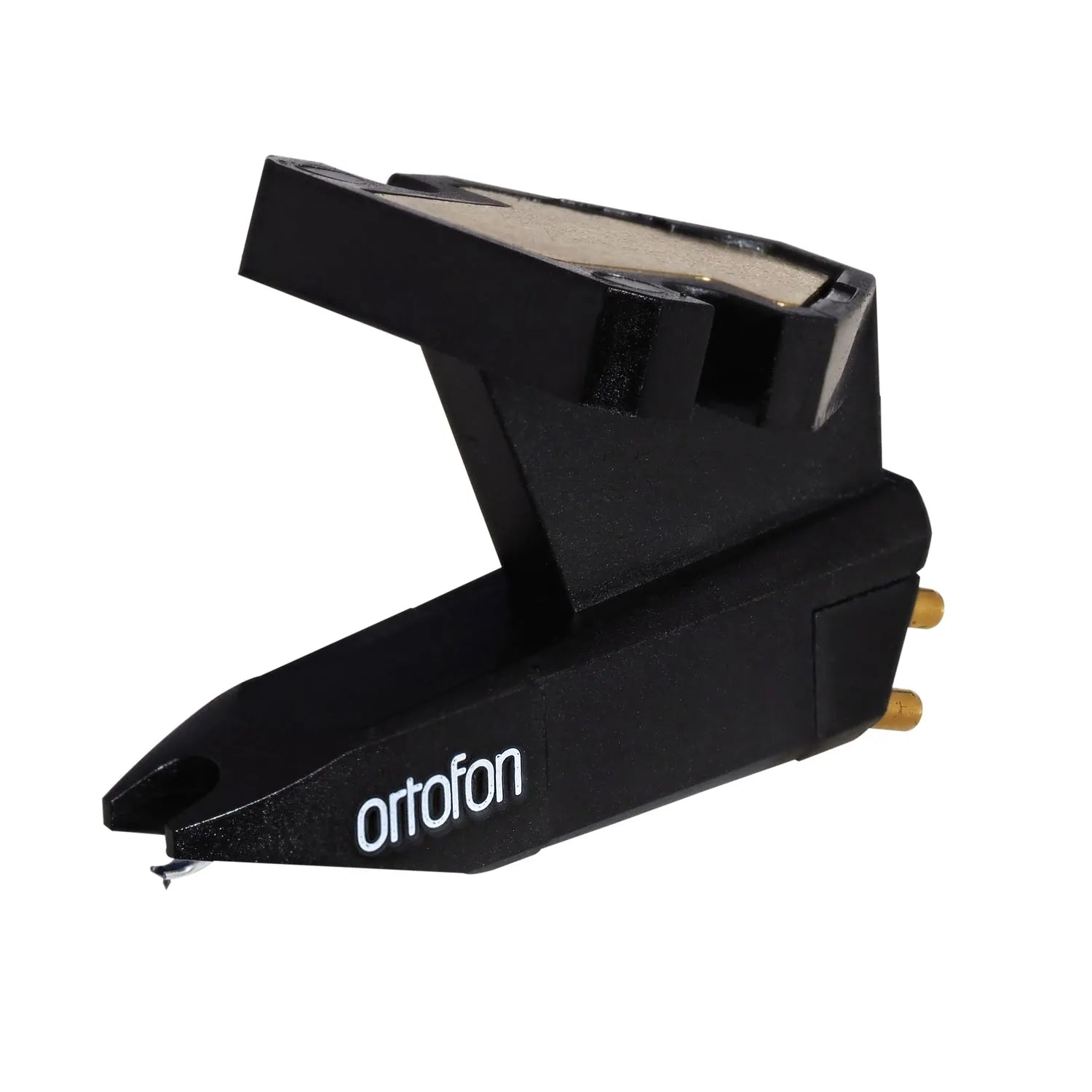

Ortofon OM 5S, turntable head

The OM 5S features a spherical stylus, making it a robust and cost-effective solution for playing vinyl records.

€49.00 EUR

Ortofon OM 5S, turntable head - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Stylus type: Spherical .
  • Frequency band: 20 Hz - 20 kHz.
  • Tracking force: 1.5-2.0 g (15-20 mN).

DESCRIPTION

A great match for your home system

Stylish types and interchangeability

By adopting a wide range of replacement styles, the OM 5 Series can provide an optimum match for your home system, application, and budget.

Ortofon OM 5S, turntable head

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

Depending on your preference, styles for the OM 5 Series are easily interchanged and include : styles 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.


The OM 5 Series


The Ortofon OM 5 series encompasses three basic cartridges : OM 5S, OM 5E and Super OM 5E.

  • The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
  • The OM cartridge bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The Super OM 5E major improvements:

  1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation, and reduced distortion.
  2. OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.
  3. The OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound), which ensures high rigidity and freedom from resonances.

TECHNICAL DATA

SPECIFICATIONS

  • Channel balance at 1 kHz
    2 dB
  • Output voltage at 1 kHz, 5cm/sec
    4.5 mV
  • Channel separation at 1 kHz
    20 dB
  • Channel separation at 15 kHz
    12 dB
  • Frequency response 20 Hz - 20 kHz
    20-20,000 Hz
  • Tracking ability at 315Hz at recommended tracking force
    60 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Stylus type
    Spherical
  • Stylus tip radius
    R 18 µm
  • Tracking force range
    1.5-2.0 g (15-20 mN)
  • Tracking force, recommended
    1.75 g (17.5 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    750 Ohms
  • Cartridge colour
    Black/Black
  • Cartridge weight
    incl. extra weight 5 g, excl. extra weight 2.5 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    450 mH
  • Recommended load capacitance
    200-500 pF

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
