INFORMACIJA

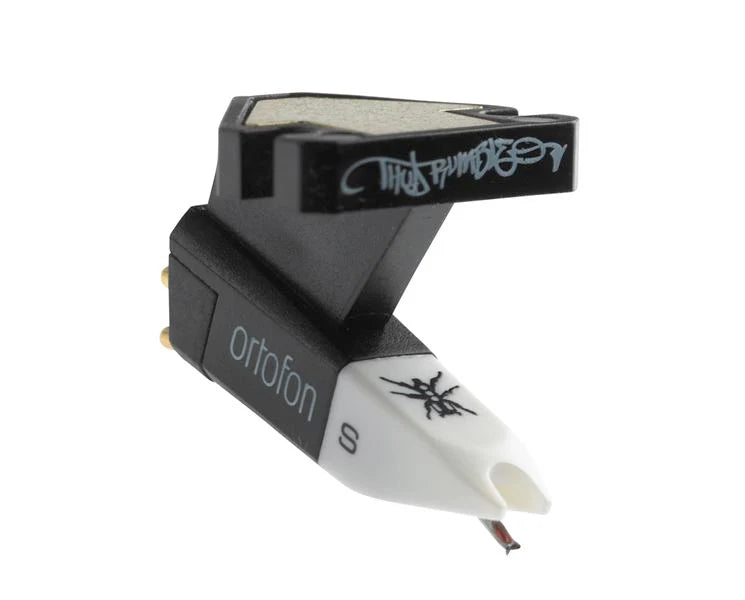

.Bert is a professional DJ cartridge designed with scratching and back-cueing in mind. This cartridge features unrivaled groove tracking, an extremely powerful signal, and optimized sound balance. The OM Q.Bert features reduced high-frequency intensity, which reduces noise on worn records, and an enhanced midrange, which allows scratch sounds to stand out in the soundstage.

DESCRIPTION

• Extremely powerful signal: 11 mV output voltage ensures exceptional sound strength.
• Unparalleled tracking: 90 μm tracking capability ensures smooth and accurate tracking of wafer grooves.
• Low wear: Special design protects the plate and stylus from excessive wear.
• Balanced sound: Reduced high frequencies and boosted mids are perfect for scratch sound.

TECHNICAL DATA

• Channel balance (1 kHz): 1.5 dB
• Output voltage (1 kHz, 5 cm/s): 11 mV
• Tracking capability (315 Hz): 90 μm
• Compliance (dynamic, lateral): 12 μm/mN
• Stylus type: Spherical (R 18 μm)
• Recommended tracking force: 3g (range: 2-4g)
• Angle: 20°
• Internal resistance: 1.680 Ω
• Internal inductance: 920 mH
• Recommended load resistance: 47 kΩ
• Recommended capacitance: 200–400 pF
• Head weight: 5 g
• Replaceable stylus: Stylus Q.Bert
