Ortofon

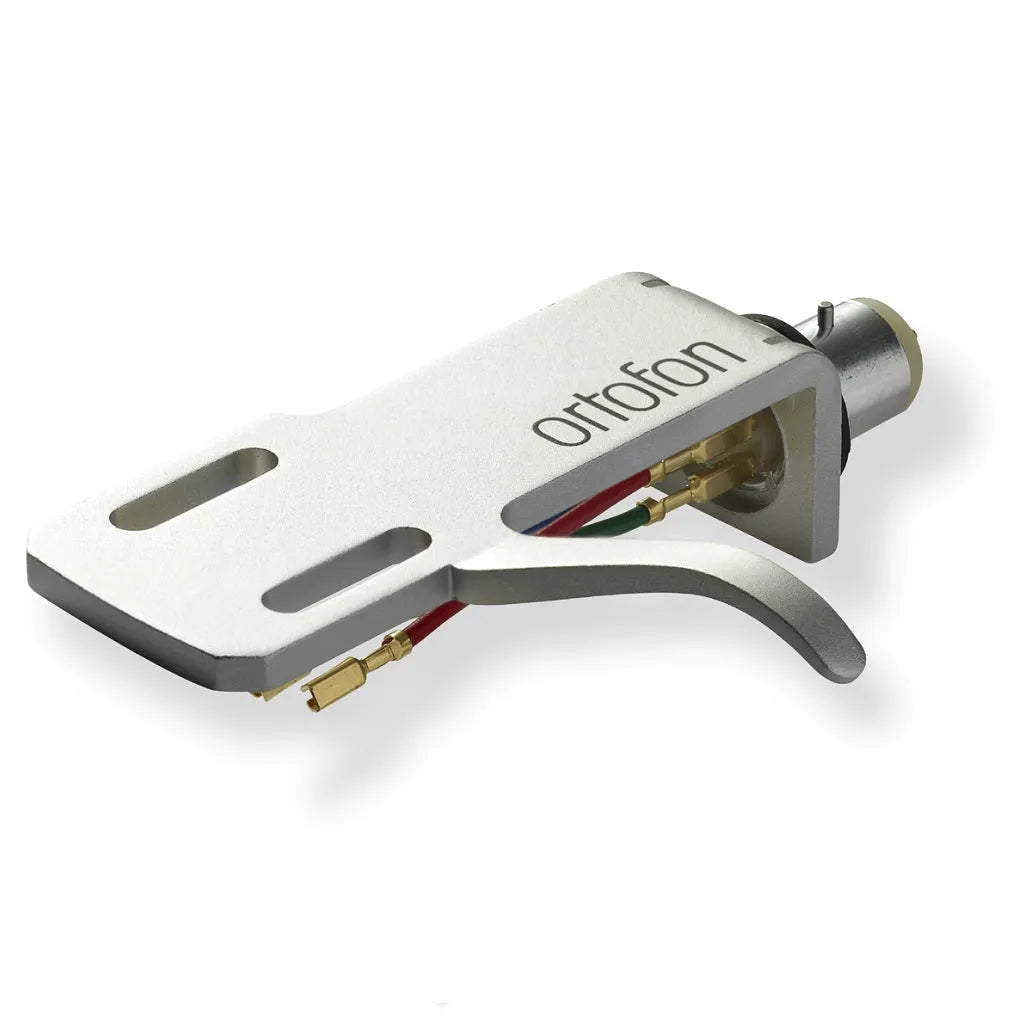

Ortofon SH-4 Silver, HEADSHELL holder for turntable cartridges

The SH-4 Silver is the ultimate high-quality headphone enclosure designed specifically for HiFi devices.

€49.00 EUR

Ortofon SH-4 Silver, HEADSHELL holder for turntable cartridges - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.


TECHNICAL DATA

SPECIFICATIONS

Features and technical data

  • Universal mount
  • Japanese oak tree with Urushi lacquer finish
  • Weight without screws - 8.5 grams
  • Mounting distance min. - 33.0 mm
  • Mounting distance max. - 42.2 mm
  • Headshell length - 50.3 mm
  • Headshell width - 18.8 mm

A - Headshell length

B - Headshell width

C - Mounting distance max.

D - Mounting distance min.

E - Screw diameter max.

HEADSHELL MODEL A
Headshell length
 		B
Headshell width
 		C
Mounting distance max.
 		D
Mounting distance min.
 		E
Screw diameter max.
SH-4 51.5 mm 20.0 mm 45.4 mm 36.4 mm 3.0 mm
LH-2000 50.3 mm 20.0 mm 43.4 mm 35.3 mm N/A
LH-4000 51.9 mm 19.1 mm 45.6 mm 39.5 mm N/A
LH-6000 47.5 mm 19.1 mm 42.4 mm 36.6 mm N/A
LH-8000 50.3 mm 18.8 mm 42.2 mm 33.0 mm N/A
LH-9000 52.0 mm 20.0 mm 44.9 mm 38.1 mm N/A
LH-10000 50.0 mm 19.4 mm 42.4 mm 42.4 mm 2.7 mm
