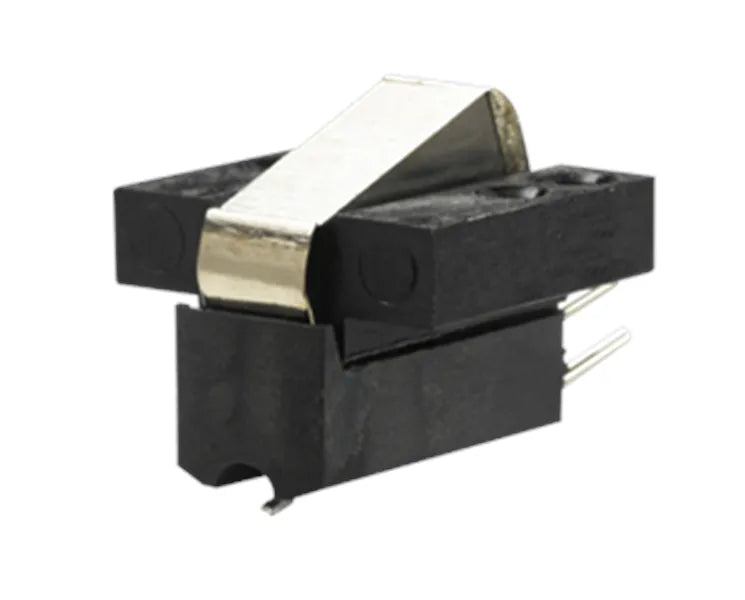

Ortofon SPU Classic NE, turntable head

The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical profile stylus that provides more detailed sound reproduction.
€1,099.00 EUR

Ortofon SPU Classic NE, turntable head - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Frequency range - 20-20,000 Hz + 1.5/- 0 dB.
  • Stylus type- Nude Elliptical.
  • The recommended tracking force is 3.0-5.0 g (30-50 mN).
  • Tracking angle - 20°.

DESCRIPTION

The SPU Classic NE is sold without the integrated headshell unit.
The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.
Listeners who wish to mount the SPU Classic NE on a traditional headshell may do so by using the SPU N adaptor.
Those with vintage SPU-type headshells can use the Classic NE to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.

TECHNICAL DATA

SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
  • Channel balance at 1 kHz < 1 dB
  • Channel separation at 1 kHz > 20 dB
  • Channel separation at 15 kHz > 10 dB
  • Frequency response - 20-20,000 Hz + 3/- 2 dB
  • Tracking ability at 315Hz at recommended tracking force *) - 60 µm
  • Compliance, dynamic, lateral - 8 µm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 3.0-5.0 g (30-50 mN)
  • Tracking force, recommended - 4.0 g (40 mN)
  • Tracking angle - 20°
  • *) Typical value
  • Internal impedance, DC resistance - 2.0 ohm
  • Recommended load impedance > 10 ohm
  • Coilwire material - High Purity Copper (OFC)
  • Cartridge color - Black matte
  • Cartridge weight - 13 g

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
