Ortofon

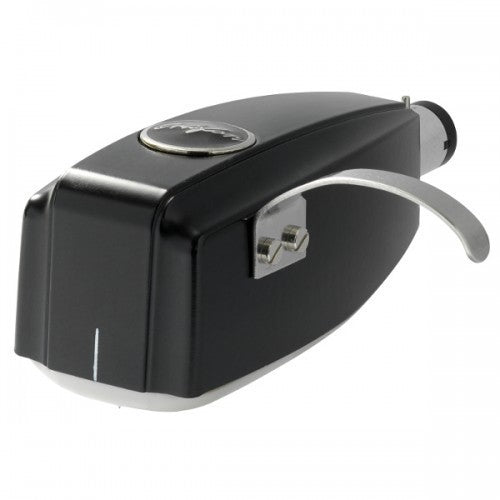

Ortofon SPU Mono CG 25 DI MKII, turntable cartridge

This cartridge has an output current of 1.
€1,099.00 EUR

Ortofon SPU Mono CG 25 DI MKII, turntable cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.5 mV, so it can be used with a variety of medium power moving coil transformers. The Ortofon ST-M25 moving coil transformer is for the SPU Mono CG 25 Di MkII only.

  • Frequency range - 20-15,000 Hz + 3/- 1 dB .
  • Stylus type: Spherical .
  • The recommended tracking force is 4.0-5.0 g (40-50 mN) .
  • Tracking angle - 20°.

DESCRIPTION

The SPU Mono CG 25 Di MkII is for the playback of early 25 µm mono recordings.

The Mono CG 25 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile, for the playback of early 25 µm mono recordings. The CG 25 Di MkII provides an authentic method of playing back these early vinyl recordings with a remarkable level of sonic accuracy.
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers. Ortofon ST-M25 moving coil transformer is designed exclusively for the SPU Mono CG 25 Di MkII.

TECHNICAL DATA

SPECIFICATIONS

  • Output voltage at 1000 Hz, 5cm/sec. - 1.5 mV
  • Frequency response - 20-15,000 Hz + 3/- 1 dB
  • Tracking ability at 315Hz at recommended tracking force *) > 60 µm
  • Compliance, dynamic, lateral - 7 µm/mN
  • Stylus type - Spherical
  • Stylus tip radius - R 25 µm
  • Tracking force range - 3.0-4.0 g (30-40 mN)
  • Tracking force, recommended - 3.5 g (35 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 6 ohm
  • Recommended load impedance > 100 ohm
  • *) Typical value
  • Cartridge body material - Ground wood and resin composite
  • Coilwire material - High Purity Copper (OFC)
  • Cartridge color - Black matte
  • Cartridge weight - 35 g

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
